30T Containerized flake ice making plant for concrete cooling

Product Overview

Description

Application:

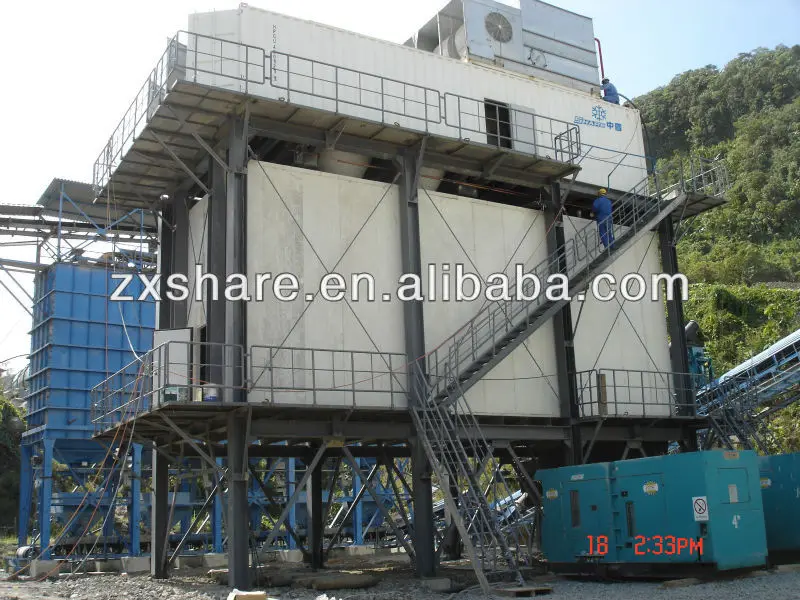

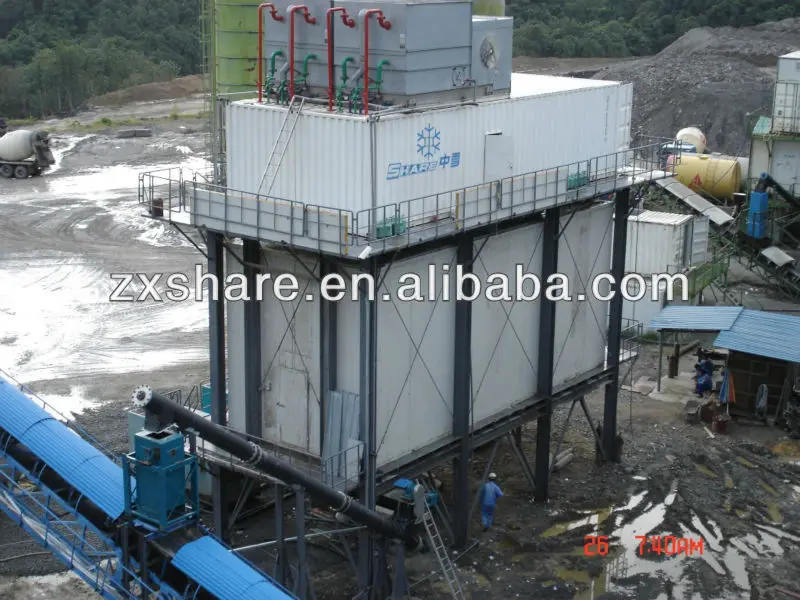

SHARE containerized ice-making plant is mainly designed and produced for large-scale hydropower stations, high-speed railways, nuclear power plants and other large-scale concrete pouring program which need a large amount of ice.

About SHARE ice flake making plant
SHARE has the answer for customers who need ice plants that are easy to install and can be moved from place to place a popular SHARE ice system installed in 40-foot cargo containers.SHARE containerized ice-making plant mainly includes: containerized ice-making unit, containerized storage, automatic ice rake institutions system, automatic ice translation system, automatic control systems, metering systems. An additional pre-cooling system of aggregate maybe need to added according to the project.

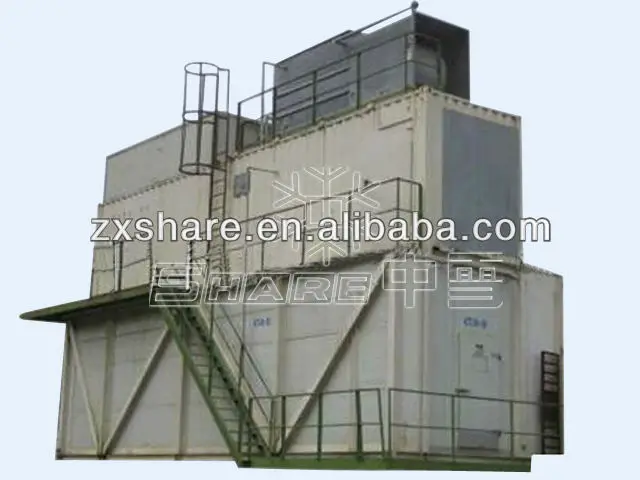

SHARE containerized ice-making plant integrates ice-making container units and electrical control system into a unified international standard-size container which is easy for transportation, installation and commissioning. Air-conditioning system inside of the container ensures equipment in good working condition and maintenance condition.



Generally,a 40 feet standard container can make a flake ice machine with maximum capacity of 60T/Day. The container is brand new and consists of two sizes,20 feet or 40 feet. All our containers comply with the ISO standard.



SHARE containerized ice-making system’s advantages:

1. Using screw or piston compressor, water cooling tower or evaporative condenser.
2. Using fully automated monitoring system, remote control system and dynamic touch-screen control system.
3. Crawler-type ice raking system, screw delivery system or air delivery system achieve fully automated ice delivery.
4. The main structure is rust-proof galvanized steel and stainless steel, all the axle lubricant FAD and USDA accord with sanitary standard.

5. Screw ice delivery system is able to achieve multi-point operation at the same time.





Model		ZFCT-20T	ZFCT-30T	ZFCT-40T	ZFCT-50T	ZFCT-60T	ZFCT-80T
Output(Ton/24hrs)		20	30	40	50	60	80
Cooling capacity (KW)		118	200	236	320	354	472
Type of container		20’	40’	40’	40’	40’	40’
Dimension of container (mm)	L	6100	12200	12200	12200	12200	12200
	W	2440	2440	2440	2440	2440	2440
	H	2590	2590	2590	2590	2590	2590
