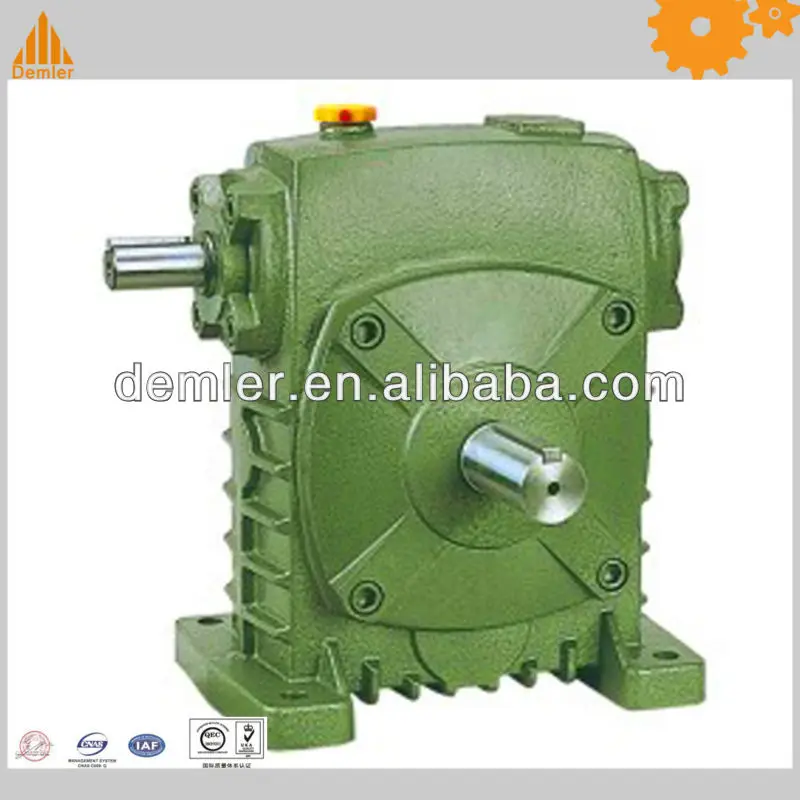

WPS Worm gear reducer

Product Overview

Description

1. WP worm gear speed reducer -WPS



Features:

(1) With excellent quality

(2) Resonable price

(3) Promise to delivery on time

(4) Speed ratio: 5/10/15/20/25/30/40/60/80



Characteristics:

(1)Large output torque

(2) Safe, reliable, economical and durable

(3) Stable transmission, quiet operation

(4)High heat-radiating efficiency, high carrying ability (

5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio



Technical date:

(1) Input power:0.06kw-15kw

(2) Output torque:4-2320N.M

(3) Speed ratio: 5/10/15/20/25/30/40/50/60/80/100

(4) With IEC input flange: 56B14/71B14/80B5/90B5…



Materials:

 (1) Gear is copper and steel, shaft is made of steel

(2) House: Cast iron

(3) Bearing: NSK bearing &  R&B;Homemade bearing

(4) Lubricant: Synthetic & Mineral



Quality control

(1) Quality guarantee: 1 year

(2) Certificate of quality: ISO9001:2000

(3) Every product must be tested before sending



2. WPA wrm gear - Product structural drawing

3.Model and structural table

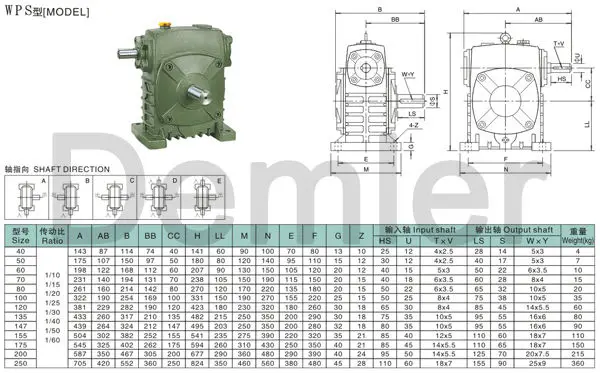

4.Dimensions of outline installation WPS





5.Methods for model chosen



6.Parameter for model chose

Please click the link://pan.baidu.com/share/link?shareid=2126661452&uk=4278477618











7.Operation installation







8.Lubricant







9.Malfunctions analysis

10.Packing

11. Shipment
