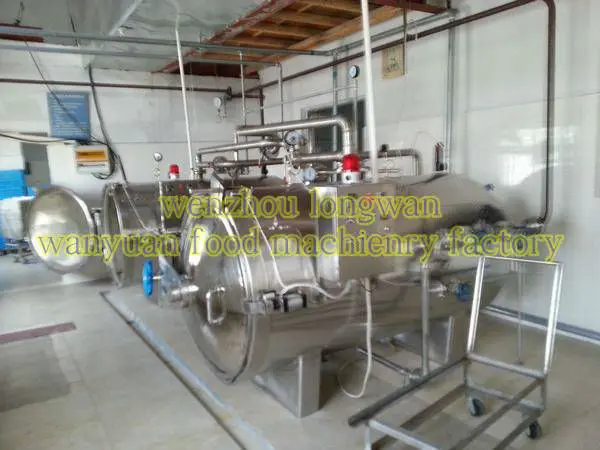

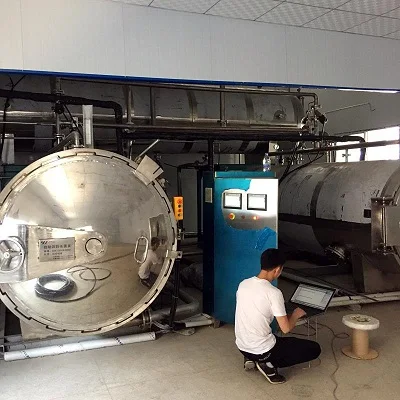

water spray sterilizer steam spray sterilizer retort

Model

GT7CW720

GT7CW1200

GT7CW2000

GT7CW2400

production capacity

(cans/batch)

720

1200

2000

2400

Pot body size(mm)

Φ900*1500

Φ1100*2000

Φ1200*3000

Φ1200*3500

volume (m3)

1.1

2.2

3.9

4.5

design temperature(0C)

143 0C

operating temperature(0C)

≤138 0C

design pressure(Mpa)

0.3MPa

working pressure(Mpa)

steam≤0.25Mpa  electrical heating≤0.16Mpa

working medium

Salt, water, steam, compressed air

The main pressure parts material

SS303 / SS316 / carbon steel Q235-A

welding coefficient

0.7

corrosion allowance

1mm

Steam inlet diameter

DN40-50

Exhaust diameter

DN32-40

Cool and hot water Connection pipe diameter

DN40-50

Overflow pipe diameter

DN25-50

Water outlet Pipe diameter

DN40-50

Safe valve diameter(mm)

DN25-50

Compressed air diameter(mm)

DN15-20

Adjust mouth diameter(mm)

DN25-40

Steel Thickness (mm)

6(thickness can be adjust according to request)

Total Weight (kg)

700

982

1302

1391

overall dimension

mm(L×H×W)

2000*1450*1232

2520*1600*1440

3550*1750*1550

4050*1750*1550
