PL N Roll to Roll Fabric Winding machine fabric inspection machine and testing machine

Product Overview

Description

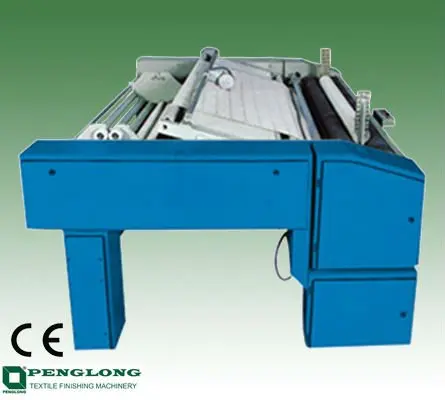

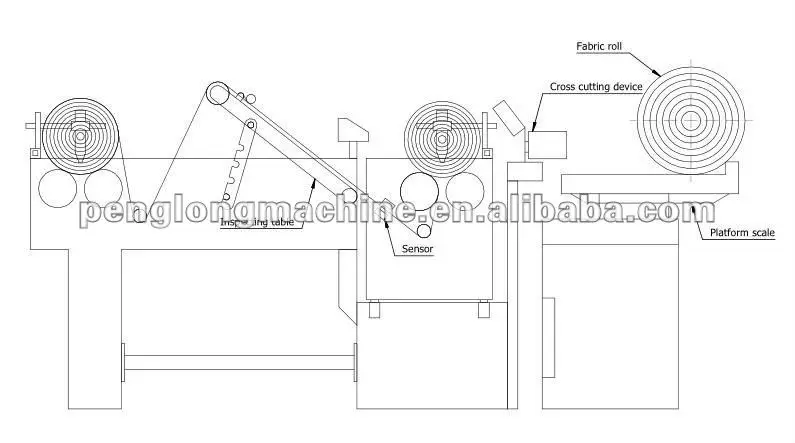

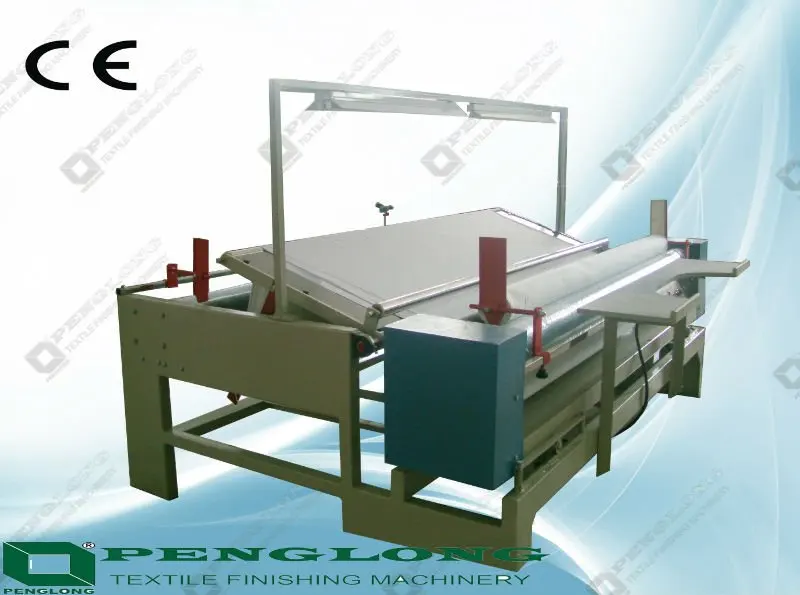

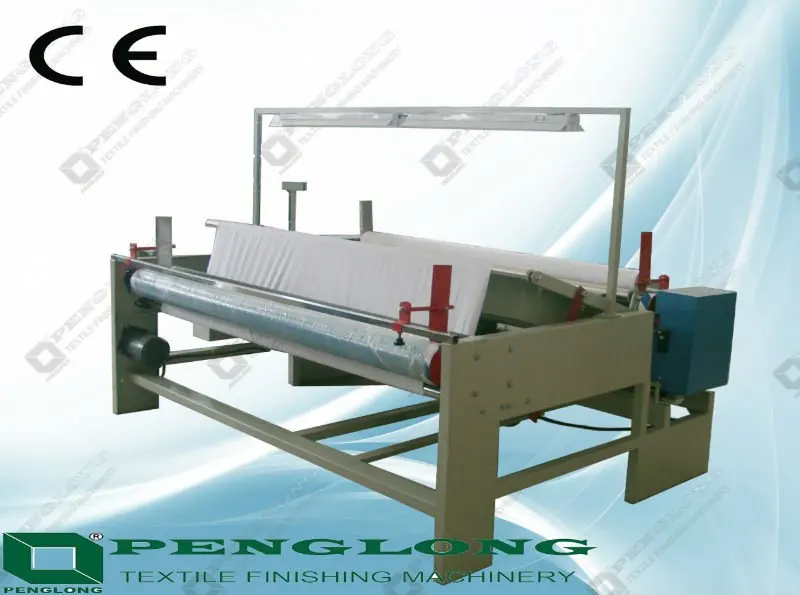

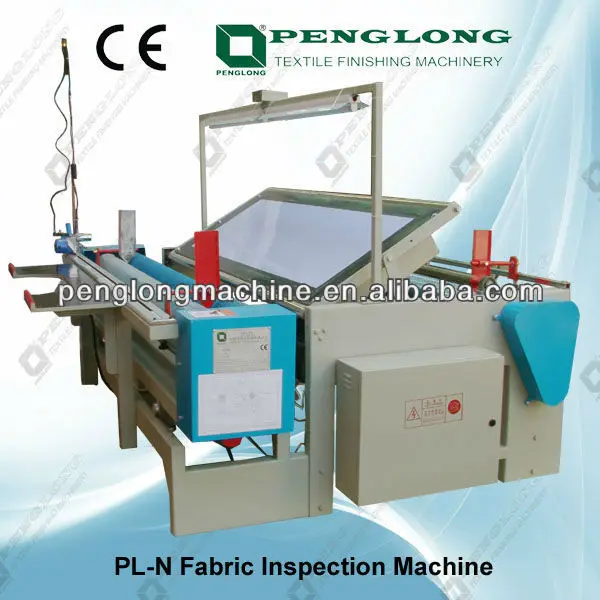

PL-N Roll to Roll Fabric Winding-looking Machine

Fabric Inspection Machine, Rolling Machine, Winding Machine, textile machine









Usage:

This unit of  PL-N Roll to Roll Fabric Winding-looking Machine is suitable for inspecting and rolling up knitting, tatting and woven fabrics etc.





Characteristics :

1. Fabric tension is adjustable in accordance wiht the users' needs.

2. Inspecting board could be inclined or laid horizontally.

3. Photoelectric hydraulic edge-alignment system made in Taiwan is adopted.

4. CE approved



Technical Parameters:

Max. Fabric Width	1800mm~2800 mm
Inspection and rolling speed	10~80m/min
Diameter of Winding Cloth	600 mm
Edge-aligning Tolerance	3mm
Measurement Tolerance	0.5%
Main Motors	1HP×2
Power Supply	380V/50Hz
Dimensions	1800mm(L) ×2300mm(W) ×1300mm(H)



Three ways of package for choice:



1. Bubble Wrapping--For Free



2. Wooden Pallet--Additional Charge of USD250



3. Wooden Case--Additonal Charge of USD500



 Engineers are available to service machinery oversea.



Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.

Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.

We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.

PS:
Main Conventional Products:
1.Fabric inpection machine series :
We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.

2.Fabric Plaiting Machine Series:
We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800

3.Fabric Opening Machine Series:
These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine

4.Other Finishing Machine Series:
Fabric Edge Sewing Machine,Fabric folding Machine,Packing Machine,Shearing Machine,Raising Machine,Softening Machine,pl-2000 Automatic Centering Machine.

5.Other Machine Series:
Industrial Drying Tumbler Series,Auto-inverter Centrifugal Hydro Extractor,Swatch Cutter,Motors,Inverters,Hydraulic Parts and spare parts.



Welcome to enquiry about our PL-N Roll to Roll Fabric Winding-looking Machine!
