Professional Large Diameter Steel Pipe Making Machine
- Category: >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (1239698272):
Product Overview
Description
Product Description
Professional Large Diameter Steel Pipe Making Machine
This set equipment is the most economical configuration,with high efficiency and reliable quality,they can let users make raw materials to rough poles without cooperation.
Lamp production line equipment(in process)compenent:
1.ZDW43J-6*1800 simple processing line.
2.ZQ11-6*2400*14000 steel plates diagonally shearing production line.
3.BTSZ-3000/14000 CNC Flame Cutting Machine
4.2-WE67Y-600/7000 tandem press brake (for the street poles and high mass poles)
5.LMHZ-2500-14000 Gantry Large Diameter Submerged Arc Welding Production Line
6.W31Y-1000*14 steel straightened machine.
7.WG100*4 tube bending machine.
8.ZDMJ-350*14000 automatic grinding machine
9.ZJP-14000 electrostatic spraying prodcution line
The above equipment can order according to your euqipment and producing.don’t buy cause waste.please consult to us if you don’t understand.we can be your best staff officer with sincere heart.insure of your mistake buying.we will do our best to let your mak the best use.
Processing flow:
1. coil feeding 2. coil processing 3. steel plates diagonally shear to trapezoidal type 4.bending materials transfer 5. plates
bending on press brake 6.transfer poles with seam to submerged arc welding production line 7. straighten steel poles 8.welding flanges and door lights 9.bending poles until forming 10. transfer galvanized 11.spraying (according to the request) 12. install the lights 13. delivery and installation
The area of workshop:it need about 60000*18000mm two to three rooms,without stacking area and welding area.we can design the plant according to the users actual sizes ,ensure the operating production line.it need the power with about 100 kilowatt.
1. Model: ZDW43J-6*1800 simple processing line.
1)Figure of the equipment
This set equipment is the most economical configuration,with high efficiency and reliable quality,they can let users make raw materials to rough poles without cooperation.
Lamp production line equipment(in process)compenent:
1.ZDW43J-6*1800 simple processing line.
2.ZQ11-6*2400*14000 steel plates diagonally shearing production line.
3.BTSZ-3000/14000 CNC Flame Cutting Machine
4.2-WE67Y-600/7000 tandem press brake (for the street poles and high mass poles)
5.LMHZ-2500-14000 Gantry Large Diameter Submerged Arc Welding Production Line
6.W31Y-1000*14 steel straightened machine.
7.WG100*4 tube bending machine.
8.ZDMJ-350*14000 automatic grinding machine
9.ZJP-14000 electrostatic spraying prodcution line
The above equipment can order according to your euqipment and producing.don’t buy cause waste.please consult to us if you don’t understand.we can be your best staff officer with sincere heart.insure of your mistake buying.we will do our best to let your mak the best use.
Processing flow:
1. coil feeding 2. coil processing 3. steel plates diagonally shear to trapezoidal type 4.bending materials transfer 5. plates
bending on press brake 6.transfer poles with seam to submerged arc welding production line 7. straighten steel poles 8.welding flanges and door lights 9.bending poles until forming 10. transfer galvanized 11.spraying (according to the request) 12. install the lights 13. delivery and installation
The area of workshop:it need about 60000*18000mm two to three rooms,without stacking area and welding area.we can design the plant according to the users actual sizes ,ensure the operating production line.it need the power with about 100 kilowatt.

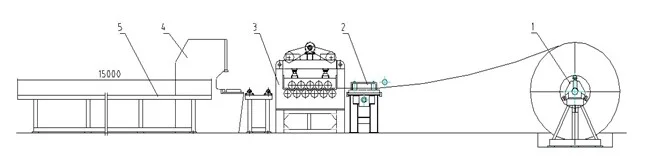

1. Model: ZDW43J-6*1800 simple processing line.
1)Figure of the equipment
2)Equipment combination.
1).decoiler---2.)side guiding unit---3).leveling machine---4).cutting machine---5).stack table---6).electric system
1).decoiler---2.)side guiding unit---3).leveling machine---4).cutting machine---5).stack table---6).electric system

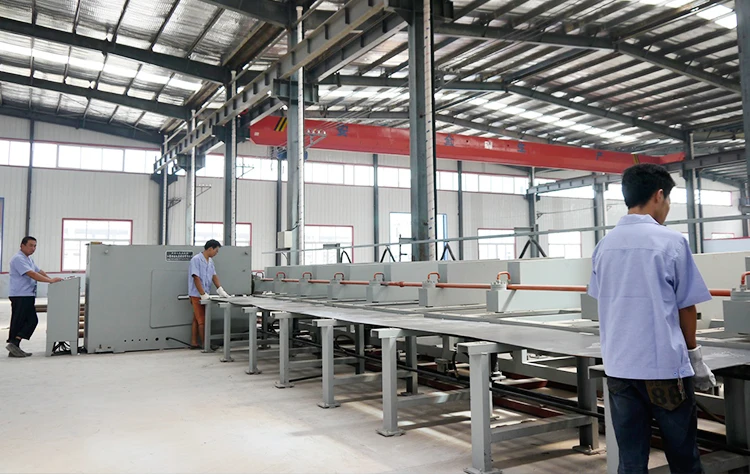

2.Model: ZQ11-6*2400*14000 steel plates diagonlly shearing pruduction line
1). Figure
1). Figure
2). Use:
This machine is suitable for the plate cutting processing specially the long plate. Easy of operating and processing of optional length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel,metal structure,ships,building,hardware and so on.

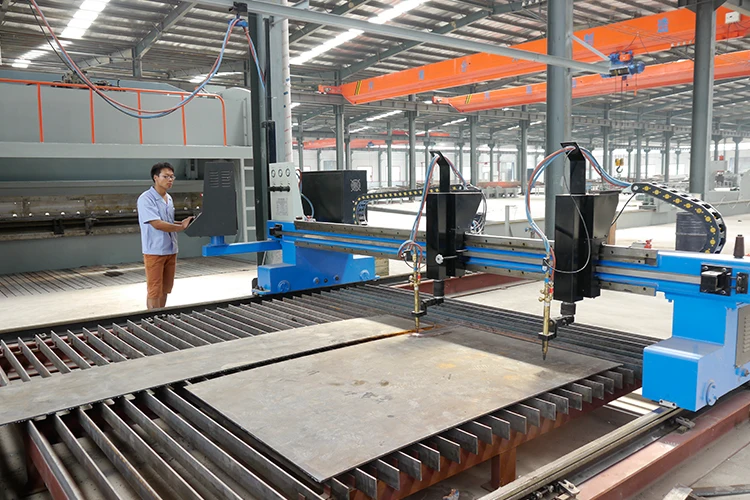

3. BTSZ-3000/14000 CNC Flame Cutting Machine
1). Figure
This machine is suitable for the plate cutting processing specially the long plate. Easy of operating and processing of optional length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel,metal structure,ships,building,hardware and so on.
3. BTSZ-3000/14000 CNC Flame Cutting Machine
1). Figure
2).Description of machine
This Equipment Can Adopt Plasma Or Gas To Cut The Plates.With Quick Speed.It Also Can Cut With More Head And Adopt Simple Computer Programming,Graphic Plate Can Be Cut Easily.Expecially For Electricity Pole Rod,Flanges And Other Parts To Be Cut.The Surface Is Smotth Without Secondary Metal Processing.It's The Good Equipment For Making Light Poles,Electric Power Pole And Signal Tower Pole.

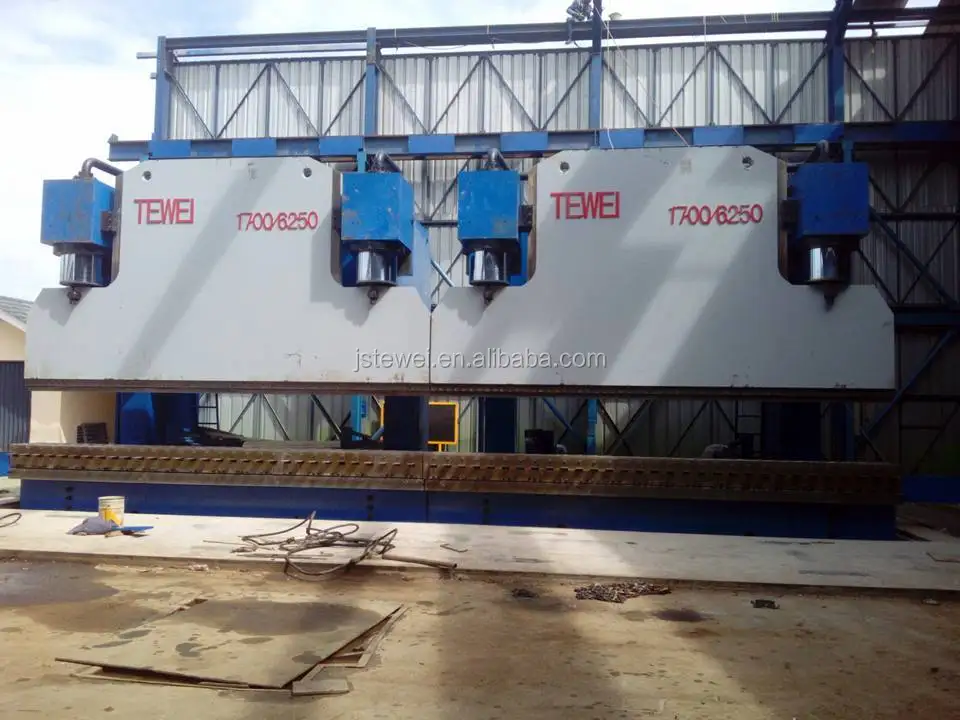

4. Model:2-WE67Y-800/7000 press brake(mechanical block cylinder)
1). Figure
This Equipment Can Adopt Plasma Or Gas To Cut The Plates.With Quick Speed.It Also Can Cut With More Head And Adopt Simple Computer Programming,Graphic Plate Can Be Cut Easily.Expecially For Electricity Pole Rod,Flanges And Other Parts To Be Cut.The Surface Is Smotth Without Secondary Metal Processing.It's The Good Equipment For Making Light Poles,Electric Power Pole And Signal Tower Pole.
4. Model:2-WE67Y-800/7000 press brake(mechanical block cylinder)
1). Figure
2).Description of machine
This machine was combined by two sets of 200 tons press brake.tandem achieve synchronization working.single machine was combined by worktable ram and right and left wall board.wall baord adopt assemble structure due to the transportation.the rack has enough rigidity.two cylinders install to the right and left wall board,under the effect of electric operation system,drive the slider running down.on slide there is upper dies,when upper and lower dies touch workpieces,system raise pressure,form the workpieces.use different dies,under different bending,can get the different types of workpieces.the quality is reliable and stable.

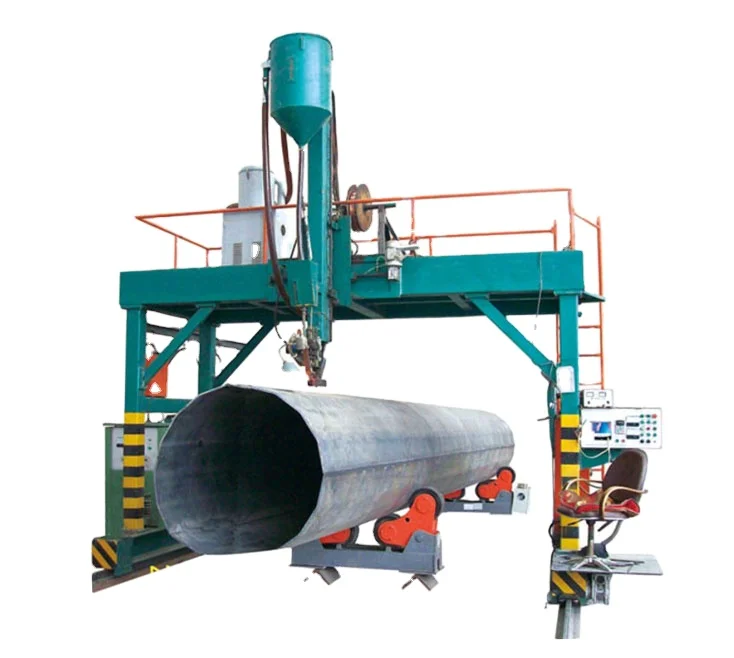

5. Model:LMHZ2000-12000 Large Diameter Pole Welding Machine
1). Figure
This machine was combined by two sets of 200 tons press brake.tandem achieve synchronization working.single machine was combined by worktable ram and right and left wall board.wall baord adopt assemble structure due to the transportation.the rack has enough rigidity.two cylinders install to the right and left wall board,under the effect of electric operation system,drive the slider running down.on slide there is upper dies,when upper and lower dies touch workpieces,system raise pressure,form the workpieces.use different dies,under different bending,can get the different types of workpieces.the quality is reliable and stable.
5. Model:LMHZ2000-12000 Large Diameter Pole Welding Machine
1). Figure
SN | Name | Value | Unit |
1 | Welding Length | 12 | M |
2 | Welding Thickness | 5～24 | MM |
3 | Welding Diameter | Ø300～Ø2000 | MM |
4 | Welding Current | 1000 | A |
5 | Welding Speed | 1～2 | M/MIN |
6 | Weight | 4550 | KG |
Description
The Machine Adopt Submerged Arc Welding, The Welding Power Is From Shanghai Welding Company, Automatic Recovered Flux. The Welding Is Continuous And Beautiful, Strong Penetration, Forming One Time, High Efficiency. The Speed Is 1-3m/Min, Is The Three Times To Gas Welding. It's The Best Machine With Fastest Welding Speed, Good Effect And Lowest Price.

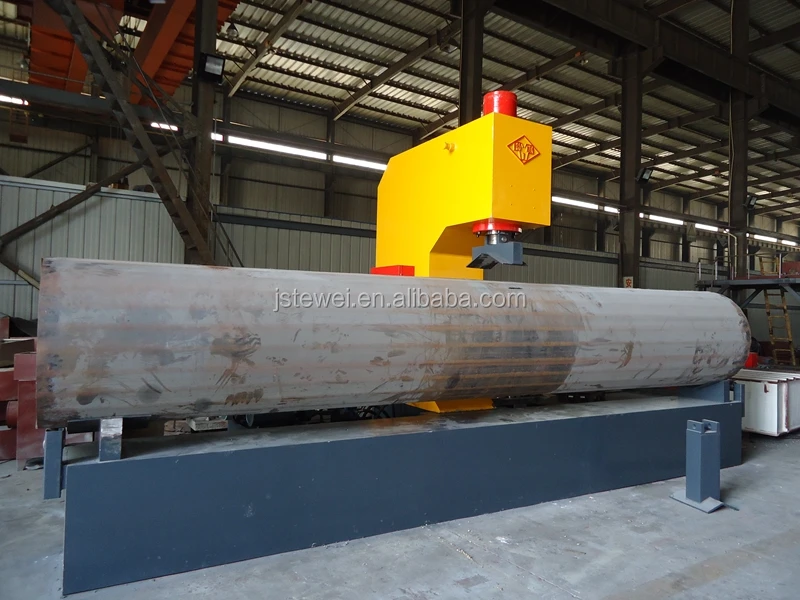

6.Model:W31Y-1000*14 steel straightened machine
1). Figure
1). Figure
2).Descroption
This machine with easy and compact structure, convenient and reliable.the time of putting steel pole to penetrator can be fit by workers.the workers hold the press-button press molding,the linearity was fit by eyes of the workers,it is with high efficiency.

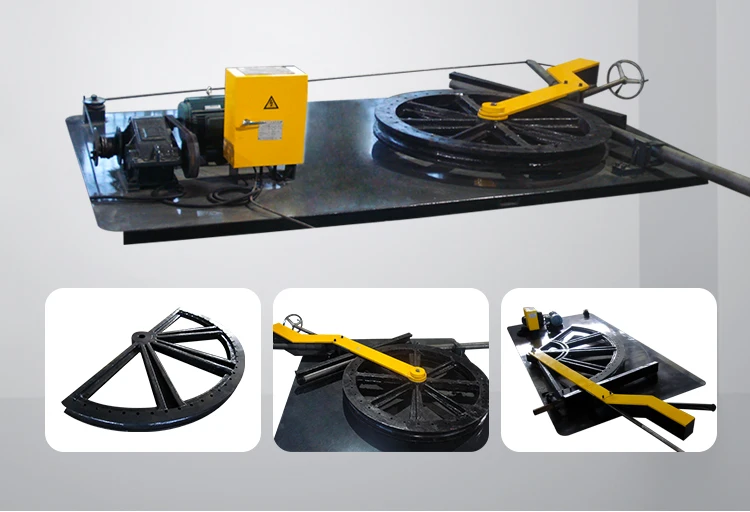

7.Model: WG100*4 tube bending machine
1)Photo
This machine with easy and compact structure, convenient and reliable.the time of putting steel pole to penetrator can be fit by workers.the workers hold the press-button press molding,the linearity was fit by eyes of the workers,it is with high efficiency.
7.Model: WG100*4 tube bending machine
1)Photo
2）.Description:
this equipment composed by the board and bending mode, with two sets of molds. Direct mode traction motor reducer,will die on the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler,
economic benefits, compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.
8.Model :ZDMJ-350*14000 automatic grinding machine
1).Figure
economic benefits, compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.
8.Model :ZDMJ-350*14000 automatic grinding machine
1).Figure
2).Description
This machine steel tube adopt self-run and the movement of the machine in order tomove the steel tube. The machine is fitted with grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. It is speedy, efficient, saving workers and energy.it was the first choice for grinding and polishing every poles.
9. Model: ZJP-14000 electrostatic spraying prodcution line
1).Figure
This machine steel tube adopt self-run and the movement of the machine in order tomove the steel tube. The machine is fitted with grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. It is speedy, efficient, saving workers and energy.it was the first choice for grinding and polishing every poles.
9. Model: ZJP-14000 electrostatic spraying prodcution line
1).Figure
2).Characteristic:
The room was combined by cold steel rolling plate ,the structure was easy,and also easy for cleaning.color side was install the convulsions sets.at the same time we install the dustproof floodlight.it was very easy to operate spraying.
It adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour,firm,nice,with good heat
insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the furnace equality.and fully satisfy powder with 180°C±5°C require of solidifying.
The room was combined by cold steel rolling plate ,the structure was easy,and also easy for cleaning.color side was install the convulsions sets.at the same time we install the dustproof floodlight.it was very easy to operate spraying.
It adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour,firm,nice,with good heat
insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the furnace equality.and fully satisfy powder with 180°C±5°C require of solidifying.
Packing & Delivery
Quality and services
1.The course of designing, producing and selling are performed according to iso 9001.
2.Our company can suplly study , installation and provide parts and repairing service all of the life.
3.Free training and take charge of the adjusting.
4.When equipment arrived, do well of the after service on time,reply in 6 hours and arrive to user ends in three work days.
1.The course of designing, producing and selling are performed according to iso 9001.
2.Our company can suplly study , installation and provide parts and repairing service all of the life.
3.Free training and take charge of the adjusting.
4.When equipment arrived, do well of the after service on time,reply in 6 hours and arrive to user ends in three work days.
Certifications
Recommend Products
Customer Photos
Company Profile
Our company is located in Jiangdu of Yangzhou City, on the side of Jianghang Channel, the cross point of Jinghu and Ningtong Expressway. We are engaged in forging machinery manufacturing industry. We specialize in producing plate benders, plate bevel shearing lines, mechanical scribing machines, hydraulic scribing machines, pipe straighteners, pipe benders, semi-automatic submerged arc welding lines, hydraulic plate cutting machines, mechanical plate cutting machines, three-roll bending machines, and large milling machines, as well as common type plate processing in the fields of light pole, electrical pole, machinery, electron, automobile, shipbuilding, electrical home appliance, cooking equipment, and building decoration.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
