WPWKO worm gearbox

Product Overview

Description

WPWKO worm gearbox

1. WP worm gear speed reducer -WPWKO



Features:

(1) With excellent quality

(2) Resonable price

(3) Promise to delivery on time

(4) Speed ratio: 5/10/15/20/25/30/40/60/80



Characteristics:

(1)Large output torque

(2) Safe, reliable, economical and durable

(3) Stable transmission, quiet operation

(4)High heat-radiating efficiency, high carrying ability (

(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio



Technical date:

(1) Input power:0.06kw-15kw

(2) Output torque:4-2320N.M

(3) Speed ratio: 5/10/15/20/25/30/40/50/60/80/100

(4) With IEC input flange: 56B14/71B14/80B5/90B5…



Materials:

 (1) Gear is copper and steel, shaft is made of steel

(2) House: Cast iron

(3) Bearing: NSK bearing &  R&B;Homemade bearing

(4) Lubricant: Synthetic & Mineral



Quality control

(1) Quality guarantee: 1 year

(2) Certificate of quality: ISO9001:2000

(3) Every product must be tested before sending



2. WPW worm gear - Product structural drawing

3.Model and structural table

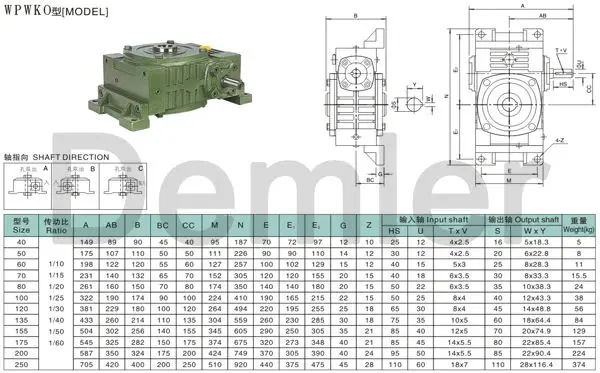

4.Dimensions of outline installation WPWKO worm gear reducer







5.Methods for model chosen



6.Parameter for model chose of worm gear reducer

Please click the link://pan.baidu.com/share/link?shareid=2126661452&uk=4278477618





7.Operation installation of the worm gearbox

8.Lubricant of worm gear reducer



 9.Malfunctions analysis for worm gearbox

10.Packing Worm gear reducer

11. Shipment for Worm reducer
