Transformer toroidal core winding machine

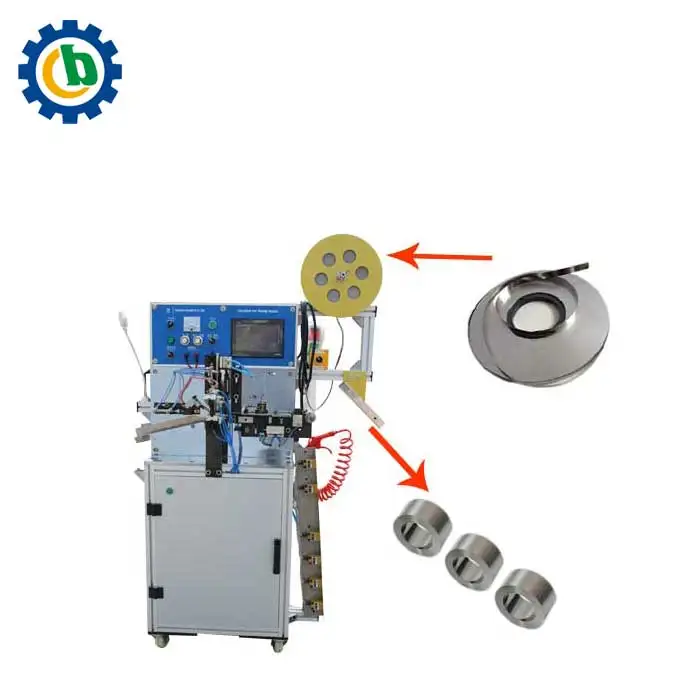

Our company is specialized in manufacturing silicon core winding machine. This machine can produce the power transformer core, mutual inductor core, ballast resistor core, audio transformer core, magnetic amplifier core, voltage regulator core, etc.
The principle is that the servo motor directly contributing to the scroll through the gear drive, which is more accurate, reliable and efficient than the traditional machine. Thereby, ensuring that the silicon steel sheet dimensions keeps up with number of turns, which could improve the quality of the toroidal core. The feeding, winding, cutting, welding are done automatically, the whole production process is controlled by computer.
The efficiency is high, it is more faster than manual machine, and the rate of qualified products can reach 99.5%. At the same time, a workman can operate many machines, it greatly reduces the production management expenses and the product costs. Automatic toroidal core winding machine is the best choice for the transformer core.
Technical parameters of Core Winding Machine:
|Machine Model||Inner diameter||Outer diameter||Width|
|BD 100 core||10-80mm||<100mm||10-30mm|
Note: We could customize the machine according to the user requirements.

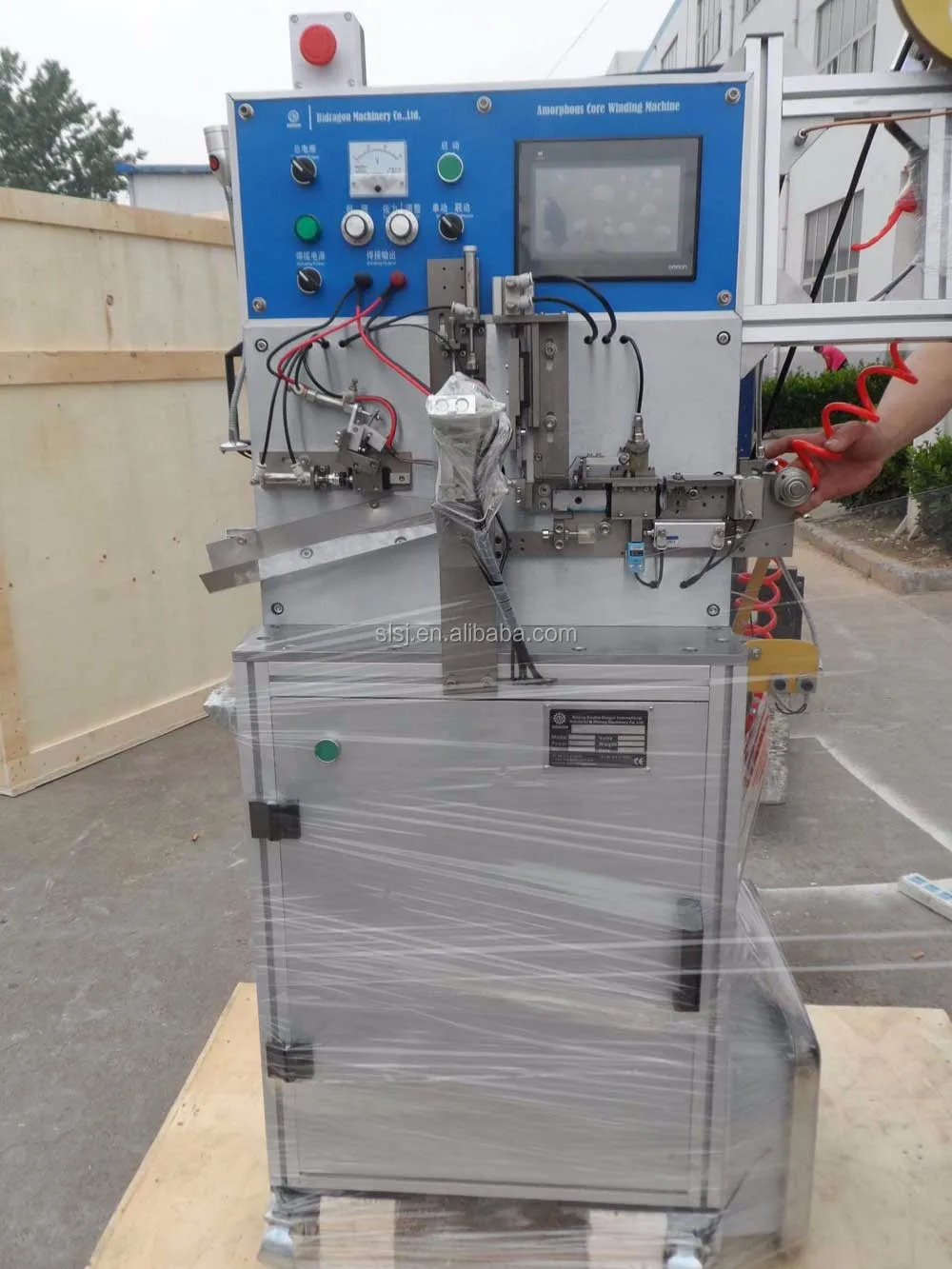

Package and Delivery:
Any question and requriement, welcome to contact us, we will give feedback sooner within 8 hours.
