Product Overview

Description

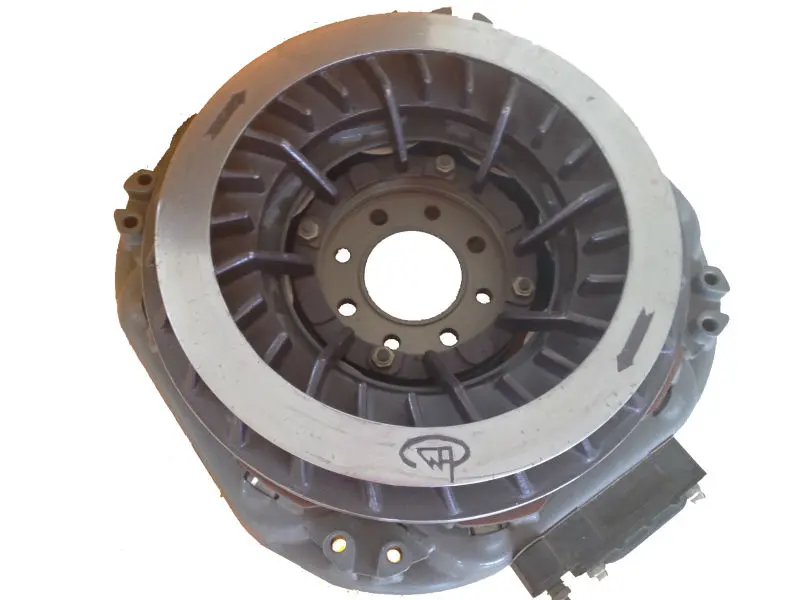

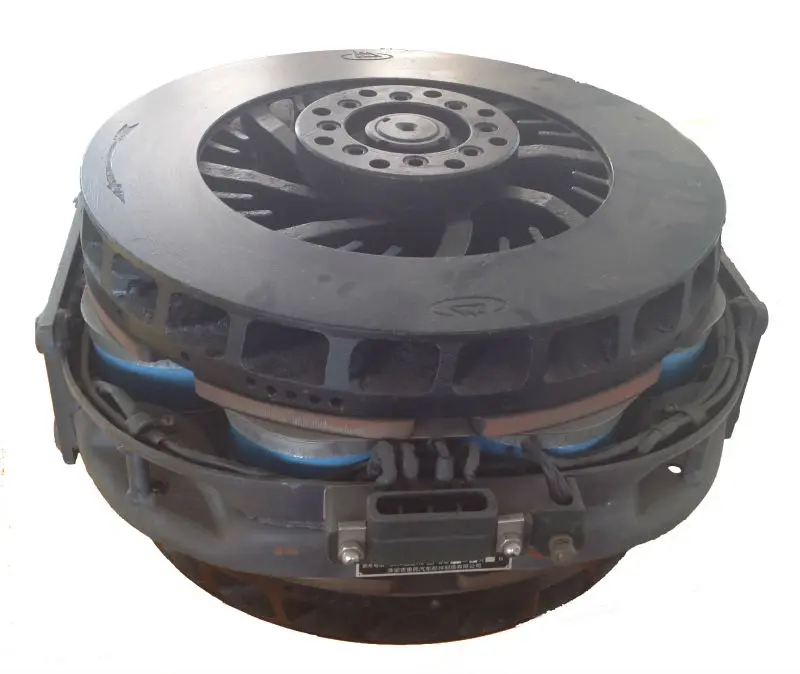

HSQ Electromagnetic Retarder

Electromagnetic retarder is an auxiliary brake mechanism that makes use of eddy
current dynamometer theory to produce resistant torque, consuming the kinetic energy
before the brake system works, thus enhance easement and security of car driving.
1) Main parts: interface bracket, rotor, stator, coil, joint flange.

2) Five shifts of brake effect.

3) Bear 30%-80% braking, prevent vehicle running aside, brake overheating and tire
bursting.

4) Mounting: on the gearbox, axle or in the driving shaft.

5) Maintenance cost reduced by 5-8 times.

6) Independent auto control and manual operation.

7) Application: medium/heavy trucks and passenger cars.

8) Series - B,G series.

Main Technical Specifications:

EMR type	Rated voltage	Current (max)	Brake torque (max)	Weight	Dimensions (mm)
HSQ1900	DV 24V	110A	1900N.m	172Kg	534×580×295
HSQ1700	DV 24V	100A	1700N.m	170Kg	534×580×295
HSQ1500	DV 24V	92A	1500N.m	150Kg	476×512×270





Certifications: ISO9001,ISO/TS16949,ISO14001
