MC 180 Электротермический Тип PE и EVA машина для склеивания пластин

Product Overview

Description

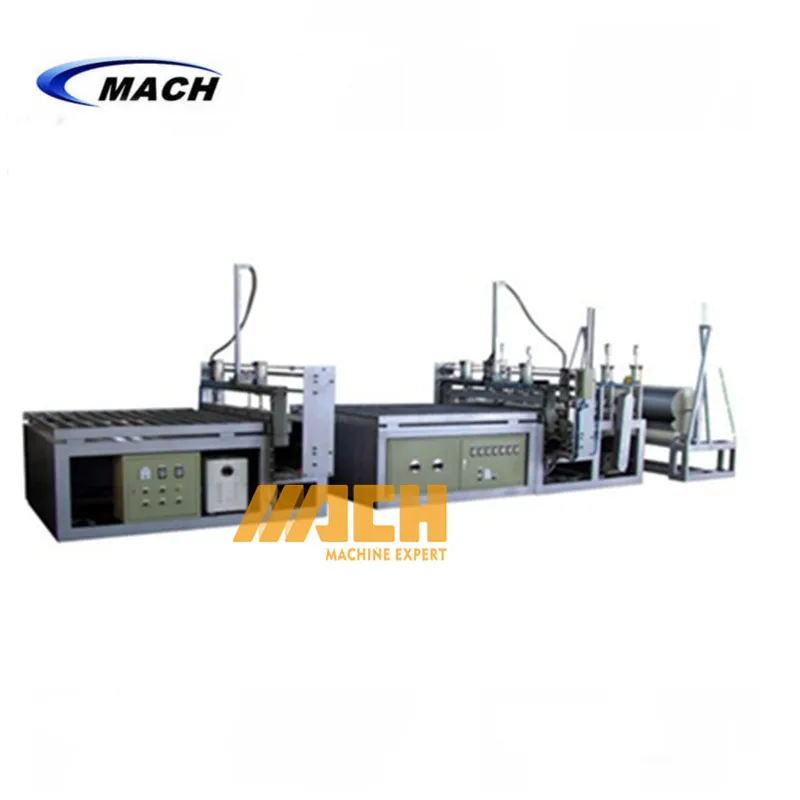

       MC-180 Electrothermic Type PE

                       and

EVA Plate Bonding Machine









Brief Introduction:

This PE and EVA Plate Bonding machine is used for the electrothermic melting and bonding ( using no adhesives or any hotmelt ) of highly and lowly foamed PE and EVA plates, making processings that follow easier. This model is most suitable for the processing of toys, beach sandals, and many others that are bonded with short plates for diverse and multi-color combinations.





Main Specifications:



Item	Contents	Dimensions	Remarks
1	Working Width	600 mm~1800mm
2	Working Length	10 mm at minimum
3	Working Thickness	30 mm~100mm
4	Working Hardness	150 ~650
5	Working Speed	1 piece/min
6	Bonding Rate	over 95%





Full Configuration:



Unit	Dimensions	Dimensions (mm)	Weight	Horse Power	Quantity
Melt-Cutting Machine	1800mm	2260×2420×1500	800KG	1/2HP	1 unit
Melt-Bonding Machine	1800mm	3450×2420×1500	1800KG	5.5HP	1 unit
Collecting Machine	1800mm	2330×900×2100	300KG	2HP	1 unit
Trolley for Material Roll	1800mm	1800×1800×1500	300KG		2 units
Bending Tube	Ø600 or 450 mm	2000×Ø450 2000×Ø600	190KG		3 units









Spare part with the machinery:





Item	Description	Quantity	Item	Description	Quantity
1	Relay AC2P	2 pieces	7	Electrothermic cutter	30 pieces
2	Relay AC4P	2 pieces	8	Bakelite board	4 pieces
3	Relay DC2P	2 pieces	9	Copper plate	1 set
4	Relay DC4P	2 pieces	10	Cylinder repair bag	2 Sets
5	Time Relay	2 pieces	11	rectifier	2 piece
6	Proximity switch	5 pieces	12	Tool Case Provided with Machine	1 Set











About our company:



DALIAN MACH CO.,LTD specialize in manufacturing Rubber Processing Machinery for more than 20 years. Such as: PE and EVA Plate Bonding Machine,Rubber Dispersion Kneader, Two Roll Rubber Mixing Mill, Rubber Extruder Machine, EVA skiving Machine,etc. We export them to many countries in the world .

....
