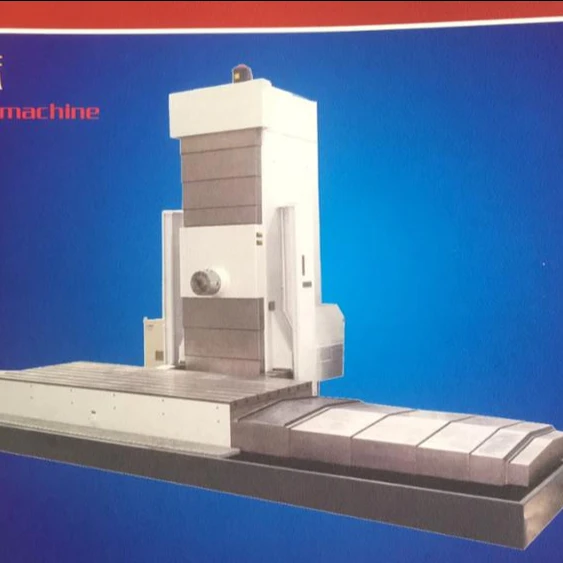

Горизонтальный фрезерный станок серии NCWX

Product application

NCWX series horizontal milling machine is the horizontal machine developed by the technical personnel of our company, equipped with advanced numerical control system and integrates milling processing and boring holes and is widely used in mold and manufacturing industry.

The main characteristics of NCWX series horizontal milling machines

1.The vertical pillar, base, sliding platform and work bench are made of high strength HT300 cast iron. The overall machine is solid. With strong shock resistance, it is not easy to deform. The surface of work bench goes through high frequency heat treatment,featruing high hardness.
2. The machine tool adopts well-known brand high precision linear guide and large diameter ball-screw, providing excellent rigidity and precision, stable movement, high precision of processing and high stability of mechnical drive performance.
3. The machine adopts imported brand main spindle, featuring good performance and free maintenance.
4. Machine tool adopts Japanese Mitsubishi numerical control system, featuring stable performance, simple operation and better expansibility.

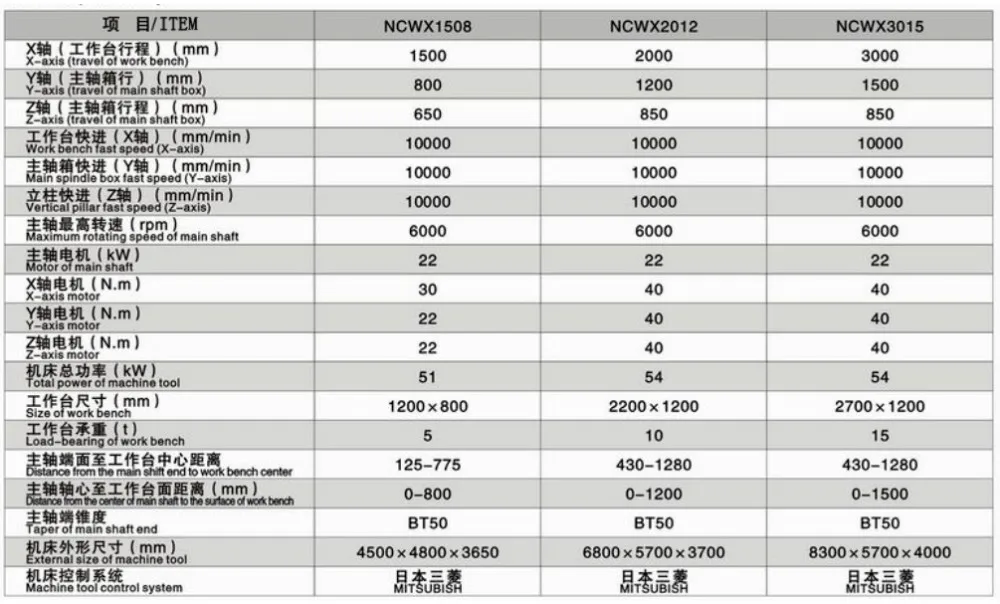

Technical parameters of NCWX series horizontal milling machines

Pre-Sales Service

* Inquiry and consulting support.
* View Factory.
* Machinery customization and drawing confirm.

After-Sales Service

* Training of using the machine free.
* Engineers available to install machinery overseas.
* Technical support by email and phone.
* Engineers available to service machinery overseas.
