Product Overview

Description

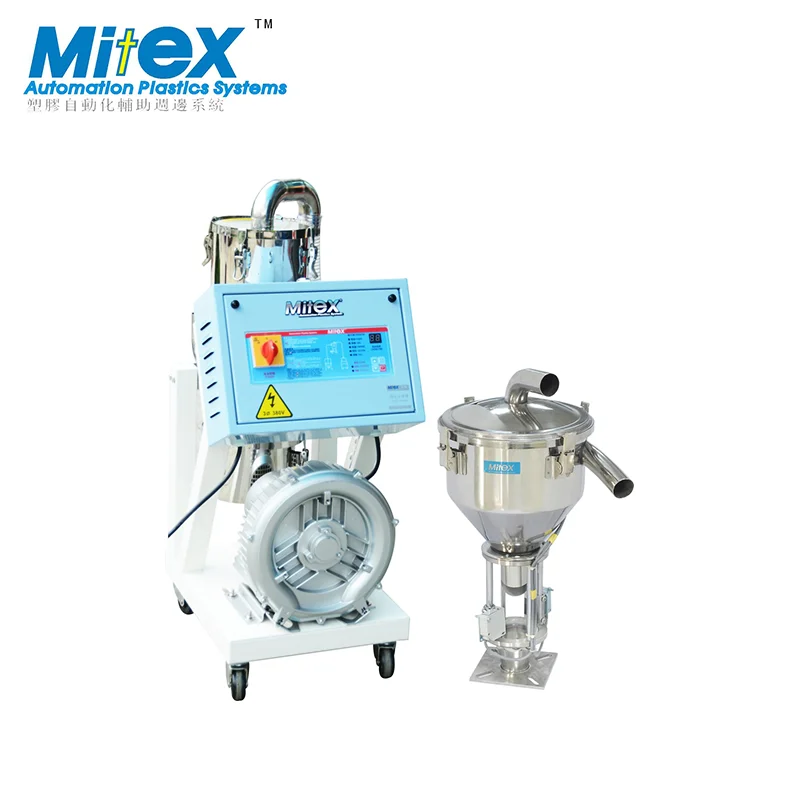

Plastic autoloader/vacuum suction machine for injection machine



Specification



ModelMVL-800G-1HPMVL-2HP
MotorTypeInductionInduction
Specifications1HP 3¢2HP 3¢
Conveying capacity (kg/hr)440500
Loading distance (m)44
Static wind pressure (mm/H2O)24002400
Reservoir volume(L)10/7.510/7.5
 Conveying tube inner dim (mm)¢38¢38
Attached hoses(mm)¢38mm*5m 4pcs¢38mm*5m 6pcs
Dimensions MM 610*370*670540*560*1230







Features
  • Full automatic programmed operation.
  • Automaticalarm for overload or short of material.
  • Stainless steel hopper construction.
  • Main controller and hopper designed separated,  to ensure safety and convenient.
  • Separatedfilter installation, easy to remove pooling of powder.
  • Automation pump reverse system.
Instalation Diagram

... 2010-ok

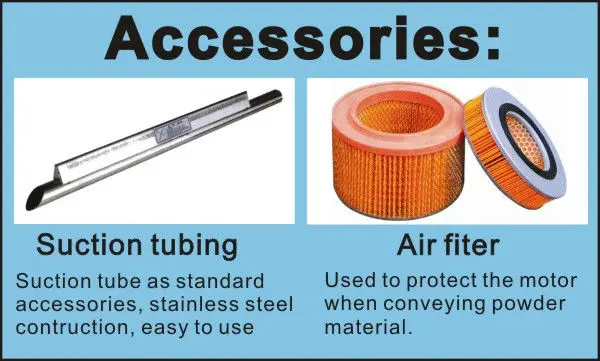

Accessories



accessories accessories 02



Orentation priduct type



Customer cases(Motor:3HP-7.5HP)

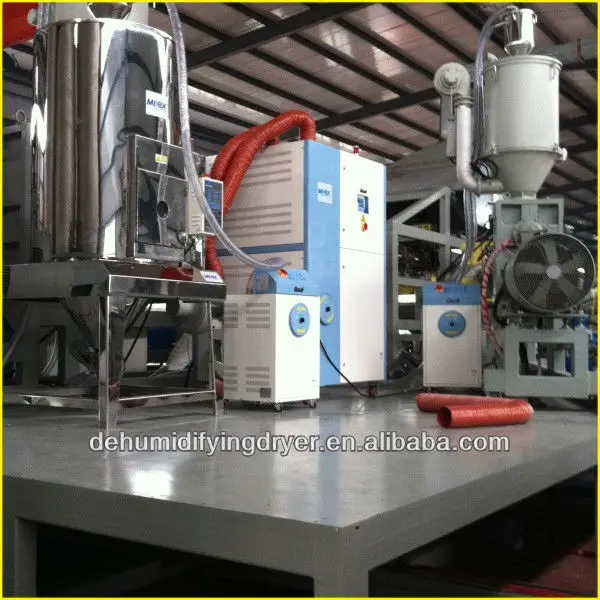

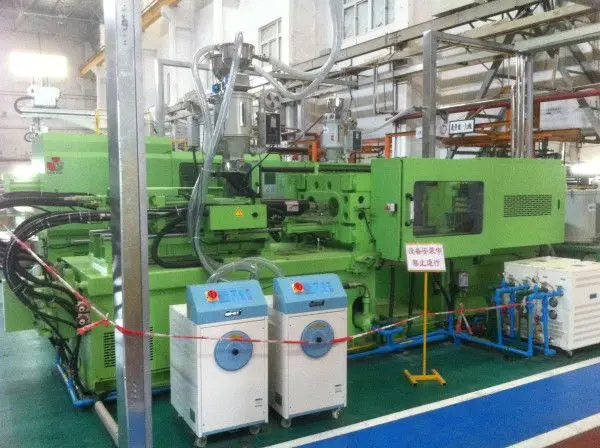

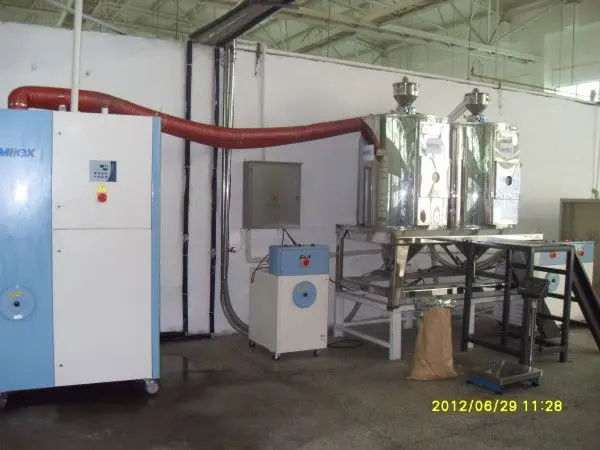

 dehumidifier 012 dehumidifying dryer 0250 Vacuum Feeder case 04

Customer cases(Motor:1HP-2HP)

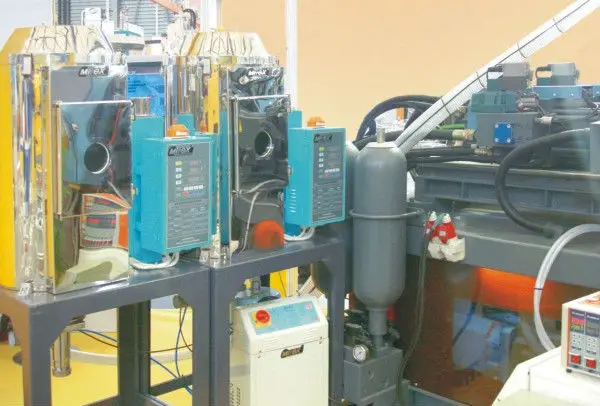

Dehumidifier Vacuum Feeder case 02

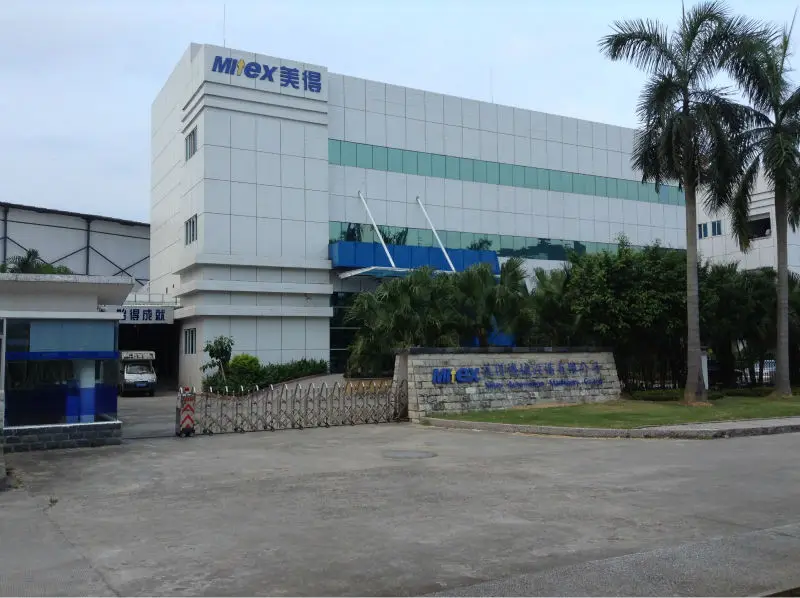

About our facotry

psb psbCAUV4J1H IMG_0085



Company profile

Mitex Automatic Machinery Co., Ltd is the manufacturer that specializes in supplying best advanced roboticized system for plastic molding. The main products include: Centralized Feeding System, Dehumidifying and Drying Device, Automatic Metering and Mixing Device, Crushing and Recovery System,  Mold-temperature Control System, etc. Those have been broadly applied in Electron, Plastic Molding, Auto,Medical Treatment, Computer’s accessories, Optics Lens, Hardware, etc.

Mitex has been consistently pursuing independent innovation for different devices and adhere to the best service& high quality. It has established a steady cooperative fellowship with its clients. Mitex Automatic Machine Co., Ltd was registered in Jul 2007, in Dongguan, Guangdong, China. Mitex will focus more on satisfying client’s needs ,supplying the advanced molding system & service. Reducing cost and creating more value for its customers, sharing collective win between clients and itself !
