Product Overview
Description
Product Description

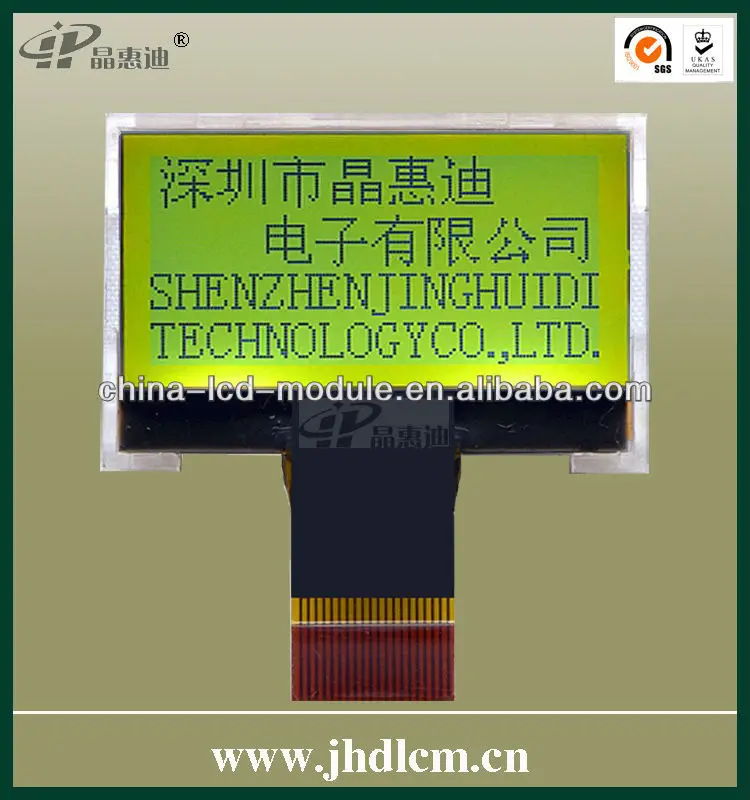

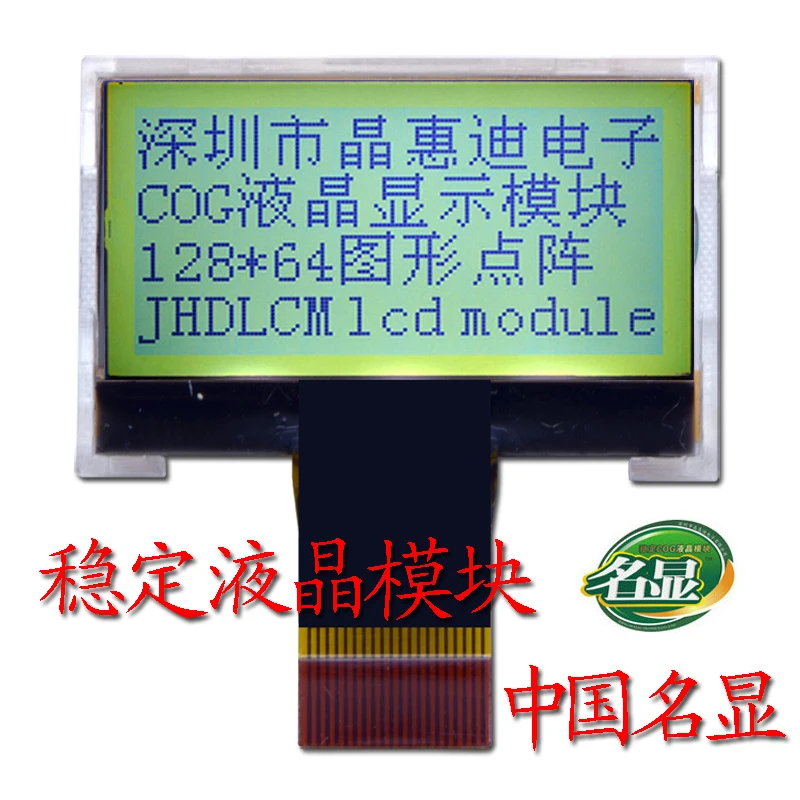

Economic 1.2" Lcd Screen Module with orange backlight JHD12864-G06BOW-Y
| Main Parameters | |
| Item | Economic 1.2" Lcd Screen Module with orange backlight |
| Model name | JHD12864-G06BOW-Y |
| Color | dark blue words over yellow and green background |
| Pixel | 8192 |
| Resolution | 128*64 |
| Contrast Ratio | 300:1 |
| Brightness | White BL |
| Outline Dimension | 33.0 (W) X21.0 (H) X3.45(T)mm |
| Viewing Area | 29.00(W)X 13.50(H)mm |
| Active Area | 26.86(W)X 12.00(H)mm |
| Resolution | 128*64 |
| Dots | 0.34*0.38mm |
| Pitch | 0.21mm |
| Drive Power Supply Voltage | 3.0V/3.3V |
| Viewing Angle | 6.00 o'clock |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | STN, Positive, dark blue over yellow and green background |
| FPC Lenght | 17mm |
| Response Time | 100ms |
| IC | ST7565R |
| IC Packaging | COG |
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.
| Main Application | |
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD

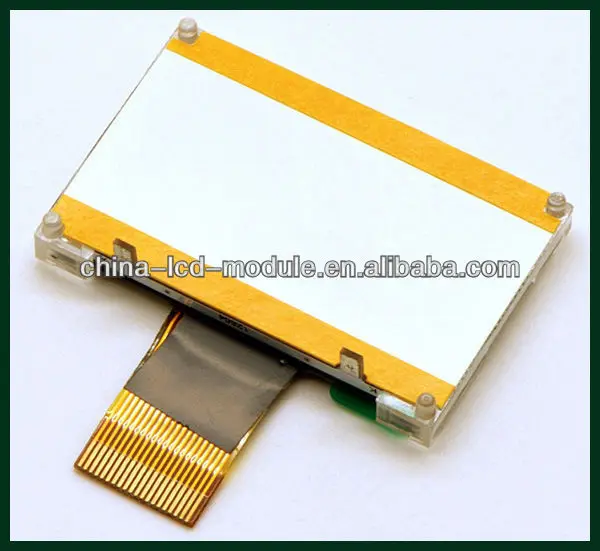

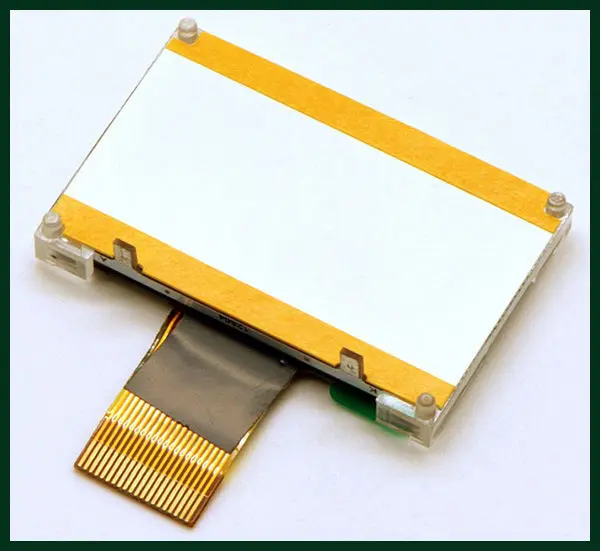

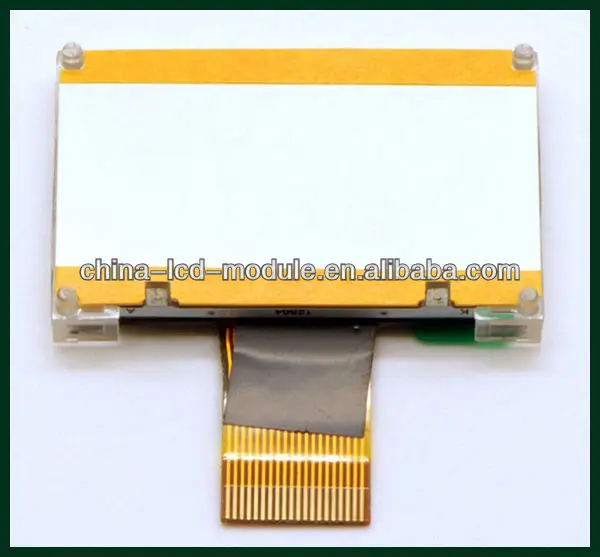

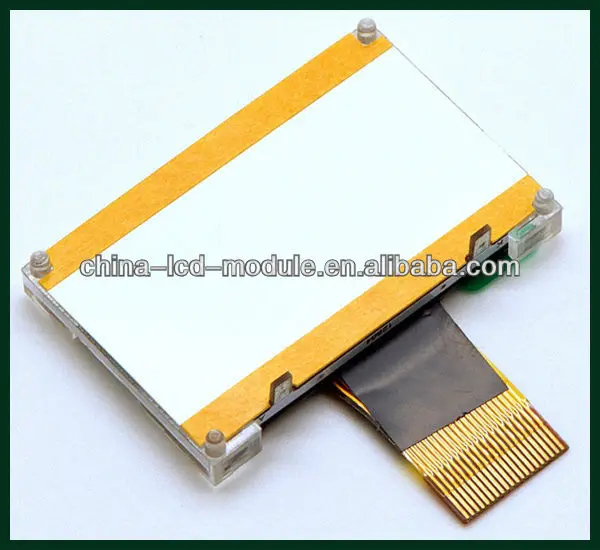

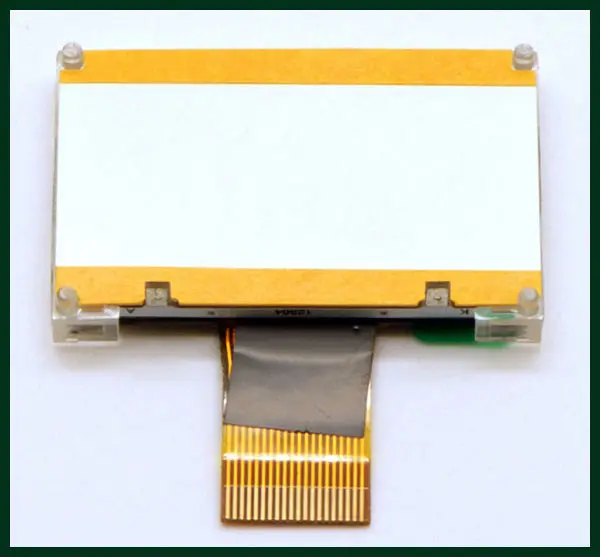

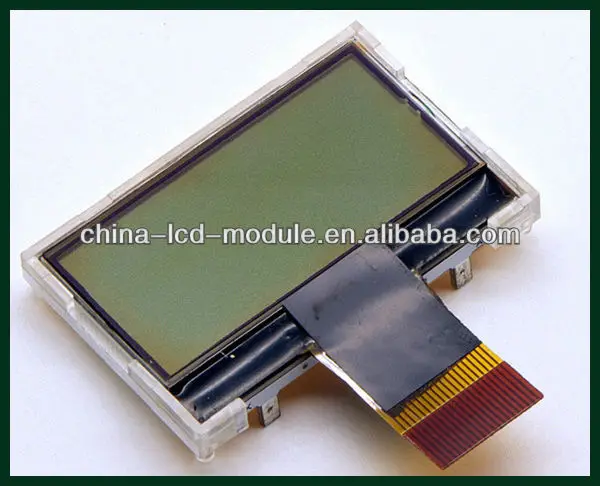

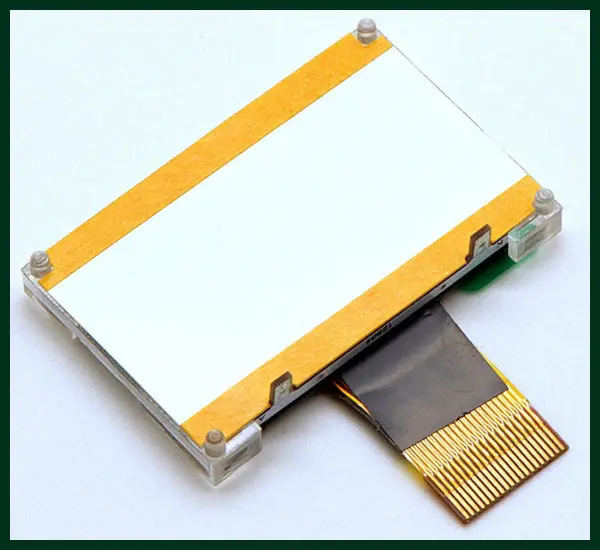

Product Showing:

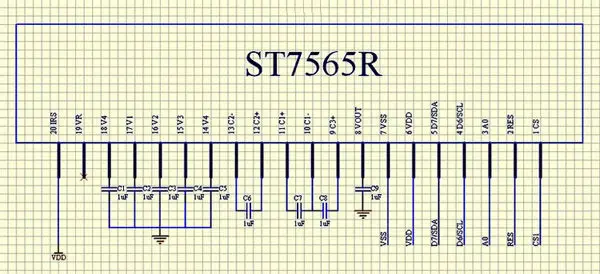

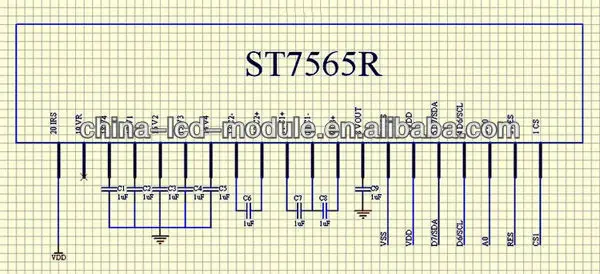

FPC Schematic Diagram(SCH):
Interface Table:
| 20 | VDD |
| 19 | NC |
| 18 | V0 |
| 17 | V1 |
| 16 | V2 |
| 15 | V3 |
| 14 | V4 |
| 13 | CAP2N |
| 12 | CAP2P |
| 11 | CAP1P |
| 10 | CAP1N |
| 9 | CAP3P |
| 8 | VOUT |
| 7 | VSS |
| 6 | VDD |
| 5 | D7 |
| 4 | D6 |
| 3 | A0 |
| 2 | RST |
| 1 | CS |
