400 800KG/H Groundnut Peanut Shelling Shller Cracker Machine Groundnut Threshing Machine Price

Product Overview

Description

400-800KG/H Groundnut Peanut Shelling Shller Cracker Machine Groundnut Threshing Machine Price





What The Features The Groundnut Peanut Shelling Shller Cracker Machine:



The machine is mainly use for peanut shelling

Composed by : pole lines, concave plate trash rack, fan, sieves and gravity sorting machine materials such as secondary air to send a few parts, simple structure, easy operation, stable performance, safe and reliable.


How it works: artificial feeding ,the first fall in coarse grain grid, due to grain rotation and the fixed plate concave grating bars rubbing force between the plates, after the separation of the spin-off of peanut shells and peanut shells at the same time falling through the grid, through the duct by the wind blowing most of the peanut shell machine, and peanuts and peanut part has not been stripped of the fruit with a small sieve for sorting into the proportion of selection, selection of peanuts after the screen surface line along the mouth after shelling into the sack, have not been shelling peanuts small fruit, then down along the screen surface, after crossing into the air under the material sent to Feeder, for the second shelling , and then thourgh seperation screen to make all peanut shelled



 Machine Features: can shell completely by one time , with the air flower to feed and the ration seperating screen to separate and remove the dust , very clean .



What The Parameters Of The  Groundnut Peanut Shelling Shller Cracker Machine:

Type	6DY-45
Rotary drum length	45
Rotary drum rolling speed	270r/min
Capacity	600-800  kg/h
Motor	3 kw/6-8hp
Air blower speed	987-1252r/min
Screen frequency	596/min
Breakage	<3%
Clean rate	>98%
Noise	<85 DB
Size	1380*1200*1570mm
Weight	340kg

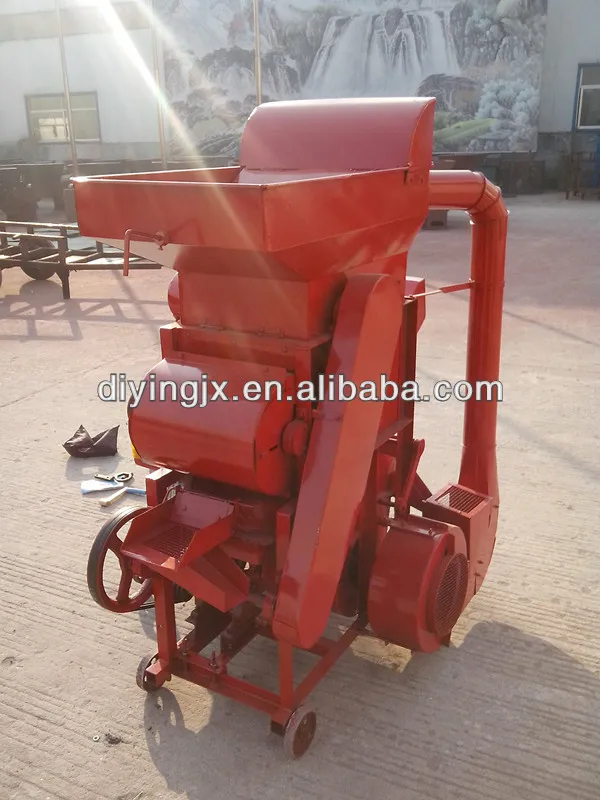

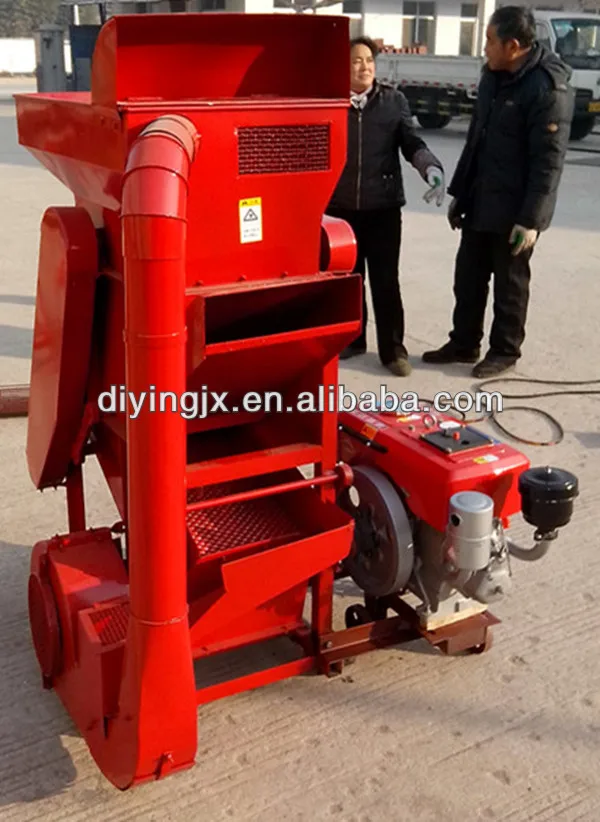

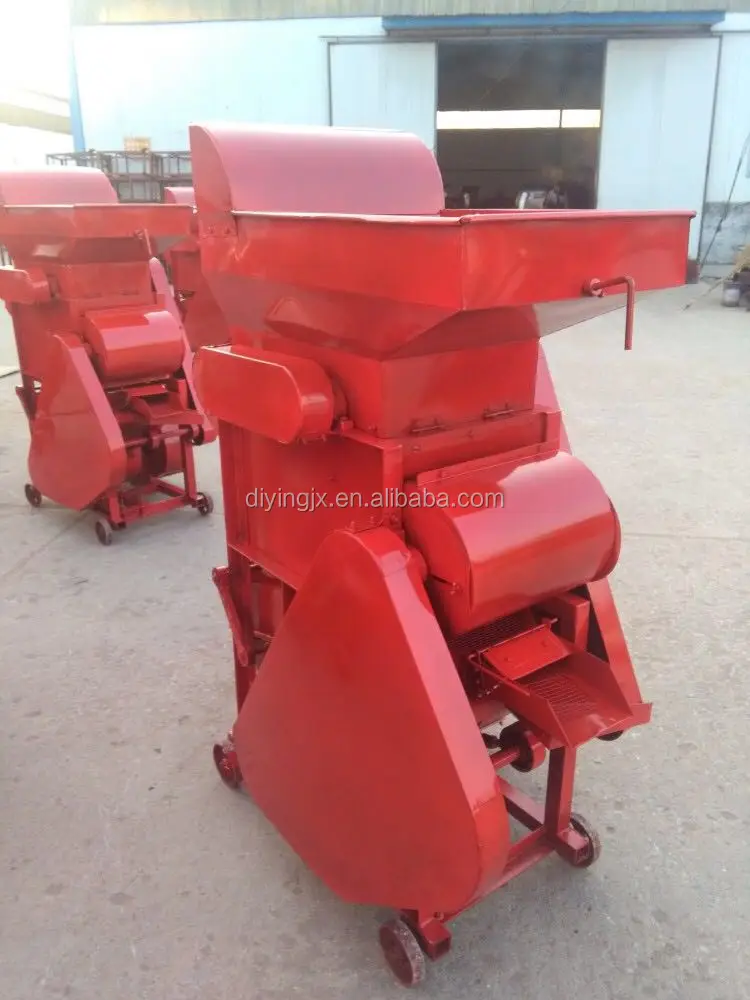

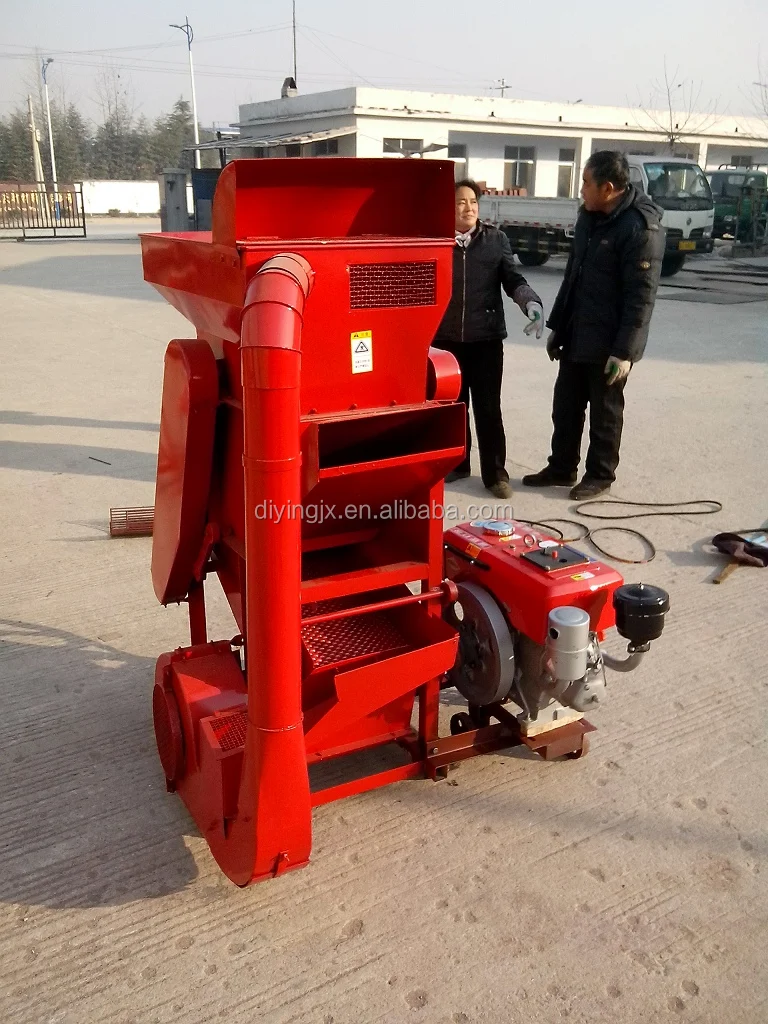

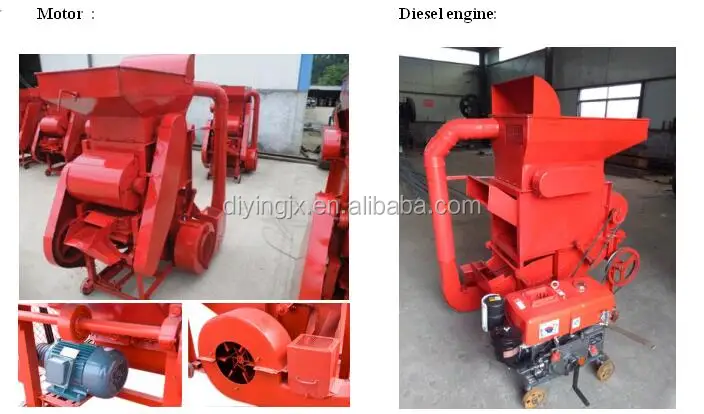

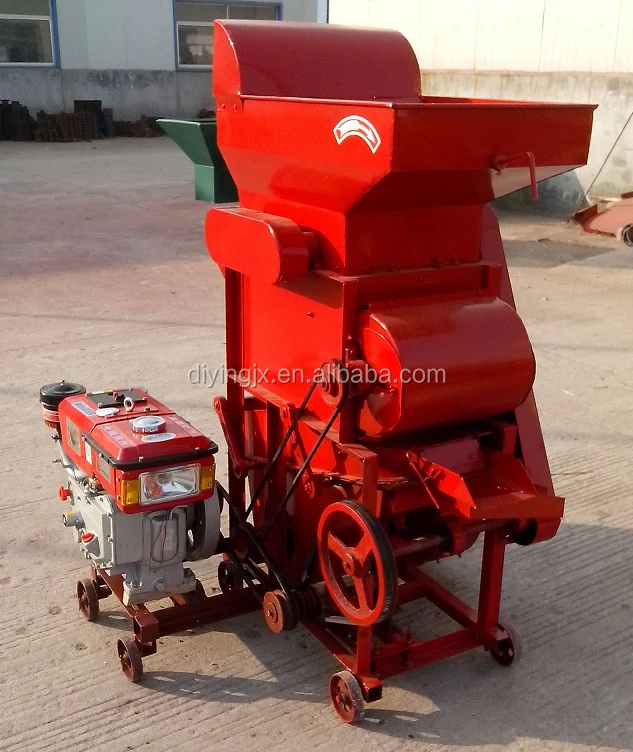

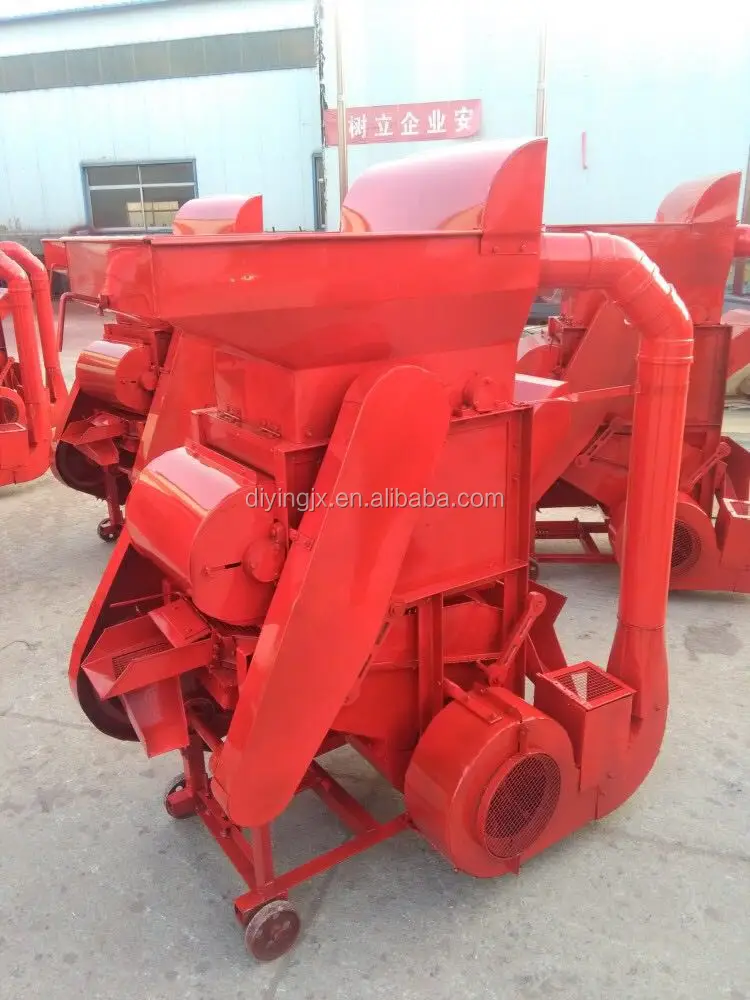

 The Pictures Of The Groundnut Peanut Shelling Shller Cracker Machine



  Wechat/whatsapp:008615637169572

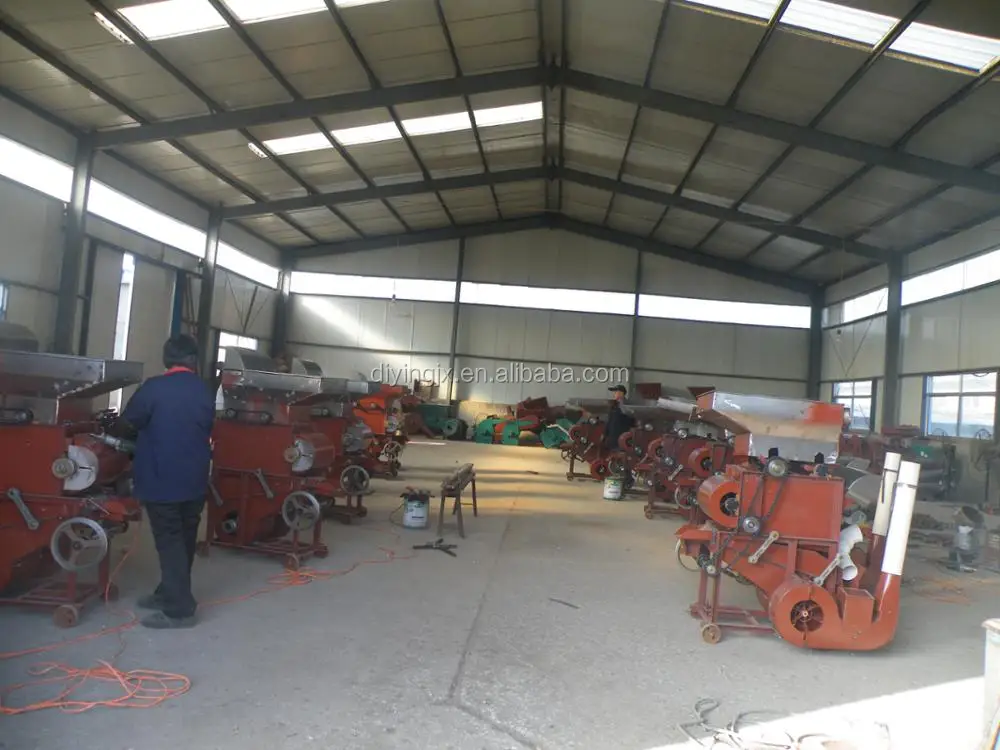

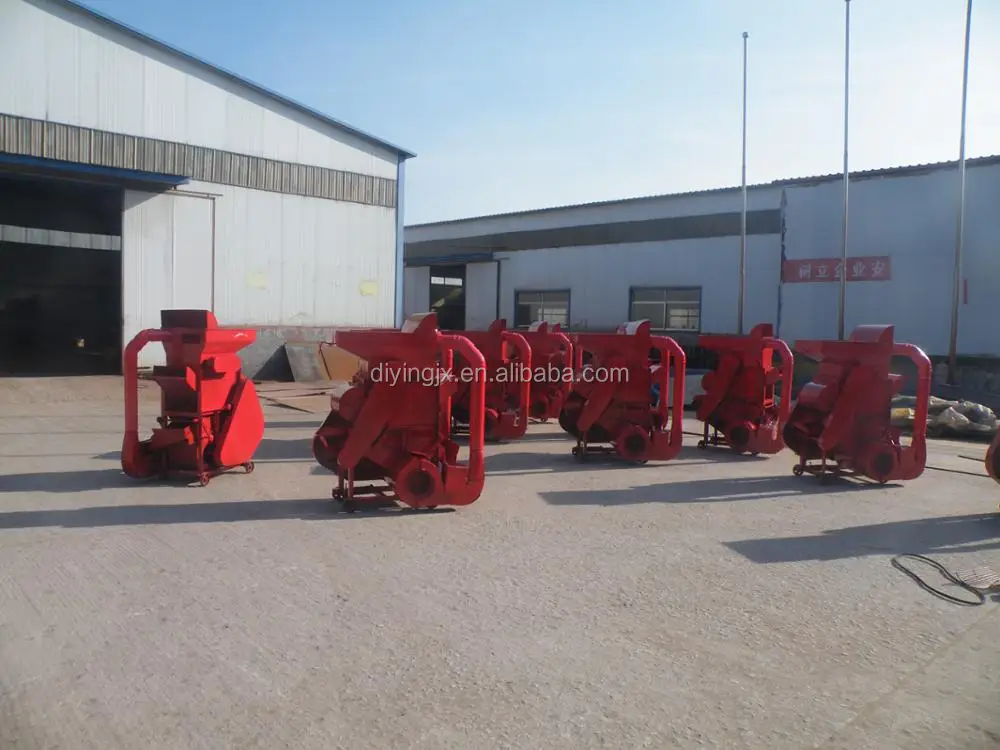

 The Mahcine At Our Factory
