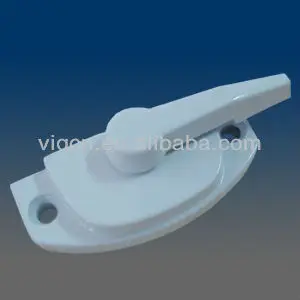

American Sliding Sashes Window Sash Crescent Lock 3211

Product Overview

Description

Sliding window sash lock 3211

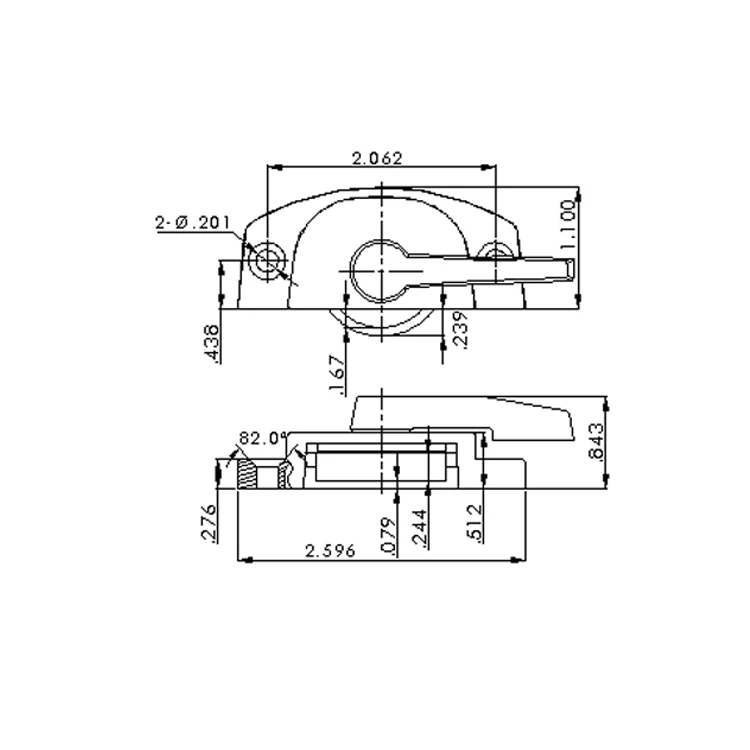

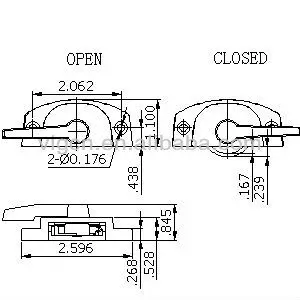

1. Fabrication: window sash cam lock, surface mount, 2.062" C/L, .438" setback, #8 screw, regular cam, snap-back lock, unique spring design eliminates exposing the cam in the partially open position



2. Design: for vertical or horizontal sliding windows, for SS, DS, SH and DH windows, for vinyl or UPVC windows, for aluminum windows, for wood windows



3. Material: zinc alloy



4. Finishes: powder coated or plating



5. Compatible keepers/strikers:

8201	8205	8211	8212	8213
8214	8216	8217	8283	8286
9317



6. Industry standard: based on AAMA/ASTM specification



7. Performance: tensile force test, cycle test, impact test, cross cut test and salt spray test passed



8. Customer logo: pad logo or mold-carved logo be available, due to customer's requests











Packing information:
Part No.: 3211
Packing size:48x30.5x17.5cm
Packing:400pcs/carton
N.W.:23.1KGS
G.W.:24.1KGS
