Precision Torno Mechanico / Horizontal Gap bed Manual Lathe Machine
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1245647790):
Product Overview
Description

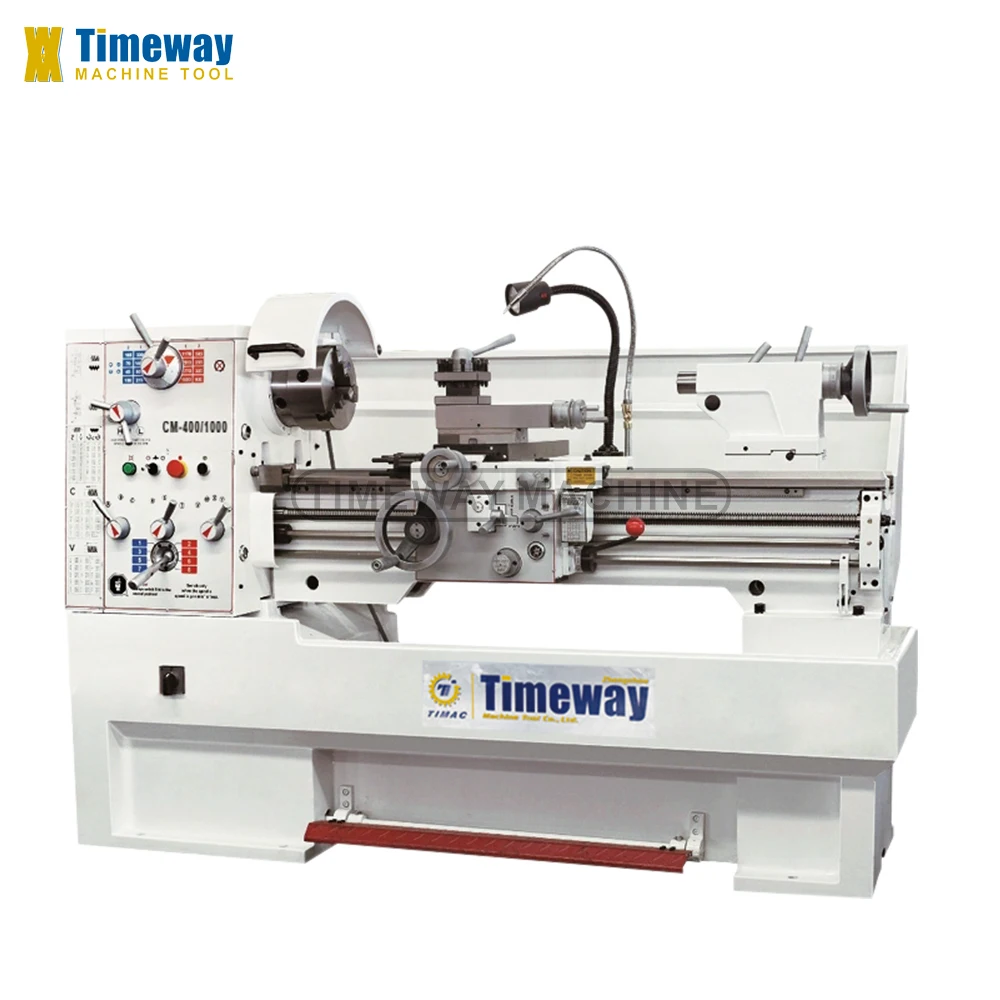

Precision Gap Bed Lathe (CM-400x1000, CM-400x1500)
Feature:
1. Powerful precision gearhead lathes with cost effective;
2. Need not change any gears you can turn all the metric and inch thread indicating in chart;
3. Three points support for spindle;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running
direction.
| Specification | CM-400 |
| Swing over bed | 410mm |
| Swing over cross slide | 255mm |
| Swing in gap | 580mm |
| Length of gap | 250mm |
| Distance between centers | 1000, 1500mm |
| Width of bed | 250mm |
| Spindle nose | D1-6 |
| Spindle bore | 52mm |
| Taper of spindle bore | No.6 Morse |
| Range of spindle speed | 16 changes 45-1800r/min |
| Max. travel of compound rest | 102mm |
| Max. travel of cross slide | 210mm |
| Leadscrew pitch | 4T.P.I. |
| Max. Section of tool | 20 x 20mm |
| Longitudinal feeds range | 0.05-1.7mm/rev |
| Cross feeds range | 0.025-0.85mm |
| Metric threads range | 39 kinds 0.2-14mm |
| Inch threads range | 45 kinds 2-72T.P.I. |
| Diametrical pitches range | 21 kinds 8-44 D.P. |
| Module pitches range | 18 kinds 0.3-3.5 M.P. |
| Dia.of tailstock sleeve | 50mm |
| Travel of tailstock sleeve | 120mm |
| Morse taper of tailstock sleeve | No.4 Morse |
| Cross adjustment | 13mm |
| Power of main motor | 2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP |
| Power of coolant pump | 0.1kw (1/8HP), 3PH |
| Overall Dimension (LxWxH) | 1940, 2440x 850x1320mm |
| Packing size (LxWxH) | 2060, 2560x 900x1640mm |
| Net weight/Gross weight | 1550, 1850/1800, 2100kg |
Standard accessories:

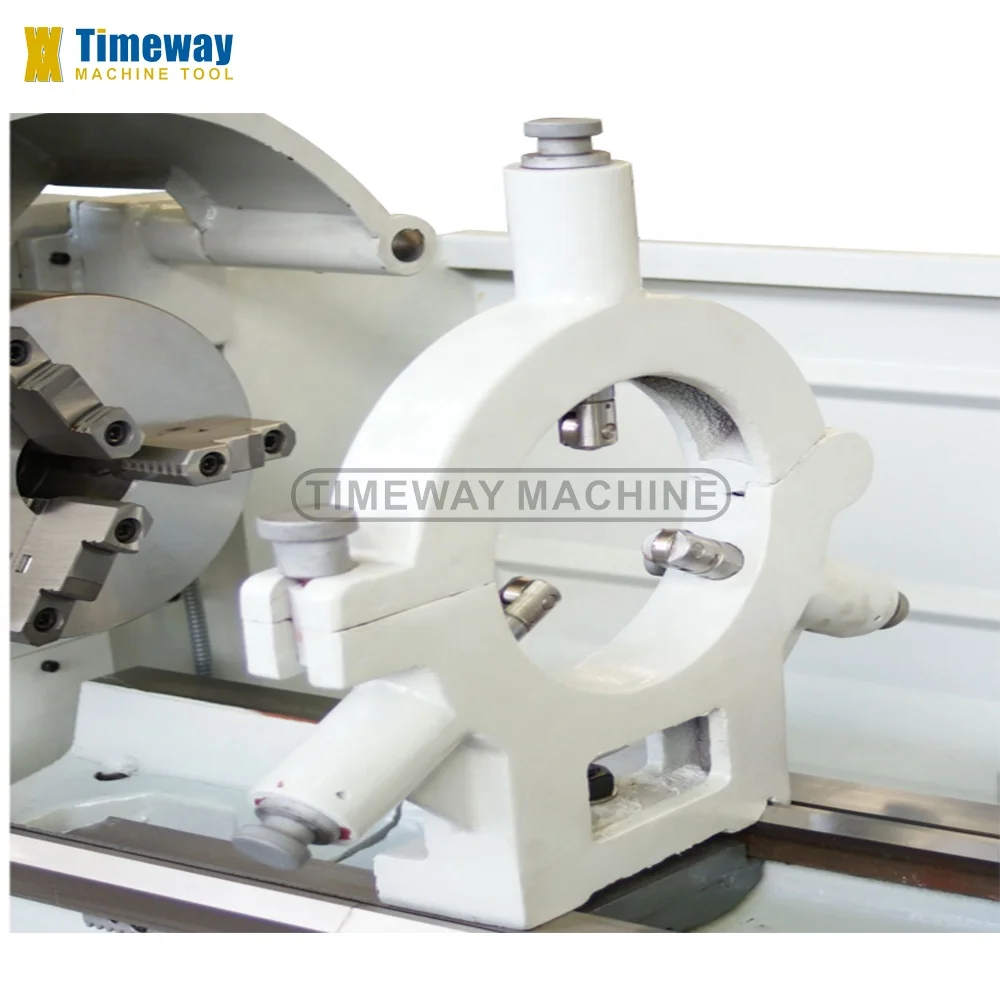

3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)
Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment

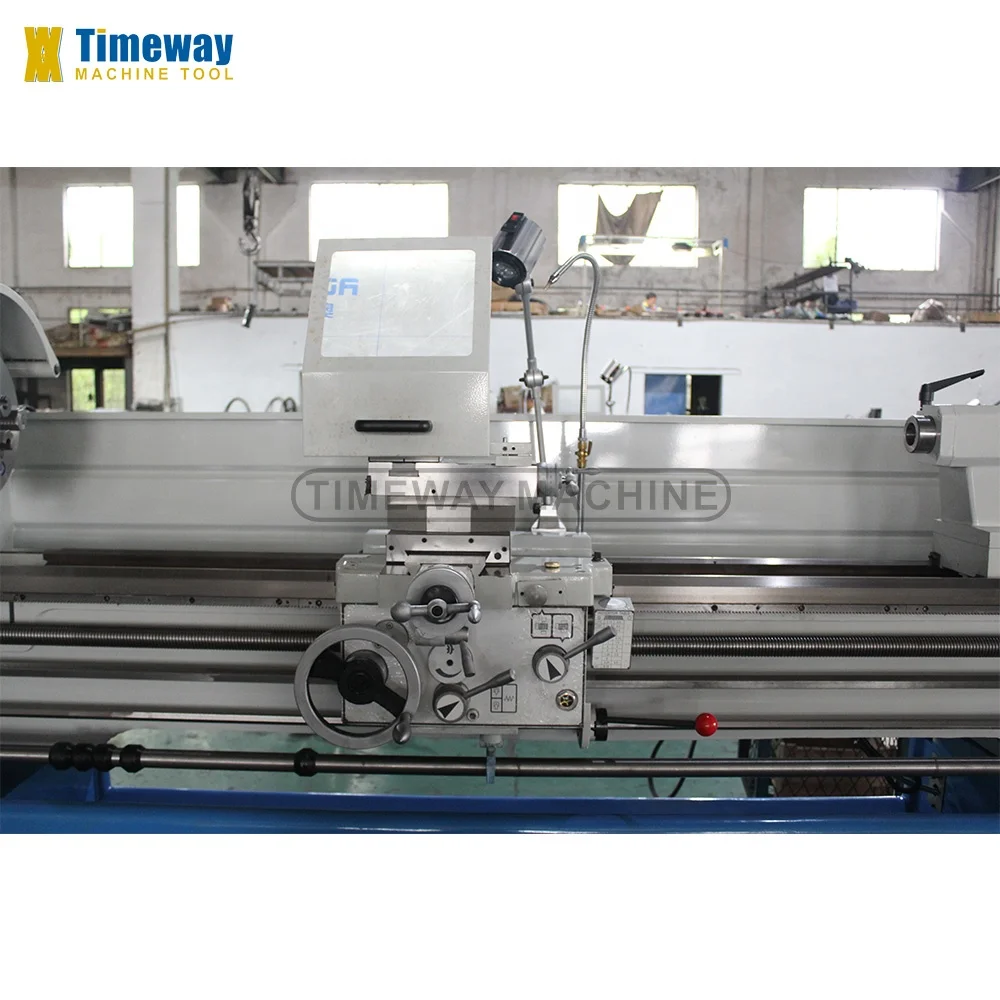

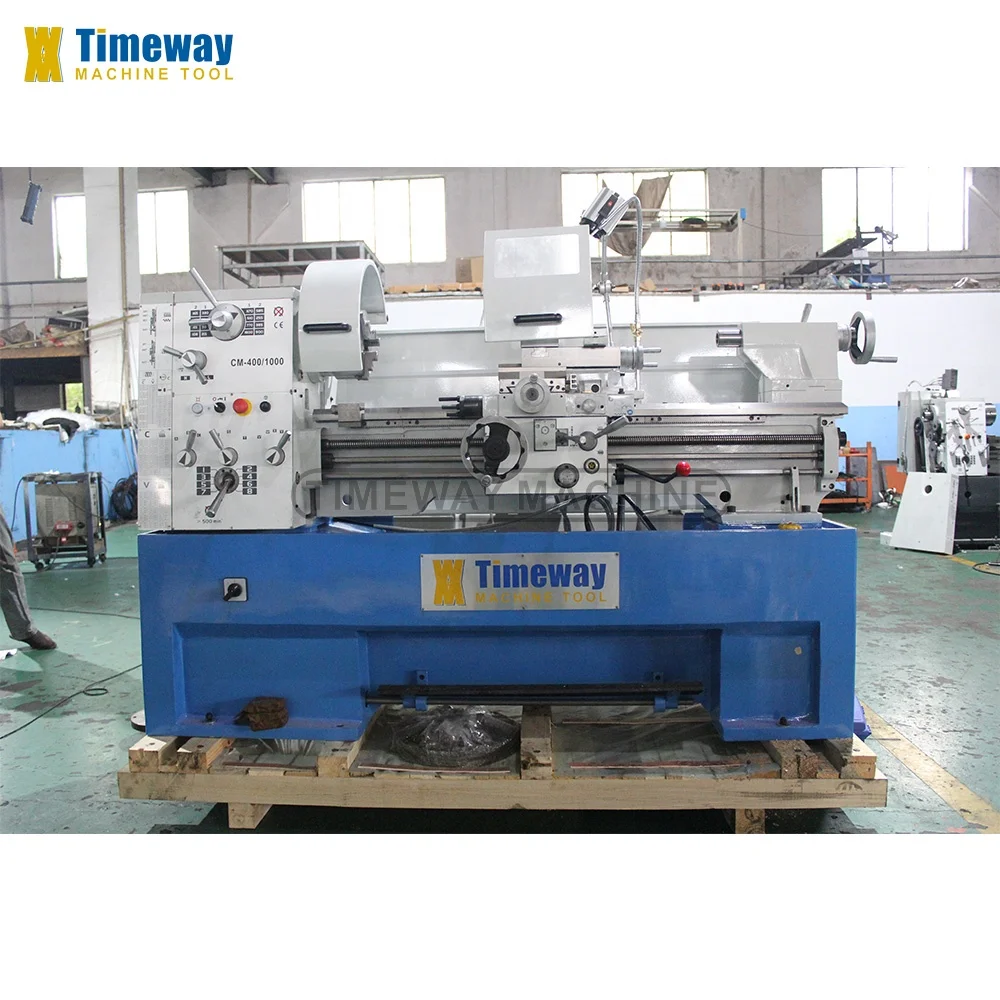

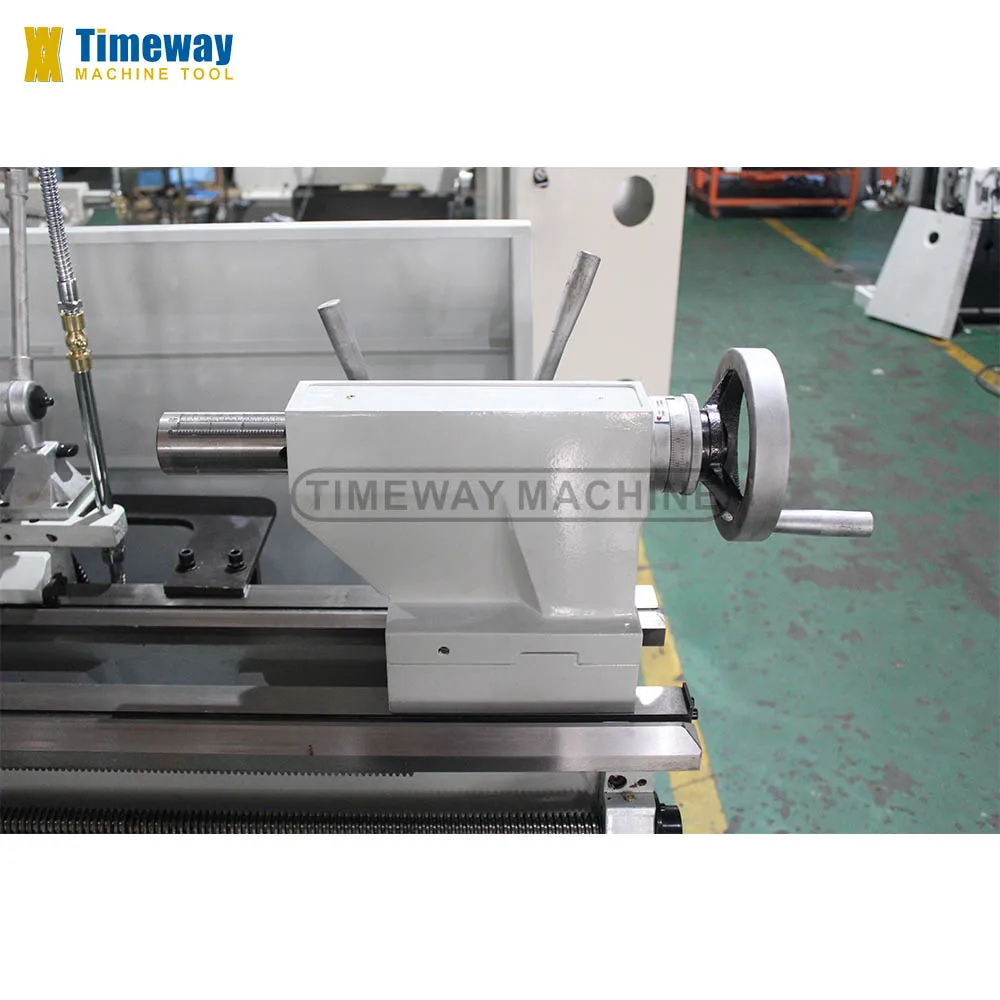

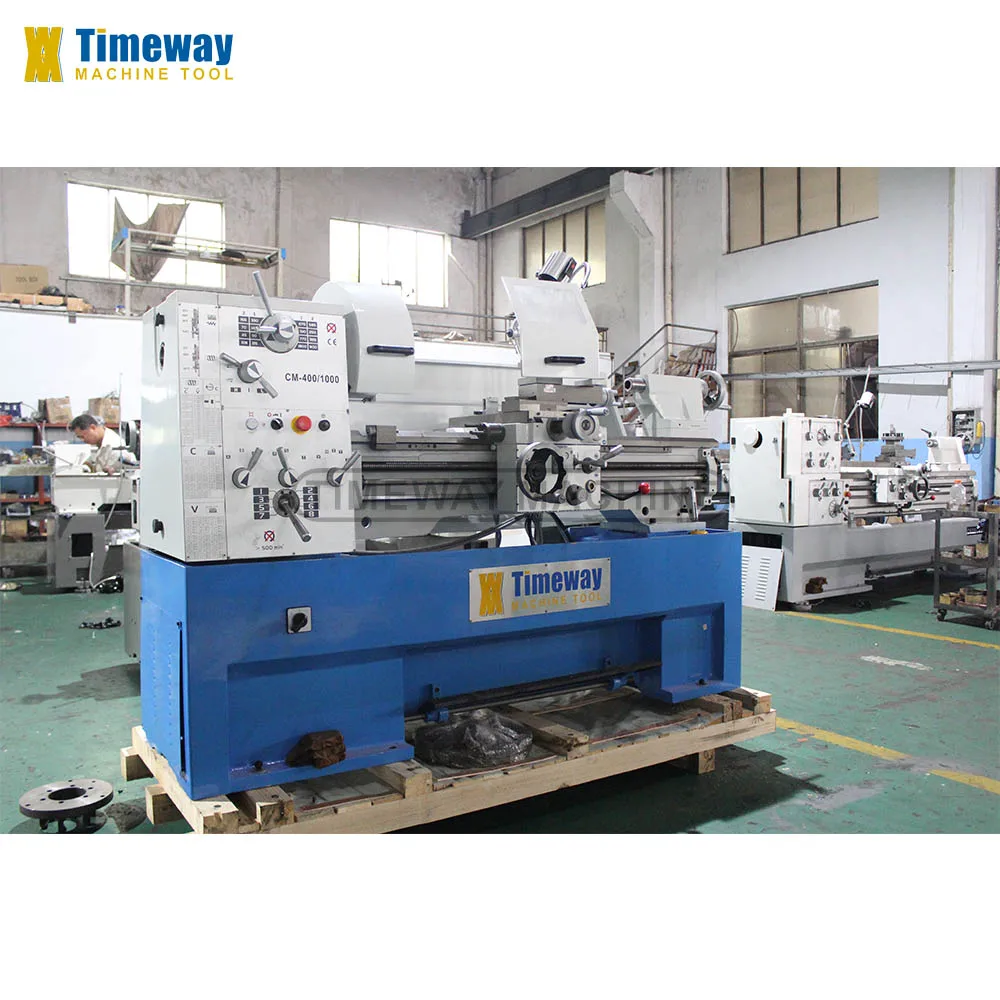

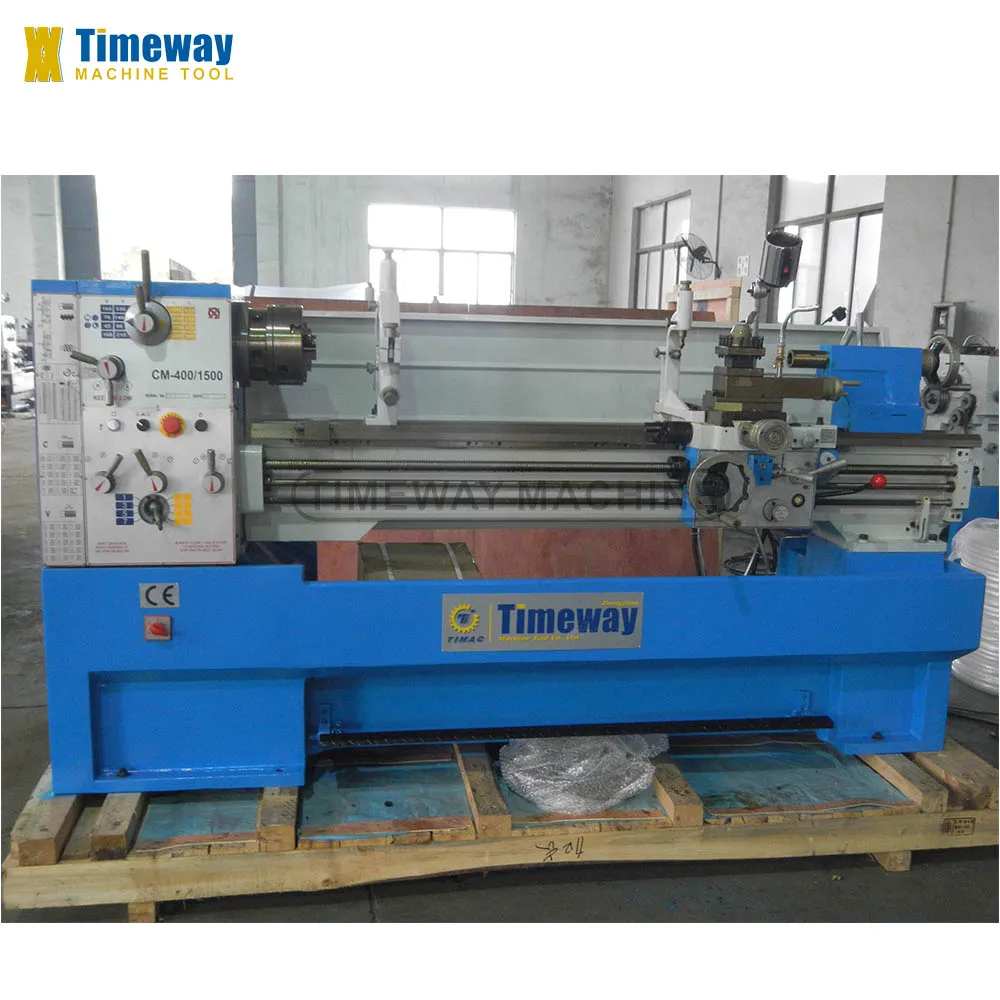

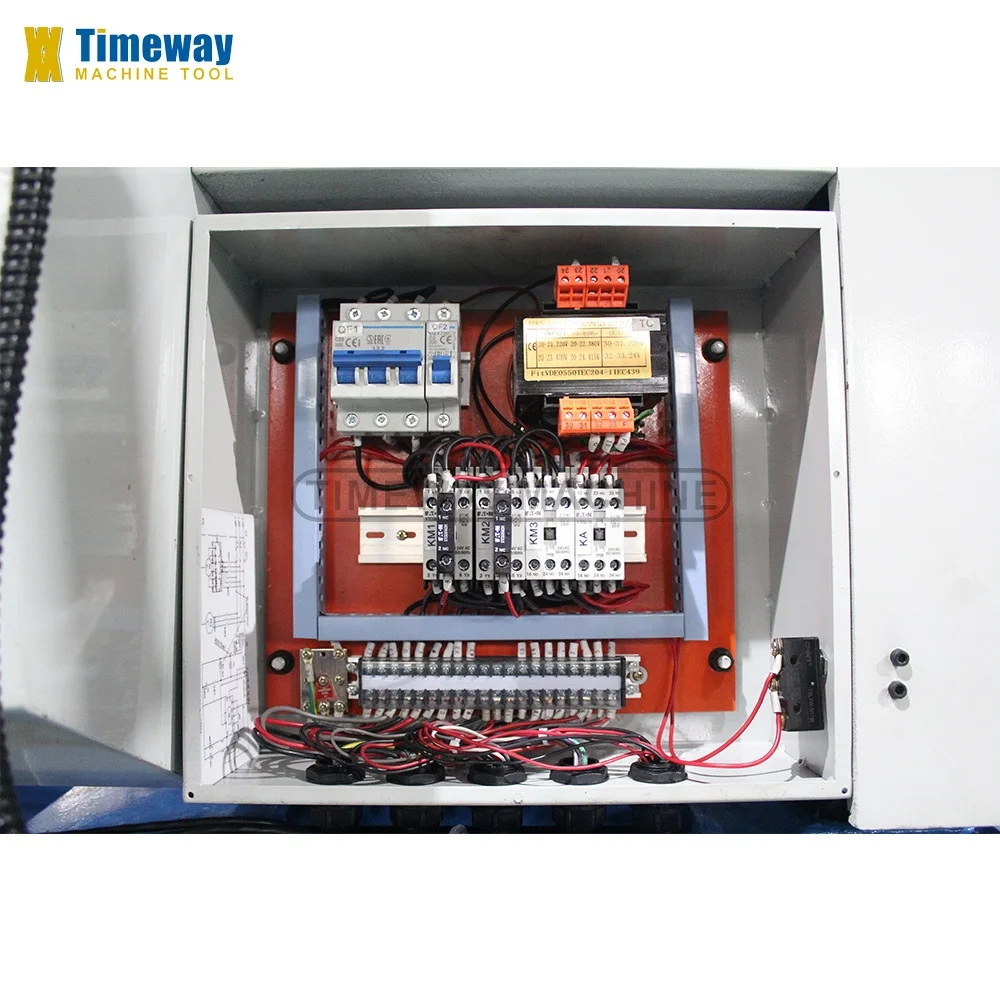

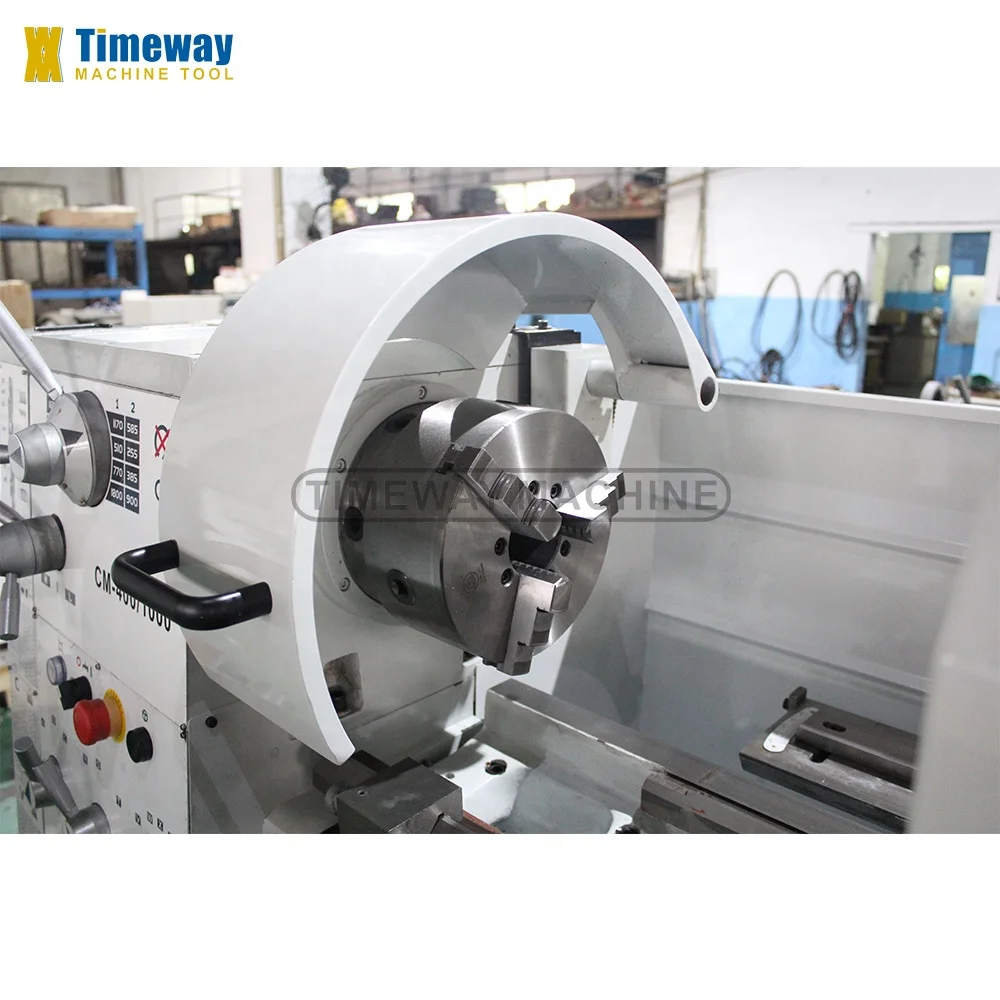

Details image:

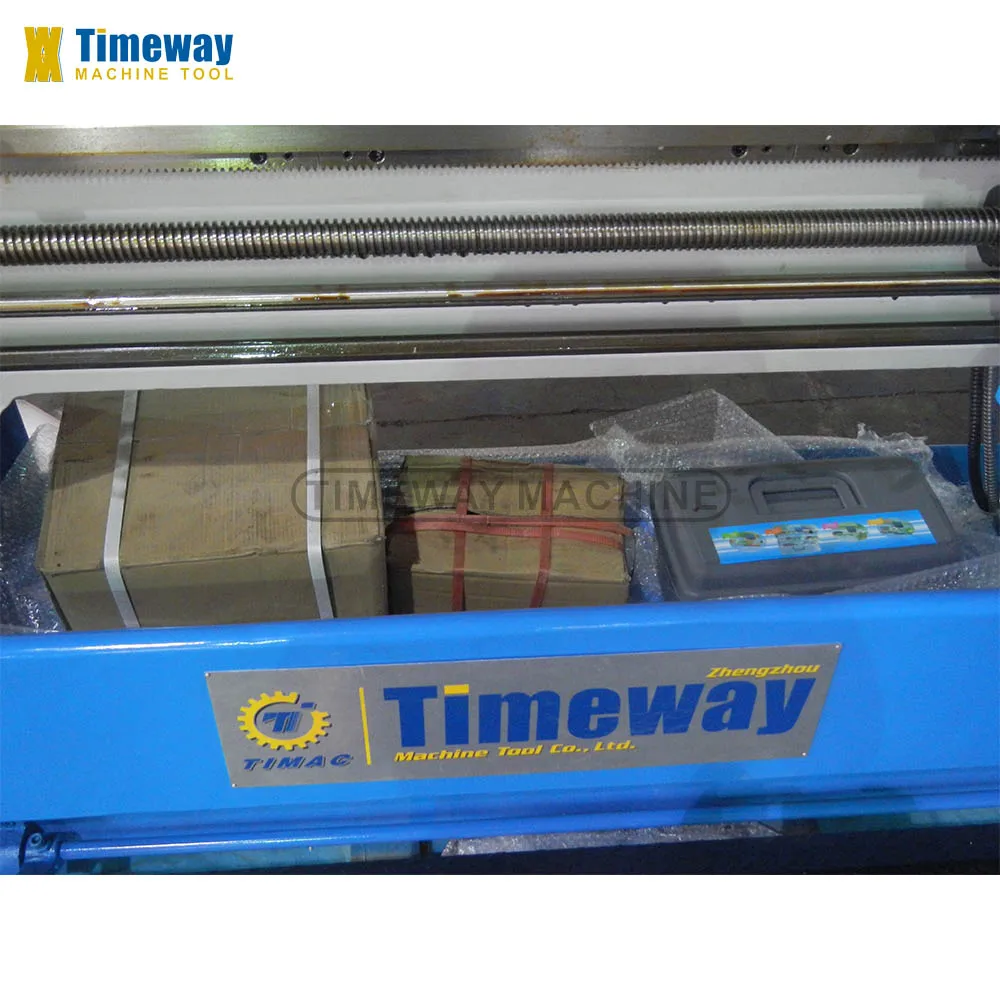

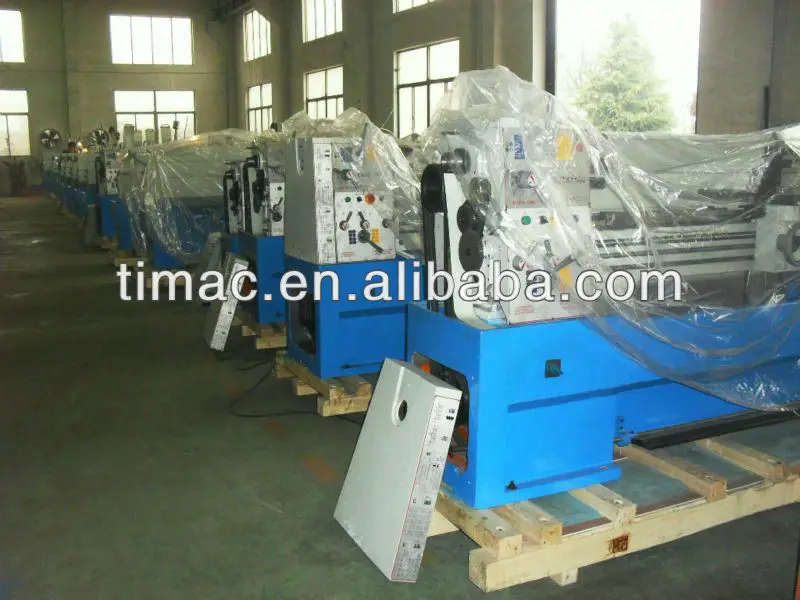

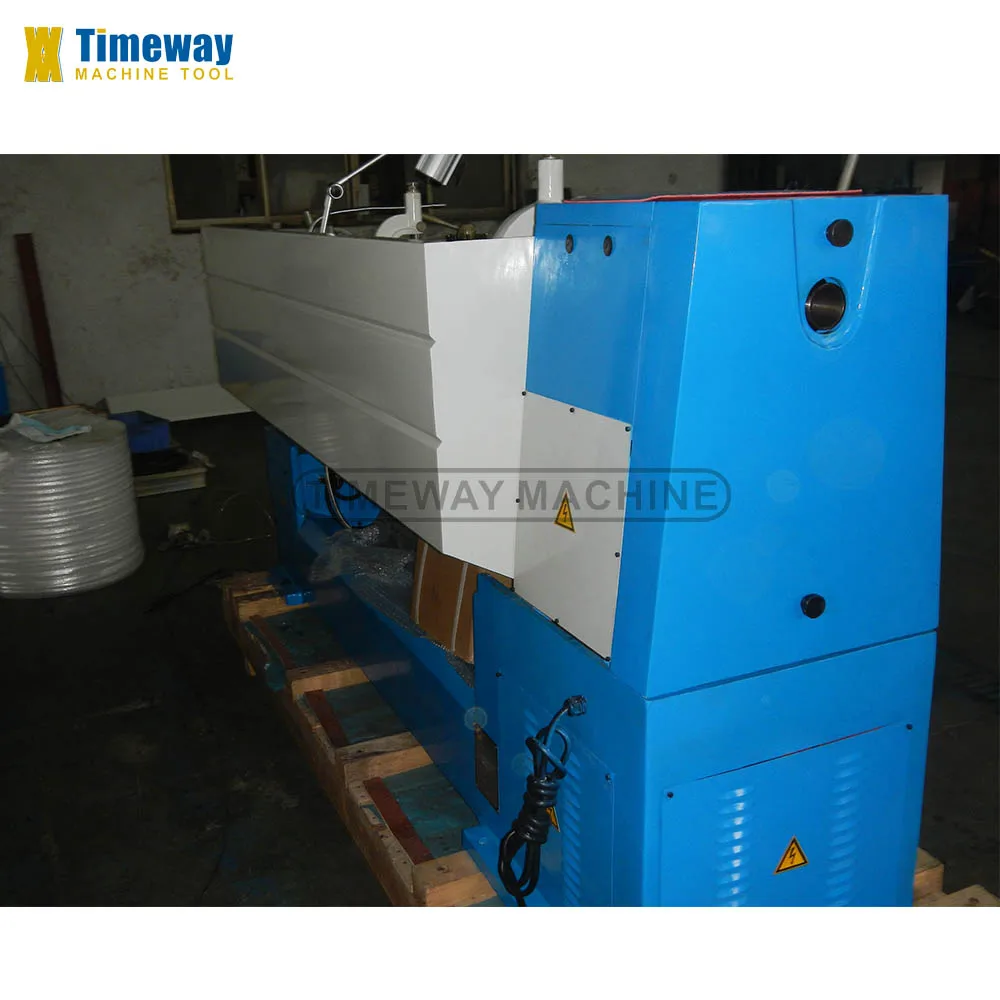

Packaging images:
Company Information
Team&Certification
Exhibition&Training
Package&Transport
Customer Visited
Export Cases
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
