8 way catv outdoor tap and splitters
- Category: >>>
- Supplier: Yuyao Hengtong Network Equipment Co. Ltd.
Share on (1245779218):
Product Overview
Description
8-way catv outdoor tap and splitters
1 Specifications:
Tap Value | dB | 8 | 11 | 14 | 17 | 20 | 23 | 26 | 29 | 32 |
Insertion Loss In-Out (-dB Max) | Frequency(MHz) |
|
|
|
|
|
|
|
|
|
5~10 | - | 3.2 | 1.6 | 1.0 | 0.6 | 0.5 | 0.5 | 0.4 | 0.4 | |
11~300 | - | 3.0 | 1.7 | 1.0 | 0.7 | 0.7 | 0.6 | 0.5 | 0.5 | |
301~400 | - | 3.2 | 1.9 | 1.3 | 0.9 | 0.9 | 0.8 | 0.5 | 0.5 | |
401~450 | - | 3.5 | 2.0 | 1.4 | 1.1 | 1.0 | 0.9 | 0.7 | 0.7 | |
451~600 | - | 3.7 | 2.2 | 1.5 | 1.2 | 1.1 | 1.0 | 0.8 | 0.8 | |
601~750 | - | 4.1 | 2.6 | 1.8 | 1.5 | 1.4 | 1.3 | 1.2 | 1.2 | |
751~900 | - | 4.5 | 3.0 | 2.2 | 1.7 | 1.7 | 1.5 | 1.4 | 1.4 | |
901~1000 | - | 4.9 | 3.5 | 2.5 | 2.0 | 2.0 | 1.8 | 1.7 | 1.6 | |
Tap Loss In-To-Tap (±1.5dB) | 5~10 | 8.0 | 11.0 | 14.0 | 17.0 | 20.0 | 23.0 | 26.0 | 29.0 | 32.0 |
11~750 | 8.0 | 11.0 | 14.0 | 17.0 | 20.0 | 23.0 | 26.0 | 29.0 | 32.0 | |
751~900 | 8.0 | 11.5 | 14.0 | 17.0 | 20.0 | 23.0 | 26.0 | 29.0 | 32.0 | |
901~1000 | 8.0 | 11.5 | 14.5 | 17.0 | 20.0 | 23.0 | 26.0 | 29.0 | 32.0 | |
Tap-To-Tap Lsolation (dB Min) | 5~10 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
11~600 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
601~750 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | |
751~1000 | 20 | 18 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Response All Ports: ±0.5dB
Current Capacity: 10Amps,60VAC, impedence: 75Ω
2 Features:
1) Heavy duty power passing choke
2) Glass epoxy PCB(FR4-G10) with protective cover
3) 90 degree swival blocks for easy installation in aerial or pedestal applications
4) Color coded tap value label
5) Stainless steel hardware
6) Strip gauges on housing and heat shrink ridges on 5/8-24ports
7) Precision brass nickel plated "F" ports
8) Each series have many different models for choose
3 Our Advantages:
1.Careful Quality assurance and good after-sale service.
2.Safe Packing: All the producuts were packaged in standard export carton
to make sure long transportation safety.
3.Delivery Details: Professional delivery team,friendly relationship with shipping company to make sure every customer can receiver good products in time.

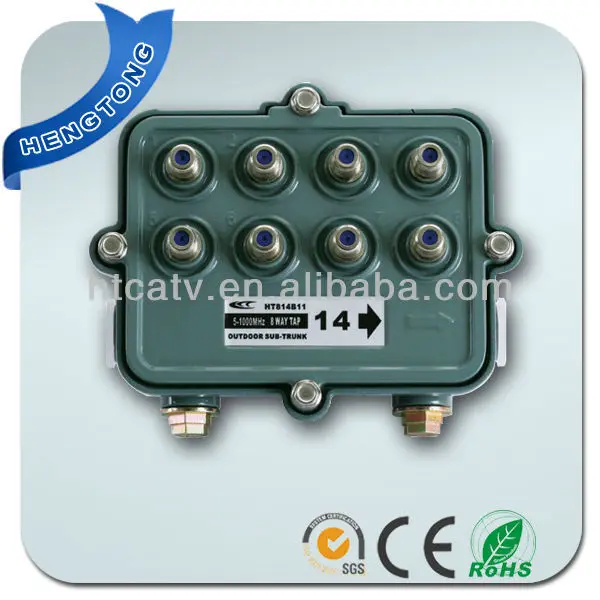

4 Photos:
5. About us:
"Be Honest and Sincere to Customers, Satisfy Customers" in the aim of our business. The enterprise will be
unable to live or continue its business unless the customers are satisfied with us, trust us and need us. When
the customers are satisfied, fame will be formed, which will attract more customers. Customer's satisfaction
is the best advertisement for an enterprise.
Pls do not hesitate to contact us if you have any questions , we will do our best jobs for you.
