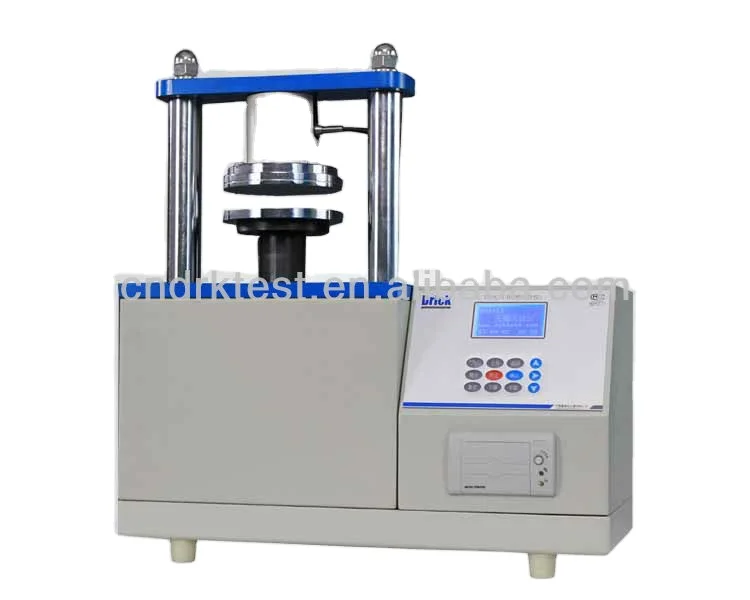

DRK 113 crush tester for paper and plastic film,ISO&CE certificated

Product Overview

Description

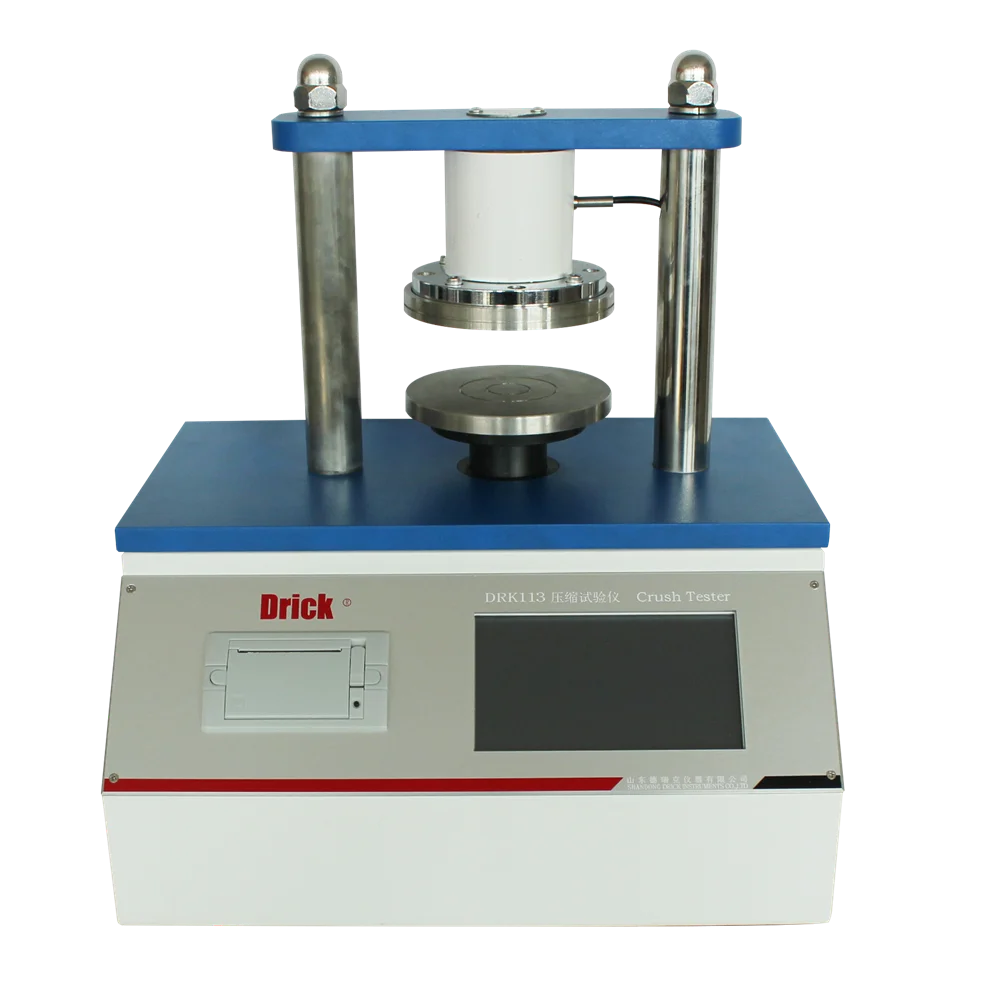

DRK113A Crush Tester

Introduction

DRK113A Crush Tester is a high accuracy and intelligent instrument, designed according relevant standards. The advanced components, mating parts and micro-computer are logical structured, to ensure the property and appearance.

The instrument has parameter testing, adjusting, LCD digital display, memory, printing functions.

Characteristics

1,Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

2,Adopting high precison weighing sensor fixed on upper platen, to ensure colleting data rapidly and accurately.

3,Adopting high-speed ARM processor, to ensure the high degree of automation and intelligentize, very easy to operate. It have power data processing function, can get all the statistical results.

4,Display the pressure force and deflection in time on the LCD display.

5,Finishing test, the measuring head can revert automatically.

6,Equipped with micro-printer, convenient to get the result.

7,With software, it can connect to computer, and display the curves, also can save, manage and print the data.

Application

It is mainly applied to do Ring Crush Test(RCT) for paper, thickness of 0.15~1.00mm; Edge Crush Test(ECT) for cardboard, Flat Press Test(FCT) for cardboard, Adhesive Strength Test(PAT) for cardboard and Tube Compress Test(CMT) for small paper tube, diameter less than 60mm.

It is also used in testing compression strength of paper cup, paper bowl, paper barrel, paper tube and other type small package. It is an ideal testing equipment for paper package manufacturer, scientific research institution, quality inspection department.

Standards

ISO 12192       <paper and board----compressive strength-----ring crush method>

ISO 3035         <single-faced and single-wall corrugated fibreboard-determination of flat crush resistance>

ISO 3037         <corrugated fibreboard. Determination of edgewise Crush resistance (unwaxed edge method)

ISO 7263         < corrugating medium-determination of the flat crush resistance after laboratory fluting>

GB/T 2679.6   <corrugating paper-determination of the flat crush resistance>

QB/T1048-98  <board and carton box-tester of crush resistance>

GB/T 2679.8    <paper and board –determination of compressive strength-ring crush method>

GB/T 6546       <corrugated fibreboard-determination of edgewise crush resistance>

GB/T 6548       <corrugated fibreboard- determination of ply adhesive strength>

Parameter

Configurations

Standard: Mainframe, 4 rolls of printer paper, certificate of quality, operational manual, power line.

Optional: Computer and software, RCT central plates, RCT sample cutter, ECT sample cutter, ECT blocks, PAT clamps,etc.
