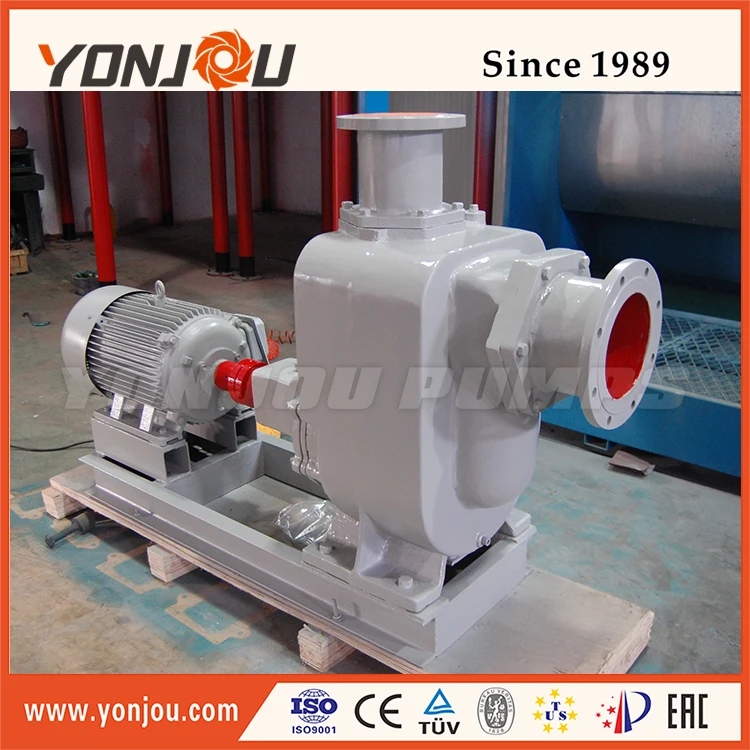

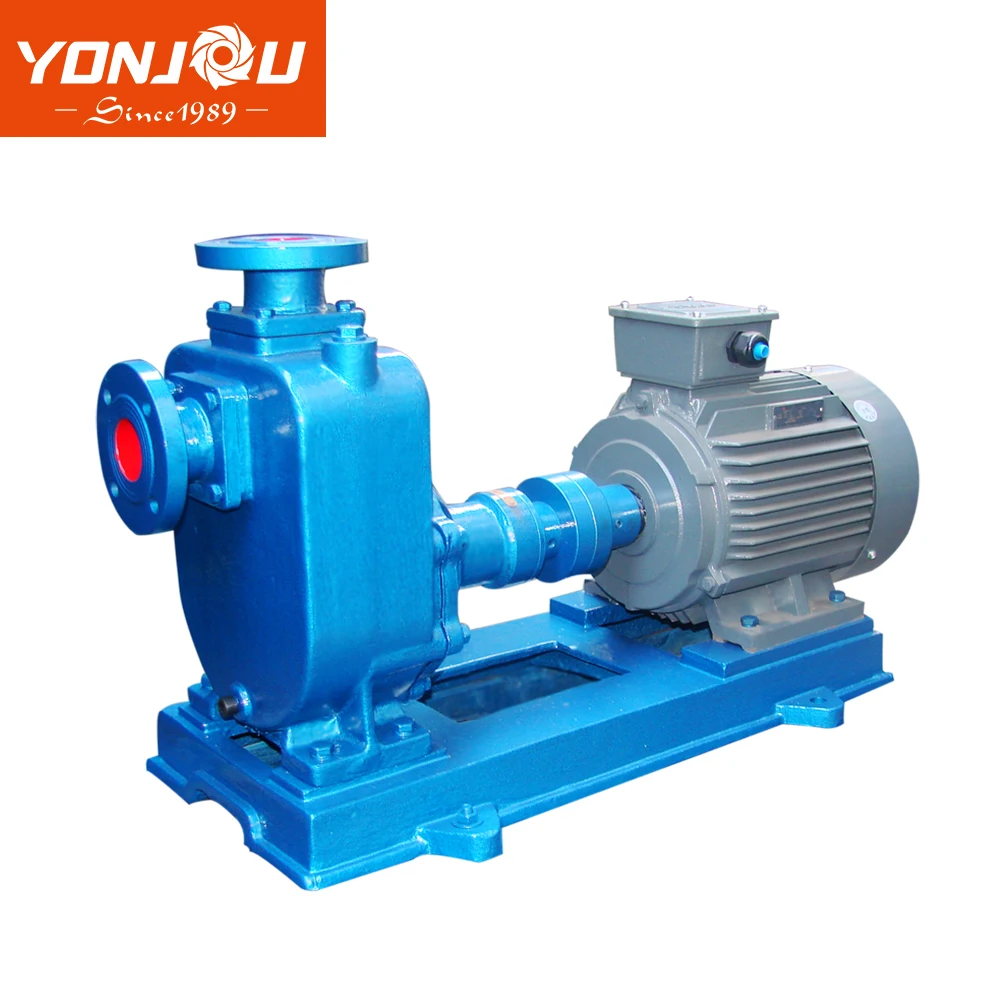

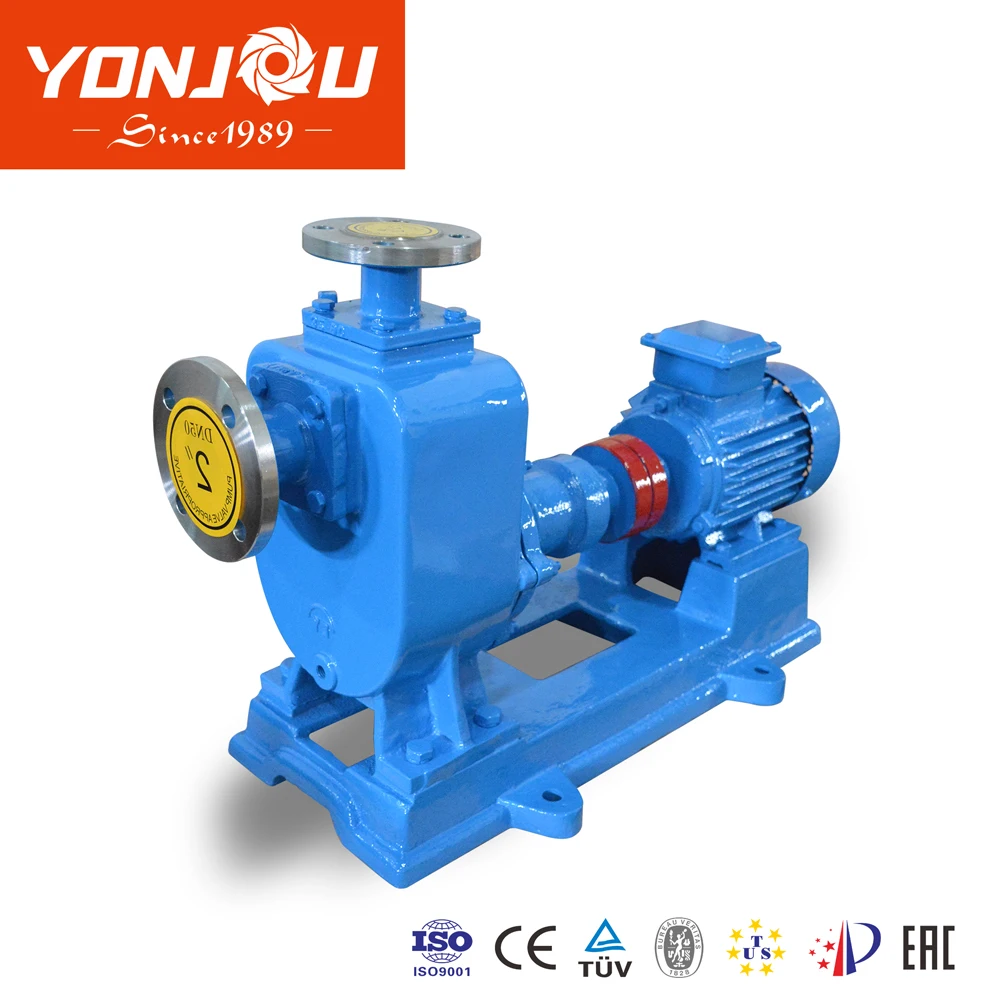

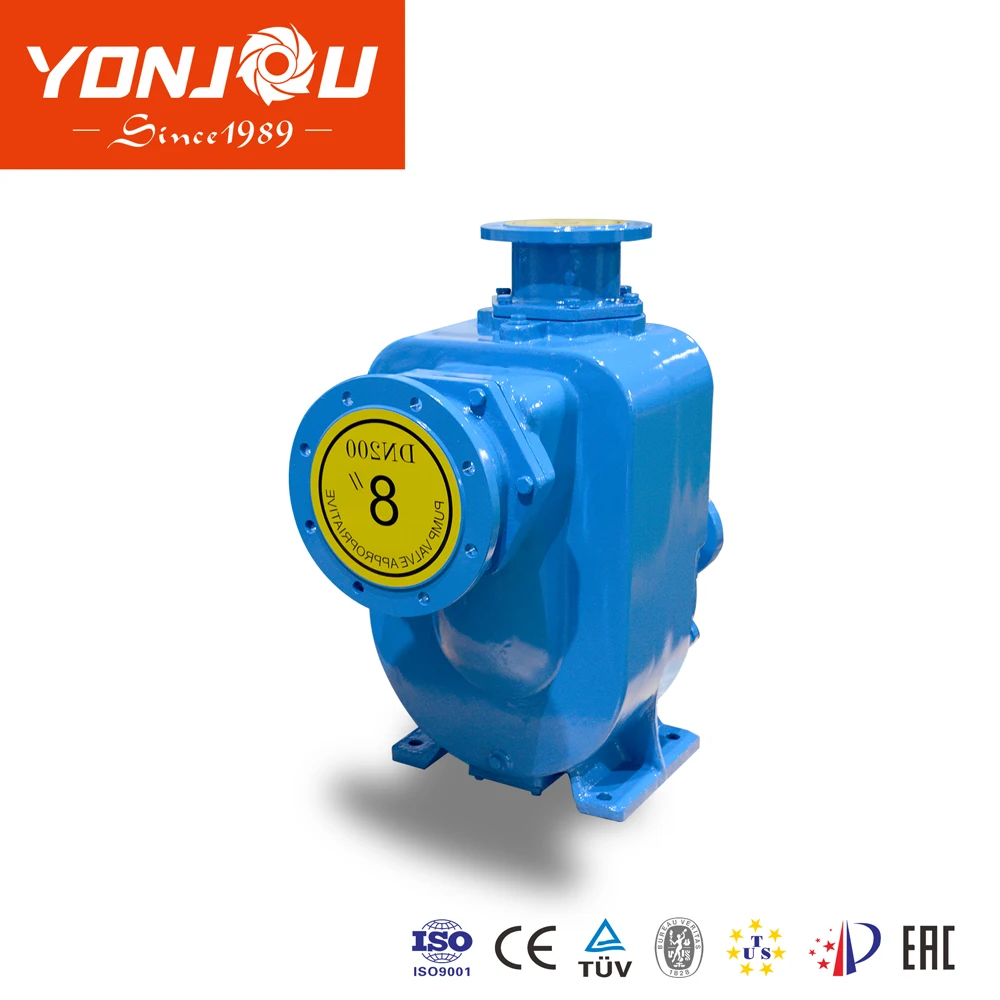

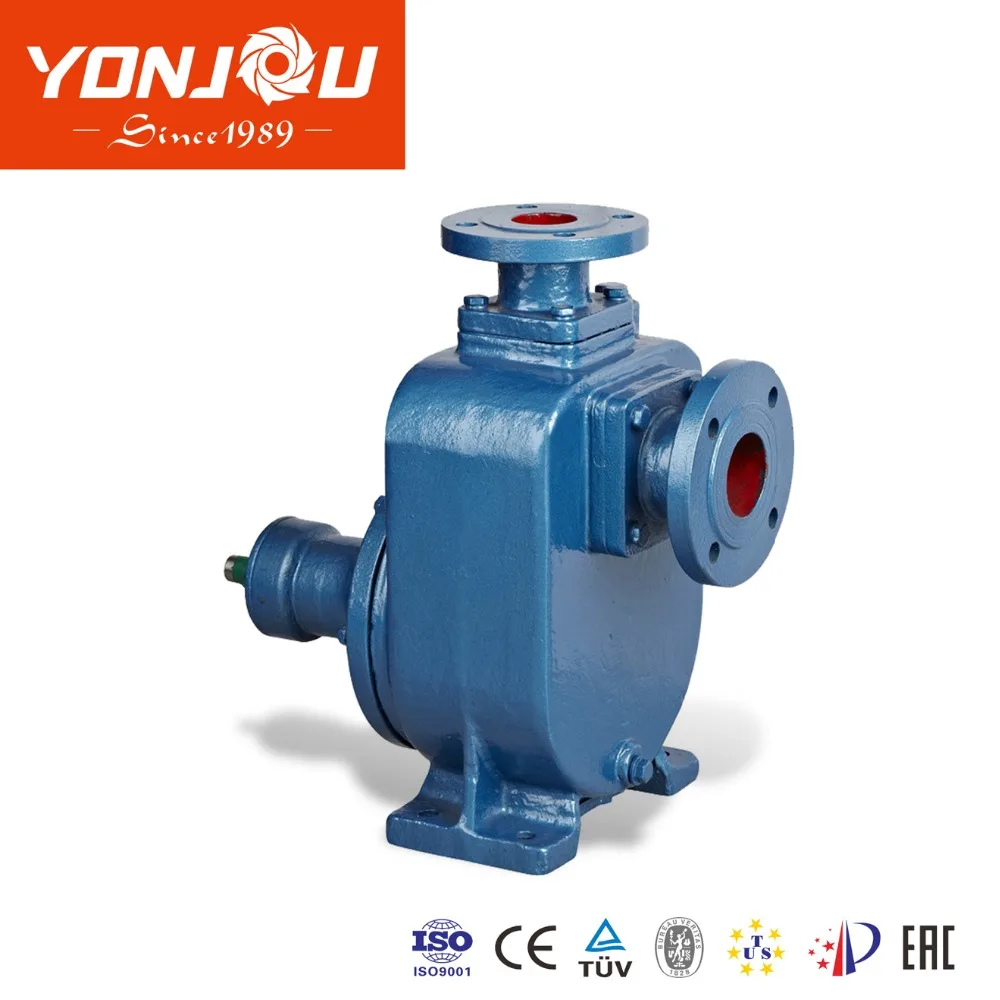

Farm Irrigating/ River Water Transfer Big Flow Multistage Diesel Engine Pump/high Effciency Irrigation Pump OEM Standard Sewage

Product Overview

Description

Product introduction:

1.Farm irrigating/ river water transfer big flow multistage diesel engine pump/high effciency irrigation pump      is special designed for dirty water and waste water transfer and treatment.

2. Pump is with self-priming structure, at the bottom of inlet, there’s a hole for unloading of solids left in pump.

3. It also could be equipped with diesel engine for wild application.

4. The unique structure of open impeller makes sure the free pass of solids in sewage with max size of 60% of outlet DN and fiber 150% of im peller diameter.

5. The sewage pump is widely applicable for the lines of urban diacharge projects, light industry, papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines, aquiculture and so on





Products details:

Working Principle:	Centrifugal, Self-priming
Main applications:	Sewage with soilds, dirty water
Driver:	Electric motor, diesel engine
Power Specs:	220/380/400/415 V 3phase;  50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless steel
Shaft seal type:	Mechanical seal
Maximum grain diameter:	15-170mm
Maximum fiber length:	120-2000mm
Maximum viscosity:	1×104C.S.T
Maximum drive rating:	55KW(75HP)
Maximum caliber:	300mm(12nch)
Maximum discharge-side pressure:	0.8MPa(8bar)
Maximum head:	80m(262.4ft)
Flow rate range:	8-800m3/h(35.2-3520US.GPM)





Performance data:

Model	Capacity	Power	Head	Speed	Suction	Maxgrain	Maxfiber	Pressure
						diameter	length
	(m3/h)	(KW)	(m)	(r/min)	(m)	(mm)	(mm)	(MPa)
25ZW8-15	8	1.5	15	2900	5.5	15	120	0.1-0.18
32ZW10-20	10	2.2	20	2900	5.5	20	150	0.15-0.25
40ZW15-30	15	3	30	2900	5.5	25	230	0.24-0.32
50ZW10-20	10	2.2	20	2900	5.5	30	250	0.15-0.25
65ZW30-18	30	4	18	2900	5.5	40	380	0.13-0.20
80ZW40-16(2)	40	4	16	2900	5.5	50	400	0.11-0.18
80ZW50-60	50	22	60	2900	5.5	50	400	0.55-0.65
100ZW100-15	100	7.5	15	1450	5.5	60	500	0.1-0.18
I00ZW80-80	80	45	80	2900	5.5	60	500	0.75-0.82
125ZW120-20	120	15	20	1450	5.5	80	750	0.13-0.22
150W200-15	200	15	15	1450	5.5	80	750	0.1-0.18
150ZW200-20	200	22	20	1450	5	80	750	0.15-0.25
