made in China Vacuum Tube Solar Collector,solar power items,gravity fed solar water heater

Product Overview

Description

*Working Principle:

This solar collector applies the dual borosilicate glass vacuum tube as the heat absorber, It has a high heat efficiency, low price. It is suitable for regions with good sunshine conditions and winter temperature above -20 ^oC.
All-glass Vacuum Tube Solar Collector KD-SC-AG

*Material:
A) Vacuum tube: borosilicate glass
B) Manifold: red copper
C) Joint box: aluminum alloy/stainless steel

D) Bracket: aluminum alloy / galvanized steel

* Insulation:
A) Material: rock wool or foam polyurethane
B) Thickness: 55mm (Max. preserving time: 72 hours)

*Working pressure: 0.6 MPa

*Testing pressure: 1.2MPa

*Hail resistance: Ø 25mm

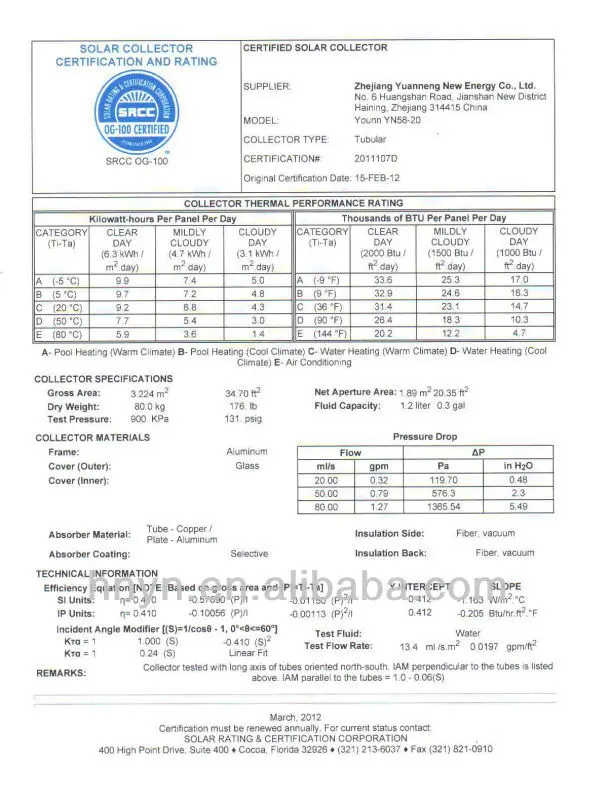

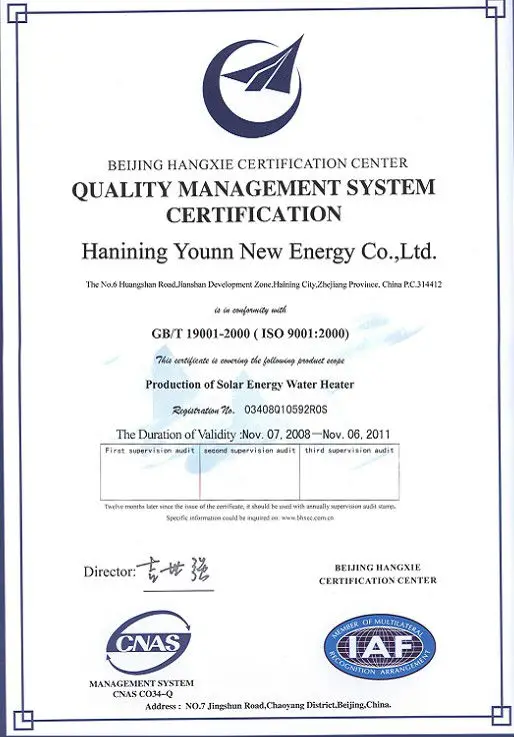

* Certificate: ISO9001: 2000 / CE
* 3 years international quality guarantee
* Packaging: vacuum tube / carton, manifold / carton, joint box / carton, bracket / carton



Technical Data of All-glass Vacuum Tube Solar Collector

Model	Area( M2 )	All Glass Vacuum tube			Volume(L)	Gross weight(kg)	20GP/40GP/40HC loading Qty(sets)
		Ø(mm)	Length(mm)	Qty(pcs)
YN-SC-AG 4730	3.75	47	1500	30	180	88	75/120/136
YN-SC-AG 4760	7. 50	47	1500	60	360	162	60/94/96
YN-SC-AG 5825	4.75	58	1800	25	250	81	75/122/142
YN-SC-AG 5850	9.70	58	1800	50	500	160	65/126/130
