Infrared ceramic plate for gas burner
- Category: >>>
- Supplier: Shanghai Kessen Ceramics Co. Ltd.
Share on (1248695043):
Product Overview
Description
Product Description

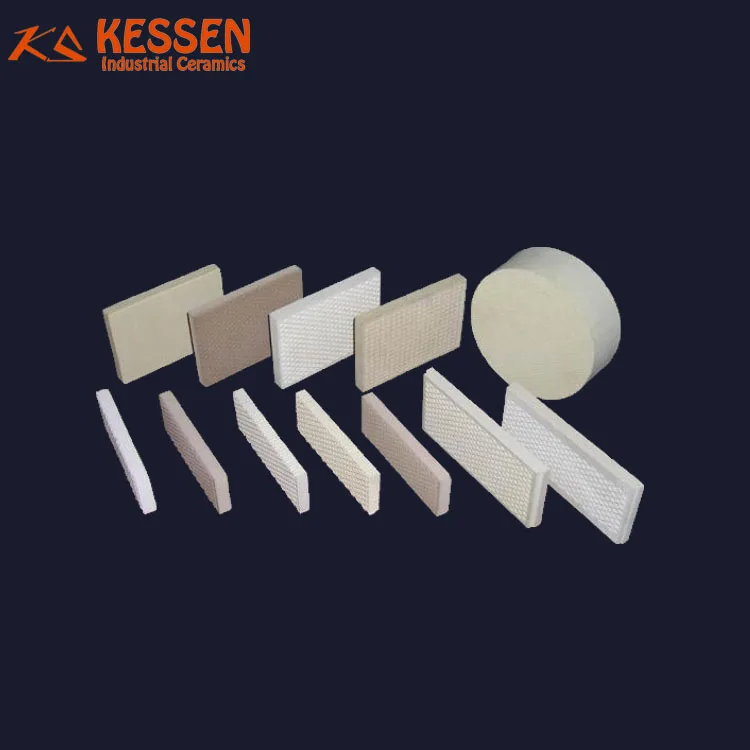

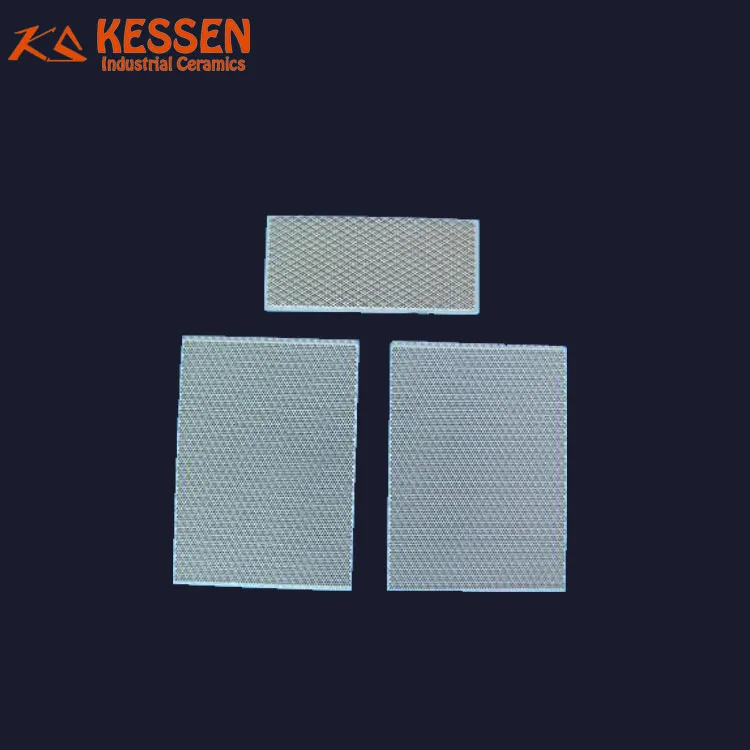

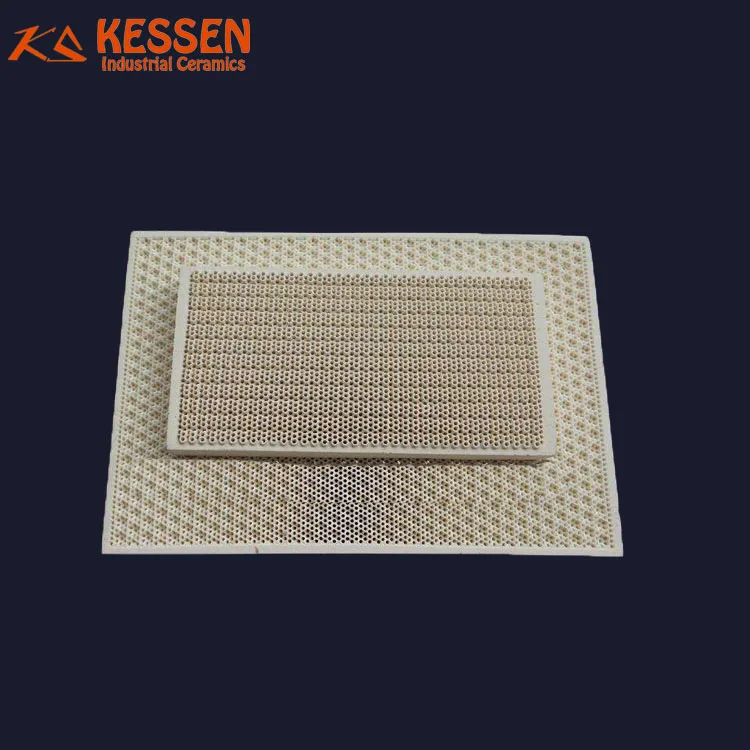

Infrared Honeycomb Ceramic Plate for burner
Introduction: Infrared honeycomb ceramic plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating conditions.
Infrared Honeycomb Ceramic Plate, It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost .
Technical Data:
Item | Index | Specifications |
Material | Cordierite | Round Size:Φ80×12.5mm, Φ100×50mm, Φ125×12.5mm, Φ150×12.5mm, Φ160×13.5mm, Φ168×13.5 mm Square Size:100×50×13.5mm, 132×68×13.5mm, 110×110×12.5mm, 132×76×13.5mm, 132×92×13.5mm, 158×72×13.5mm 198×136×13mm, 202×148×12.5mm |
Water absorption | 50.4% | |
Open Porosity | 61% | |
Specific gravity | 0.9-1.10Kg/cm3 | |
Temperature softening | >1280 °C | |
Cooking Surface Temperature | 1000-1200 | |
CO Release | ≤0.006% | |
NOx Release | ≤5ppm |
Packaging & Shipping
Package
Carton,Plywood
Shipping
We can supply you the translation methods whatever you want.
--By express (DHL/Fedex/etc.)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ shipping agent
Our Services
Our products are warranted to be free from defects in materials or workmanship for 6months from the date of purchase. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
1.Your inquiry related to our products or prices will be replied within 24hours
2. Guarantee samples quality same as mass production quality
3. Offering the support to solve the problem in the application or selling period.
4. Competitive prices based on same quality.
Company Information
Shanghai Kessen Ceramics Co., Ltd. is a wholly owned subsidiary of Shanghai Kessen
Group Corp. Professional design, production and sale of precision ceramics, refractory
ceramics, and new inorganic non-metallic materials, that is alumina, zirconia, magnesia,
silicon nitride and silicon carbide as main raw materials. After a series of synthetic and
refining processing to make superfine powder. By means of 1700c ultra-high temperature and
high pressure process sintering, the products have high temperature resistance, corrosion,
wear, pressure insulation and other outstanding features. They are widely used in electronics,
metallurgy, petrochemical, information, mechanical, electrical, autos, aerospace, new energy,
military, defense and other industries.
Shanghai Kessen Group Corp
Shanghai Kessen Ceramics Co Ltd
No1115 Road Yongxin Jiading Shanghai 201800 China
Tel:86-21-51099195 Fax:86-21-51010816 Skype:kessen.kevin
www.kscera.com
FAQ
1. Can you accept OEM?
Yes!.We can manufacture as per your request specification.
2. Can you deliver the goods via our shipping agent?
Yes, we could help you make the delivery using your shipping agent
3. Can you supply sample?
Yes.We would like to give you suitable suggestion according to your detail application.
4. What about your After-sales service?
Yes.We promise that we can change or refund products if there are any quality problem.
If you need more professional help, please contact us. Our technical engineers would like to give advices according to your requirements
