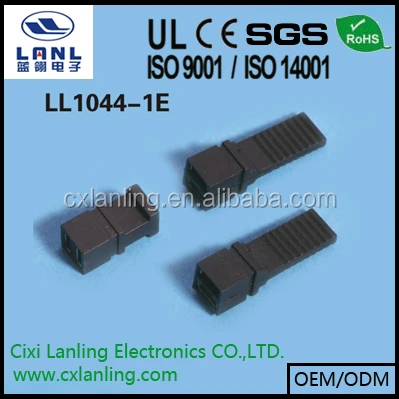

2.54mm Mini Jumper connector CONTINUUM ASSIST TYPE with hand shank

Product Overview

Description







mini jumper 2.54mm /Mini Jumper connector CONTINUUM ASSIST TYPE with hand shank





We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.

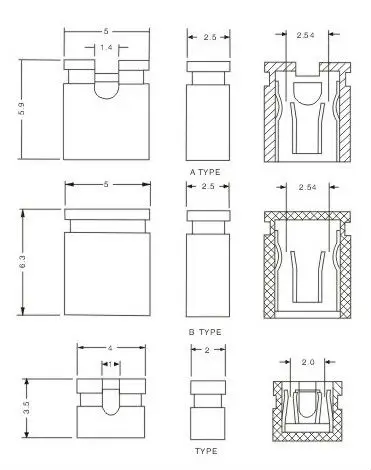

2.54mm MINI JUMPER
Material:
Housing:	30%Glass filled PBT UL94V-0.
Contacts:	Phosphor Bronze.
Plating:	Gold plated:2U'' over 50U'' nickel.
	Tin plated:100U'' over 50U'' nickel.
Electrical Characteristics:
Current Rating:	1 AMP.
Insulator Resistance:	5000MΩmin,at DC 500V.
Contact Resistance:	20MΩmax,at DC 110mA.
Operating Temperature:	-55°C~+105°C.
Features:
Available in open and close type.
Various color available.
Mates with:501 502 503 504 505 506
