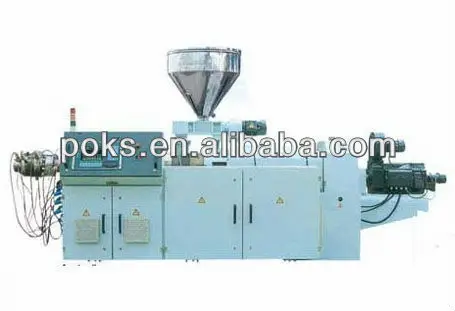

pvc pipe twin screw extruder

Product Overview

Description

pvc pipe extrusion machine



Performance and Structure :

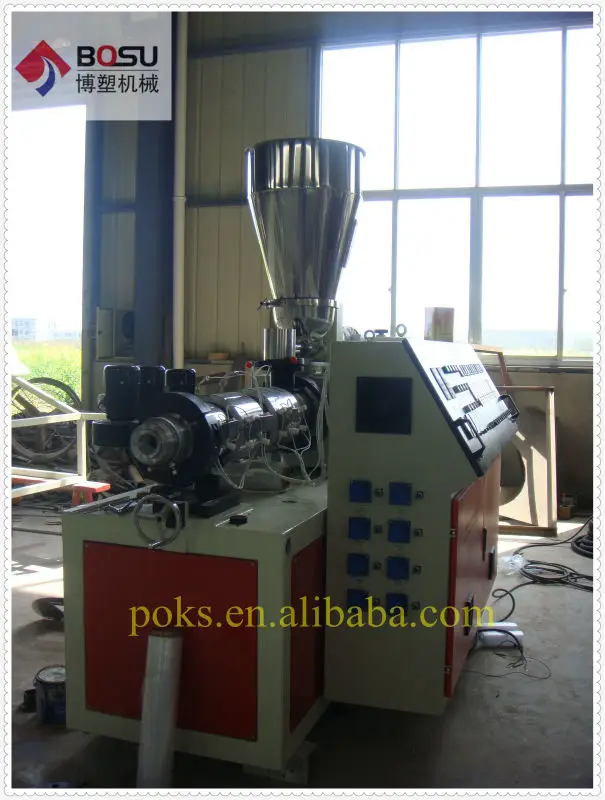

     SJSZ series conical twin-screw extruder fan machine, together with the appropriate screws and auxiliary equipment, can be particularly hard variety of thermoplastic extrusion of PVC powder directly into the tubes, plates, sheets, film and special materials etc., can also be modified to complete all kinds of plastic and powder granulation process.

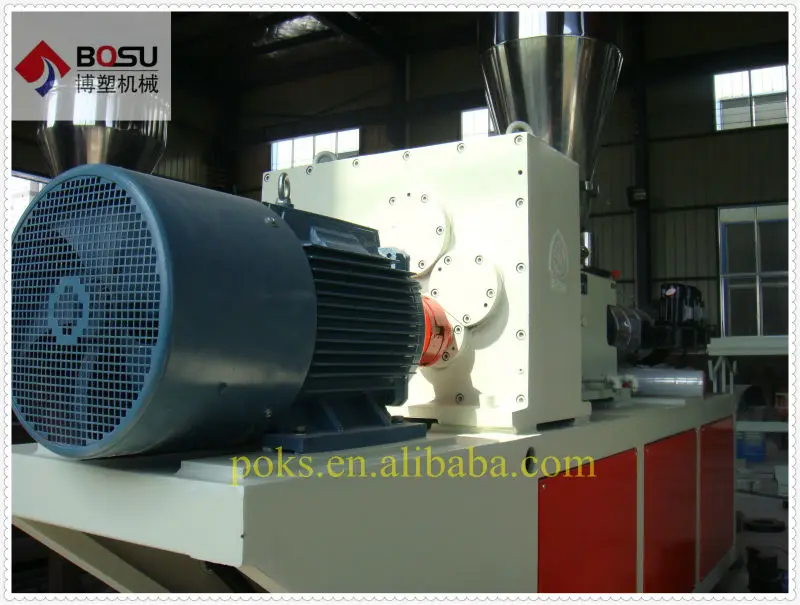

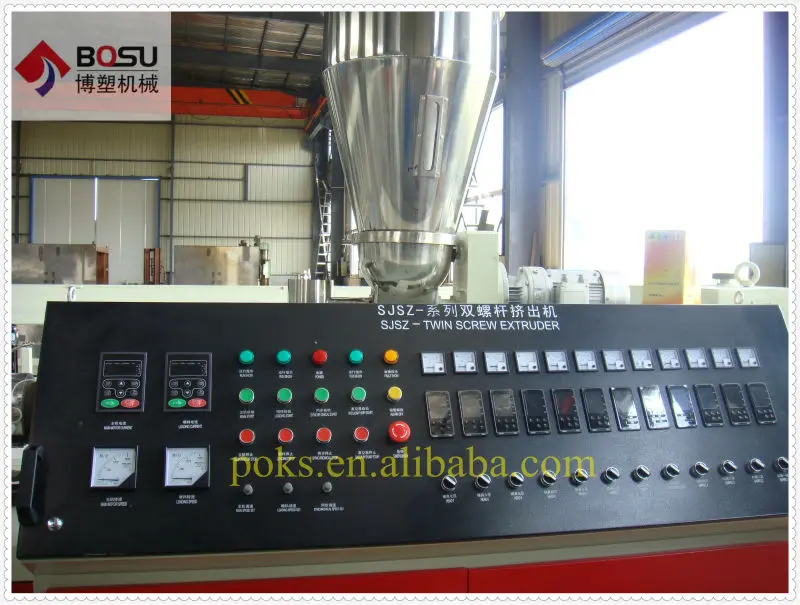

    The machine adopts DC motor, SCR variable speed, with overload and fault alarm, the Department of screw oil circulation core temperature, barrel oil cooling, and with vacuum venting and forced feeding.



Main technical parameters:



SPECIFICA\\ MODE	SJSZ-45	SJSZ-50	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Diameter of screws(mm)	45/90	50/105	55/110	65/132	80/156	92/188
L/D	14.5	14.5	14.5	14.6	15.25	17.86
Speed of screws (r/min)	3-34	3-37	3-37	3.9-39	3.9-39	4-40
Main motor(kw)	18.5	22	27	37	55	100
Barrel heating power(kw)	15	10	18	28	38	70
Production(kg/h)	100	120	150	260	400	800
Centre height of machine(mm)	1000	1000	1000	1000	1000	1100
Net weight(kg)	3000	3200	3500	4000	5000	7000
