Tungsten carbid sintering furnace and silicon carbide sintering furnace

Product Overview

Description

 Tungsten carbid sintering furnace and silicon carbide sintering furnace

Vacuum induction sintering furnace

Carbide tungsten vacuum sintering furnace



 The vacuum sintering furnace can be rotated while sintering .

1. Main application

It is suitable for sintering copper tungsten alloys, aluminum Ni-Co permanent magnet, carbon fiber graphitization, carbon carbon composites, silicon carbide products, tungsten molybdenum and other alloy material in vacuum or atmosphere .Also it can be used for other metal materials heating treatment and deposition.

2.Features

The system use reasonable vacuum unit, it is suitable for vacuum sintering.

Intelligent temperature controller, configuration can be installed freely 148 sections. And the equipment has high precision temperature control heating curves, temperature can reach automaticly according to procedures

The equipment use high efficiency power and induction coils, with high heating speed and high temperature.

Furnace atmosphere is optional and uniformity.The furnace can be filled with hydrogen, nitrogen and argon, etc

We can add unglued devices according to the craft.



 3.Reference specifications

Model	Power (KW)	Heating area size Diameter*height (mm)	Temperature (°C)	Limit vacuum (pa)	Rate of pressure rising (Pa/min)	Frequency (HZ)
SLT50	60	150×200	2500	0.0047	<0.15	8
SLT100	100	250×400	2500	0.0047	<0.15	6
SLT160	160	360×750	2500	0.0047	<0.15	4
SLT200	200	450×900	2500	0.0047	<0.15	4
SLT300	300	600×1200	2500	0.04	<0.15	4
SLT400	400	680×1200	2300	0.04	<0.15	2.5
SLT500	500	800×1500	2300	5	<0.15	2.5
SLT600	600	600×2500	2300	5	<0.15	2.5
SLT630	600	850×2600	2300	5	<0.15	2.5

Other specification can be made according to the requirement



Power supply cabinet for vacuum sintering furnace

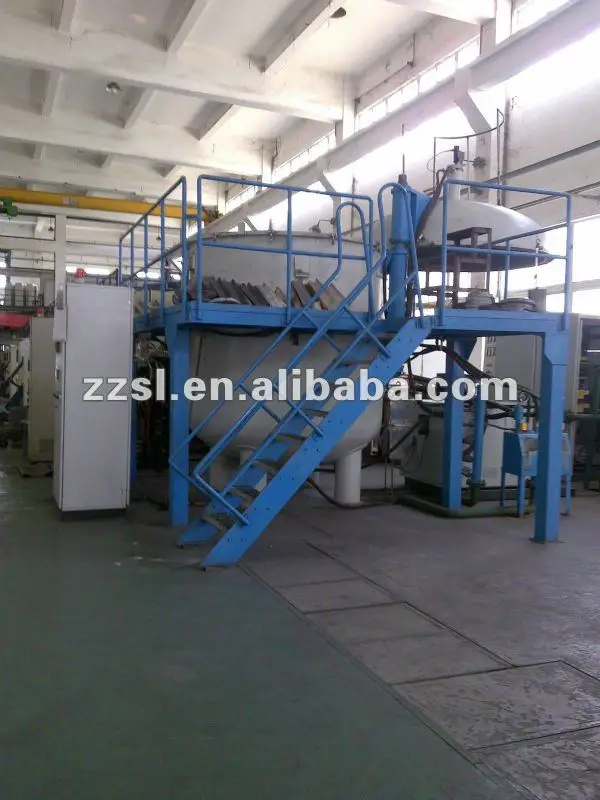

Vacuum sintering furnace
