Putty Mixing Machine on Sale

Product Overview

Description

Putty Mixing Machine on Sale





Features of  Putty Mixing Machine on Sale



1. Horizontal tank body, need small space but more capacity.



2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.



3. Gear box drive the auger shaft , low noise and low malfunction, long using life



4. U-Shape tank bottom, better for material discharge and cleaning



5. Pneumatic cylinder to control the discharge exit.



6. Gas pressure spring help the top cover easy open



7. Control panel simple and easy operate .With timer to set the mixing time



8. The  putty mixing machine can mix well one batch within 6 minutes.



9. The putty mixing machine can be add the sprayer to mixer the liquid material.





Technical Parameter of Putty Mixing Machine on Sale

Model	Power (kw)	Capacity (kg/batch )	Mixed coefficient	Mixing time (minutes)	Size (mm)
SLHY0.125	1.5	50	CV≤7	3-6	1300*500*1000
SLHY0.25	1.5	100	CV≤7	3-6	1600*600*1100
SLHY0.6	2.2	250	CV≤7	3-6	2200*800*1300
SLHY1	7.5	500	CV≤7	3-6	2200*1000*1950
SLHY2.5	15	1000	CV≤7	3-6	2600*1100*2100
SLHY5	30	2000	CV≤7	3-6	2700*1200*2200

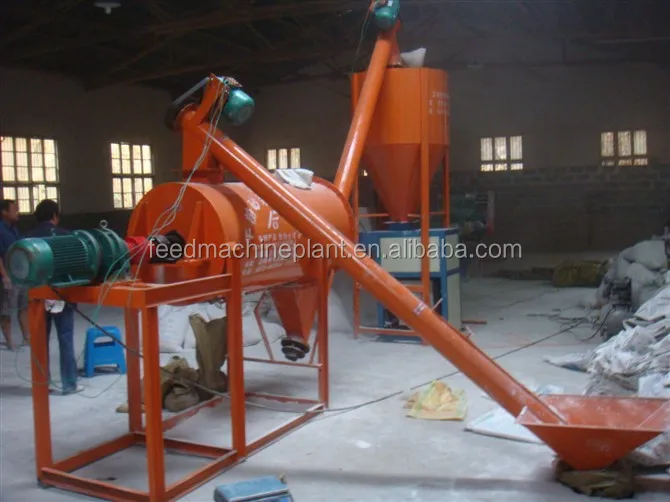

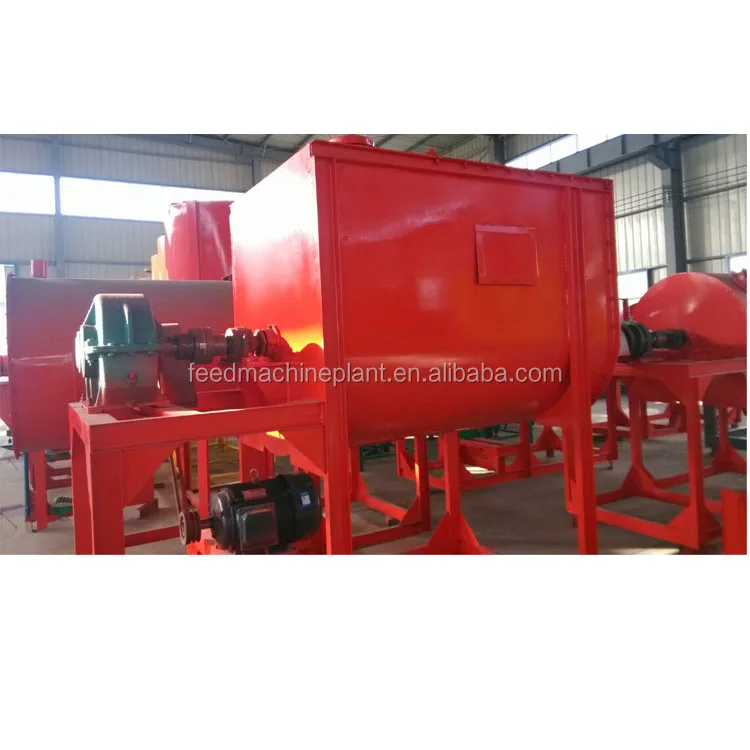

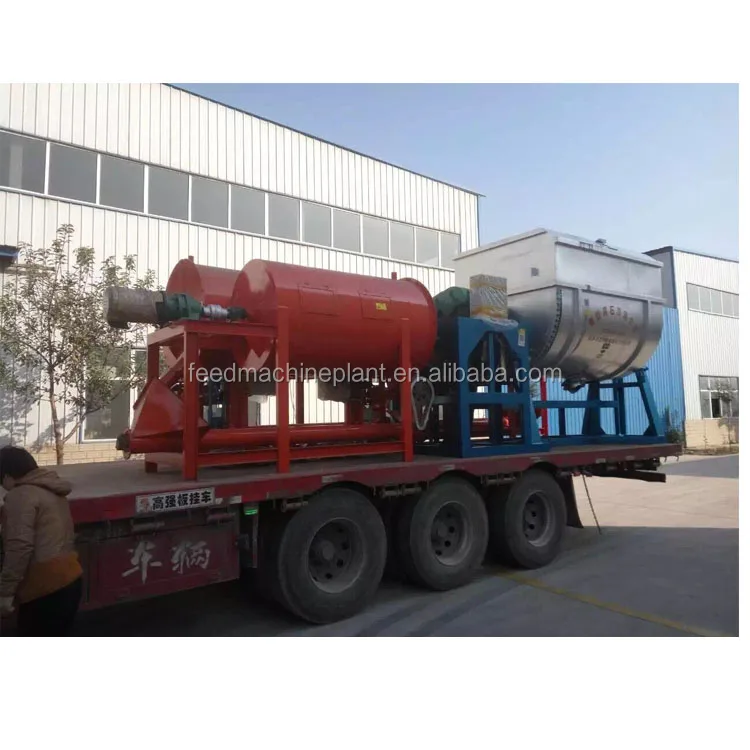

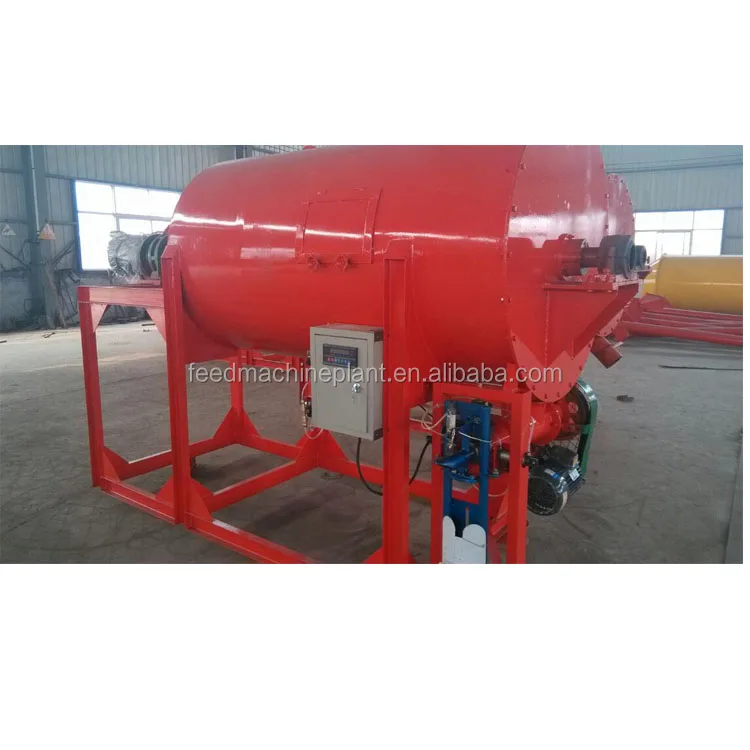

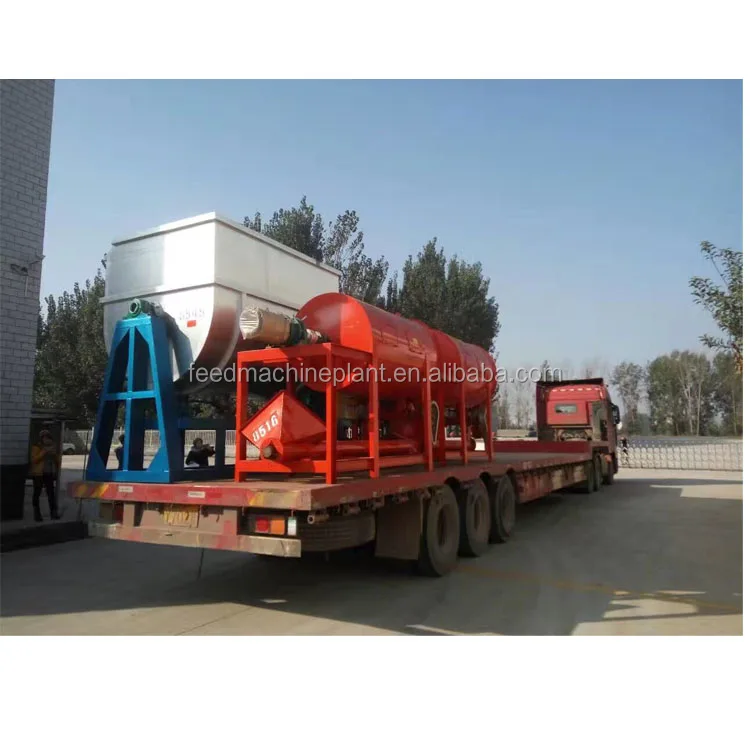

Photoes of Putty Mixing Machine on Sale
