PVC/PE/ABS plastic granules mixer

Product Overview

Description

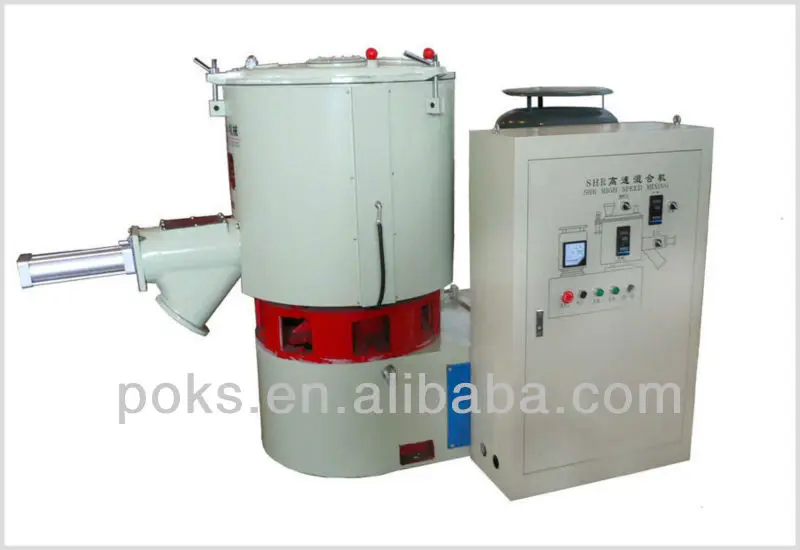

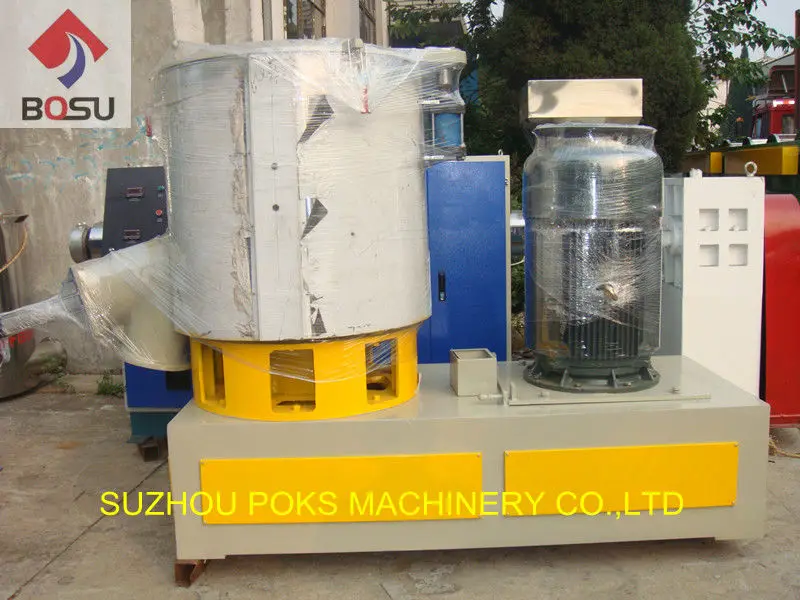

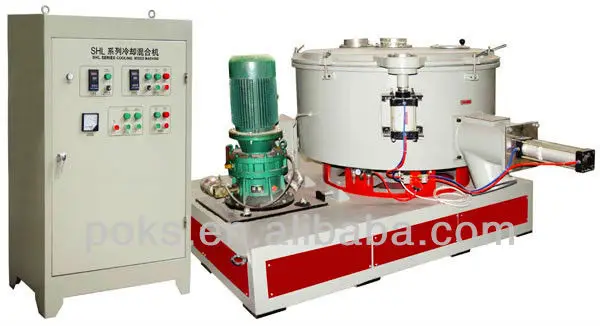

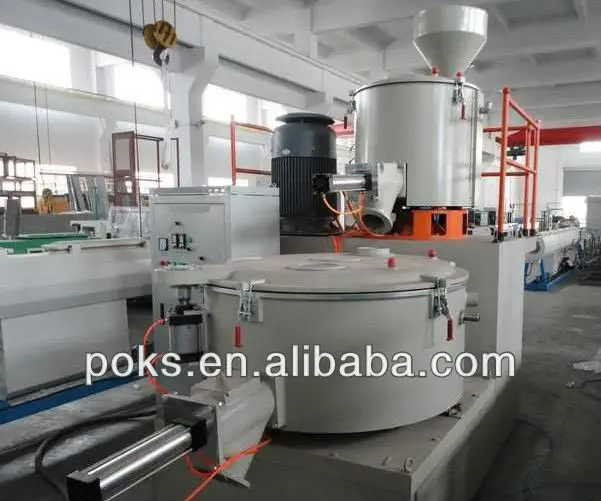

(PVC/ABS/PE Series)High speed Mixing Machine



Features and Application:

1. SHR series mixer is mainly used in mixing PVC and all kinds of plastic materials mixing, coloring, drying and etc in plastics, rubber, food-stuff, daily chemical industry and so on.

2. It adopts advanced design and can be operated easily. safely and reliably. They have small size, light, high efficiency. low energy consumption and low noise. It is an ideal choice for you to buy such devices.

3. The pot cover adopts double-channel seal.

4. There are heating ways of heating from the friction and electricity. These machines combine hot mixing and crafts together, the hot mixing finished, materials automatically enter to be cooled and got rid of remained gas, preventing agglomeration.

5. Unloading the material can adopt temperature / time to automatically control or manual control

6. The thick liquid leaf is made up of stainless steel, and through the experiment of moving and not moving, According to different supplies characteristic you can choose multi-form paddle or installing the thick liquid of side additional, in order to reach the necessary mixed result.

7. Electrical control adopt the famous-brand component electrically.

8. Adopting frequency control of motor speed device.



Technical Parameter:

Parameter  Model	Total  volume ( L)	Effective  volum(L)	Motor power  /Heating power  (kw)	Main shaft rotating speed    (rpm)	Overall dimensionsmm	Heating	Discharging
SHR25A	25	18	5.5	1440	1200*350*850	electrical heating /self-friction	pneumatic
SHR50A	50	35	7/11	750/1500	1800*700*1100
SHR100A	100	75	14/22	650/1300	2100*800*1510
SHR200A	200	150	30/42	475/900	2400*850*1580
SHR300A	300	225	40/55	475/900	2800*1080*1680
SHR500A	500	375	47/67	430/860	3050*1150*1880
SHR800A	800	600	60/90	370/740	3050*1360*1900
SHR1000A	1000	750	110/160	325/650	3500*1550*2300







For more information,pls feel free to contact us.
