Product Overview
Description
Jofee: Company introduce
1.Jofee is the main diaphragm pump manufacturer in China, have more than 15 years experience.

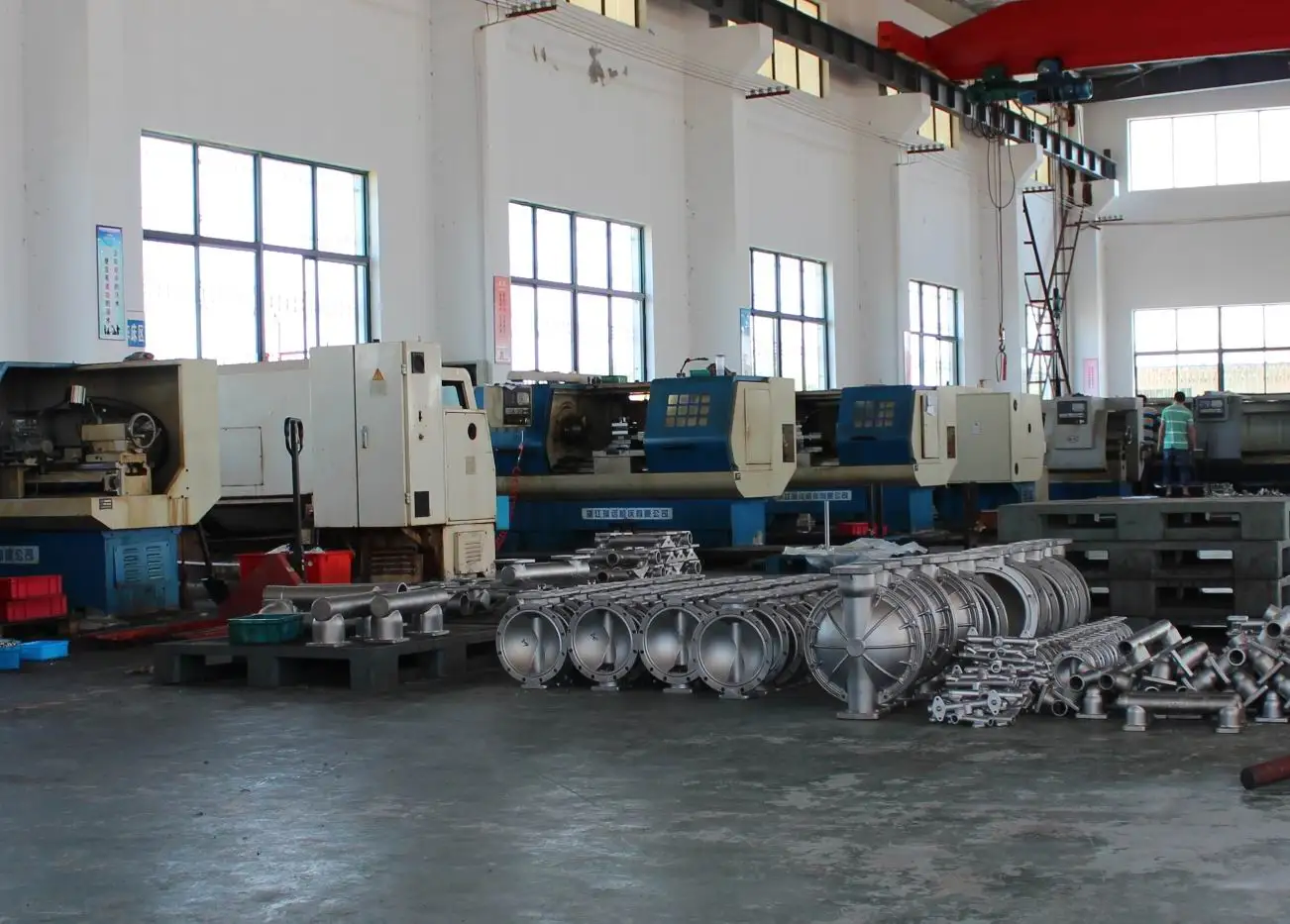

2.We manufacture more than 32, 000 pumps per year and export to 40+ countries and regions.
3.Our agents are located in the United States, Brazil, Korea, Taiwan, Singapore, Malaysia, Thailand, Indonesia, Vietnam and
South Africa etc.
South Africa etc.

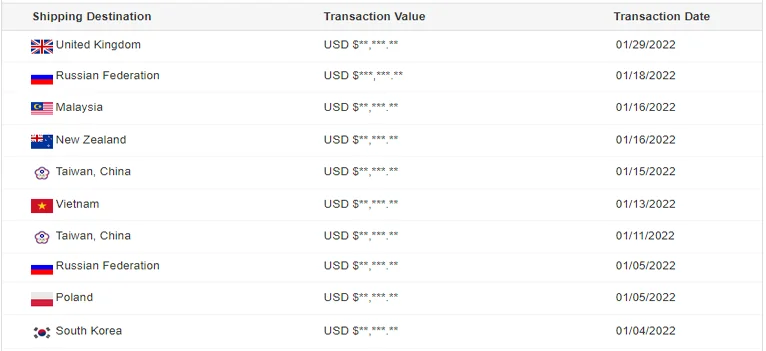

4.The following is the real transaction data of our exporting in Jan-2022

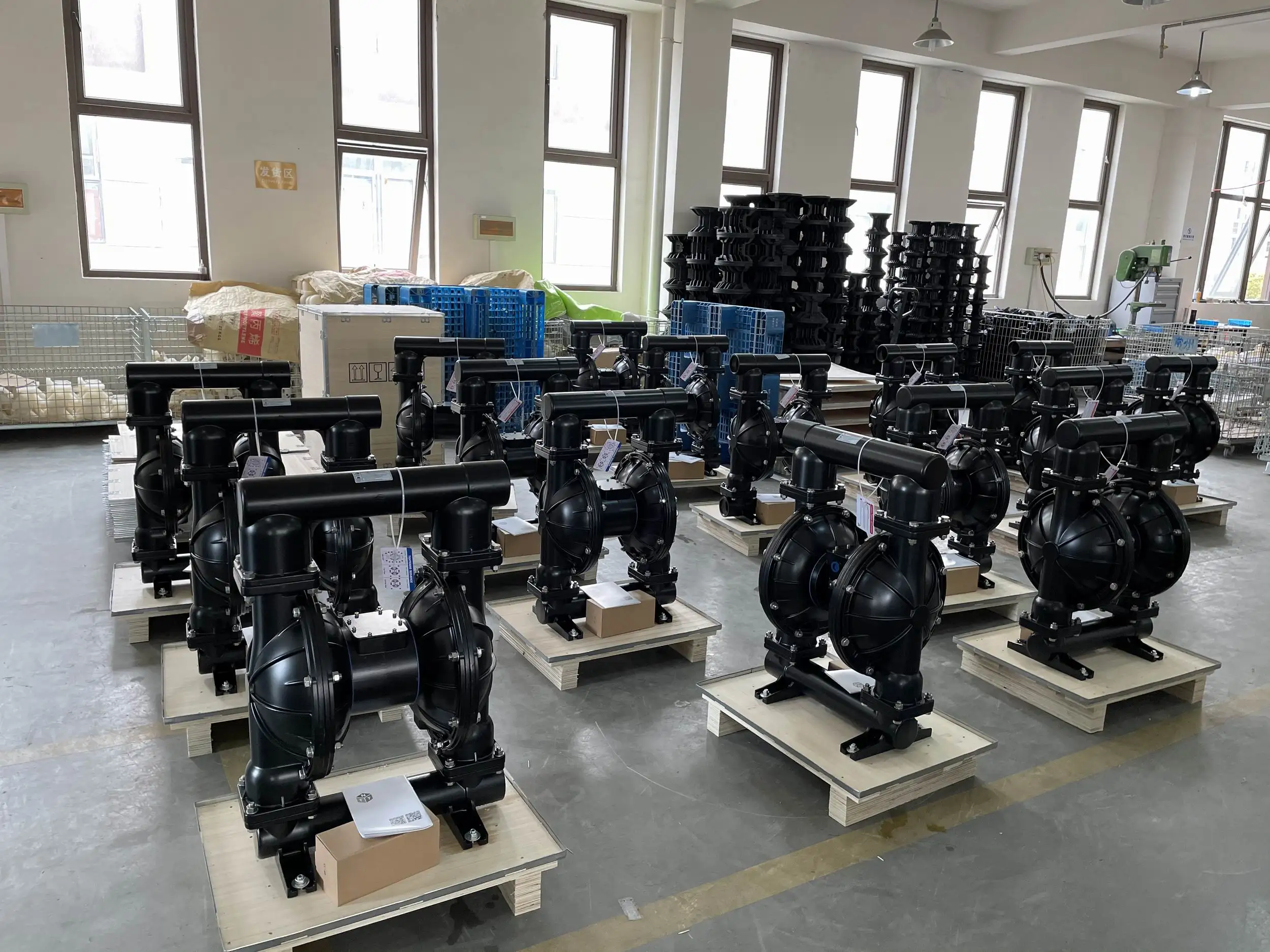

The pumps which we produce
Model | In/outlet (inch) | Max particle diameter (mm) | Air inlet size (inch) | Max flow rate (l/min) | Max head (m) | Max Air press(bar) |
MK06/10 | 1/4", 3/8" | 1.6 | 1/4" | 27 | 70 | 7 |
MK15/20 | 1/2", 3/4" | 2.5 | 3/8" | 57 | 84 | 8.4 |
MK25 | 1" | 4 | 1/2" | 157 | 84 | 8.4 |
MK40 | 1 1/2" | 5 | 1/2" | 358 | 84 | 8.4 |
MK50 | 2" | 6 | 1/2" | 587 | 84 | 8.4 |
MK80 | 3" | 9.4 | 3/4" | 1060 | 84 | 8.4 |

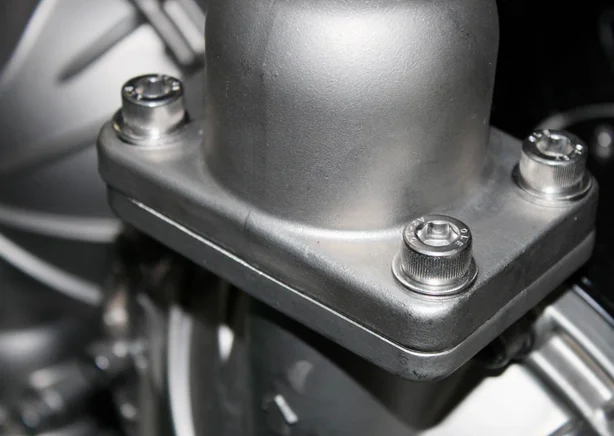

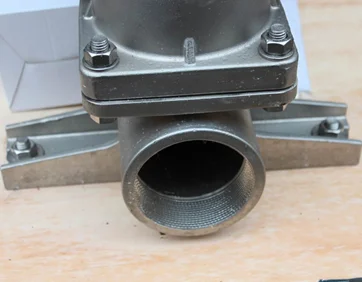

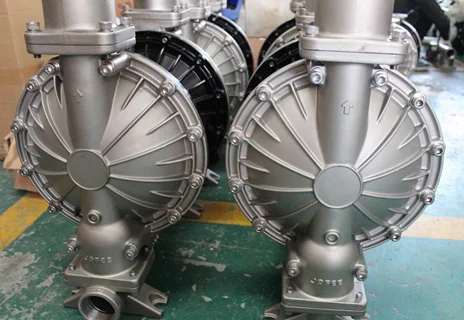

1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry suction.
2. Four bolts connection design, good seal and good dry suction.

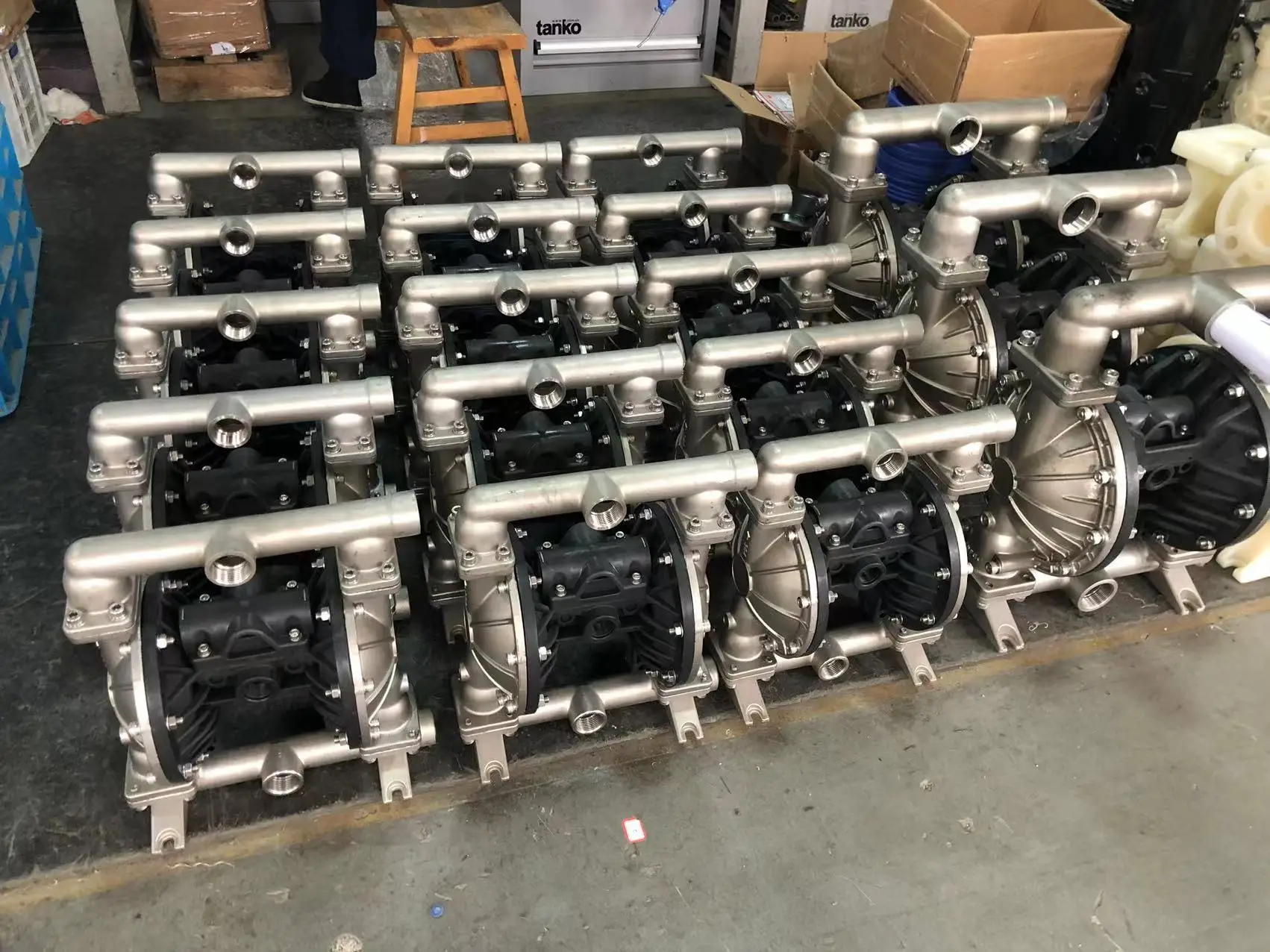

3. Origin stainless steel color. Adopt pickling and electrolytic processing.
4. Stainless steel 304 /316 pump size from 1/2" to 3".

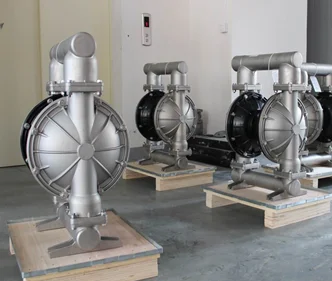

1. Precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
3. Four bolts connection design, good seal and good dry suction.

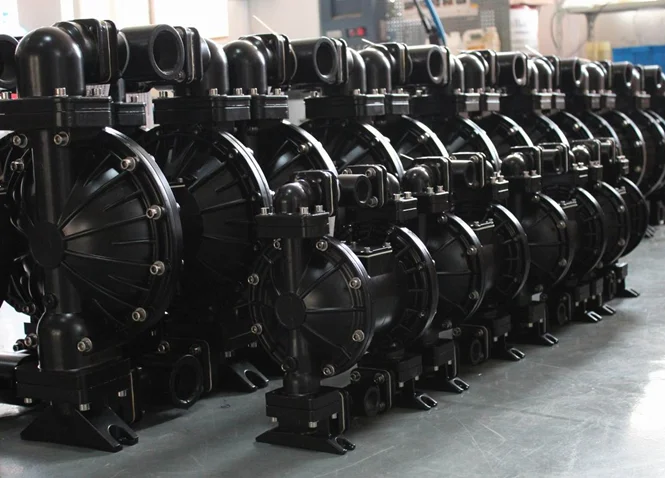

4. Aluminum pump size from 1/2" to 3". Pump with black EPOXY coating.

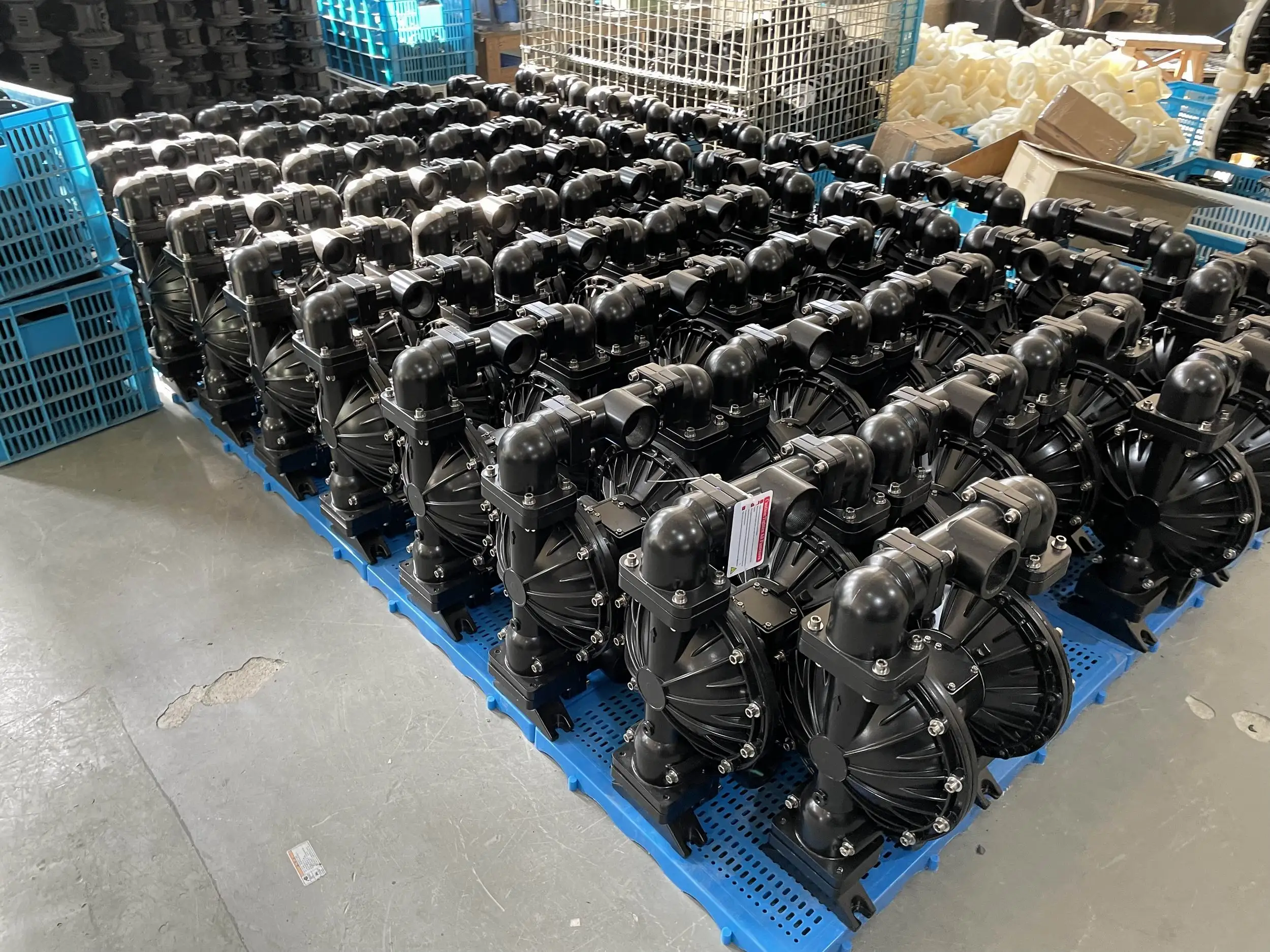

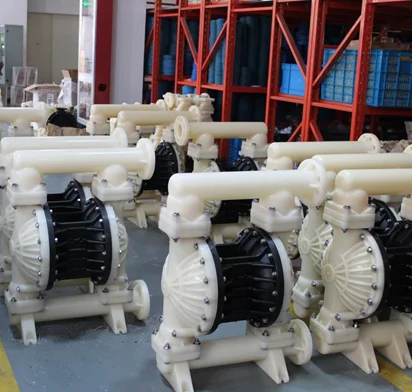

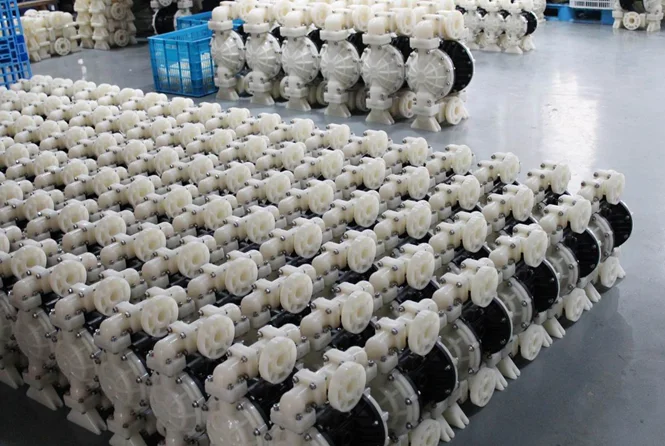

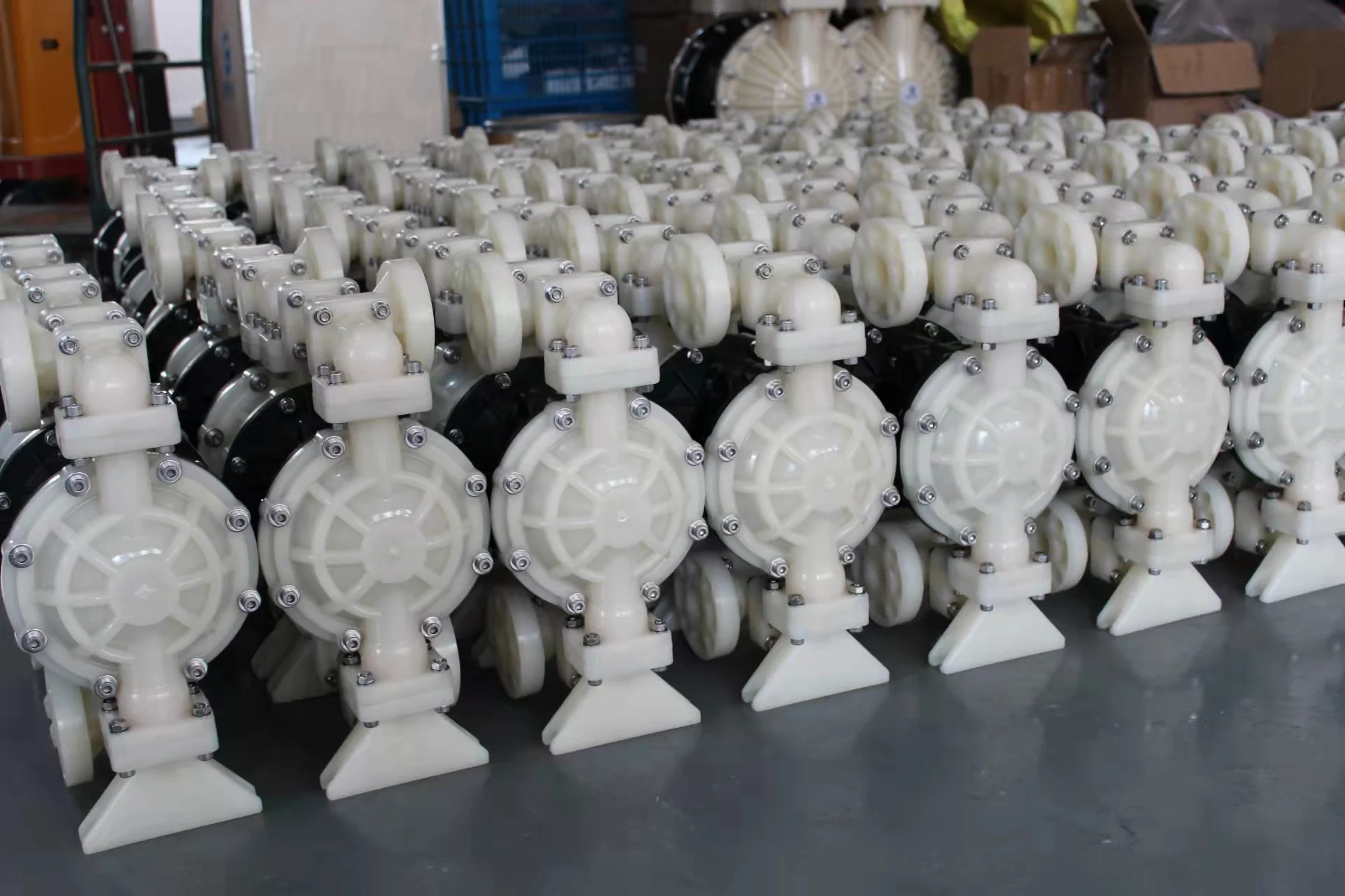

1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.

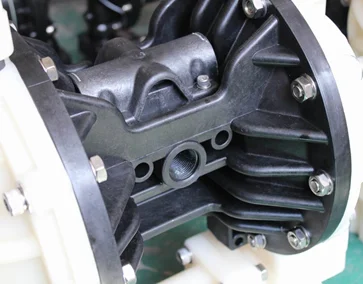

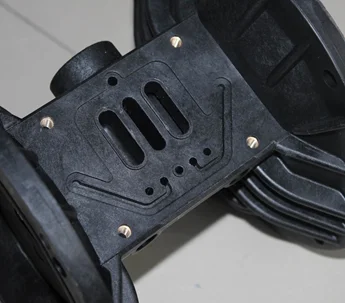

1. Aluminum center block poor chemical resistance will be corroded.
2. PP center block chemical resistance much better than Aluminum center block.
2. PP center block chemical resistance much better than Aluminum center block.
3. Our PP center block be one-piece design, strong and durable.
4. Can supply PP center block for the pump from 1/4" to 3".

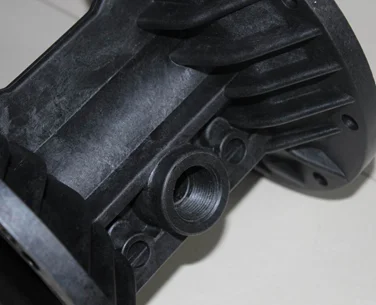

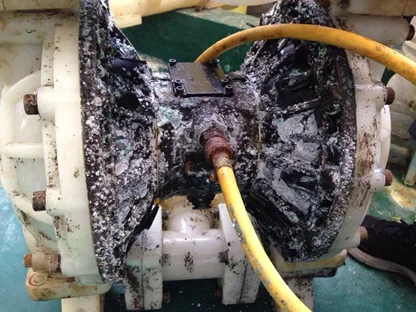

The left side picture show the
Pump with aluminum center block which already been corroded

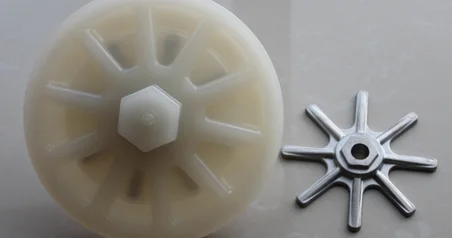

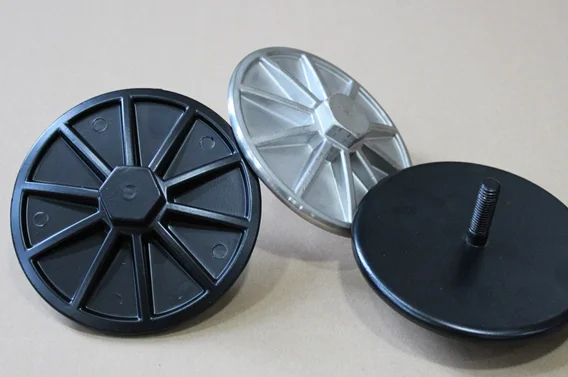

1. Aluminum plate and stainless steel plate adopt one-piece precision casting, can avoid the leakage.
2. Plastic plate increase thickness, insert with stainless steel block. The whole plastic plate strong and durable. Even under high working pressure and high temperature, also can working well.
2. Plastic plate increase thickness, insert with stainless steel block. The whole plastic plate strong and durable. Even under high working pressure and high temperature, also can working well.

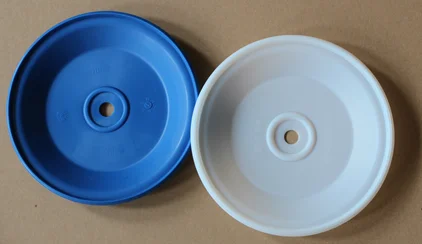

1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.

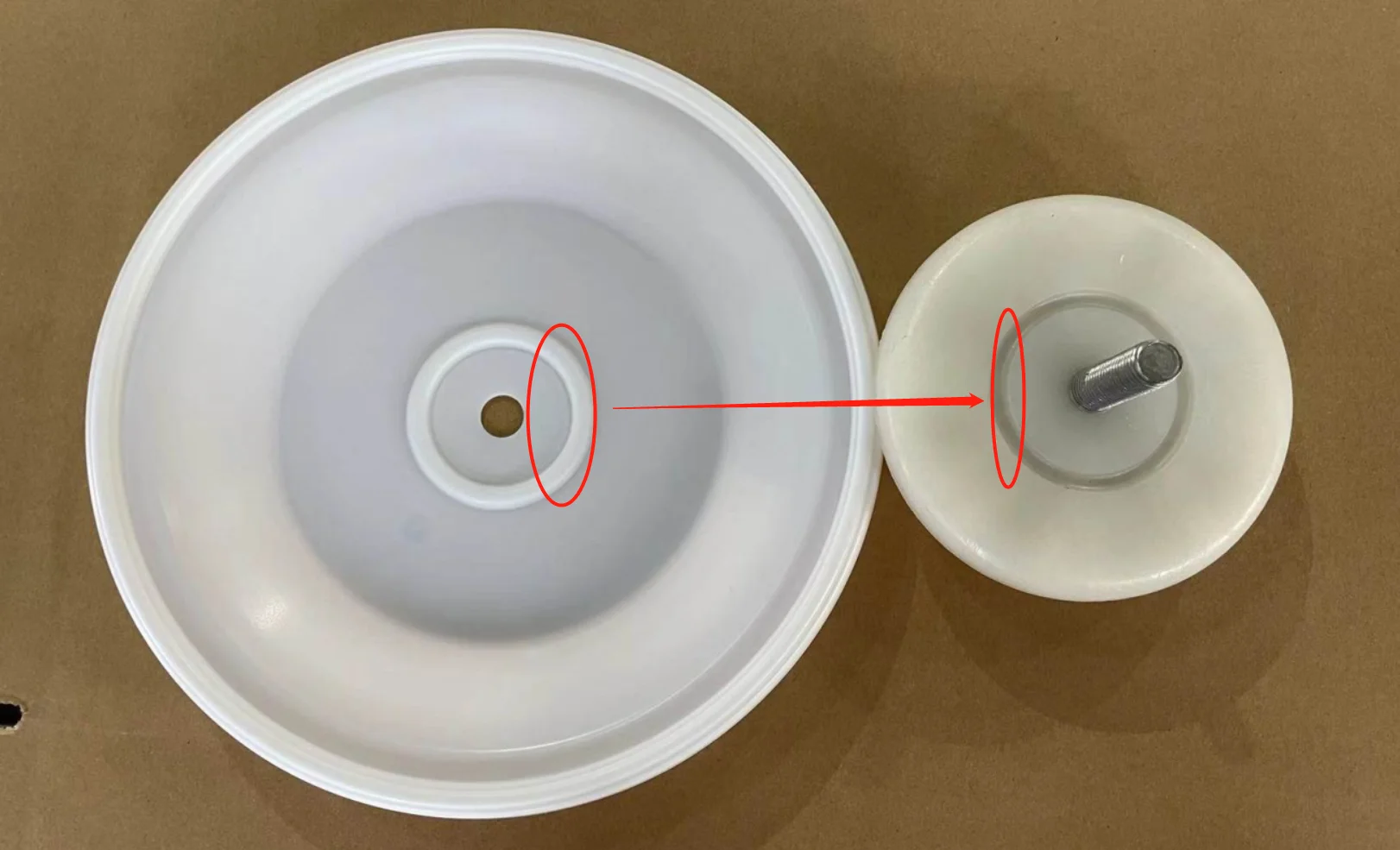

2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.
2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.
3. Center place with O-ring design, enhance seal performance.

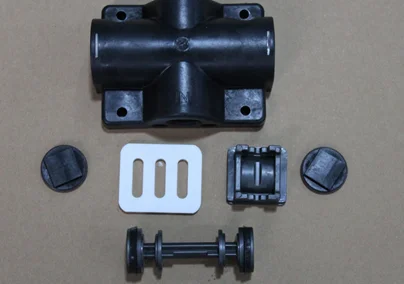

1. Modular design, simple structure. Few moving parts, easily maintain.
2. Plastic parts material to be improved acetal material, excellent wearing resistance and good self-lubricating.
2. Plastic parts material to be improved acetal material, excellent wearing resistance and good self-lubricating.
3. The whole air valve can directly disassemble from the pump. Repair the air valve, no need to open the pump.

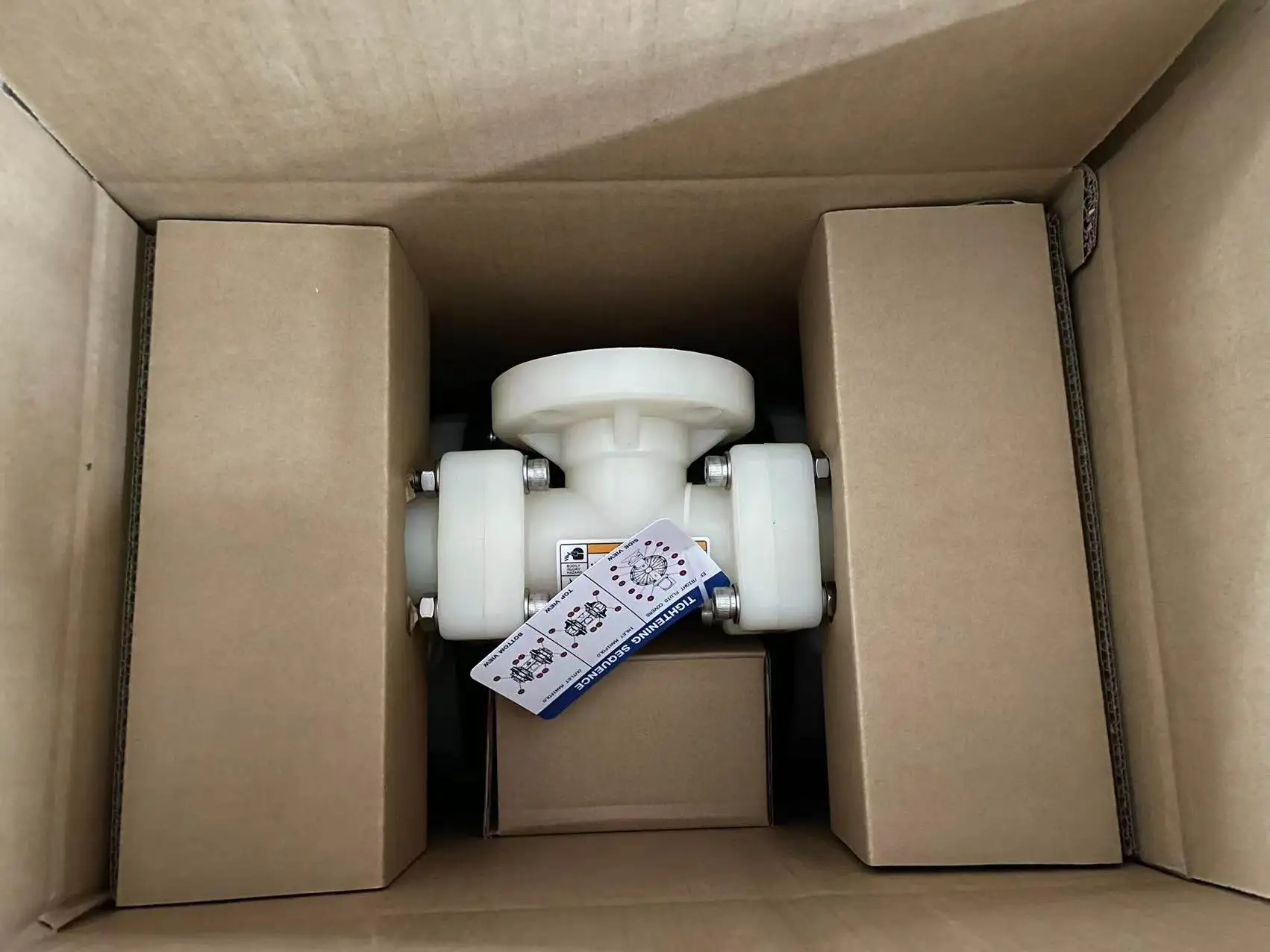

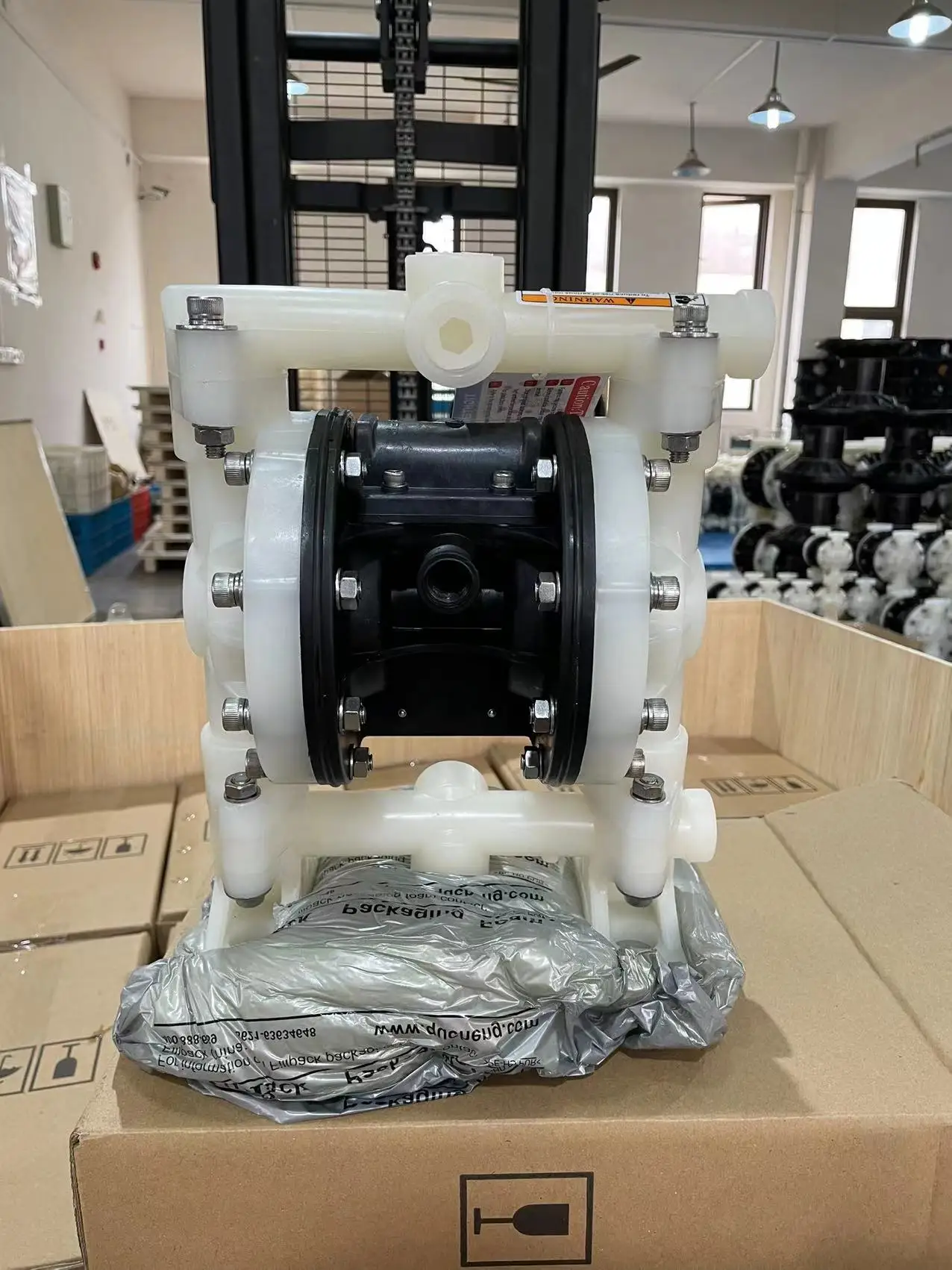

1. Small size pump be carton with foam.
2. LCL Shipment, small size cartons will be put into big size plywood case.
2. LCL Shipment, small size cartons will be put into big size plywood case.
3. Big size or heavy pump directly use plywood case.

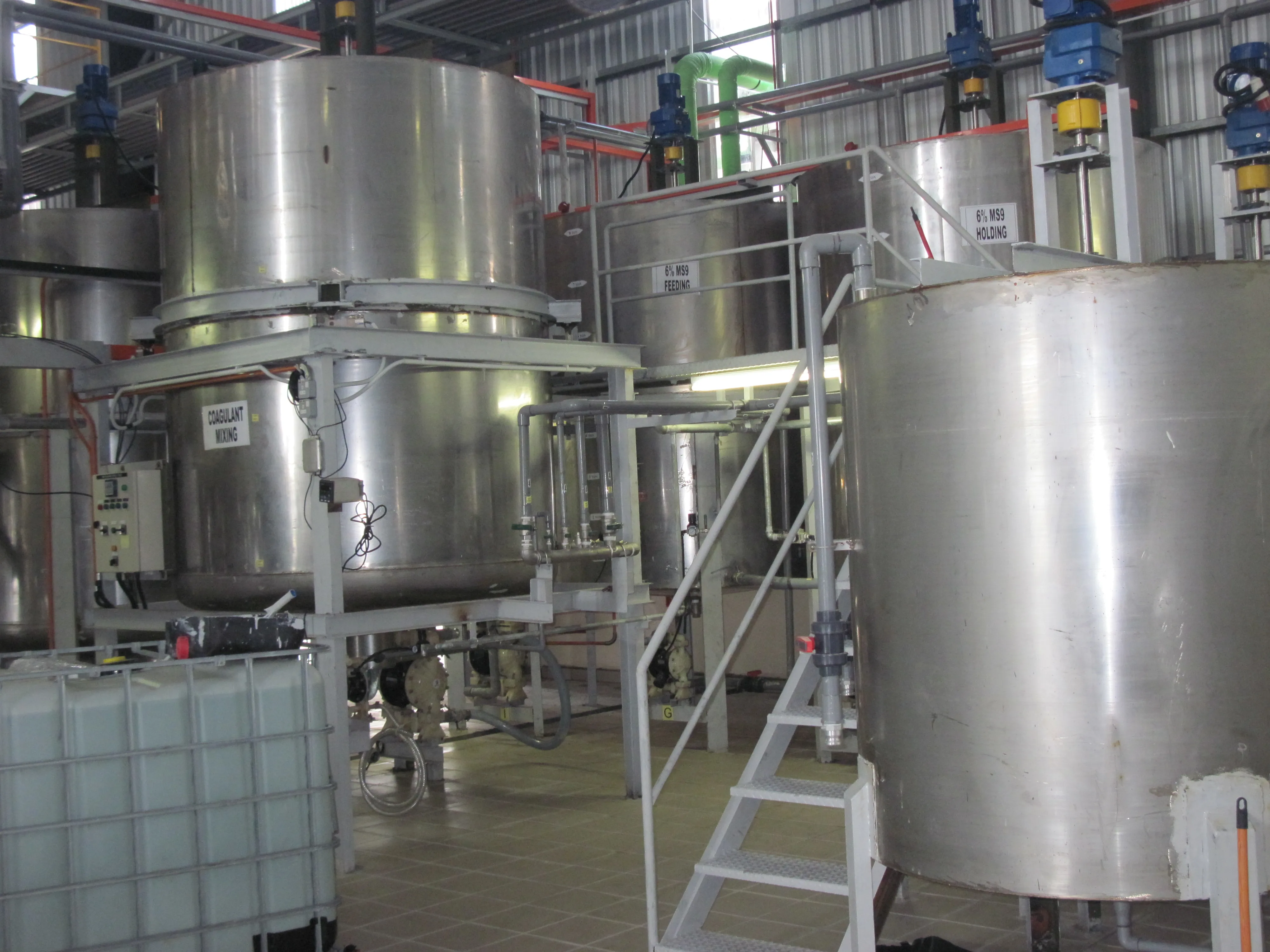

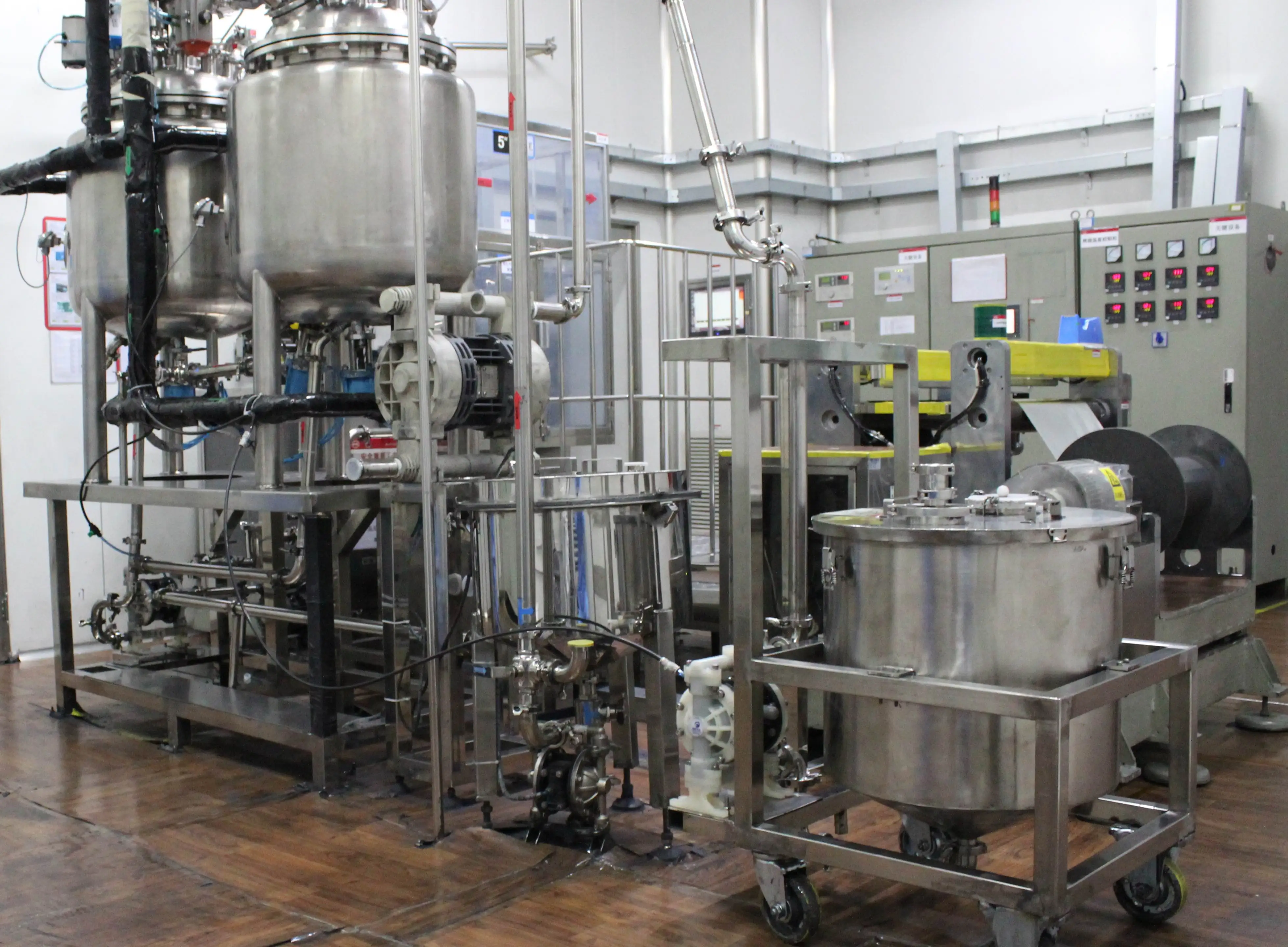

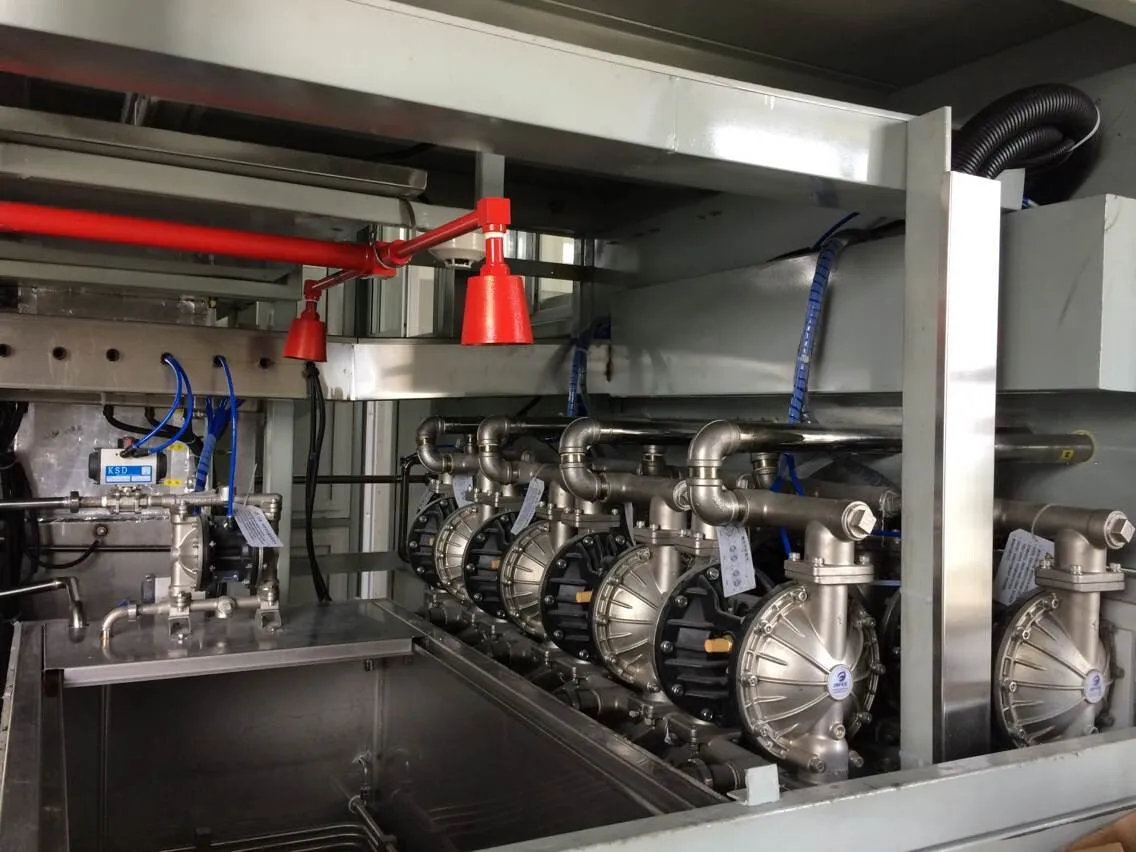

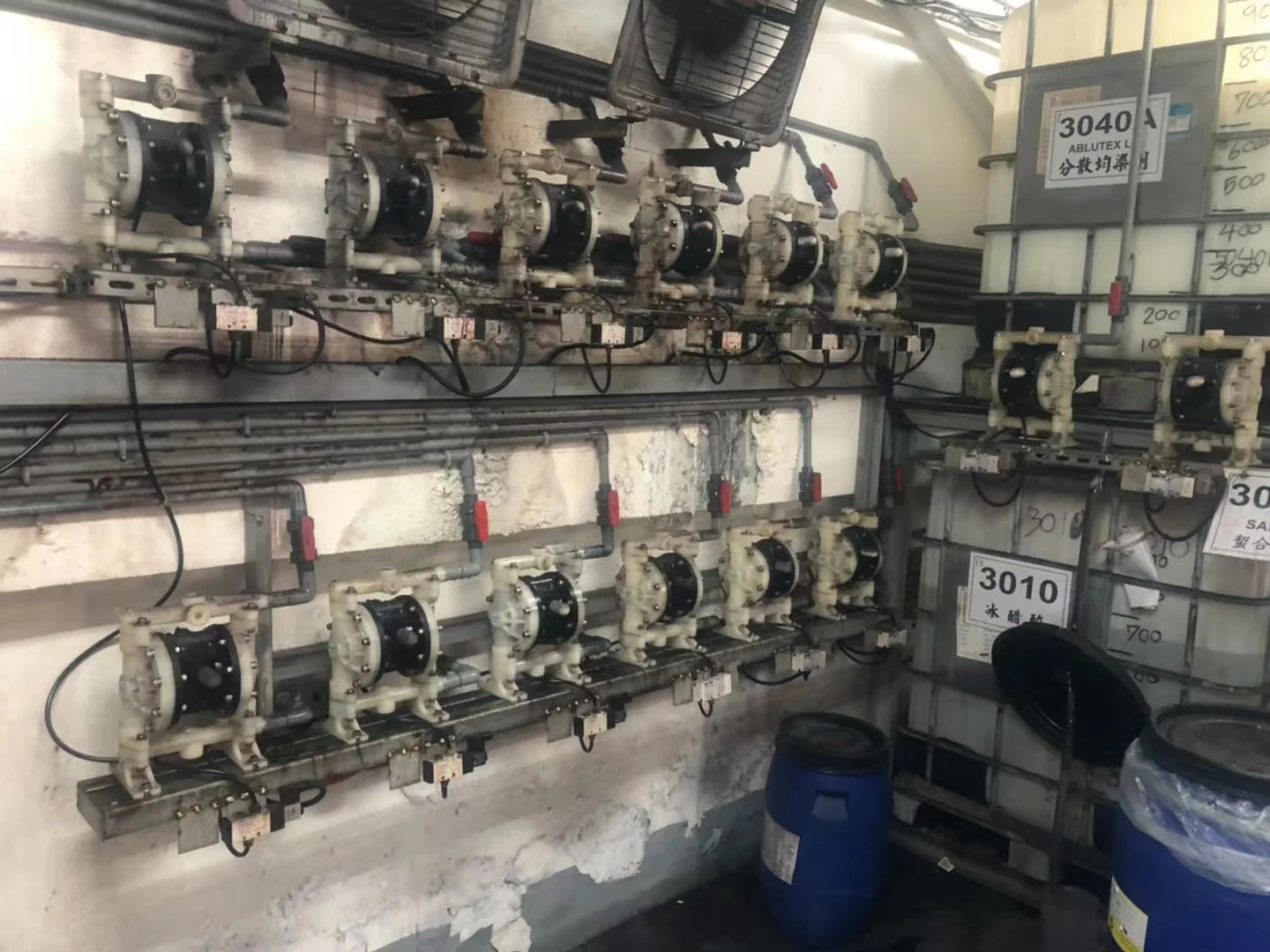

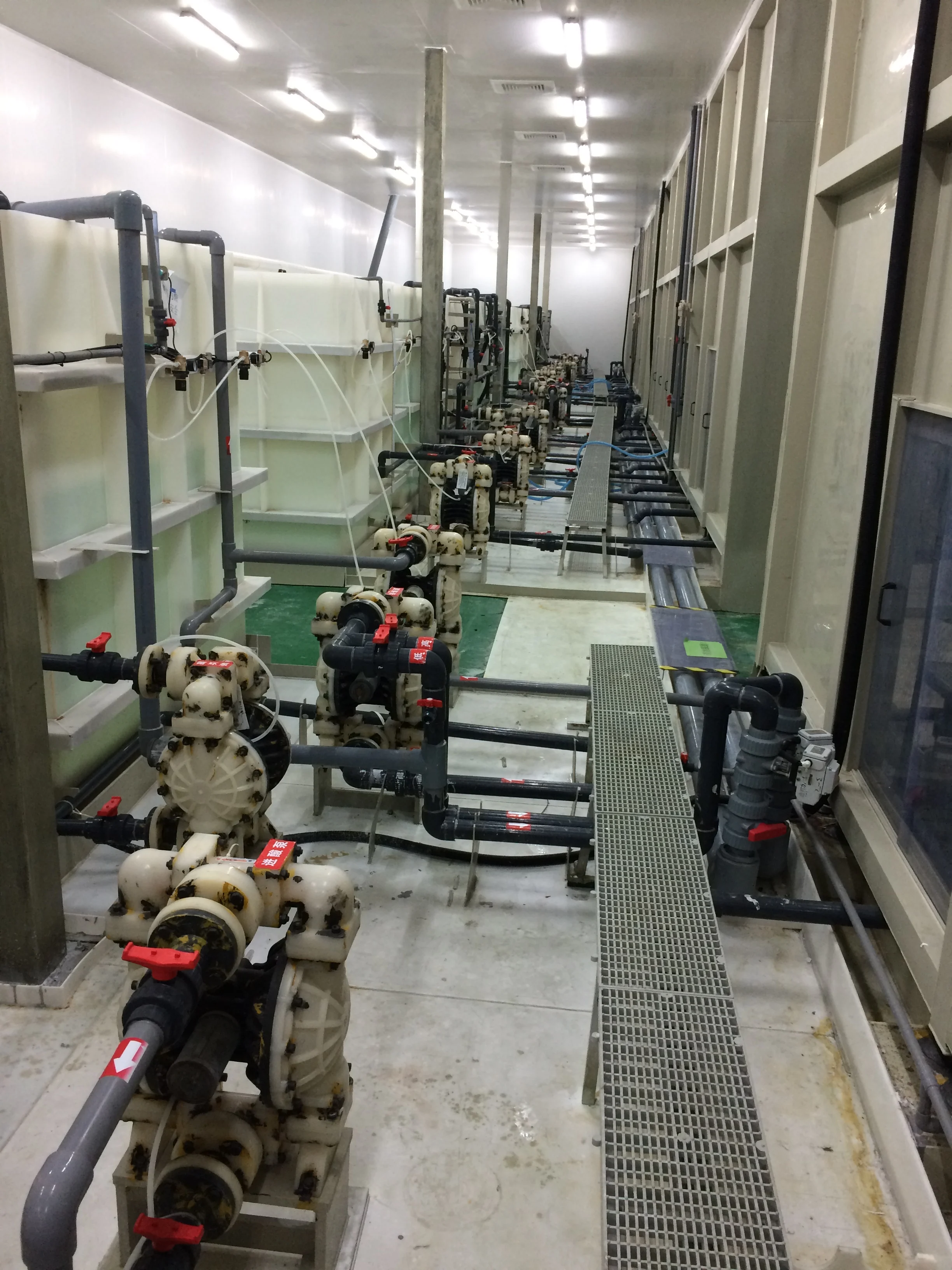

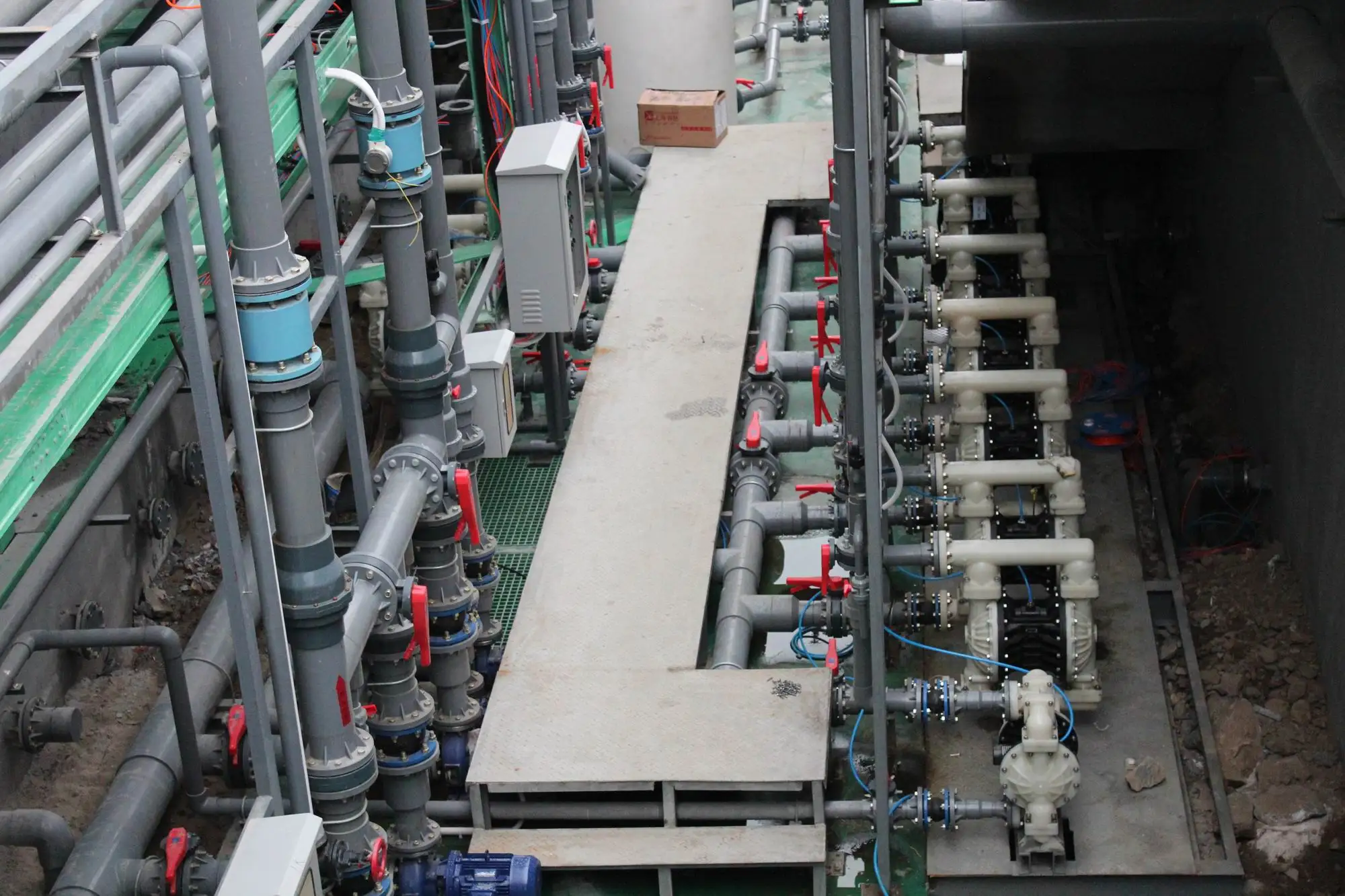

Jofee pumps are widely used in petroleum, chemical, paint, ceramics, mining, food and beverage, pharmaceutical, paper,electronics, textile, construction, automotive, furniture, environmental protection, water treatment etc
