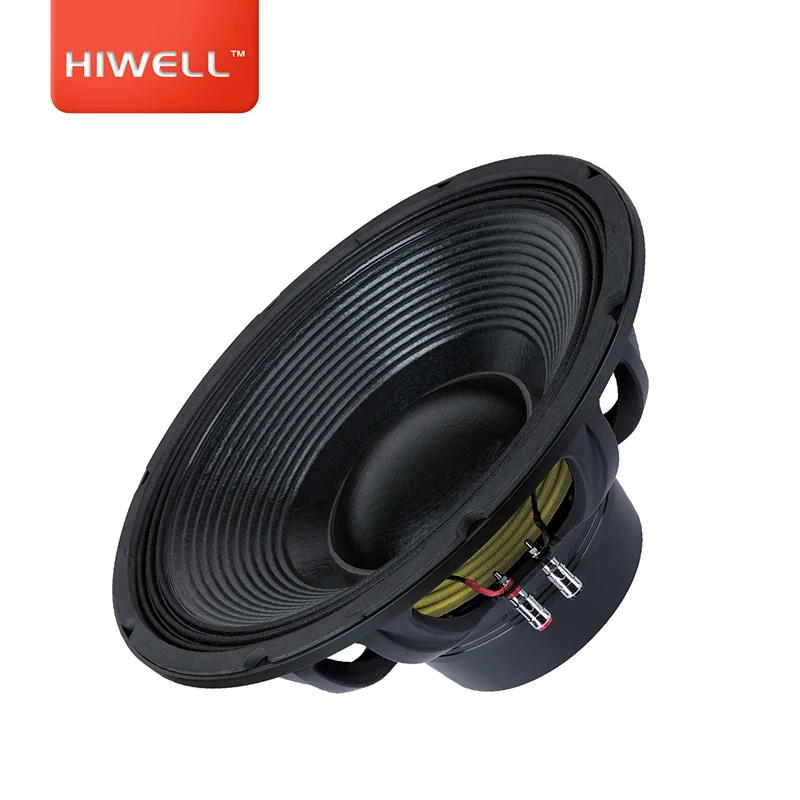

15 inch neo loudspeaker with custom softer speaker cable
- Category: >>>
- Supplier: Guangzhou Panyu District Shiji Hiwell Audio Equipment Factory
Share on (1252248151):
Product Overview
Description
--Professional audio woofers, drivers and custom designs.
| 15NDS100U1 |
| 15" SUBWOOFER |
| NEODYMIUM MAGNET |
| ALUMINIUM BASKET DRIVER |
| - 4 INCH COPPER VOICE COIL |
| - 97.5 dB/SPL SENSITIVITY |
| - 1600 WATT PROGRAM POWER HANDING |
| - FEM OPTIMIZED MOTOR AND SUSPENSIONS |
| - OPTIMIZED COOLING SYSTEM |
| - RESONANCE FREE AND HEAVY DUTY BASKET DESIGN |
| - ALUMINIUM DEMODULATING RING |
| - TRIPLE ROLL SURROUND |
| GENERAL SPECIFICATIONS | ||||

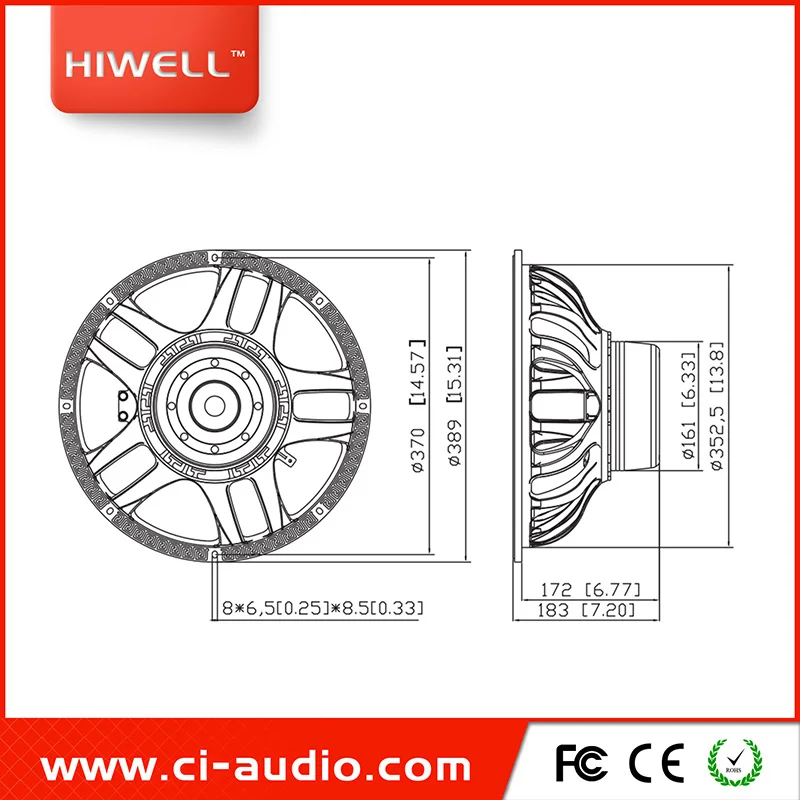

| Nominal diameter | mm (in.) | 389(15) | ||
| Nominal impedance | Ω | 8 | ||
| Minimum impedance | Ω | 6.5 | ||
| Program power (1) | W | 1600 | ||
| AES Power rating(2) | W | 800 | ||
| Sensitivity (3) | dB | 97.5 | ||
| Frequency range | Hz | 42 ~ 1000 | ||
| Voice coil diameter | mm (in.) | 100(4) | ||
| Chassis material | Aluminium | |||
| Magnet | material | Neodymium | ||
| Magnet dimensions (ODxIDxh) | mm | 97 x 25 x 10 | ||
| Coil material | SV | |||
| Former material | Glass Fiber | |||
| Xmax(4) | mm | 10.5 | ||
| Xmech(5) | mm | 16 | ||
| Gap height | mm | 10 | ||
| Voice coil Wingding height | mm | 26 | ||
| SMALL SIGNAL PARAMETERS | ||||
| DC resistance | Re | Ohm | 5.5 | |
| Resonance frequency | Fs | Hz | 42 | |
| Moving mass | Mms | g | 150 | |
| Compliance | Cms | mm/N | 0.10 | |
| Force factor | BL | N/A | 26.20 | |
| Mechanical Q-factor | Qms | 8 | ||
| Electrical Q-factor | Qes | 0.35 | ||
| Total | Q-factor | Qts | 0.33 | |
| Equivalent air volume | Vas | I | 130 | |
| Voice coil Inductance | Le | mH | 1.70 | |
| Diaphragm area | Sd | cm² | 880 | |
| Reference efficiency | Eta 0 | % | 2.5 | |
| SHIPPING INFORMATION | ||||
| Net weight | Kg | 8.3 | ||
| Multipack size (1) (W x D x H) | mm | 410 x 410 x 213 | ||
| Multipack weight | Kg | 9.3 | ||
