Product Overview

Description



GENERAL PRODUCTION PROCESS


Die casting machine(casting the radiators)- Manual type clamp(sepearting the runner and the radiators)-Rough grinding-Fine grinding and polishing-Manually remove the drape in the holes and gaps-Welding machine(weld the cap and plug)-Milling machine(Remove the burr around the cap and plug)-Plane processing machine tool( Milling the end face of steel pipe thread)-Leakage tester(test each rardiator leaking or not)-Assembly machine-Leakage test (testing whether the connection between the radiators is leaking or not)-Hand-held grinding wheel-Spray line-Packing


MACHINE DESCRIPTION

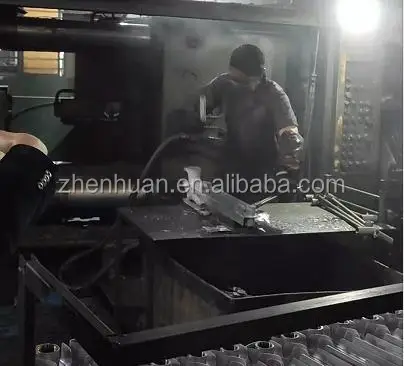

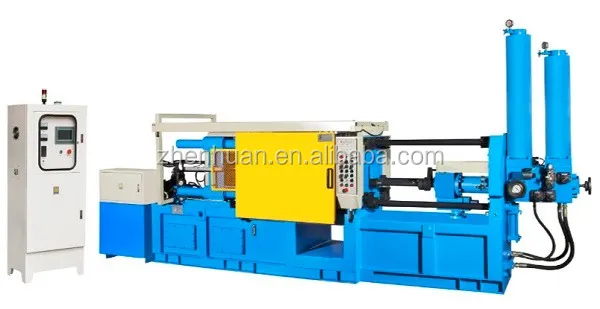

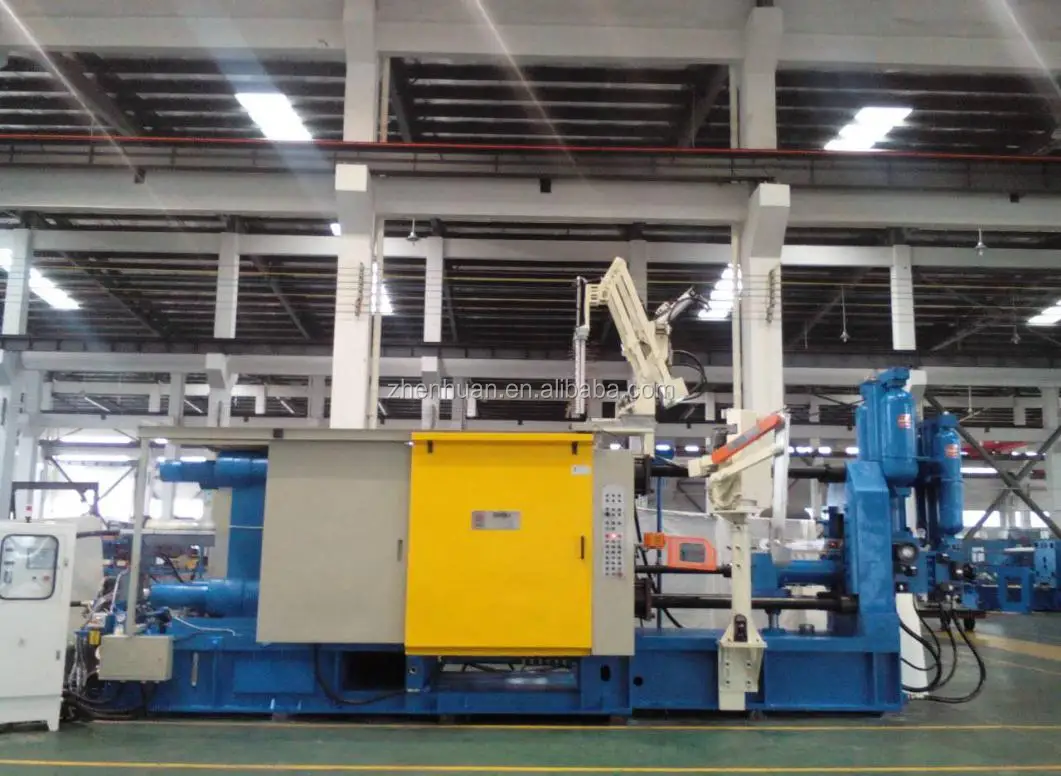

1. 800T cold chamber die casting machine




ITEM
Unit
Data





DIE CLAMPING SYSTEM
Die clamping force
kN
8000
Die clamping stroke
mm
760
Ejection force
kN
315
Ejection stroke
mm
180
Die height (Min-Max)
mm
400-950
Platen size(H x V)
mm
1400x1438
Distance between tie bars
mm
910x910










    INJECTION            SYSTEM
Injection position
mm
0,-250
Injection stroke
mm
760
Casting force(Intensification)
kN
680
Plunger diameter
mm
80,90,100
Injection weight(AL)
kg
7.1,9.0,11.2
Casting pressure(Intensification)
MPa
135,106,86
Casting area
cm²
591,748,924
Max. casting area(40MPa)
cm²
2000
Diameter of plunger sleeve flange
mm
200
Height of plunger sleeve flange
mm
20
Plunger penetration
mm
295




          Others
Driving motor
kW
45
Hydraulic working pressure
MPa
14
Oil tank capacity
L
1300
Machine dimension
mm
8600x2600x3250
Weight
T
38.5

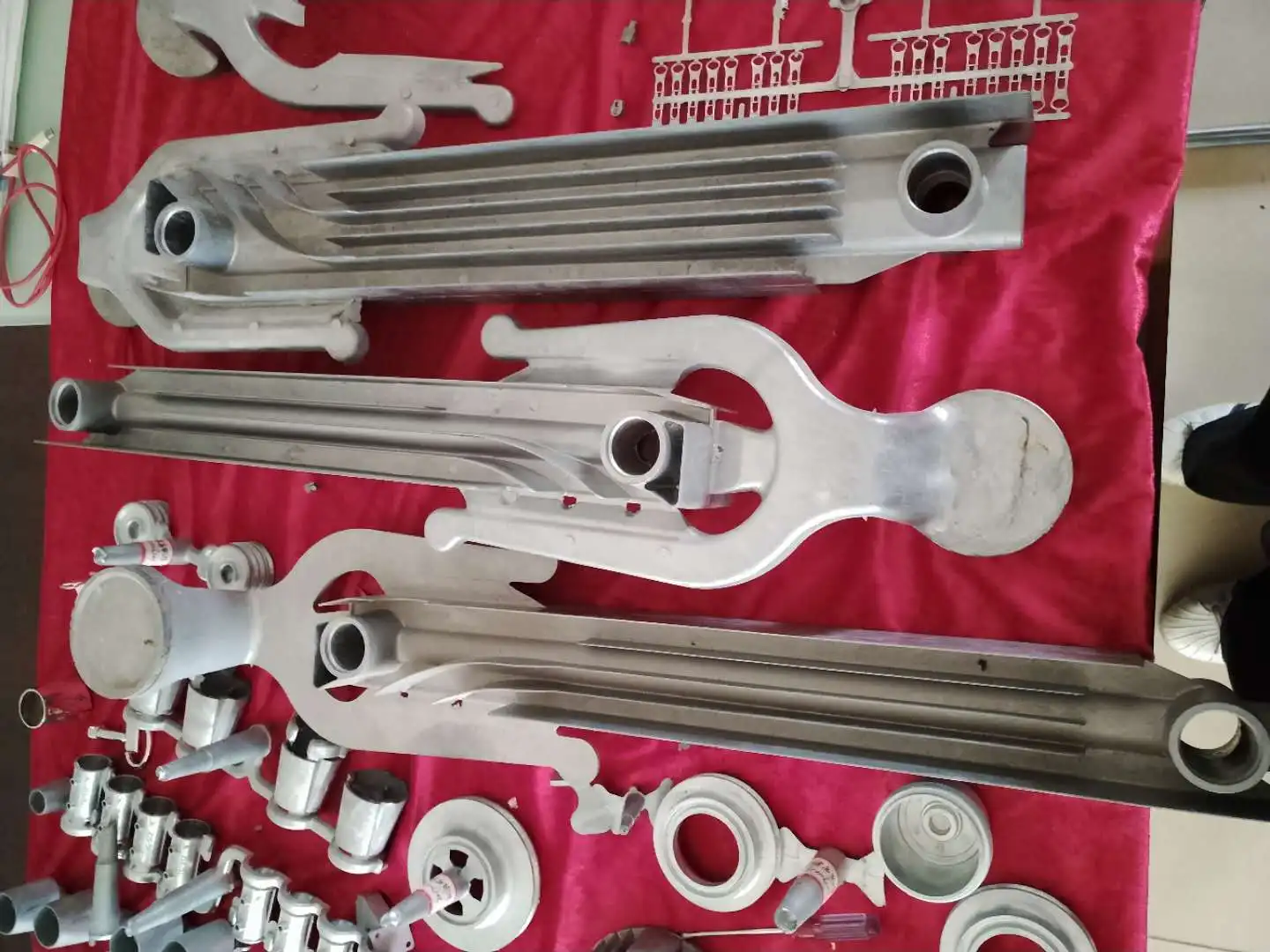

2. Manual type clamp: sepearting the runner and the radiators

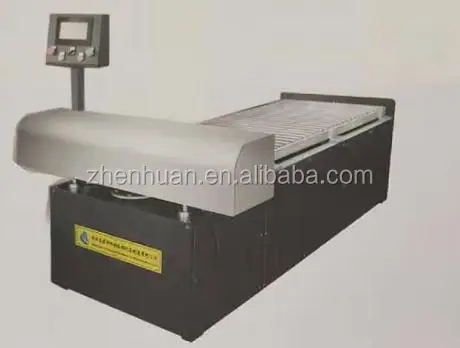

3. Rough grinding machine and Fine grinding and polishing belt machine

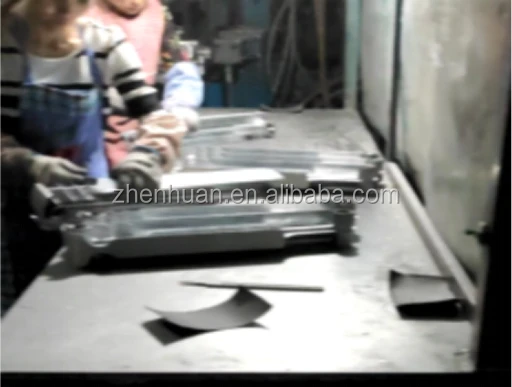

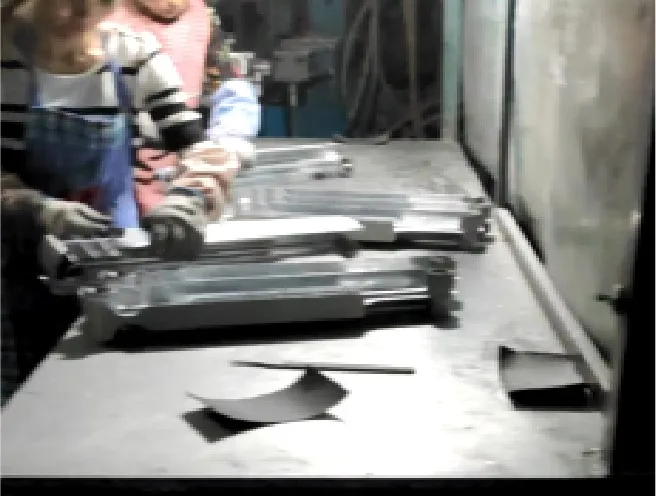

4. Manually remove the drape in the holes and gaps




5. File: Manually remove the drape in the holes and gaps


6. Welding machine：to weld the cap and plug




7. Milling machine：Remove the burr around the cap and plug

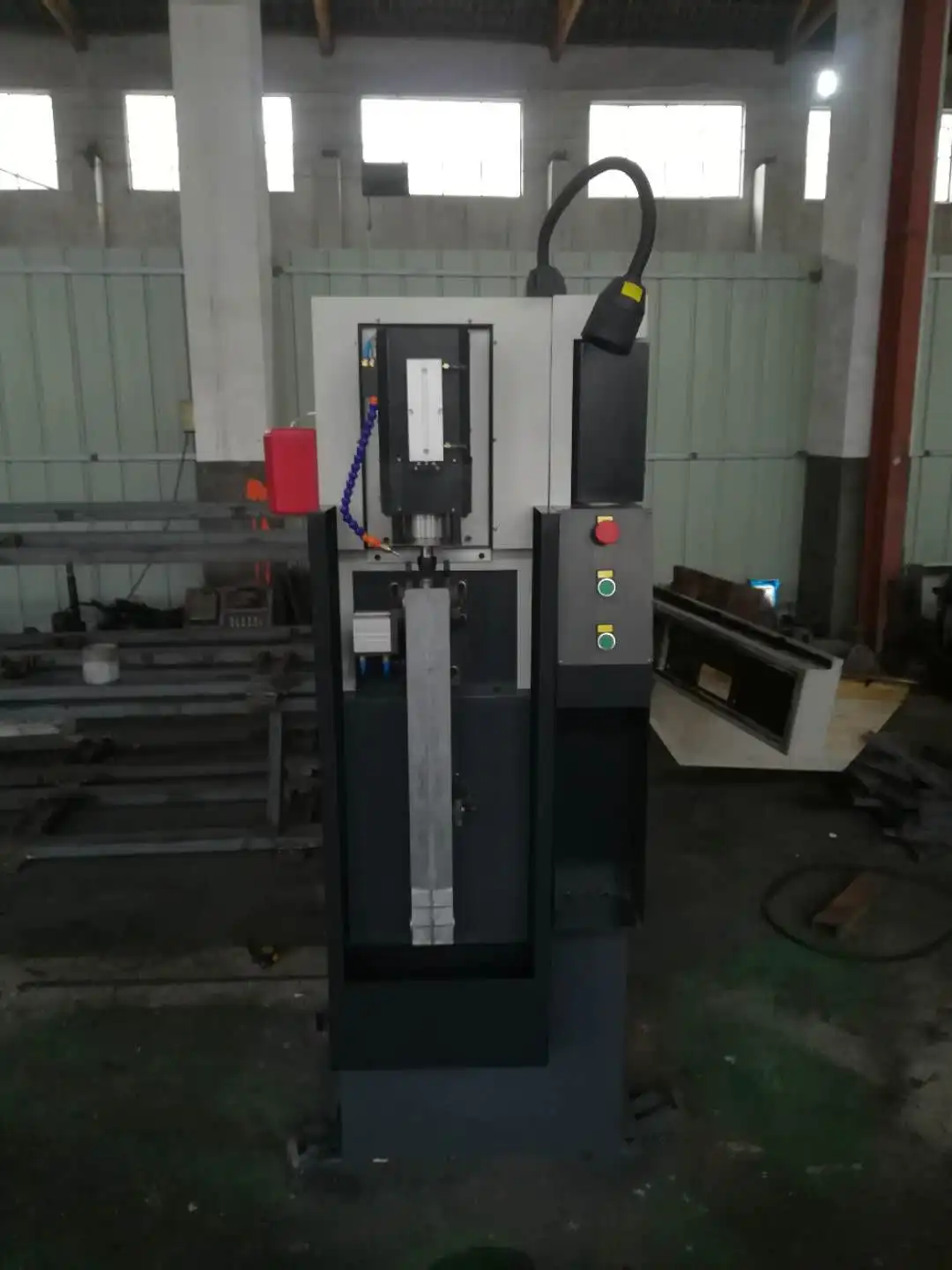

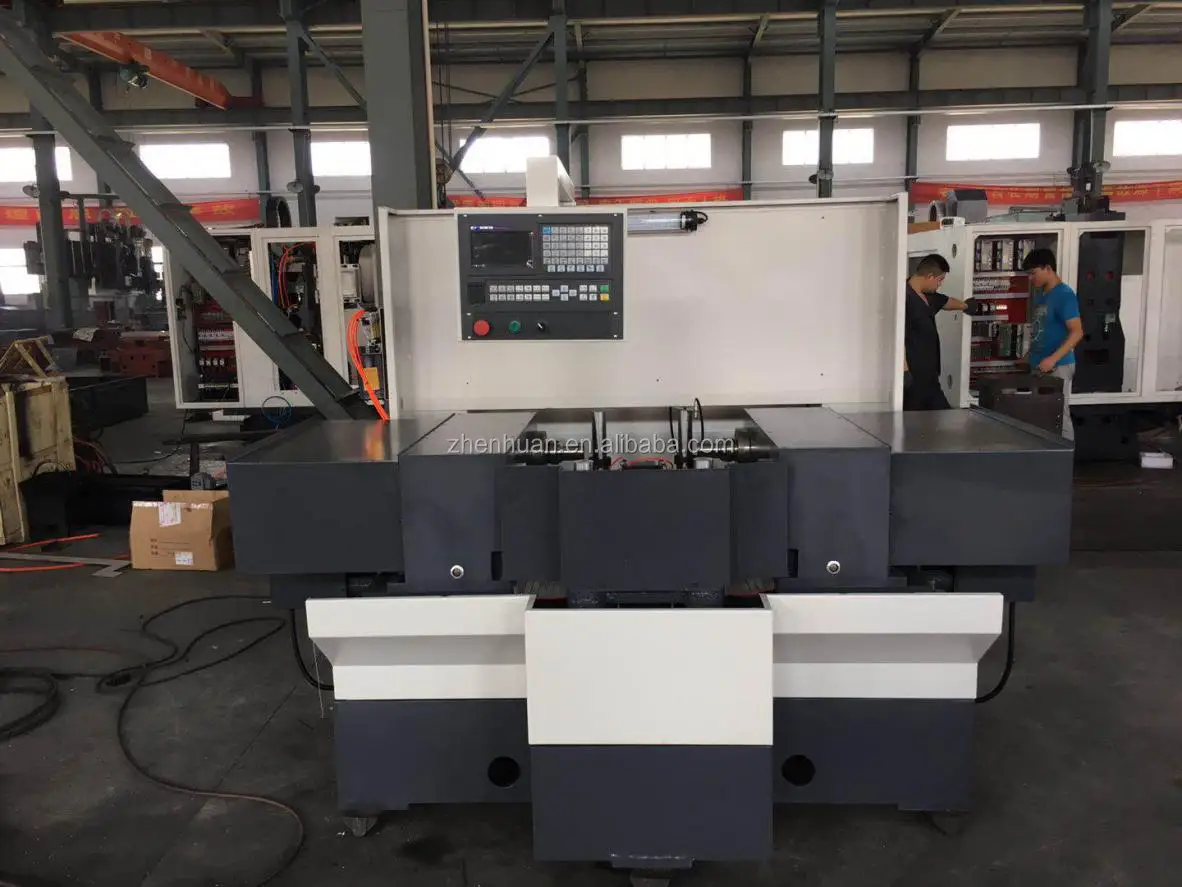

8. Plane processing machine: Milling the end face of thread and tapping

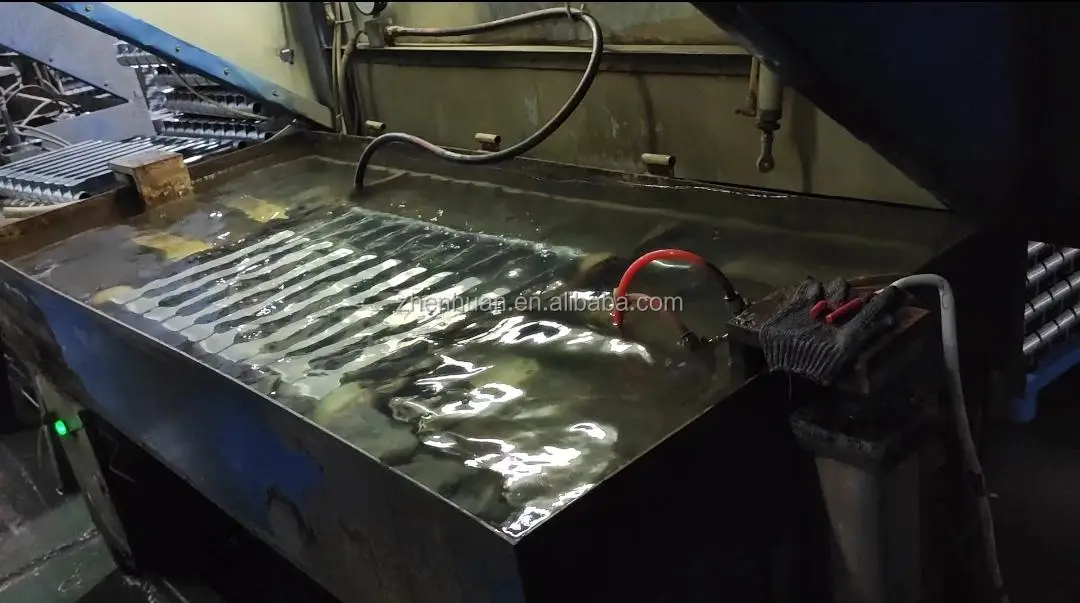

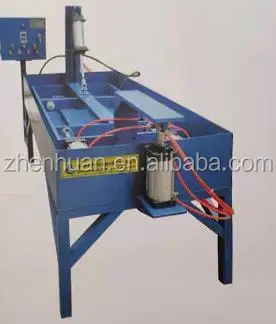

9. Leakage tester: to test each rardiator leaking or not

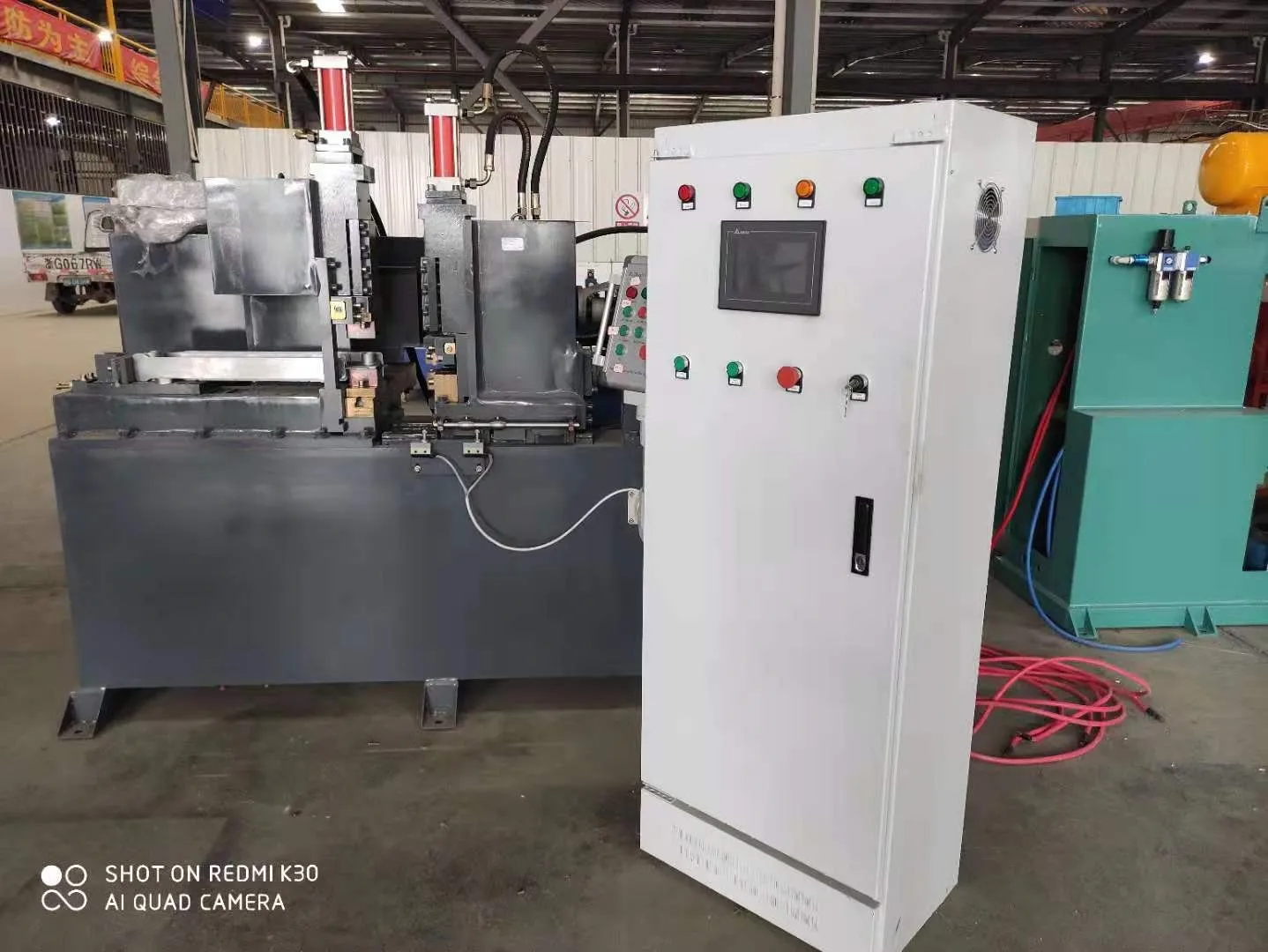

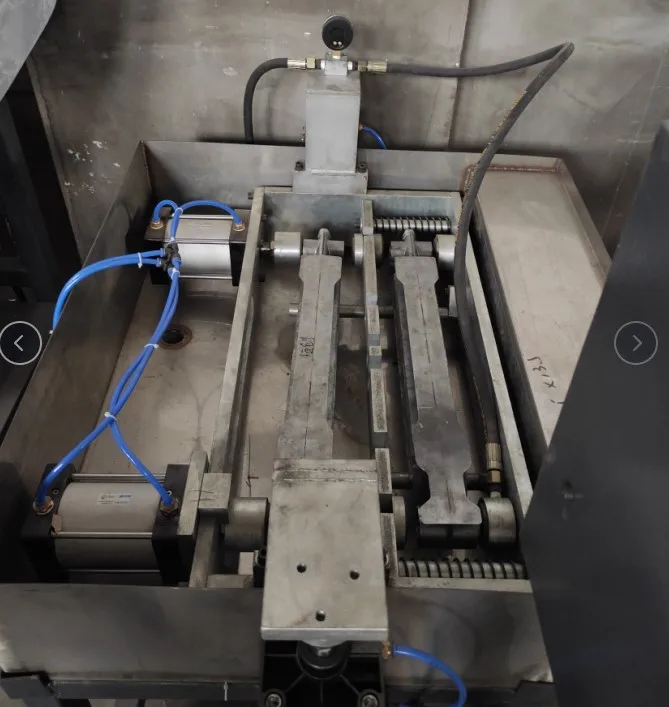

10. Assembly machine: five-piece or six-piece assembly machine assembly

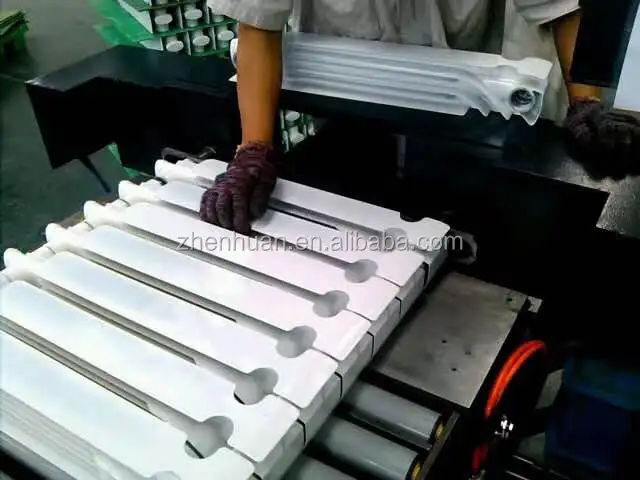

11. Leakage test (testing whether the connection between the radiators is leaking or not)

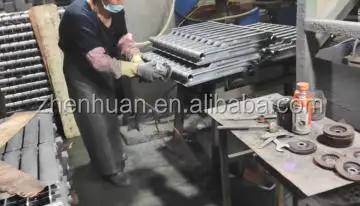

12. Hand-held grinding wheel, Thousand-blade grinding radiator (protruding part of gasket after assembly)

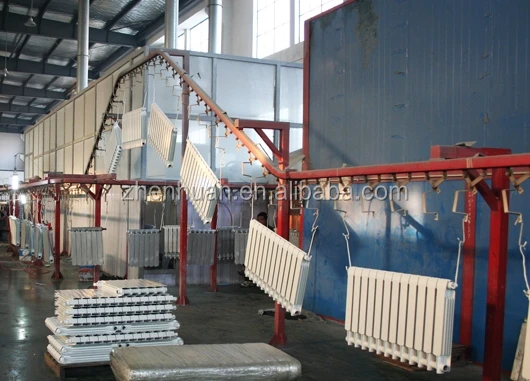

13. Spray line

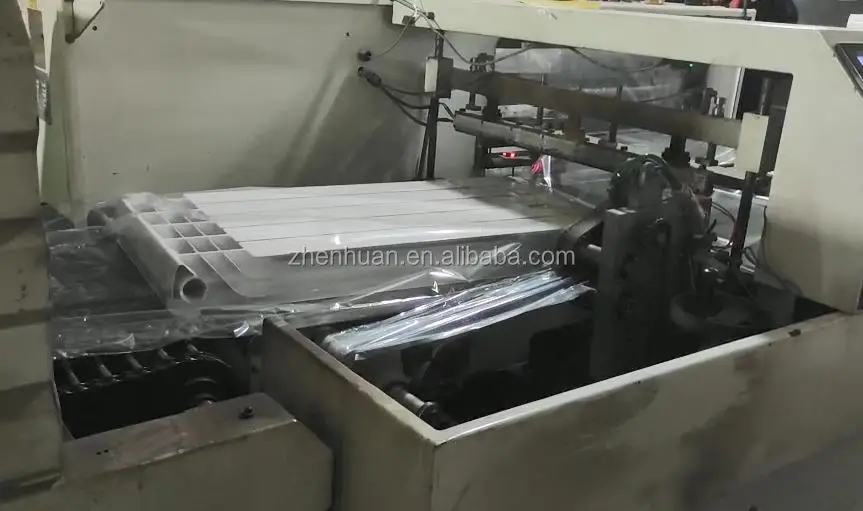

14. Packing machine




MAIN FEATURES



1. Pull-bar structure and hydraulic lifting device are good for mold
2. The exclusively designed injection system is equipped with piston-type fast speed and intensifier accumulators.
3. Equipped with big-diameter logic valve and flow control valve, which can improve injection quality and keep the oil pressure
stable.
4. Hydraulic gear-type mold adjustment structure is easy for operation.
5. Unique high speed die lock system helps to improve production efficiency.
6. With automatic lubrication system, you can adjust the lubrication period and oil volume, which can lengthen the working life of the machine.
7. Hydraulic system is equipped with high pressure and low pressure two pumps so as to save energy and improve efficiency.
8. Stable and high-performance injection system: slow speed phase; high speed phase; intensification speed phase.
9. Energy saving rate is 40%-70% higher; productivity is 4%-15% higher.
