DP 1600 автоматические роликовые ламинирующие машины
- Category: Laminating Machines >>>
- Supplier: Kunshan Dapeng Precision Machinery Co. Ltd.
Share on (1256965224):
Product Overview
Description
Product Description
Specification
item | value |
Type | Laminating Machine |
Applicable Industries | automatic rolling laminating machines |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | automatic rolling laminating machines |
Showroom Location | automatic rolling laminating machines |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor |
Condition | New |
Application | Machinery & Hardware |
Packaging Type | case, Foil |
Packaging Material | Paper, plastic |
Automatic Grade | Automatic |
Driven Type | Electric |
Voltage | 380V50HZ |
Place of Origin | China |
Jiangsu | |
Brand Name | DP |
Dimension(L*W*H) | 1650*1450*1300mm |
Weight | 1800kg |
Certification | automatic rolling laminating machines |
Warranty | 5 years |
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support | |
Key Selling Points | High-accuracy |
Max feeding width | 1300mm |
Speed | 60M/min |
Main engineer power | 3kw |
Feeding diameter | 800mm |
Rewinding diameter | 450mm |
Presicion | +/_0.1mm |
Computerized | Yes |
Condition | New |
Power(W) | 3KW |
Type | Laminating Machine |
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2009,sell to Domestic Market(68.00%),North America(5.00%),Mid East(4.00%),South America(3.00%),Southeast Asia(3.00%),Northern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Southern Europe(2.00%),South Asia(2.00%),Western Europe(00.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Die Cutting Machine,Roll To Sheet Cutting Machine,Slitting RewindingMachine,Laminating Machine
4. why should you buy from us not from other suppliers?
Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Jiangsu, China, start from 2009,sell to Domestic Market(68.00%),North America(5.00%),Mid East(4.00%),South America(3.00%),Southeast Asia(3.00%),Northern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Southern Europe(2.00%),South Asia(2.00%),Western Europe(00.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Die Cutting Machine,Roll To Sheet Cutting Machine,Slitting RewindingMachine,Laminating Machine
4. why should you buy from us not from other suppliers?
Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
Product Description
SPECIFICATIONS FOR carbon film heating film laminating machine | ||
Model | DP-1000RTH | |
laminating speed | 1- 20m/min | |
Max. unwinding diameter | 450mm | |
Max. web width | 1000mm | |
Max. REWINDING DIAMETER | 600MM OR CUSTOMIZED | |
Precision | ±0.10mm | |
Power | 11kw | |
Voltage | 380v±10% | |
Machine weight | 4000kg | |
unwinding part
this is unwinding part , with rectification function , 3 inch air-shaft , bearing at least 300KG each roll no pproblem
hot heating roller
hot heating roller now are use the Mold temperature controller to control the heating degree , let the carbon film , heating film , copper strip can laminating more stick and smooth， and not stratch material

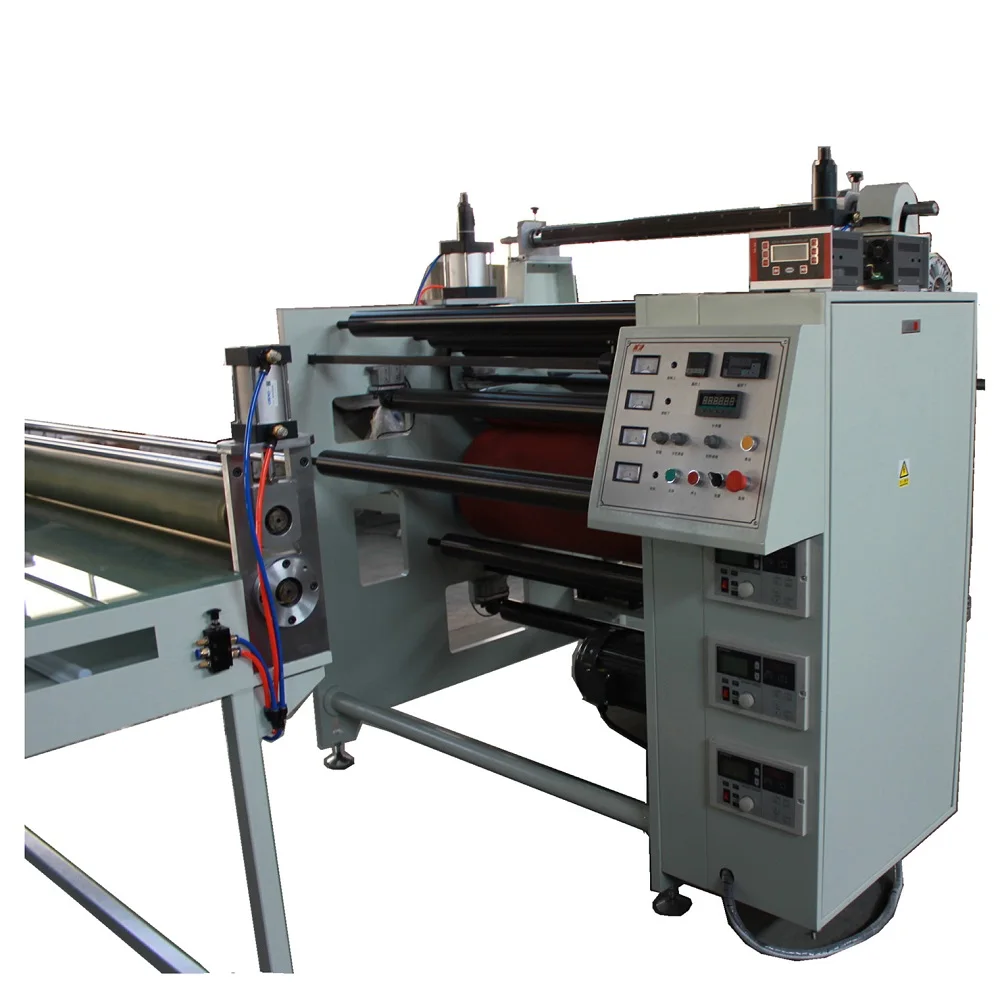

operation control board
all part can be controlled at here , degree , tension , meter control , speed control etc , all are use English and let your operator use good
RECTIFICATION SYSTEM
ULTRASONIC CONTROL

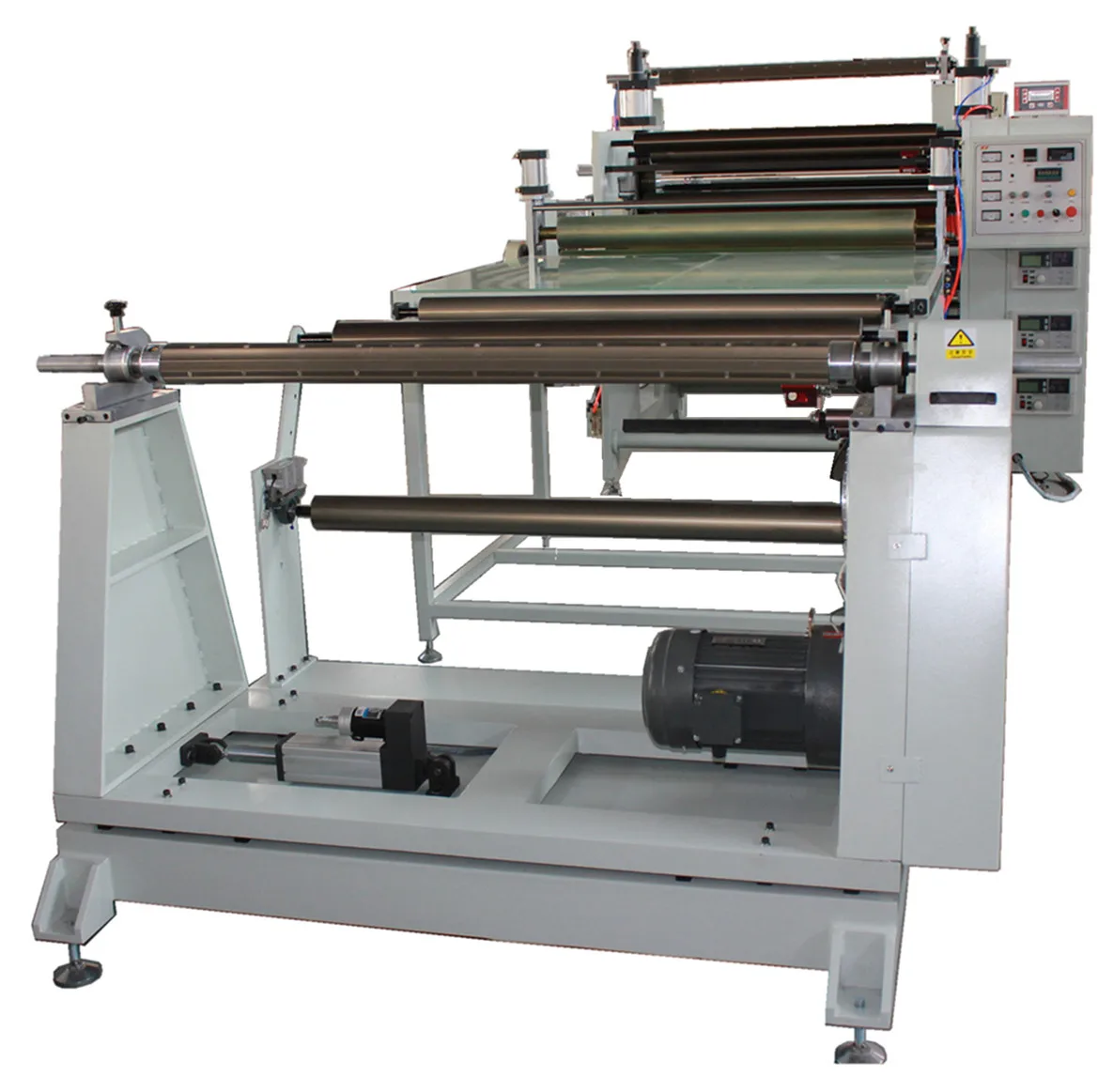

INSPECTION PART AND REWINDING PART
after laminating , the carbon film, heating film , and the copper strip laminating together , there is lamp to inspection and drying , then rewinding
the rewinding part also with Ultrasonic edge guide

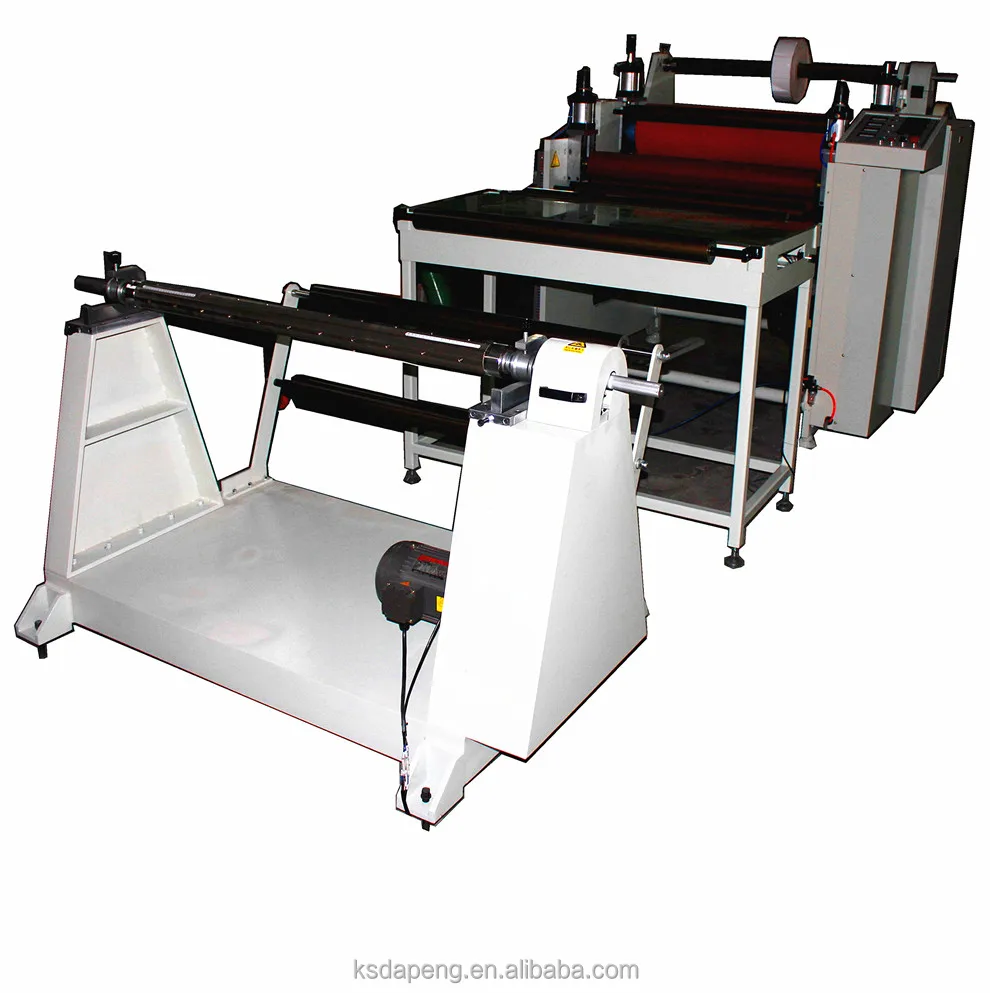

BELOW IS THE LAMINATING MACHINE WHOLE PICTURE ,
MAIN MACHINE LAMINATING , WITH SHAFT OF UNWINDING FILM, COPPER STRIP , CARBON FILM, HEATING FILM ETC
AFTER LAMINATING , GOING THROUGH THE GLASS TABLE , THIS TABLE WITH LIGHT THAT CAN SEE THE AFTER LAMINATING PART CLEARLY
AND AT LAST REWINDING TO A ROLL

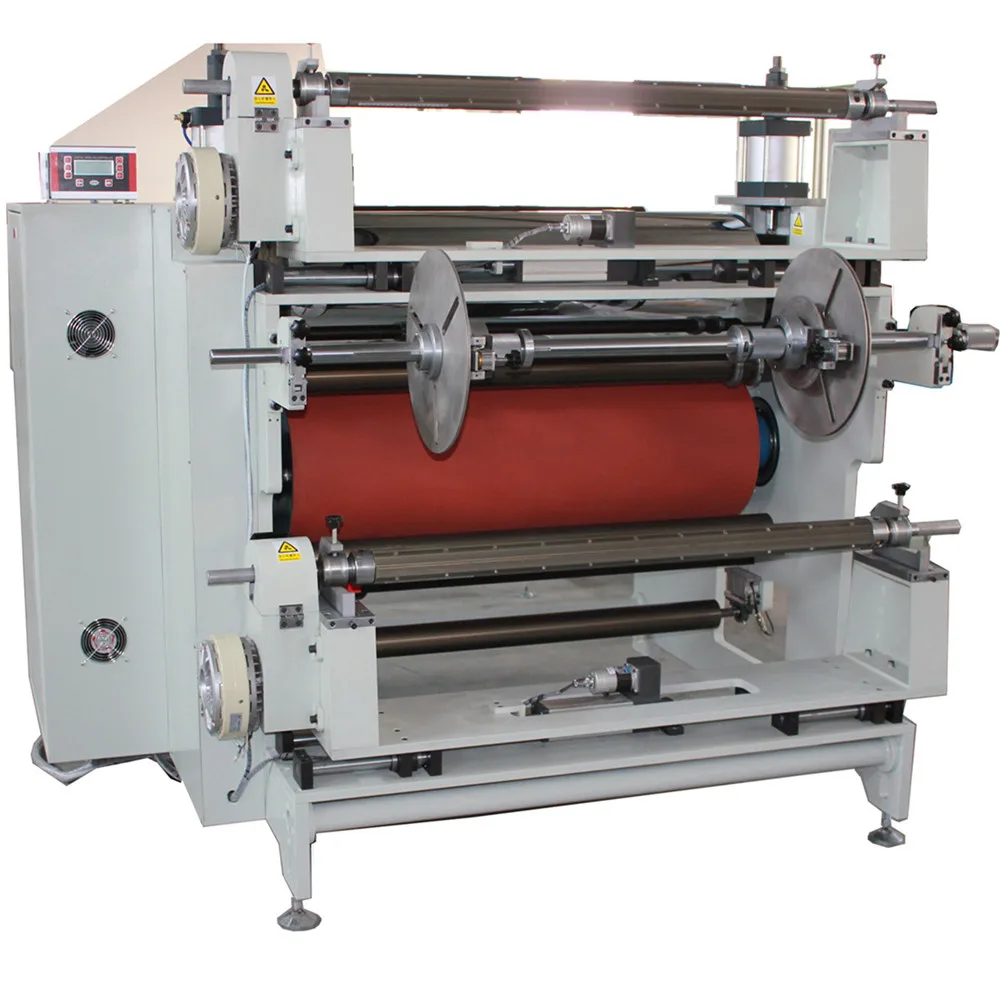

below is main machine part , unwinding carbon film , heating film and the copper strip
this heating film laminating machine, carbon film laminating machine , copper stip laminating machine
you can see these unwinding part are with web gide control \\
and the heating roller are jumbo diameter , this one with 300mm diameter
all the guiding roller are use smooth surface and no stratch material
After Sales Service
After sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :
1. Free sample testing and video for your reference
2. Prompt delivery within 24 hours
3. One year warranty ,whole life technical support
4. Free training in our factory available before delivering machines
5. Engineers available to service machinery overseas
6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
