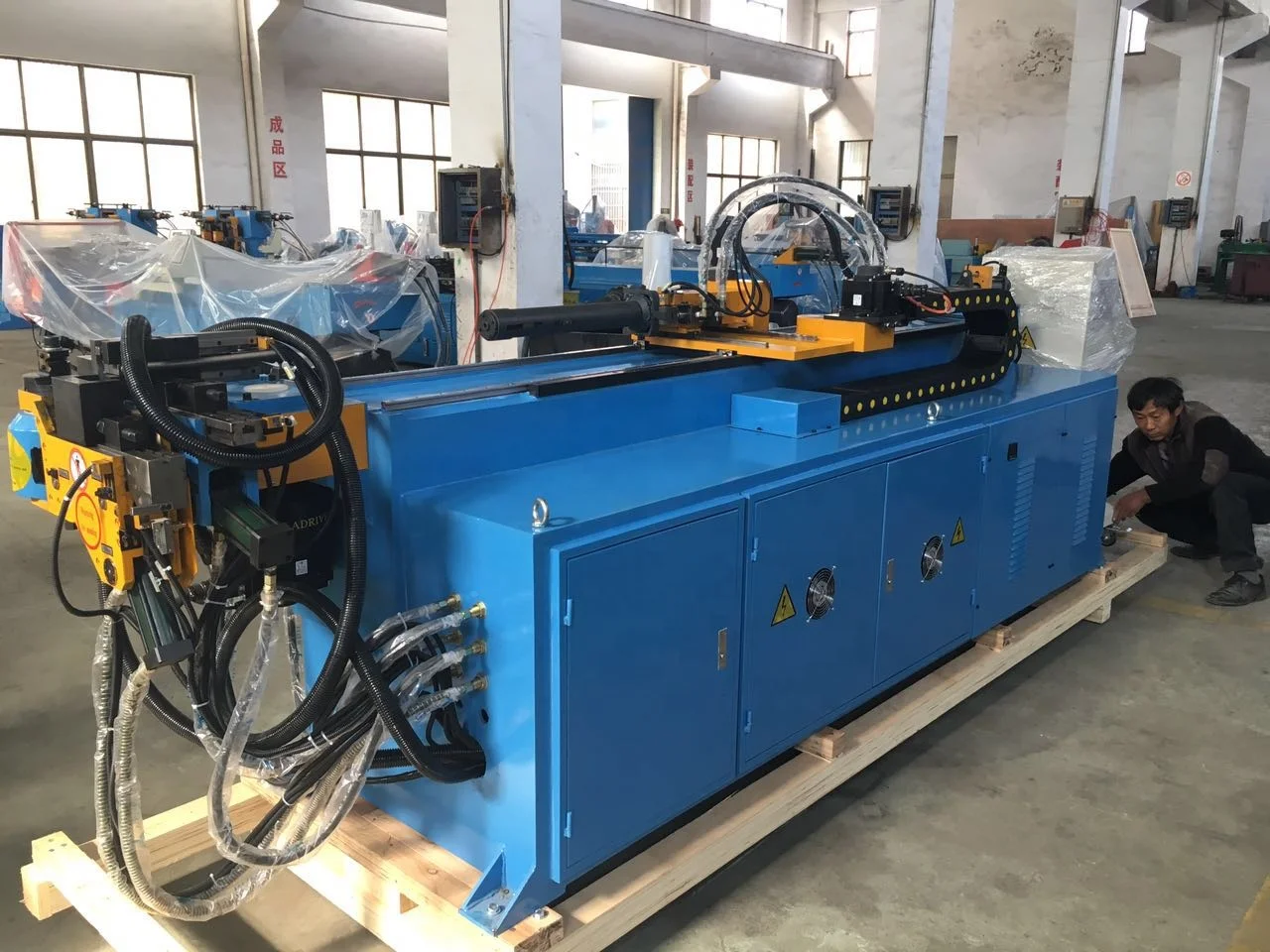

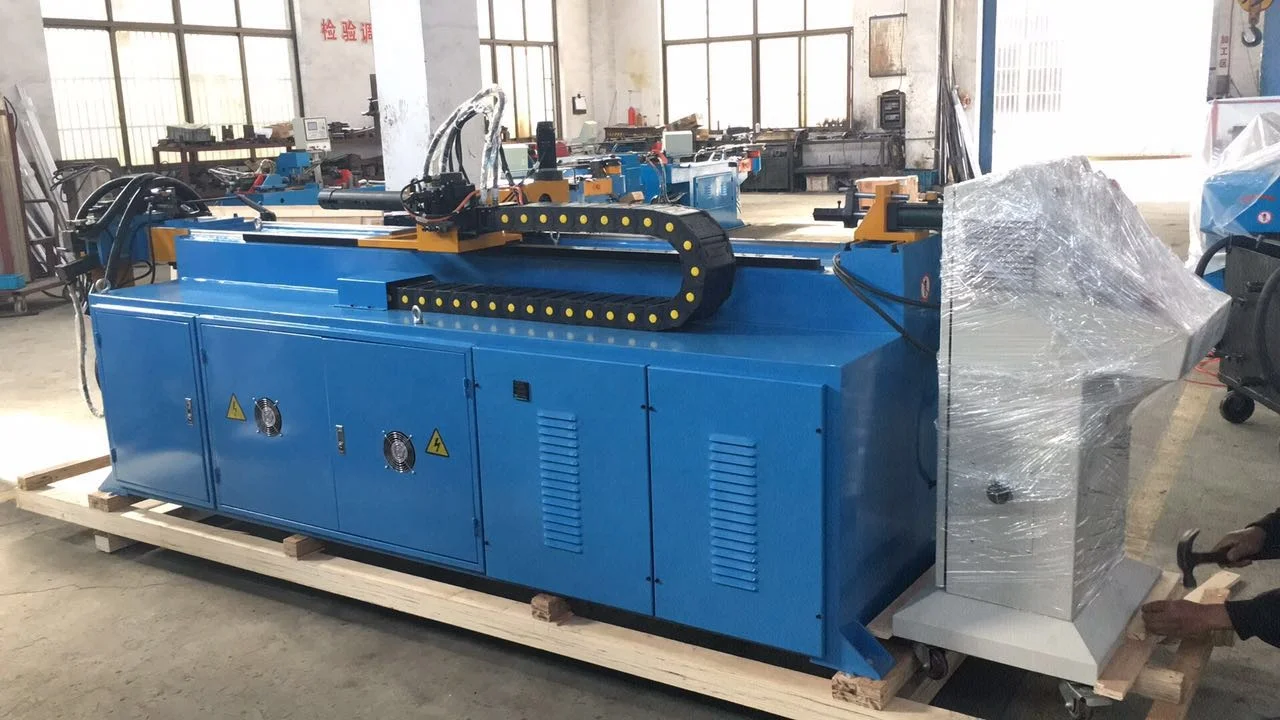

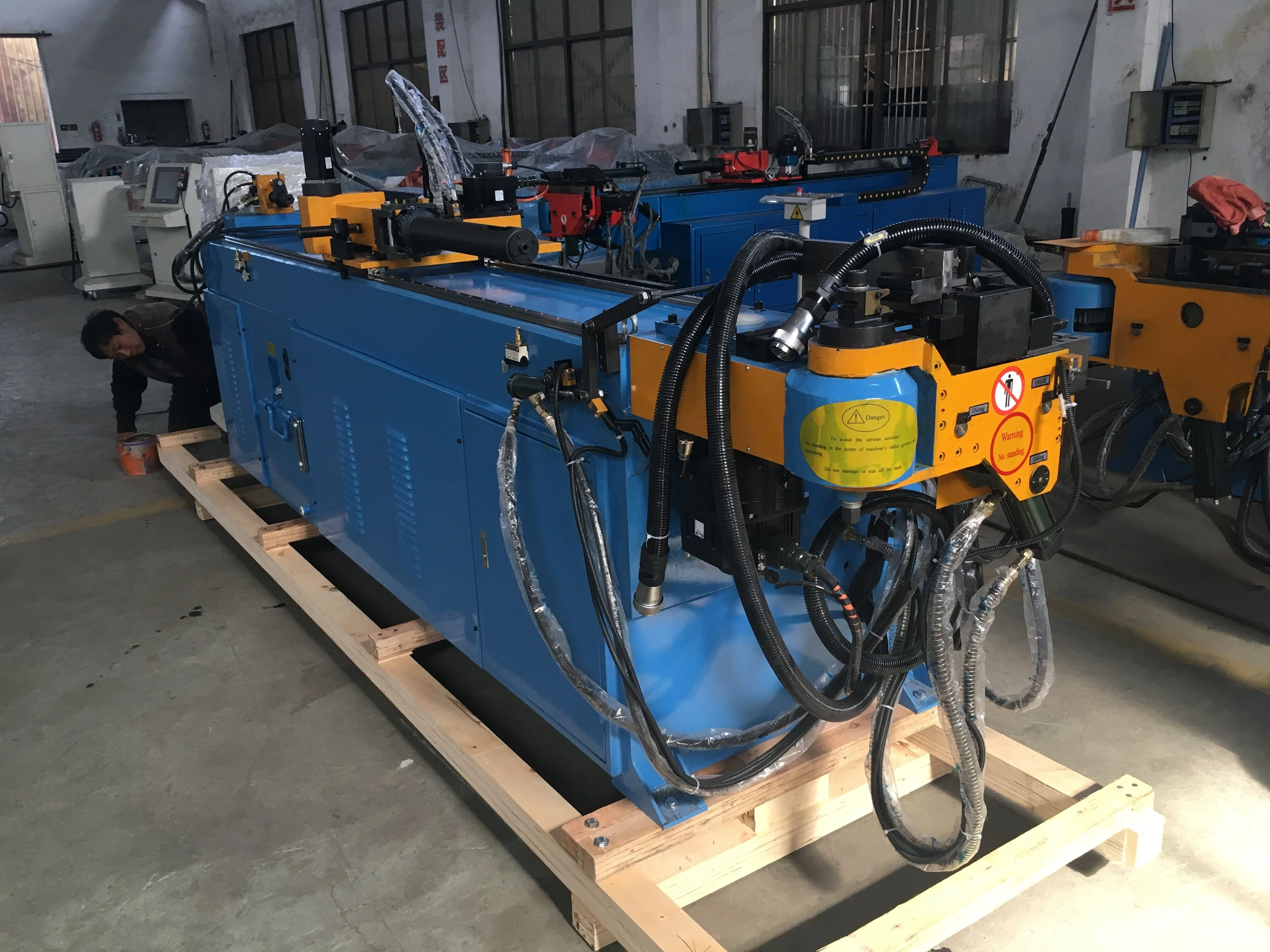

Brand new pipe/tube bending machine with high quality
- Category: >>>
- Supplier: Zhangjiagang Minghua Machinery Manufacture Co. Ltd.
Share on (1257222815):
Product Overview
Description
DW18CNC 3D wire bending machine ,
Item | Name | Unit | Data | Remark | |
1 | Max bending capacity | mm | Φ18×2t |
| |
2 | Max bending radius | mm | 80 | Can according to customer's requirement | |
3. | Min bending radius | mm | Depend on diameter |
| |
4 | Max feeding length | mm | 1500 | Can according to customer's requirement | |
5 | Max bending degree | Degree | 190 |
| |
6 | Control Panel |
| PLC+touch screen |
| |
7 | Bending unit | piece | 16 |
| |
8 | Working speed | bending speed | Deg/sec | 200 |
|
Feeding speed | mm/sec | 1000 |
| ||
9 | Accuracy | feeding | mm | ±0.1 |
|
rotary | Degree | ±0.1 |
| ||
bending | Degree | ±0.1 |
| ||
10 | Feeding servo motor power | W | 750 | JapanMitsubishi | |
11 | The accuracy of roller | mm | Max 20 | Can according to customer's requirement | |
12 | Oil motor power | Kw | 3 |
| |
13 | Max storage units | group | 1000 | Can enlarge according to requirement | |
14 | Max pressure | MPa | 10 | Adjustable | |
15 | Hydraulic control system |
| Magnetic exchange valve | JapanYuken | |
16 | Machine weight | Kg | 800 |
| |
17 | Machine size | cm | 276×69×100 |
| |
