Electric telescopic gate,folding gate, automatic gate sliding gate design 15 YEARS FACTORY!

Product Overview

Description

Welcome to Hongmen Corporation, we provide high quality products & satisfactory services.



Features:

1. CE certificate

Test Standards:

MD:    EN12445:2001         EN12453:2001    EN13241-1:2003

EMC:  EN55014-1:2006      EN55014-2:1997+A1:2001+A2:2008

          EN61000-3-2:2006   EN61000-3-3:2008

LVD:   EN60335-1:2002+A11:2004+A1:2004+A12:2006+A2:2006+A13:2008

CE Reference No: MD: WT09124195-E-D-O/ EMC: WT09061817-D-E-E/ LVD: WT09061816-D-D-L



2.Configuration:using high strength alloy aluminum (vice white) as the main material and no mounted stripes on the sides and front.



3. Multi-language LED (optional).

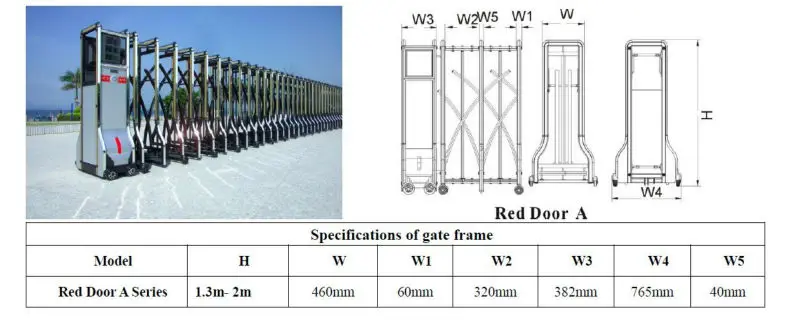

4. Material Specification:

    Major material: 50*40*1.0

    Auxiliary material: 55*27*1.0

    Width: 765mm

5.  Gate Function:

1. Power: 300W/400W/500W;  220V/110V ; 60HZ/50HZ

2. Surrounding temperature: -40~80

3. Moving speed: 15m/min

7. Material: High strength aluminum alloy

4. Color available

5. Type of guiding track:  trackless, single track

6. The drive mechanism is used Intelligent AC Head Unit, intelligent digital navigation technology,

      trackless and automatic skew correction (optional)

7. The unique infrared collision avoidance system ensures safety of passengers and vehicles

8. Wind-resistant device enable the electric gate to operate in strong winds

9. The running wheels show no apparent wear and tear after a 300,000 time swing test over a

      10m distance.  Sand or pebbles in rainy or stormy weather do not affect the normal operation

      of the electric gate.

10. Increasing safety and reliability of system operation through whole-digit circuit control

11. Elegant key-type clutch can easily change to manual mode during a power outage by insert a

      special key into the hole of the clutch and turning it at 90 degree.

12. The alarm function works while someone climb the gate (optional)

13. Electronic soft starter and mechanical buffer device ensures smooth run.
