PREPAINTED GALVALUME STEEL SHEET

Product Overview

Description

Korea Ara Corp 's Galvanized Steel Strip is painted and baked twice in color coating line.

(It is not Chinese Product) Excellent pre-treatment and Coating process ensure high corrosion resistance,

formability,attractive appearance.

Used mainly in external building material, electric appliance and furniture.



Color galvalume, added natural color to aluminum-zinc alloy steel sheet,

retains natural beauty in our living environment, and opens new culture of construction based on humanity.



Color galvalume, in other words, color painted galvalume of aluminum-zinc alloy steel has unique characteristics

of superior corrosion-resistance and heat-resisitance.

Prepainted galvalume, which is beautiful and varied in colors (RAL Color code and BS code), has opened

a new chapter for construction culture by satisfying customers both in the superior performance and esthetic factor.



Variety of Products.



 (1) Regular Modified Polyester Coated Steel (R.M.P)



   Manufacturing Principle : Painting and backing every 2 times using Regular Modified Polyester Resin.

   Characteristics : The possibility of Clear Gloss Color and Extreme Matt Color.

    Corrosion resistance  /  Weather resistance  /  Chemical resistance  /  Variety and beauty of color

   Main Applications. : Roofing and siding of factory, Warehouse and Pre-fabricated house, Interior,

Partition and Door etc. Exterior cover of showcase and Other home electric appliance.

   Dry film Thickness :  Top Side : Primer 5μ, Finish 10 ~ 20 μ. / Back Side : Wash coat 5μ.



(2) High Durability Polyester Coated Steel  (H.D.P)



Manufacturing Principle : Painting and backing every 2 times using High Durability Polyester Resin.

   Characteristics : Super Corrosion resistance / Super Weather resistance / Heat resistance /

Variety and beauty of color

   Main Applications.: Roofing and siding of factory, Partition and Door, Exterior cover etc.

Where corrosion and weather resistance are especially required.

Dry film Thickness : Top Side : Primer 5μ, Finish 10 ~ 20 μ / Back Side : Wash coat 5μ.



(3) Polyvinylidene Fluoride coated Steel  (P.V.D.F)



Manufacturing Principle: Painting and backing every 2 times using Polyvinylidene Fluoride Resin.

   Characteristics :Super Corrosion resistance / Super Weather resistance / Heat resistance /

Variety and beauty of color

   Main Applications.: Roofing and siding of factory and Other exterior cover etc.

Where corrosion and weather resistance are especially required.

Dry film Thickness

    One Side guarantee - Top : Primer 5μ, Finish 20 ~ 25μ / Back : Wash coat 5 ~ 10μ. (Special epoxy)

Both Side guarantee - Top : Primer 5μ, Finish 20 ~ 25μ / Back : Primer 5μ, Finish 10 ~ 20μ



(4) High Polymer Polyester Coated Steel  (H.P.P)



Manufacturing Principle : Painting and backing every 2 times using High Polymer Polyester Resin.

   Characteristics :Corrosion resistance / Excellent workability / Excellent appearance / Variety and

beauty of color.

   Main Applications.: Refrigerator and Micro wave oven, Washer, Audio case, Other home

electric appliance, Door & Interior.

Dry film Thickness : Top Side : Primer 5μ, Finish 20 ~ 25 μ / Back Side : Wash coat 5μ.





(5) Printed Steel Sheet (P.S.S)



Manufacturing Principle : Printing and backing various designs with gravure off set ink on the

Pre-painted Steel Sheet.

   Characteristics : Variety of designs, Beauty of color, Chemical resistance, Good workability.

   Main Applications.:  Refrigerator and Washer, Audio case, Other home electric appliance,

Door & Interior.

Dry film Thickness Top Side : Grand Layer 10~15μ (Polyester) + Print 1~3μ (Ink ) +

Clear coat 5~10μ (Clear Resin) , Back Side : Wash coat 5μ.



Size Availability



SIZE AVAILABILITY	FIGURE
Capacity	200,000 MT / Year
Thickness	0.23mm ~ 1.60mm
Width	500mm ~ 1,270mm
Coil Weight (Max)	15 MT / Coil
Coil I.D	508mm / 610mm
Line Speed	100 mpm
Coating Method	3 Coat 3 Bake





Based on the Kesternich test and acid rain contamination test of Color Galvalume and Prepainted

Galvanized Steel, Color Galvalume provide to be much superior in corrosion resistance – particularly

, at the forming and welding portion.







An order of inquiry should be accompanied by the following information.



1. Size : Thickness / Width / Length ( in case of Cut Lengths).

2. Specification requirement :  Coating designation or Wt / Type of coating & surface treatment

                            Coil I.D / Packing Weight.

3. Quantity.

4. Intended use

5. Packing and marking requirement.

6. Delivery Requirement.

7. Required inspection, if other than mill inspection.

8. Other pertinent information.

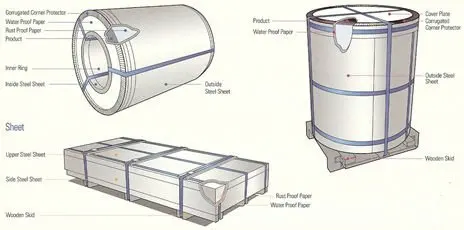

Packing
