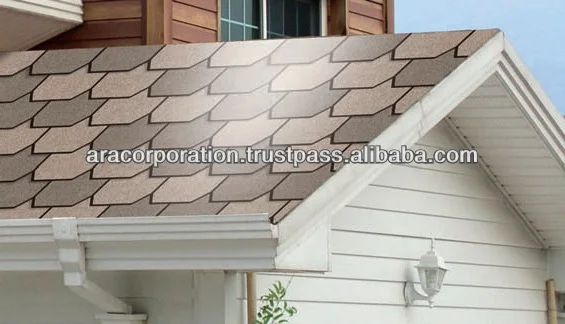

PPGI Galvalume Roofing Meterials Steel Sheet

Product Overview

Description



ARA Corp's Galvalume Roofing Meterials

Roofing Steel Materials

Pre-painted Galvalume Steel Sheet

Color Roofing Steel Sheet



The best materials of roofing is Galvalume (Pre-painted galvalume or galvanized Steel sheet) Steel Sheet.





Galvalume (GL) ideally combines characteristics of aluminum coated steel and galvanized steel.



It consists of aluminum (55% in weight ratio but 80% in surface volume ratio), zinc (43.4% in weight)

and silicon (1.6% in weight ratio) so it has both aluminum-unique corrosion-resistance and heat resistance

and zinc-unique “galvanic behavior

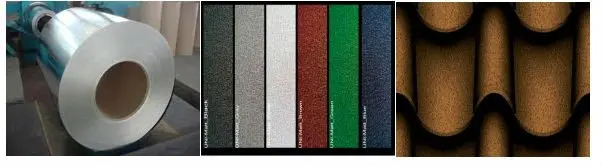

Galvalume is offered in both bare and pre-painted versions.

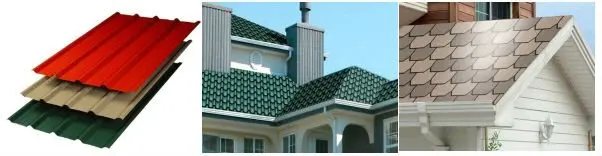

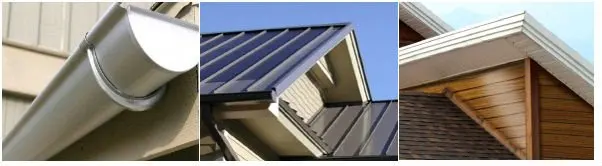

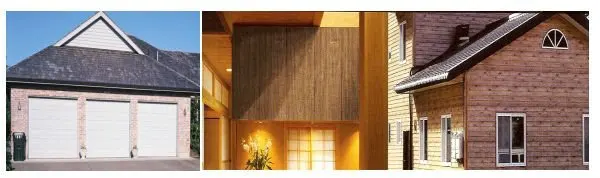

Our Galvalume steel manufacturer is the best company that offers both Galvalume bare and Color galvalume (pre-painted galvalume) for roofing, wall panel, eaves, gutter, etc.







Galvalume steel is an ideal roofing material because of its strength, extraordinary outdoor corrosion resistance and longevity. Galvalume and Color Galvalume are produced by coating steel with a special Aluminum-Zinc alloy that provides more than twice the corrosion resistance of galvanized steel. It delivers the optimum combination of the features of aluminum and zinc: the barrier protection and long-term durability of aluminum and the sacrificial or galvanic protection of sheared edges that is characteristic of zinc.









Galvalume Characteristics

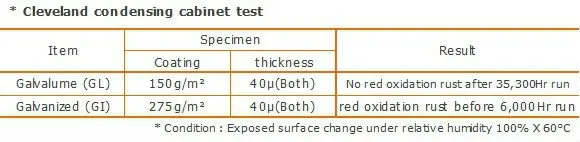

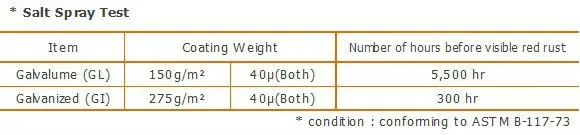

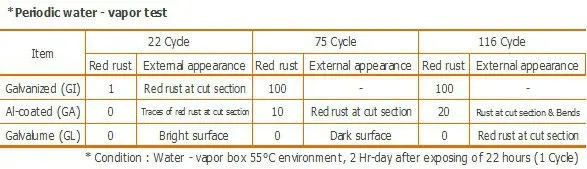

Durability - Humidity Test,  Salt Spray Test, Outdoor Exposure Test ( for 13 years).





Heat-Resistance – Heat-Resistance of Galvalume is far superior to that of galvanized, and

almost equal to characteristics of Al-coated steel.



Galvanized : Recommendable temperature ; 230°C & under, Discoloration at 250°C

Galvalume : No discoloration even for durable use at 315°C

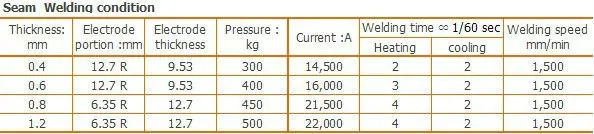

Weldability - spot and seam welding test pass.





Workability - GL has the same characteristics with galvanized steel sheet in workability & formability, and

            especially, micro crack at forming section is much less than galvanized steel sheet.

            Therefore, GL has excellent durability at forming section.



Heat-Reflexibility - GL's heat reflexibility almost doubles that of galvanized steel so it has an energy

             saving effect. If it is used in roofing and paneling without painting



Paintability – Galvalume can be painted without pre-treatment or weathering when used for signboard or

general purpose, due to its superior adhesive strength between zinc layer and paint,

unlike galvanized steel which requires weathering or pre-treatment.





An order of inquiry should be accompanied by the following information.

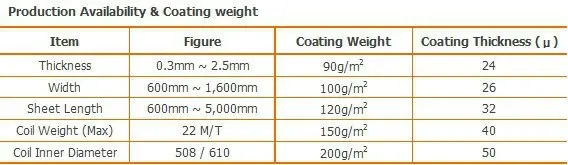

1. Size : Thickness / Width / Length ( in case of Cut Lengths).

2. Specification requirement :  Coating designation or Wt / Type of coating & surface treatment

                            Coil I.D / Packing Weight.

3. Quantity.

4. Intended use

5. Packing and marking requirement.

6. Delivery Requirement.

7. Required inspection, if other than mill inspection.

8. Other pertinent information.

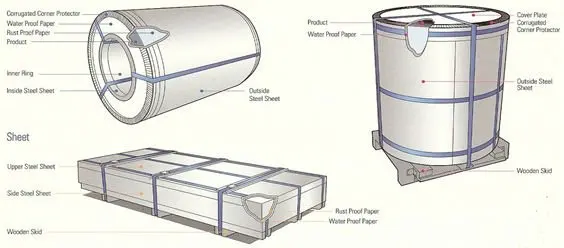

Packing
