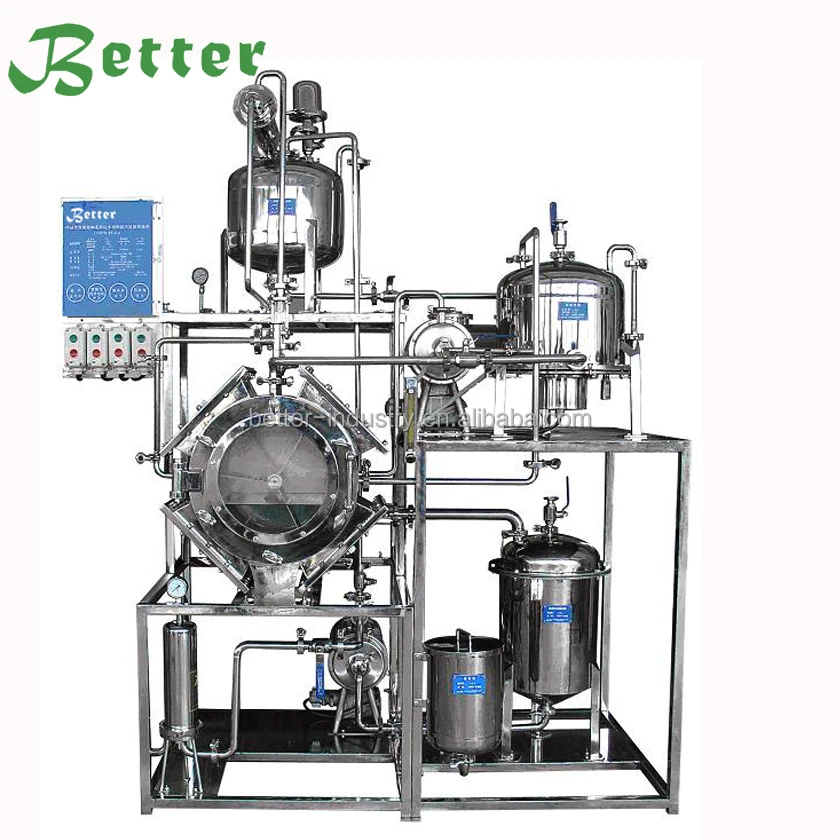

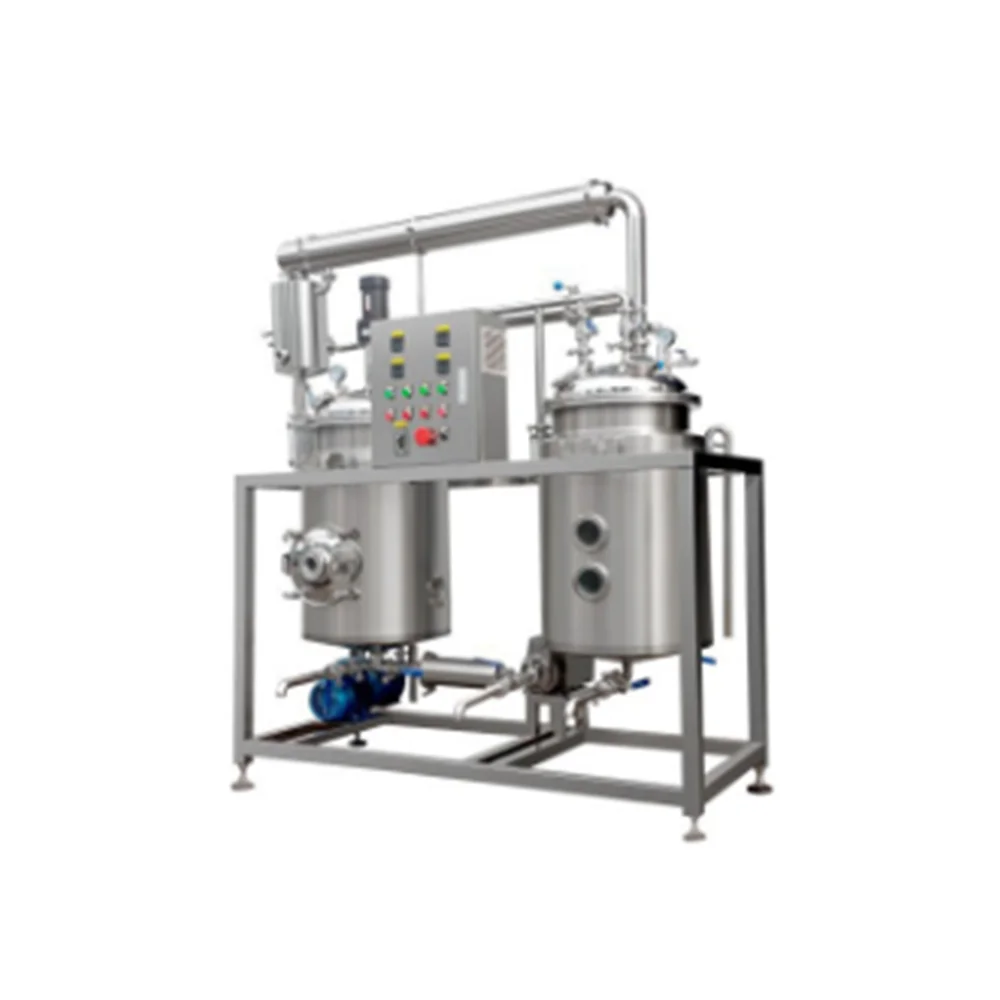

Plant Extraction Equipment

Product Overview

Description

Brief introduction of plant extraction equipment

This plant extraction equipment is suitable for extraction and concentration of ingredients from medicine, plants, pharmaceutical, food and chemical industry pressure, micro-pressure, decoction, warm dip, heat reflux forced through the bad, infiltration, aromatic oil and organic solvent recovery concentration, etc. a variety of processes. Very suitable for universities, research institutes and enterprises laboratory research and trial production of small and medium sized production lines.



Features of plant extraction equipment

1.This plant extraction equipment is use vacuum evaporation method to achieve material extraction and concentration.

2.Through the condenser, cooler, solvent recovery tank, water-ring vacuum pump to make the solvent from extraction tank can be recycling, because each solvent after cooling are relatively pure solvent , Therefore, the device can achieve the effect of traditional Chinese medicine extraction Soxhlet extraction and heat reflux extraction dynamic double effect.

3. Equipment efficiency: This  plant extraction equipment is the latest ultra-compact Extraction and concentration tank developed by our company's, this plant extraction equipment optimize the product on the basis of the original Single Extraction machine,integrated the small Enrichment equipment (vacuum jacketed concentrated or rising film vacuum concentration) in this plant extraction equipment, made the extraction and concentration Complete by one step to saving raw materials and working hours, work efficiency have been increased by 10% to 15% than the average Multi Tank equipment.

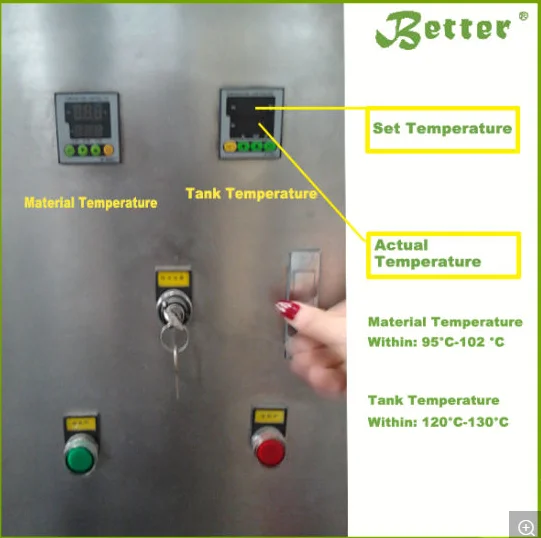

4. Material conversion rate high, in order to improve the quality of a concentrated product, at low pressure to indirect heating the heat sensitive material liquid by steam or hot water, while controlling the temperature of the heating medium and the material so that the material can be minimize the loss of active ingredient at low temperature extraction, concentration . Meanwhile in the extraction process, made the difference between the material temperature and the concentration difference between the liquid tank can be uniformly distributed by mechanical agitation, accelerating the conversion of raw materials.

5. Enrichment efficiency high: feeding under a closed vacuum cryogenic state, and quick concentrated , the solvent from the extract liquid can evaporate quickly out constantly, using jacketed vacuum concentrator get a higher concentration ratio. Using jacketed vacuum concentrator get a higher concentration ratio. Using rising film concentrate unit will match with a greater proportion of the heat exchanger tube heater, it can be heated the extract liquid into the evaporation temperature in a relatively short period of time. Rising film concentration unit can significantly shorten the concentrated time.

6. The plant extraction equipment is a compact structure, small footprint, the actual area in about 2 ~ 3M2.
