Textile Machinery Knitted Fabric Inspection Machine

Product Overview

Description

Textile Machinery Knitted Fabric Inspection Machine



-Usage:



Textile Machinery Knitted Fabric Inspection Machine is suitable for inspecting and rolling up and counting length for all kinds of cotton,knitted,woven,printed,plush fabric and tricot fabric etc.



-Main Techincal Parameters of Textile Machinery Knitted Fabric Inspection Machine



Fabric width	1800mm~3600mm
Highest speed	80m/min
Diameter of fabric rolls	≤600mm
Accuracy of alignment	±3mm
Power of main motor	1HP*2
Dimensions	2200mm(L)*2300mm(W)*1900mm(H)



-Characteristics of Textile Machinery Knitted Fabric Inspection Machine

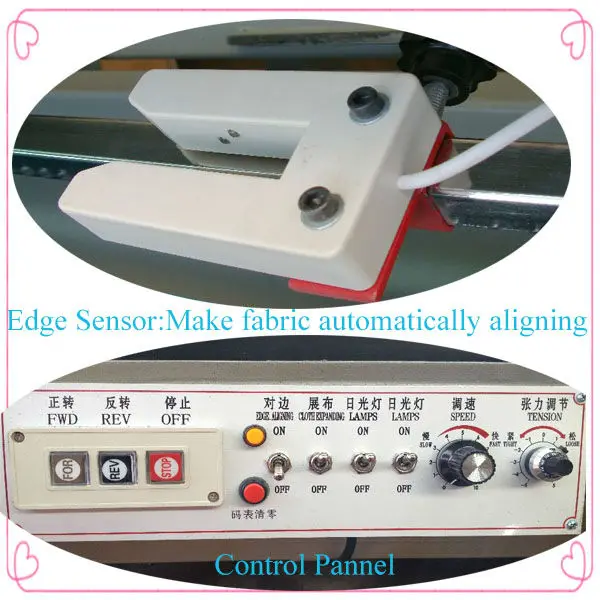

1.Photoelectric hydraulic edge-alignment system is adopted.

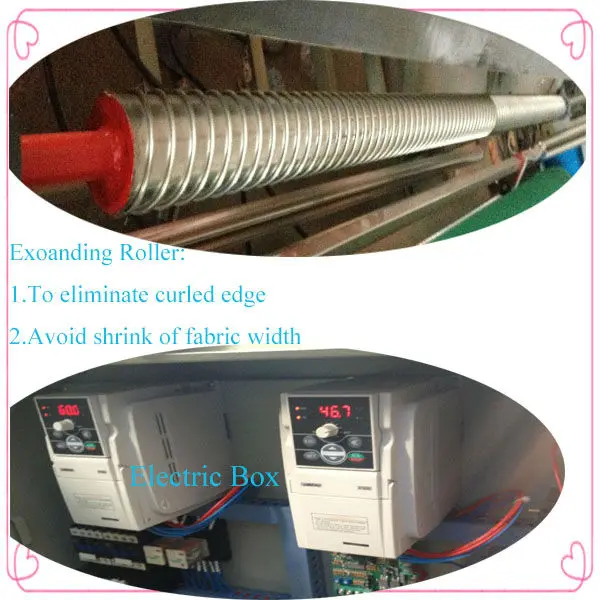

2.Textile machinery knitted fabric inspection machine is equipped with expanding rollers to eliminate curled edge and avoid crease on fabrics.



3.Length counter could make accurate measurement of length in yards or meters which can be interchanged.



4.Winding roller and feeding roller are driven by gear motor made in Taiwan.



5.Fabric tension is adjusted by inverters.

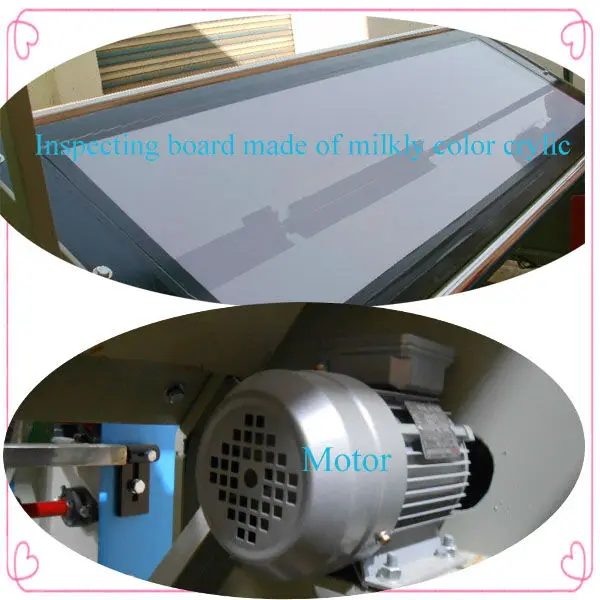

6.Inspection Board is made of milky color acrylic.



7.Imported special foamed roller could roll up weft knitted plush and short floss without sliding movement and untidy edge.



 8.Fabric rollers are neither too tight nor too loose.



9.Stability in start, forward and reversible running and step less speed change.



10.CE approved, excellent in quality and safety.

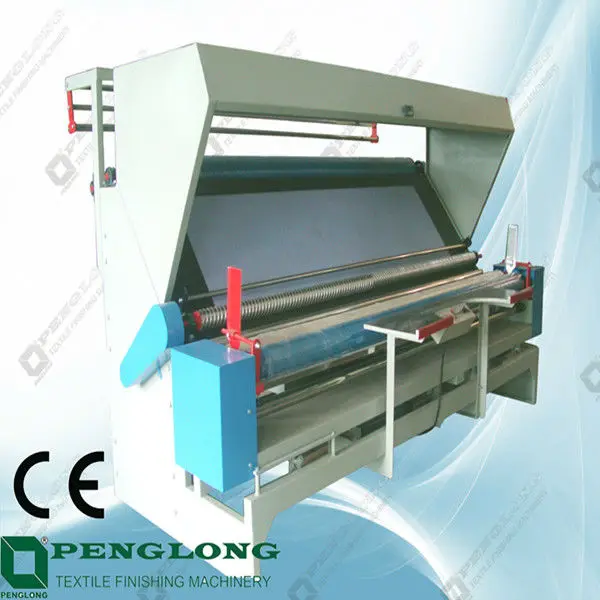

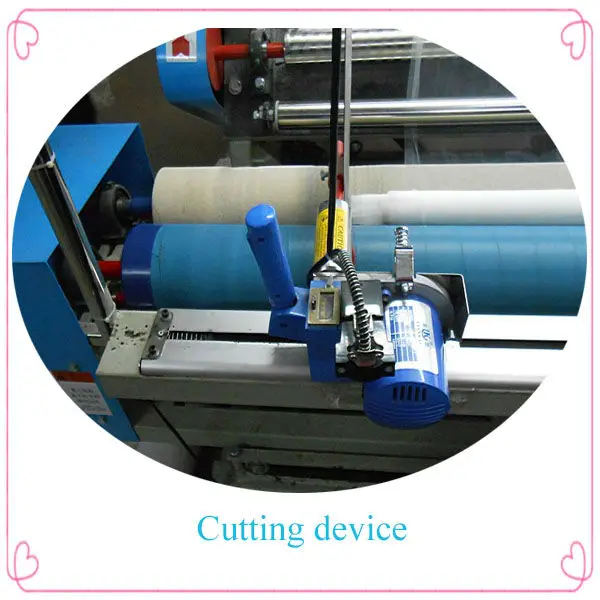

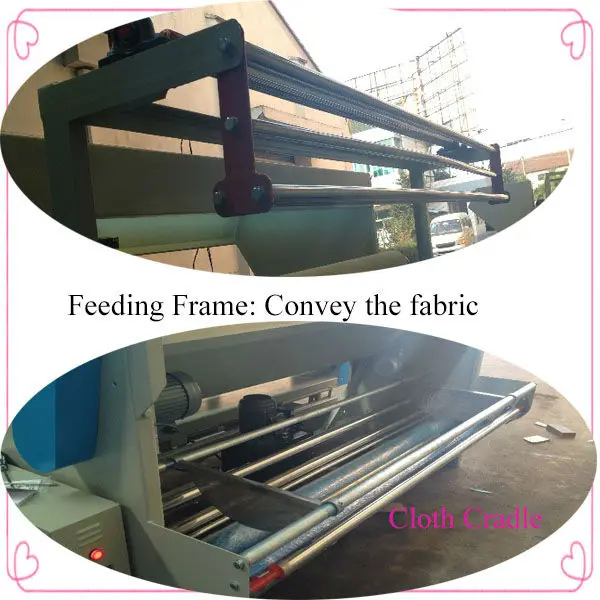

-Main pictures of knitted fabric machine

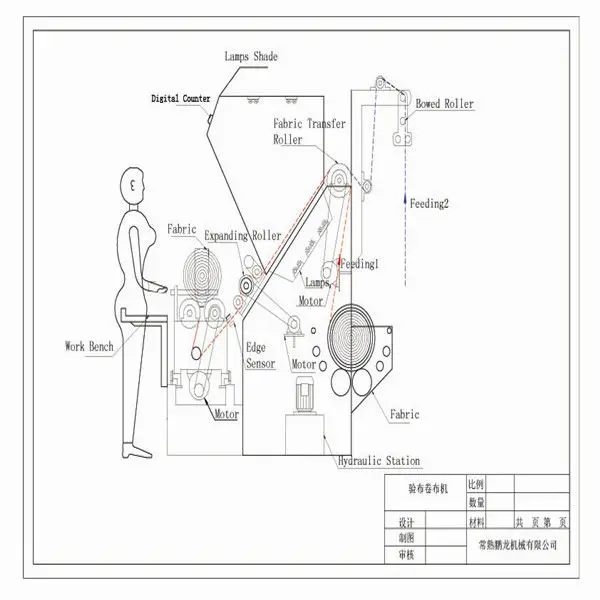

-Schematic Drawing

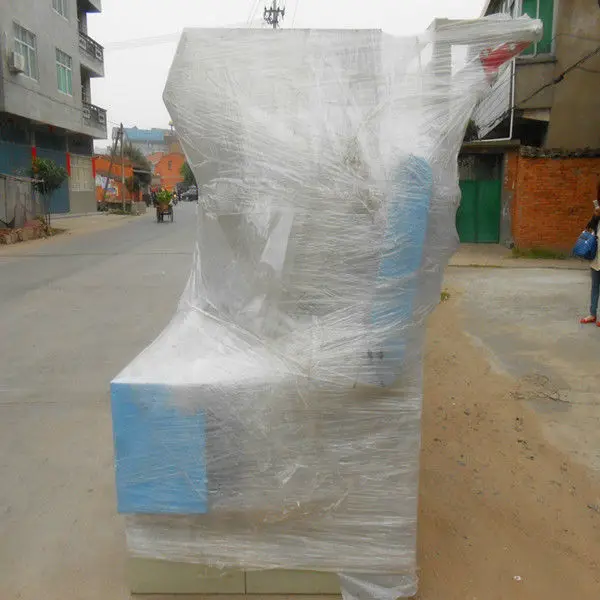

-Fabric Inspection Machine Packing









-About us



Exporting Countries



1.Asian Countries: Bangladesh,Saudi Arabia,Thailand,Vienam,Sri Lanka,Irap,Iran,Singapore.



2.Europe and America Countries:America,Portland,France,Ukraine,Britain,Russia.



3.Africa Countries: Ethiopia,Uganda,South Africa.



4.Oceanica: Australia



5.South America: Argentina,Peru,Venezuela,Uruguay,Chile,Brazil.





Welcome to inquiry textile machinery knitted fabric inspection machine!



You are warmly welcome to visit our factory~~
