Precision Wire Cut EDM
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1261574224):
Product Overview
Description
Medium Speed Wire Cut EDM DK-320
Feature:
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame to keep the tension of moly-wire within the scope of normal tension.
* Data exchange and remote control is realizable under the powerful network function of XP system.
* The system has the function of pitch correct, which can improve the position accuracy effectively.
* The wire moving is controlled by transducer, which adopts unlimited adjustment.
* The processing components involve godet mechanism, the best roughness Ra=1.5μm.
* The cooling system is equipped with a large water tank with three levels filtration.
Parameter:
| Specification | Unit | DK-250 | DK-320 | DK-400 | DK-500 | DK-630 | DK-700 | DK-800 |
| Work table travel | mm | 250x320 | 320x400 | 400x500 | 500x630 | 630x800 | 700x1000 | 800x1000 |
| Work table size | mm | 380x525 | 415x635 | 500x785 | 600x900 | 660x1100 | 760x1400 | 820x1400 |
| Cutting depth (optional) | mm | 300/500 | 300/500 | 500 | 500 | 500/800 | 500/800 | 500/800 |
| Taper (optional) | 0° /6° /30° /60° | |||||||
| Roughness | μm | Ra(once cutting)≤2.5, Ra(Multi-cutting)≤1,5 | ||||||
| Precision | mm | ≤0.015 | ||||||
| Screw & guideway (optional) | Precision ball screw , precision steel plated/linear guideway | High quality ball screw, Steel linear guideway | ||||||
| Load of table | kg | 300 | 400 | 500 | 800 | 3000 | 5000 | 5000 |
| Machine weight | kg | 1600 | 1700 | 2000 | 2300 | 4500 | 6000 | 6700 |
Machine model
| Item | A | B | C | D | E | F | G | H | I | |
| Max. workpiece thickness(mm) | 300 | 500 | 300 | 500 | 300 | 500 | 300 | 500 | 1000 | |
| Max. taper angle (within 100mm thick) | 0° | 0° | ±3° | ±3° | ±30° | ±30° | ±15° | ±15° | ±3° | |

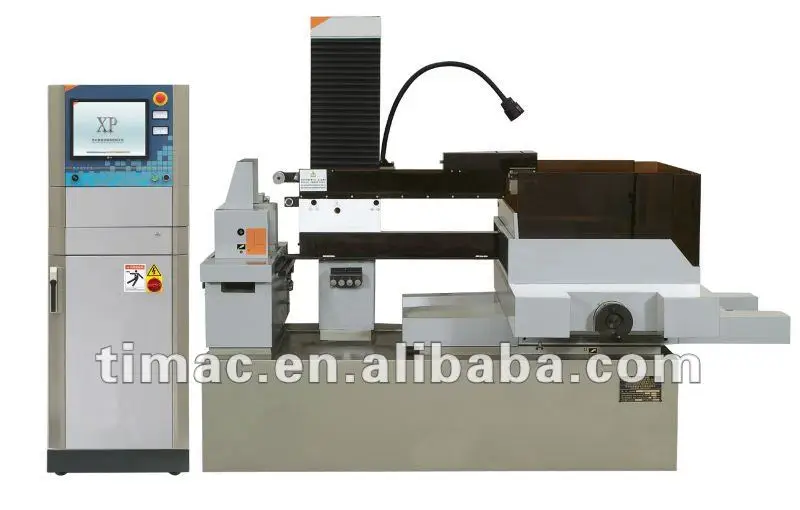

Machine View:
Company Information
Team&Certification
Exhibition&Training
Package&Transport
Customer Visited
Export Cases
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
