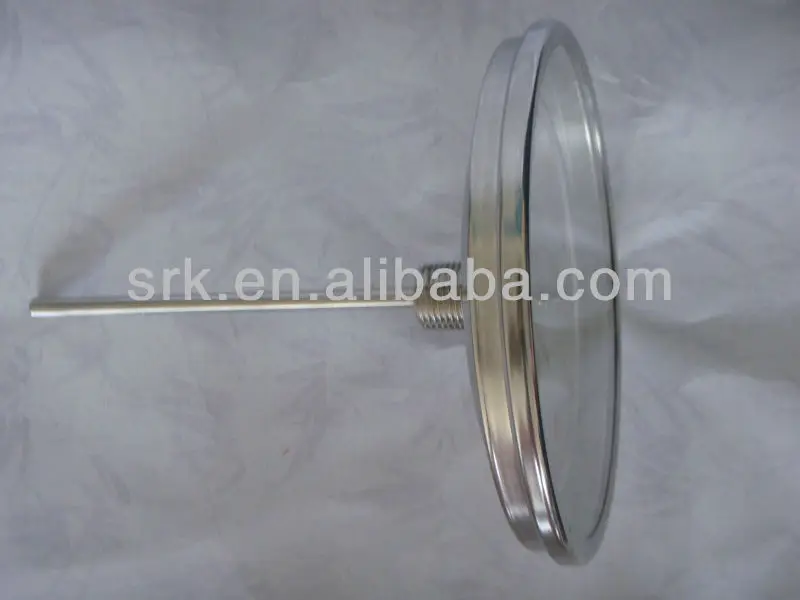

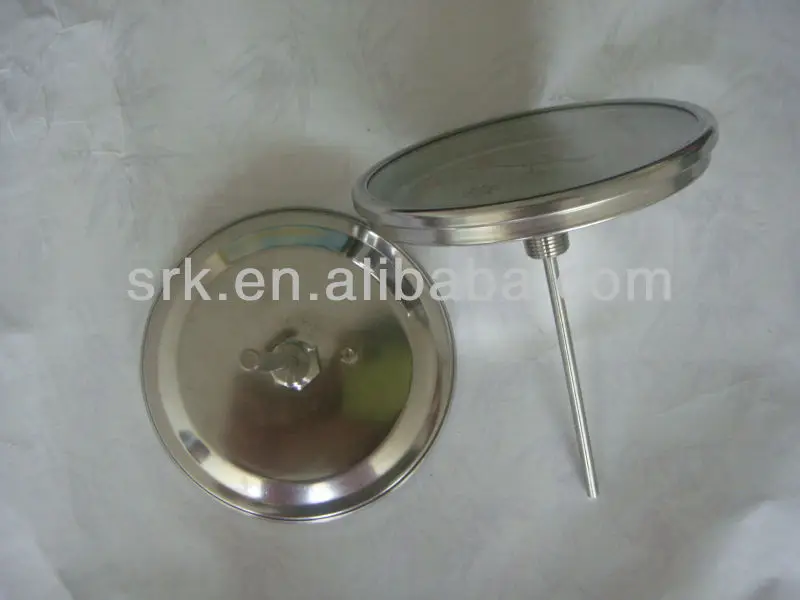

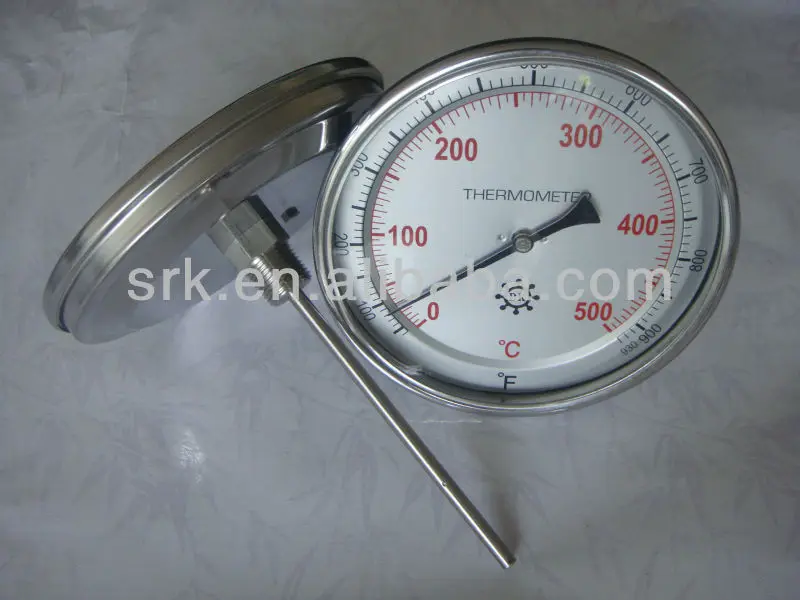

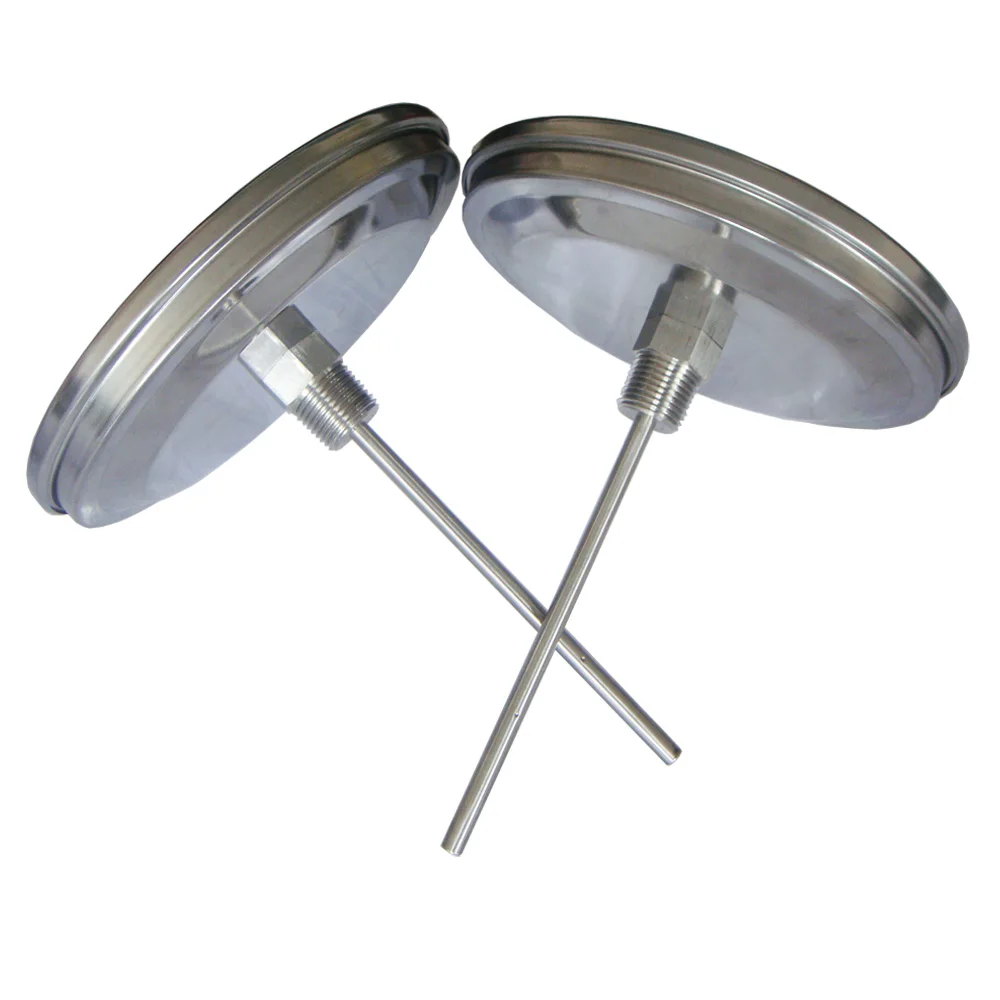

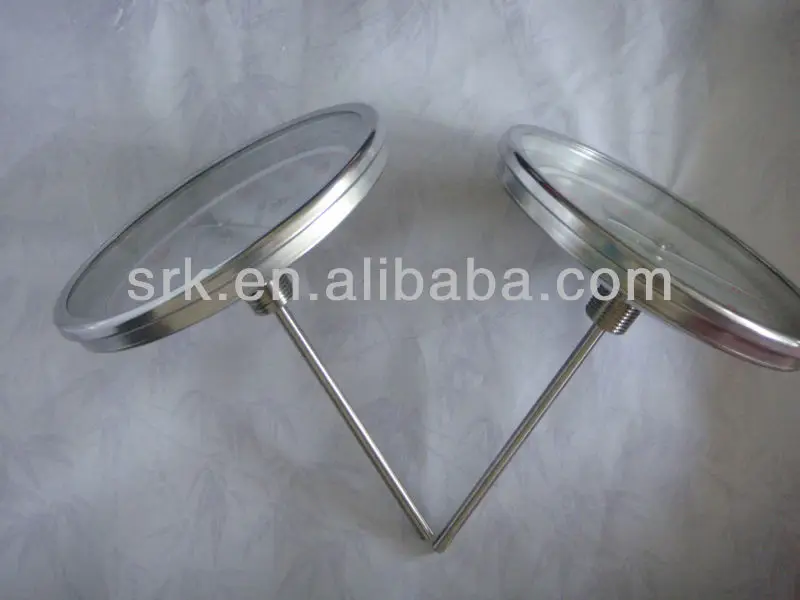

0 500C Bimetallic thermometer with back

Product Overview

Description

I.Name: 0-500C Bimetallic thermometer with back



II.Applications:



Bimetallic thermometer is a kind of field checking and measuring instruments for low



 and high temperature range from -80°C to +500°C of gas, liquid and steam



applications, and with on-site indication function as well.



III.Features:



On-site temperature indication, easy for reading;



Safe and reliable, long service life;



For different demands with various structure options.



IV.Technical Parameters:



1. Nominal dia. of instrument dial: 60mm, 100mm, 150mm



2. Accuracy: 1.0%, 1.5%



3. Heat response time: ≤ 40 s



4. Protection class: IP55



5. Angle adjustment error ≤ 1.0% of its range



6.Return difference ≤ absolute value of its basic error



7. Repeatability: repeatability limit range ≤ 1/2 of absolute value of its basic error



8. Temperature range:



Temperature range °C	Applications
	Industrial and commercial	Laboratory
-80 to 40	√	√
-40 to 80	√	√
0 to 50	√	√
0 to 100	√	√
0 to 150	√	√
0 to 200	√	√
0 to 300	√	√
0 to 400	√	--
0 to 500	√	--



Dial:	2",2.5",3",4",5", and 6", aluminum
Case:	AISI 304 stainless steel
Lens:	Glass standard, Shatterproof Glass Len Is Available
Bezel:	AISI 304 stainless steel, hermetically sealed or detachable
Pointer:	Aluminum, painted black
Movement:	Bi-metallic coil
Stem:	AISI 304 stainless steel standard
Connection:	1/4"NPT standard on 2" dial, fixed centre back and bottom 1/2"NPT standard  on 3", 4", 5" and 6" available, fixed centre back, bottom and adjustable angle.
Accuracy:	+/-1.5% full scale standard; +/-1% full Scale Available
Other:	With recalibrator-reset screw or without
Range:	From -80 C/0 C And 0 C/550 C



















Guide Selection:



1. Dial Size?

2. Temperature Range?

3. Back or Bottom or Adjustable Type?

4. What is the thread size?

5. Display C&F or only C?
