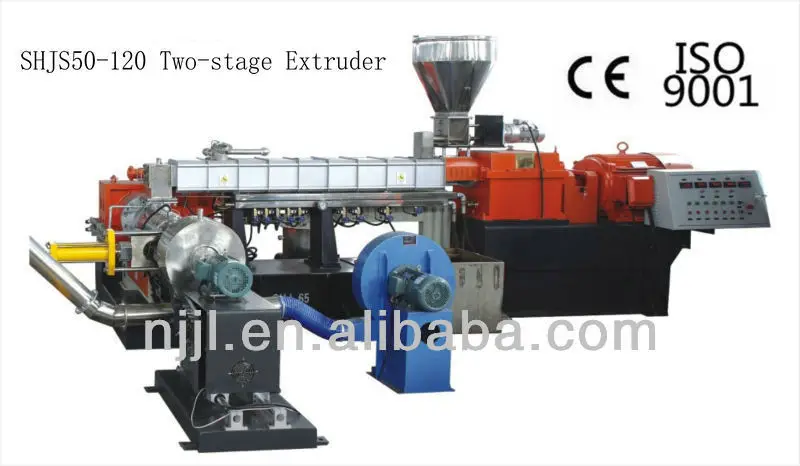

SHJS50 120 HFFR PVC/XLPE cable material extruder
- Category: >>>
- Supplier: Nanjing Juli Chemical Machinery Co. Ltd.
Share on (1263829925):
Product Overview
Description
cable material extruder
1.Technical Data:
1). Application:HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP etc,radialization crossing cables, XLPE/PEX material,
Carbon black masterbatches of PE,EVA,etc.
2). Output: 150~1000 kg/h (depends on different formulas)
3). Motor: 37-132/30-75KW
4). L/D: 24-48/7-20
5). Configuration: SHJ series twin screw extruder host machine, SJ series single screw extruder host machine,
oil lubrication system, soft water circulation system, vacuum system, hydraulic screen changer and die,
air-cooling die face pelletizing system, water tank, air knife, hot-cutting pelletizing system, E-cabinet etc.
6). Auxiliary machines: side feeder (one/two stage side feeder), spiral conveyor, high speed mixer, vibrating sieve,
product silo, automatic packing and sewing system etc.
Specification and Model | D (mm) | L/D | RPM (max) | Power (KW) | Output (kg/h) | |
SHJS50-120 | SHJ-50 | 50.5 | 24-48 | 500 | 37-45 | 150-300 |
SJ120 | 120 | 7-20 | 65-85 | 30-37 | ||
SHJS65-150 | SHJ-65 | 62.4 | 24-48 | 400-500 | 55-75 | 200-500 |
SJ150 | 150 | 7-20 | 65-85 | 37-45 | ||
SHJS75-180 | SHJ-75 | 71 | 24-48 | 400-500 | 90-110 | 300-600 |
SJ180 | 180 | 7-20 | 65-85 | 45-55 | ||
SHJS95-200 | SHJ-95 | 93 | 24-48 | 400-500 | 110-132 | 500-1000 |
SJ-200 | 200 | 7-20 | 85 | 55-75 | ||

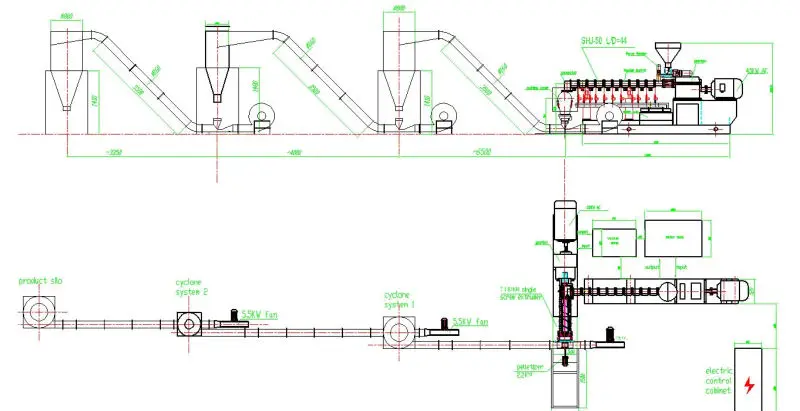

2. Layout Drawing:

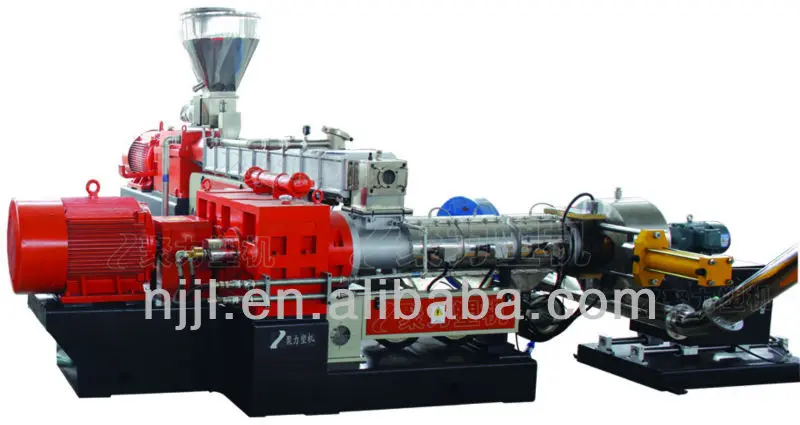

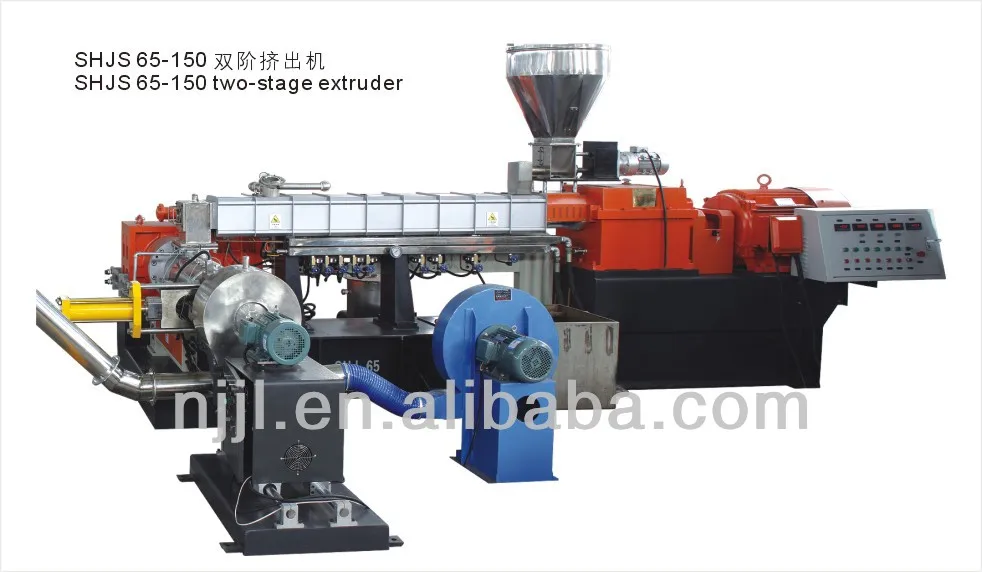

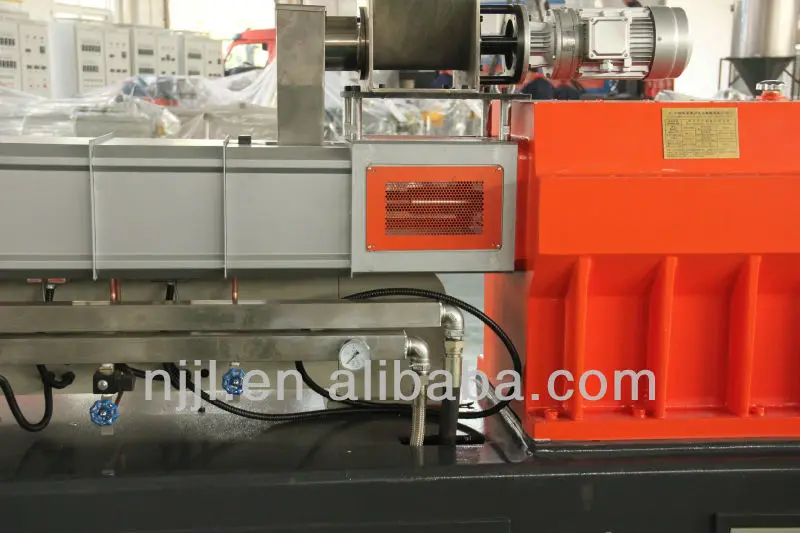

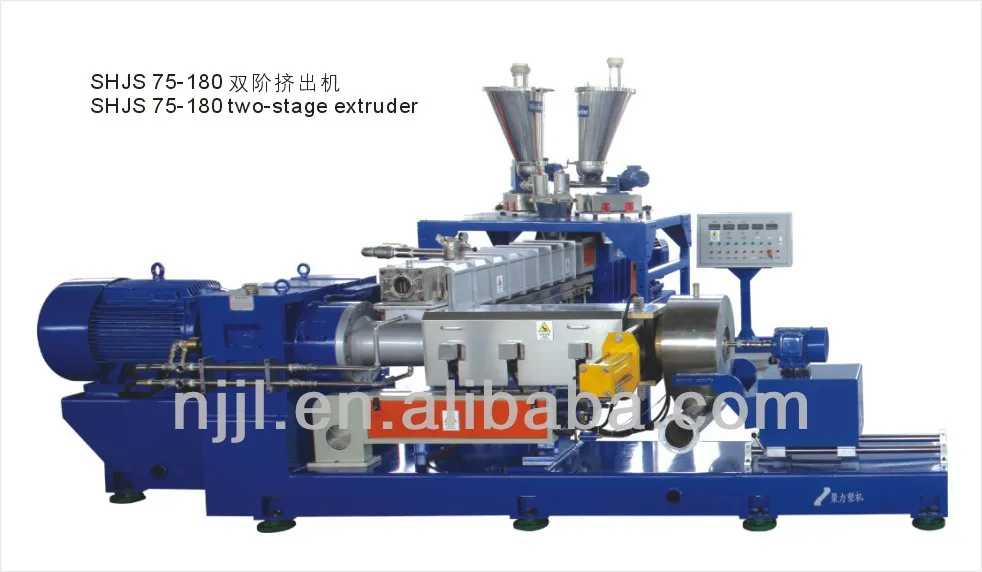

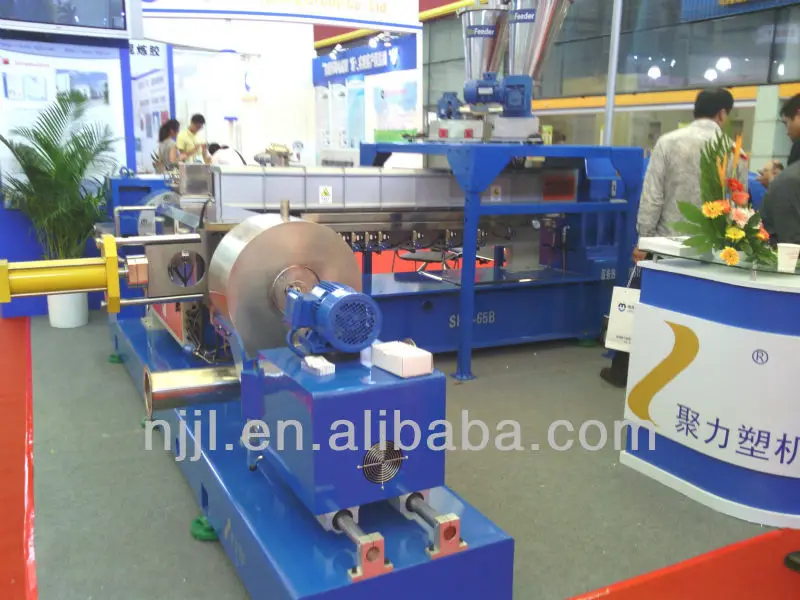

3. Machine Photos

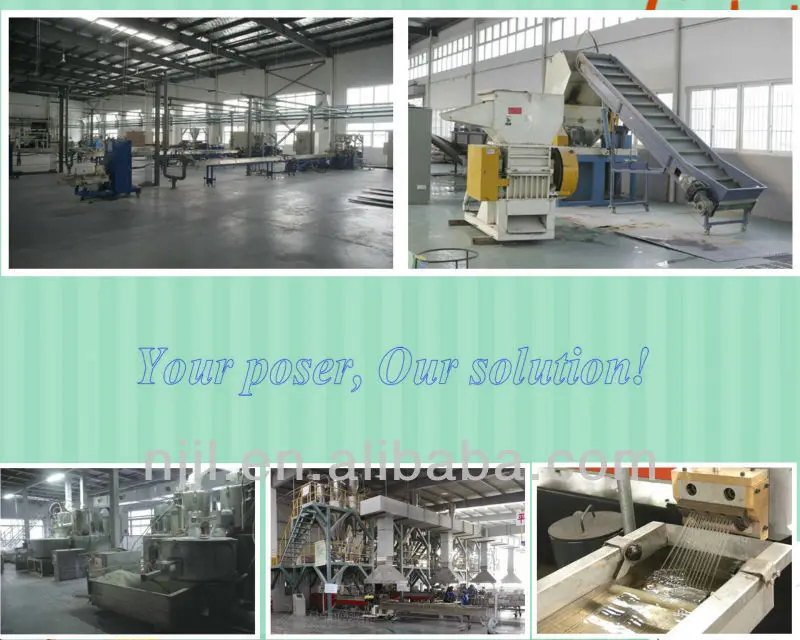

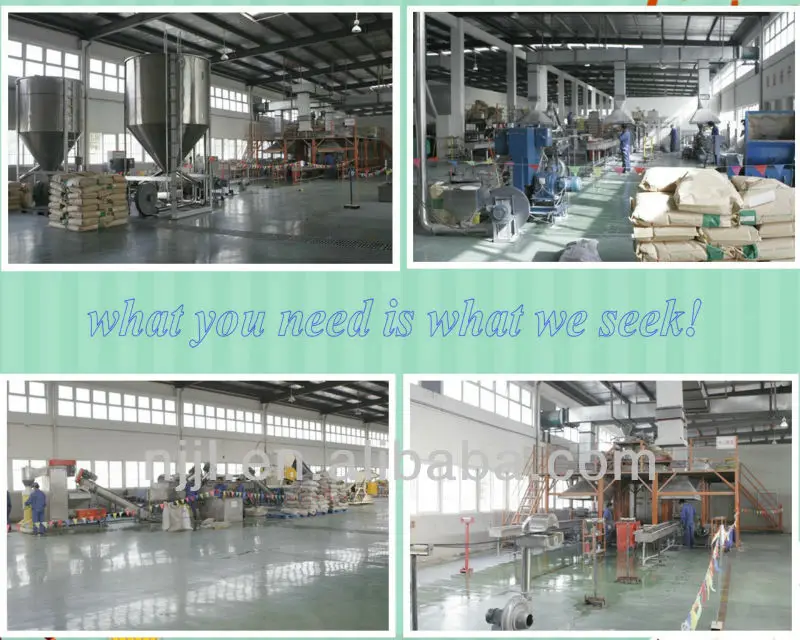

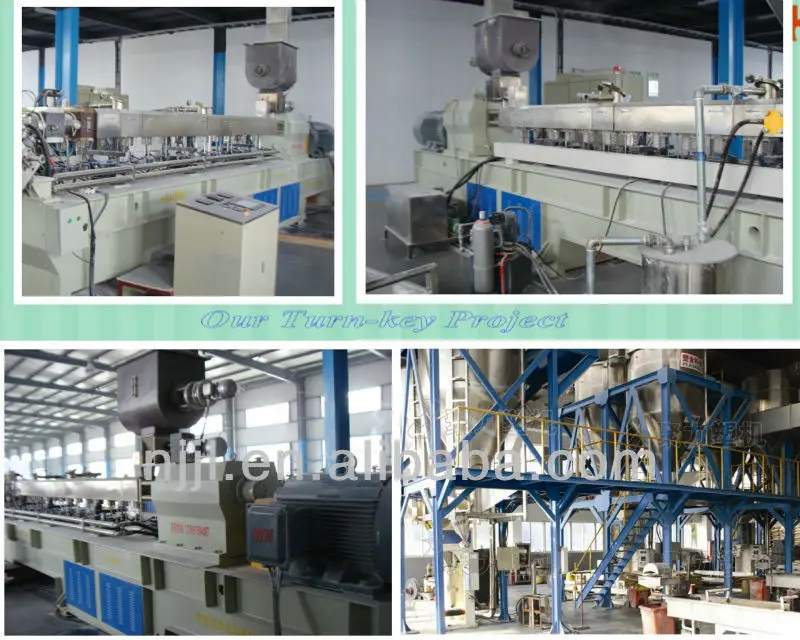

4. At customer factory

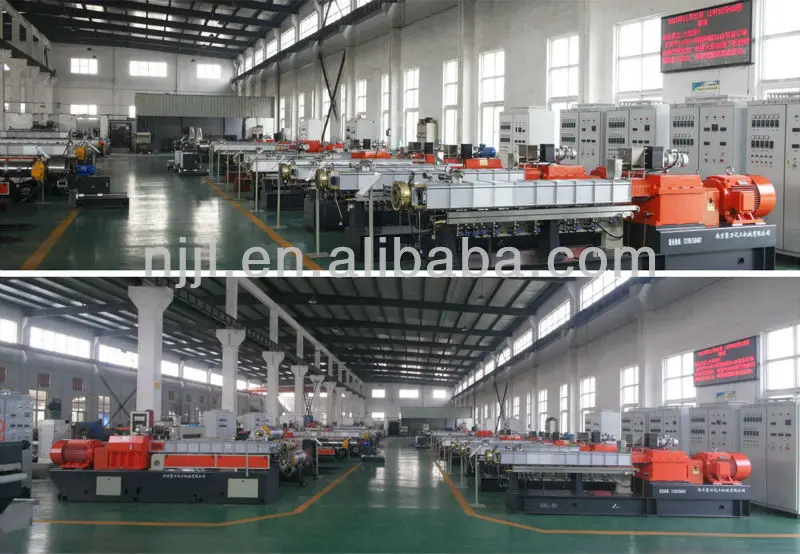

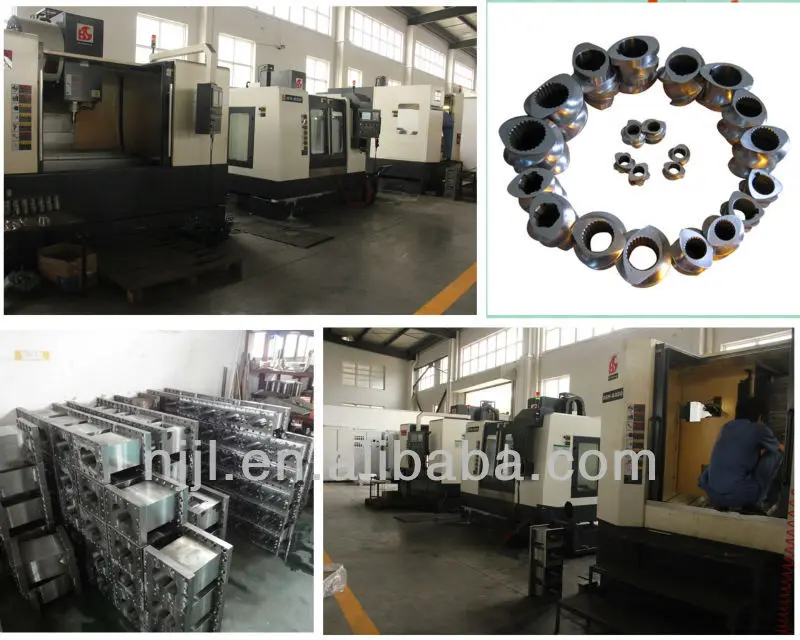

5. CNC and Quality Control
6. Certificates:
7. Contact me
8. Commercial Term
l Negotiation
- About formula, machine configuration, price (payment term), delivery term, service term
- Lab extruder available for testing
l During fabrication
- Machine layout drawing
- Processing status
l After-sale
- Installation, debugging and training service
- Long-term technical support
