3 inch serial 128X64 Monochrome lcd panel JHD12864 G45BSW G

Product Overview

Description

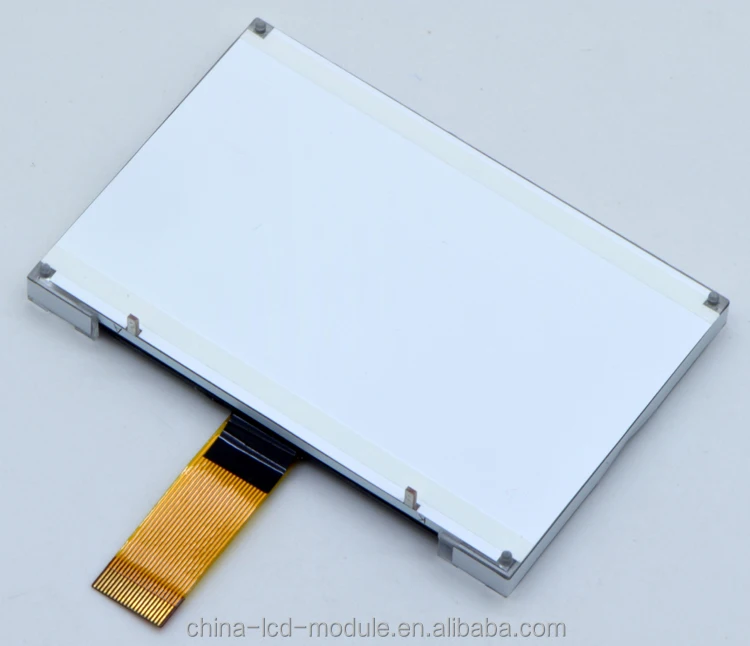

  3 inch serial 128X64 Monochrome lcd panel JHD12864-G45BSW-G

Packaging and Delivery:



1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.

2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.



Specifications:

1- 3 inch serial 128X64 Monochrome lcd panel

2-High Contrast

3-High Resolution

4-Interface: serial

5-Backlight replaceable



3 inch serial 128X64 Monochrome lcd panel is elaborated as follows:



Advantages:

1. Backlight Replaceable

2. WLED backlight, with led driver

3. LVDS, MCU

4. Wide view angle

5. High Quality

6. Produced in our own factory

7. Reasonable Price



Main Parameters
Item	3 inch serial 128X64 Monochrome lcd panel
Model name	JHD12864-G45BSW-G
Color	gray with black character
Pixel	8192
Resolution	128*64
Contrast Ratio	300:1
Brightness	White BL
Outline Dimension	71.0(W)X48.0 (H)X5.0(T)mm
Viewing Area	66.5(W)X 38.00(H)mm
Active Area	60.78(W)X 32.94(H)mm
Resolution	128*64
Dots	128*64
Pitch	0.37mm
Drive Power Supply Voltage	3.0V/3.3V
Viewing Angle	6.00 o'clock
Operation Temperature	-20°C ~ +70°C
Storage Temperature	-30°C~ +80°C
Display Mode	FSTN, positive, gray with black character
FPC Lenght	40mm plug-in
Response Time	100ms
IC	ST7565R
IC Packaging	COG

Back Light

white  LED (three)

     According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd,  we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.

Main Application
Telecommunication Devices	Telephone, Interphone, watch, radio, etc.
Home Appliances	Washing Machine, Refrigerator, Home Integrator
Industrial Control	Homotaxial Numerically-controlled machine tool
Instrument and Apparatus	Tester, Medical instruments
Vehical-mounted Digital	MP3, MP4 and vehical-mounted air conditioner
Mining	Mine's lamp charger, gas tester
Marine	Salinity tester

ODM is accepted.

Various LCD Display Mode Available

Various Backlight Color Available

Various Temperature Range Available



Product Range

1) TN, STN, FSTN LCD panels / modules

2) Customized LCD panels / modules

3) Small(1.5 inch-7 inch)TFT LCD

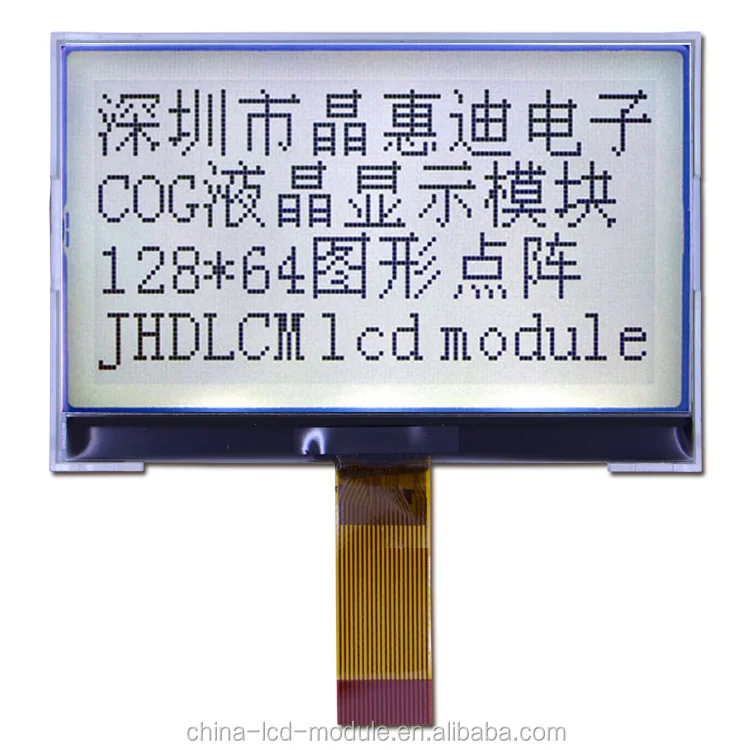

Product Showing:

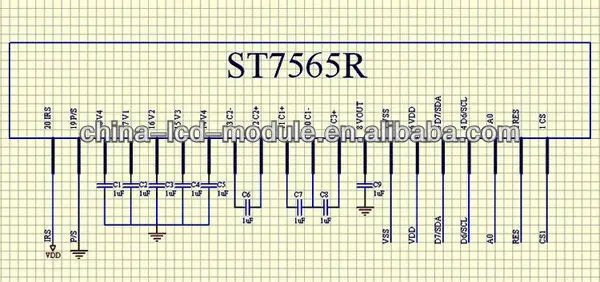

FPC Schematic Diagram(SCH):



Interface Table:

PIN	SYMBOL
20	IRS
19	P/S
18	V0
17	V1
16	V2
15	V3
14	V4
13	CAP2-
12	CAP2+
11	CAP1+
10	CAP1-
9	CAP3+
8	VOUT
7	VSS
6	VDD
5	D7/SDA
4	D6/SCL
3	A0
2	RST
1	CS



3 inch serial 128X64 Monochrome lcd panel JHD12864-G45BSW-G  Production Procedures in Our Plant:











Payment Terms:  T/T, L/C etc.

Shipping: Any shipping way you can choose, UPS/ FEDEX/ DHL/ EMS.

PS: the shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.



FSTN LCD Module list:

Size	FSTN Display Part No.	Back Light	Interface	Resolution	Pixels	Contrast Ratio
1.5"	JHD12864-G152BTB-G	2 blue leds	SPI 12PIN 0.8mm PIN gap	128X64	8192	300:1
1.5"	JHD12864-G152BTC-G	2 Orange LEDs	SPI 12PIN 0.8mm PIN gap	128X64	8192	300:1
1.5"	JHD12864-G152BTW-B	2 White LEDs	SPI 12PIN 0.8mm PIN gap	128X64	8192	200:1
1.5"	JHD12864-G152BTW-BL	2 White LEDs	SPI 12PIN 0.8mm PIN gap	128X64	8192	300:1
1.5"	JHD12864-G152BTW-Y	2 White LEDs	SPI 12PIN 0.8mm PIN gap	128X64	8192	200:1
1.5"	JHD12864-G152BTW-BW	2 White LEDs	SPI 12PIN 0.8mm PIN gap	128X64	8192	200:1

 Packaging Details:
