Automatic Alcohol Bottling Filling Machines

Product Overview

Description

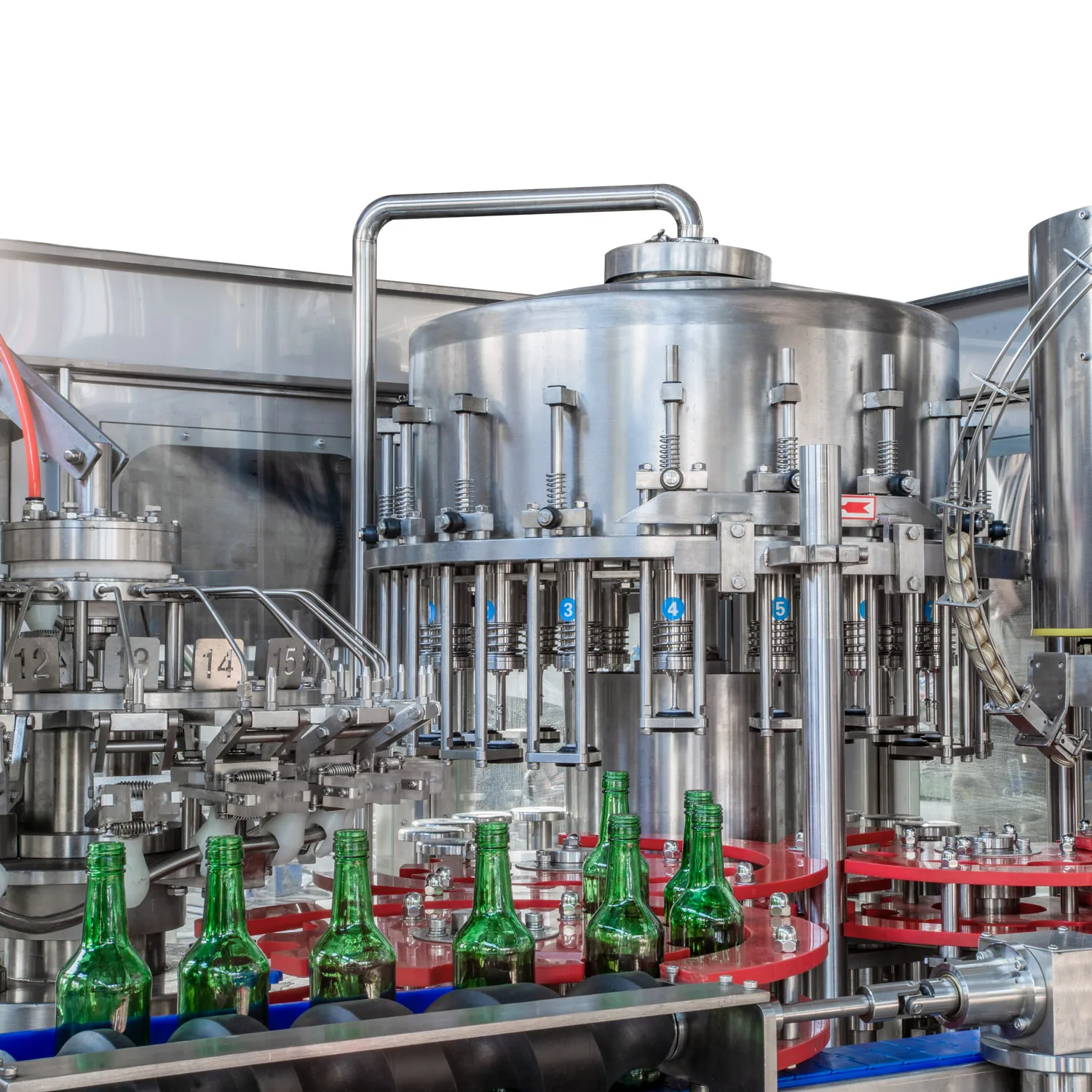

Alcohol Bottling Filling Machine





It is used for filling carbonated drink in PET bottles or glass bottles. We can supply the whole line.



Characteristics:



1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology



3. Advanced programmable PLC is equipped to control the main machine.

4. Working speed can be adjusted by frequency conversion device.

5. Main electronic components are all from famous international enterprises



Main Technical Specifications:

Model:	JCGF14-12-5	JCGF18-18-6	JCGF24-24-8	JCGF32-32-10
Production Capacity:500ml	3000	6000	9000	12000
Suitable Bottle Standard:	round or square shaped bottle.
Polyester Bottle Standard: (mm)	Bottle Diameter:50-100   (Height):150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision:	≤±5mm
Filling Pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Filling Pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Power:(KW)	3.5	4	6	8
Overall Size:(mm)	2450×1800×2350	2780×2200×2350	3600×2650×2350	3800×2950×2400
Total Weight: (kg)	3500	4500	5500	6500



 Product show
