Малый трубонарезной станок

Product Overview

Description

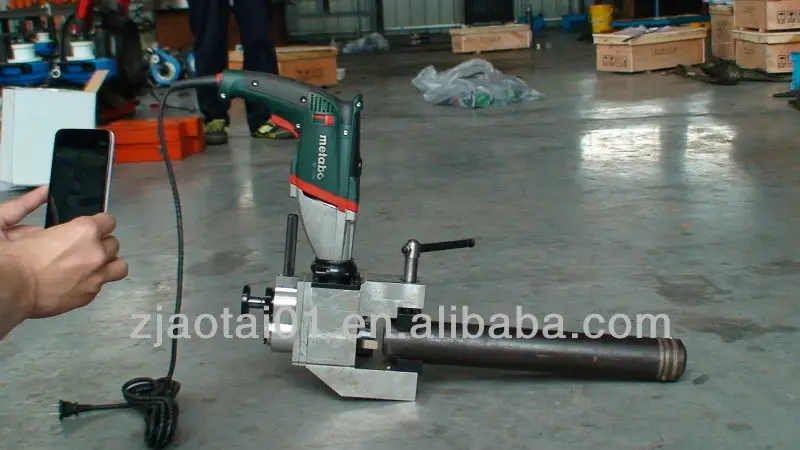

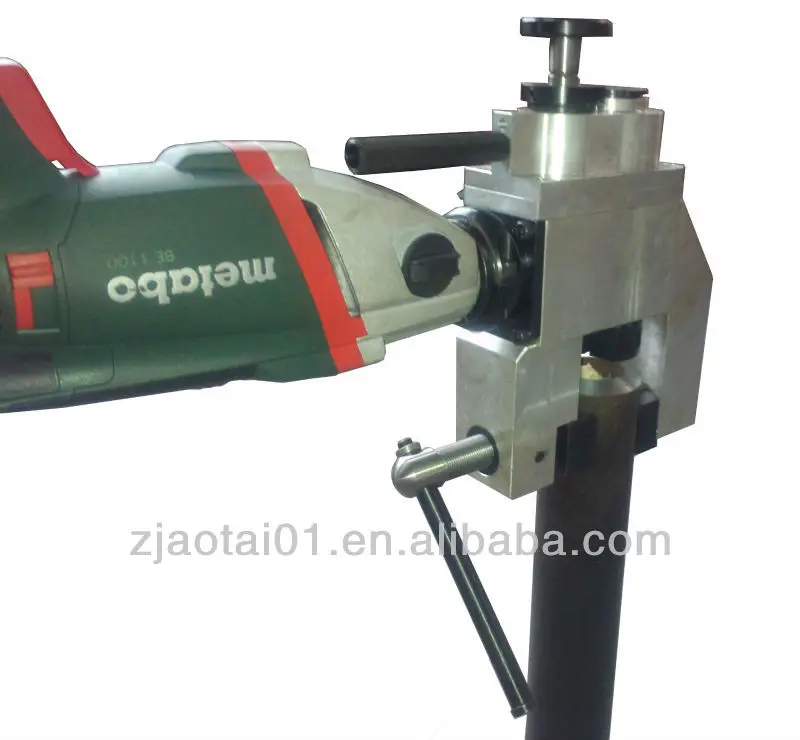

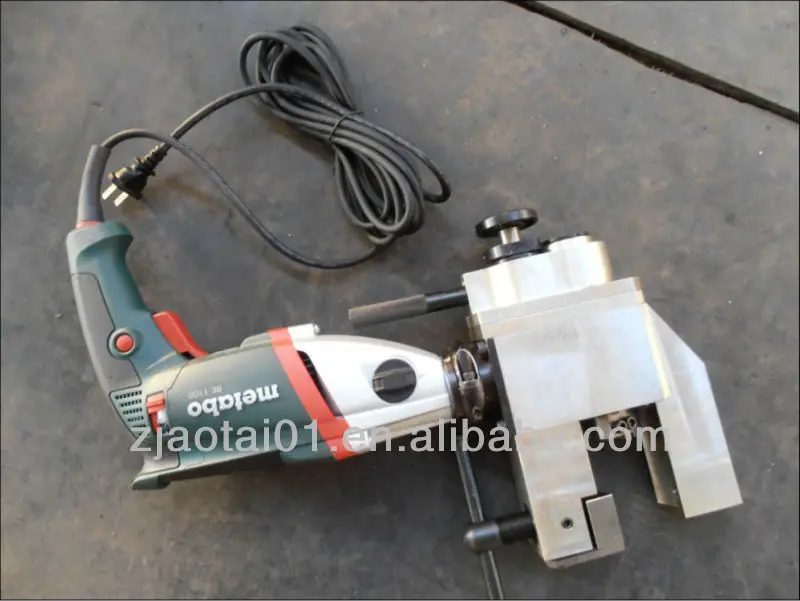

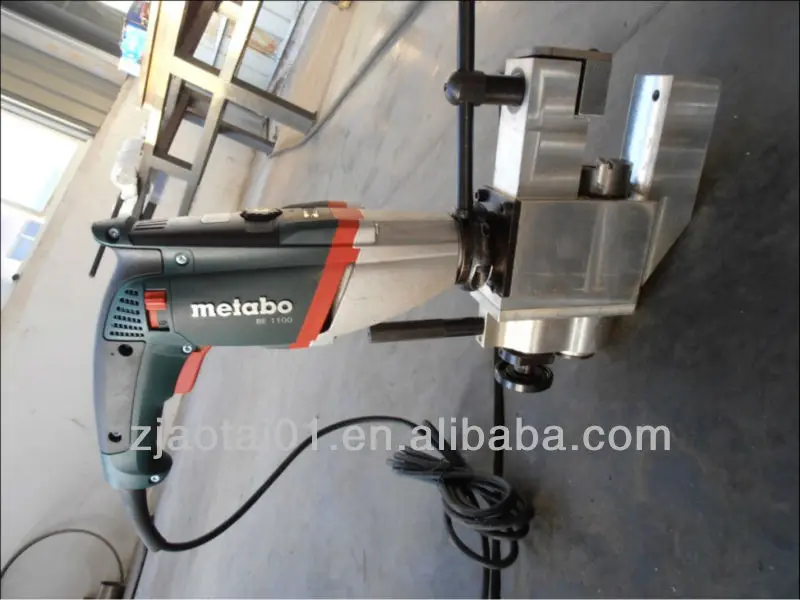

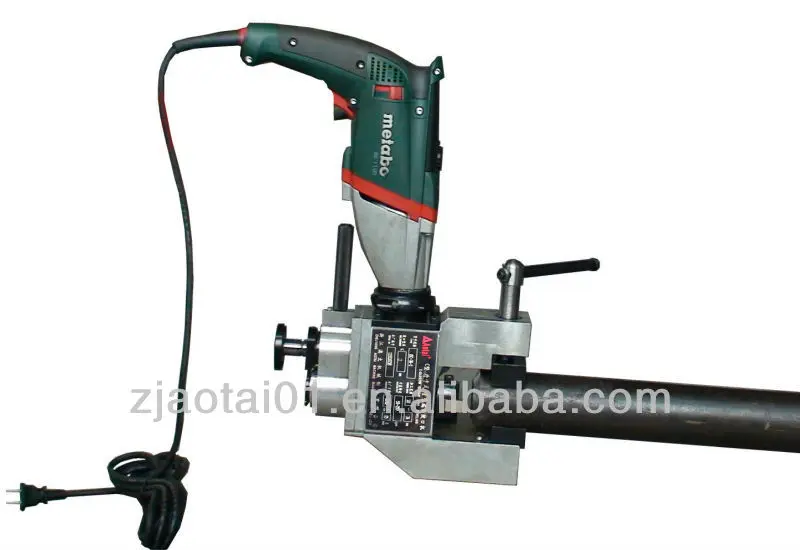

C-II Automatic Feed Pipe Beveling Machine



Patent No.: 201230008927.1



Main Characteristic:

This machine is designed for pipe end beveling of small diameter, pipe out-mounted compact installation. It is used in pipe end beveling process of professional equipments and on-site overhaul, e.g. water cooled wall, overheater, reheater, fuel economizer, boiler and fire thermo electricity, etc. It meets the requirement of process: narrow space of on-site repair and large scale of repairing.



High-quality beveling tool which can process different grades of carbon steel, alloy steel, stainless steel, and other materials of metal pipes.

Outside caliper is fixed in proper position, simple and light, precise centering, steady mount and convenient to operate.

It is equipped with exclusive motor made by Germany Metabo Company, with excellent performance and durable use.



Driven Type: Electrical

Feeding Type: Automatic



Electric model

Adopts exclusive motor to drive, Voltage 220V, Frequency 50-60Hz, Power 1.1KW.



Technical Parameter:

Electric Model	Pneumatic Model	Working Range (O.D. mm)	Wall Thickness (mm)	Rotating Rate (rpm)
ISC-53-II	No	Φ8-53	≤12	0-285
ISC-76-II	No	Φ25-76	≤12	0-285
