Self lubricated Bronze Brass Plain Bearing Brass Motor Bushings

Product Overview

Description



Self-lubricated Bronze Brass Plain Bearing Brass Motor Bushings



Specifications

Self-lubricated Bronze Brass Plain Bearing Brass Motor Bushings

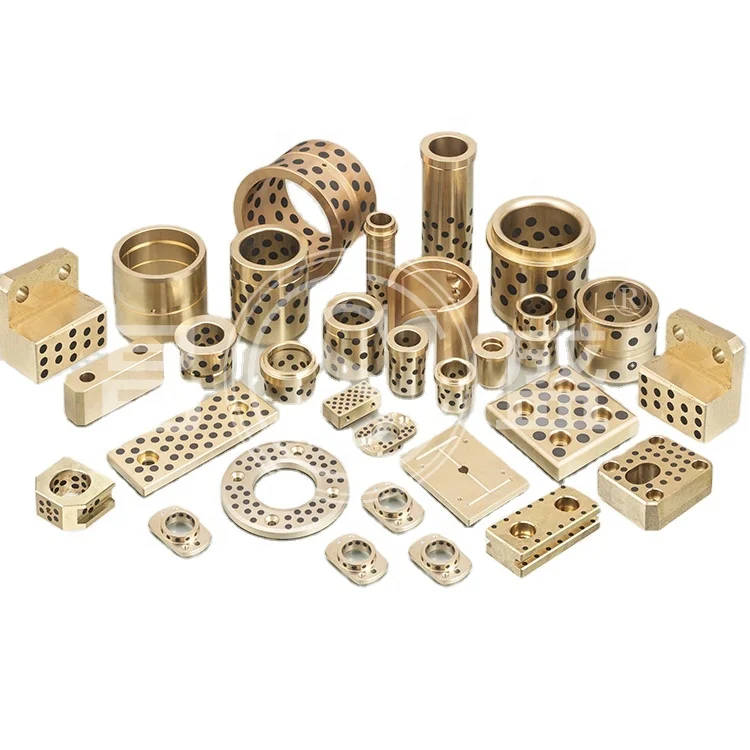

Producing all kinds of oilless bearings
Good quality,competitive price, fast delivery





• Introduction

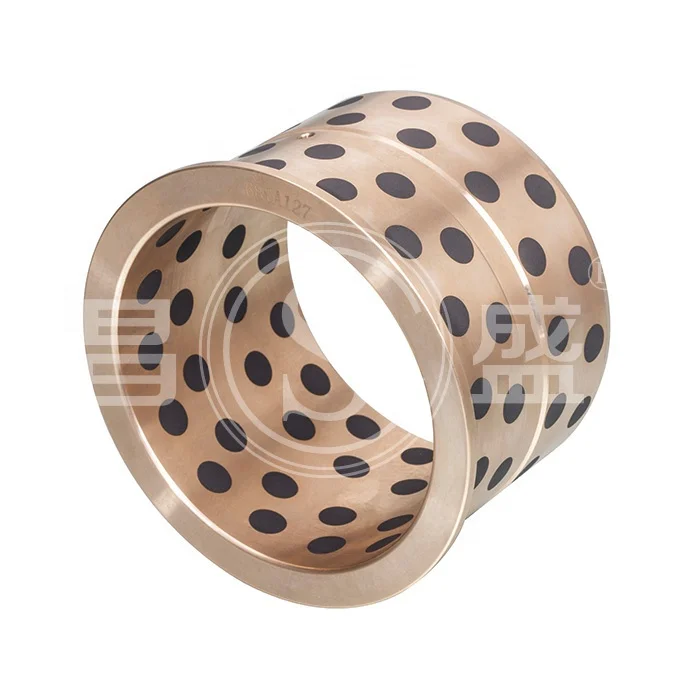

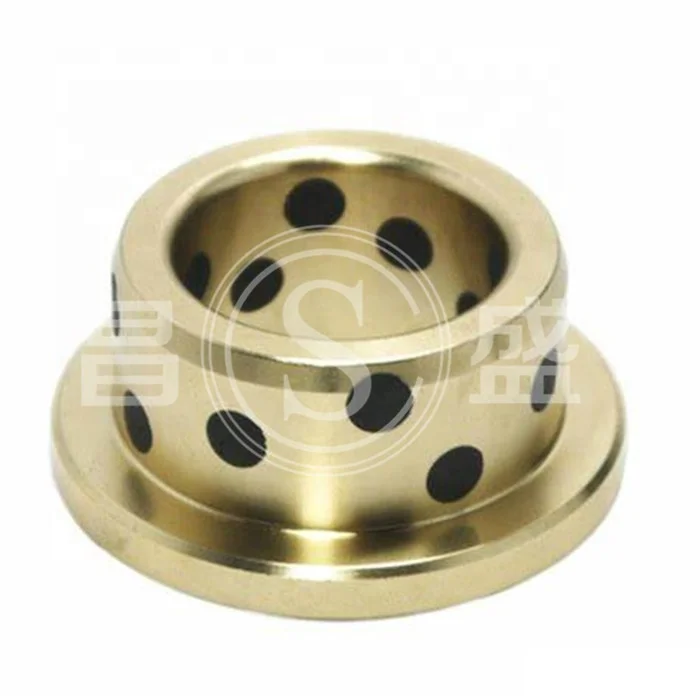

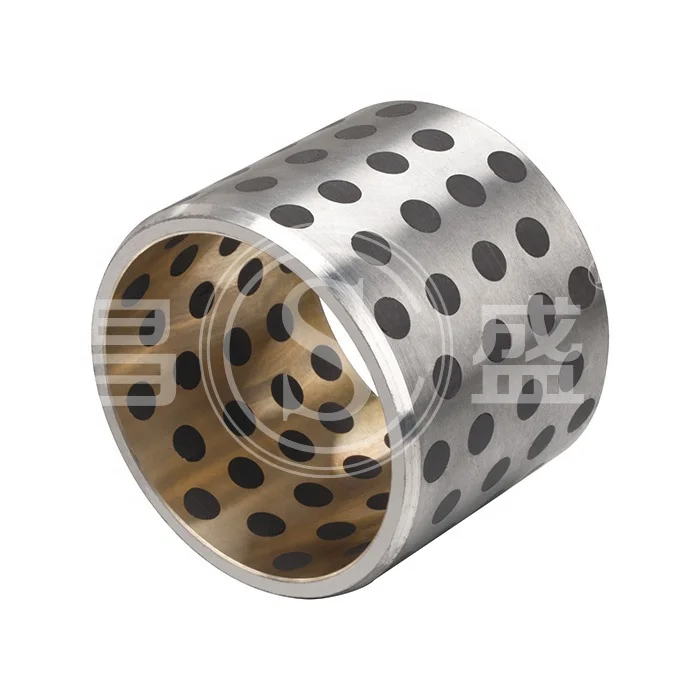

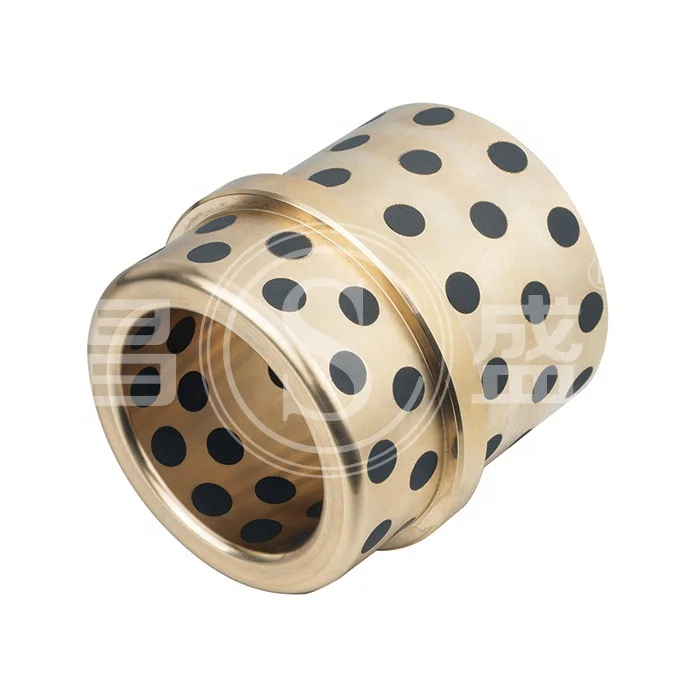

Self-lubricated Bronze Brass Plain Bearing Brass Motor Bushings are made of strong cast brass with graphite lubricating. The base brass can withstand high load and the solid lubricants will provide self-lubricating when using.



Self-lubricated Bronze Brass Plain Bearing Brass Motor Bushings are widely used in machinery industry, such as casting machine, mining machinery, shipping, steam turbine, etc.



• Features:

1. Without pre-lubrication required

2. Able to working under extreme high/low temperature with low speed



• Specifications:

Material	Bronze	CuZn25Al6Fe3Mn3 + Graphite
	Iron	Cast-iron + Graphite
Density		8.2g/cm3
Tensile Strength		>=755N/mm2
Anti-compact Tenacity		>=400~500KJ/m3
Hardness		>=200HB
Max Load Pressure		100N/mm2
Speed Limit		0.5m/s
PV value limit		1.65N/mm2.m/s
Friction coef	Oil Lubrication	0.03
	Dry Friction	0.16
Working temperature		-40~+300°C
