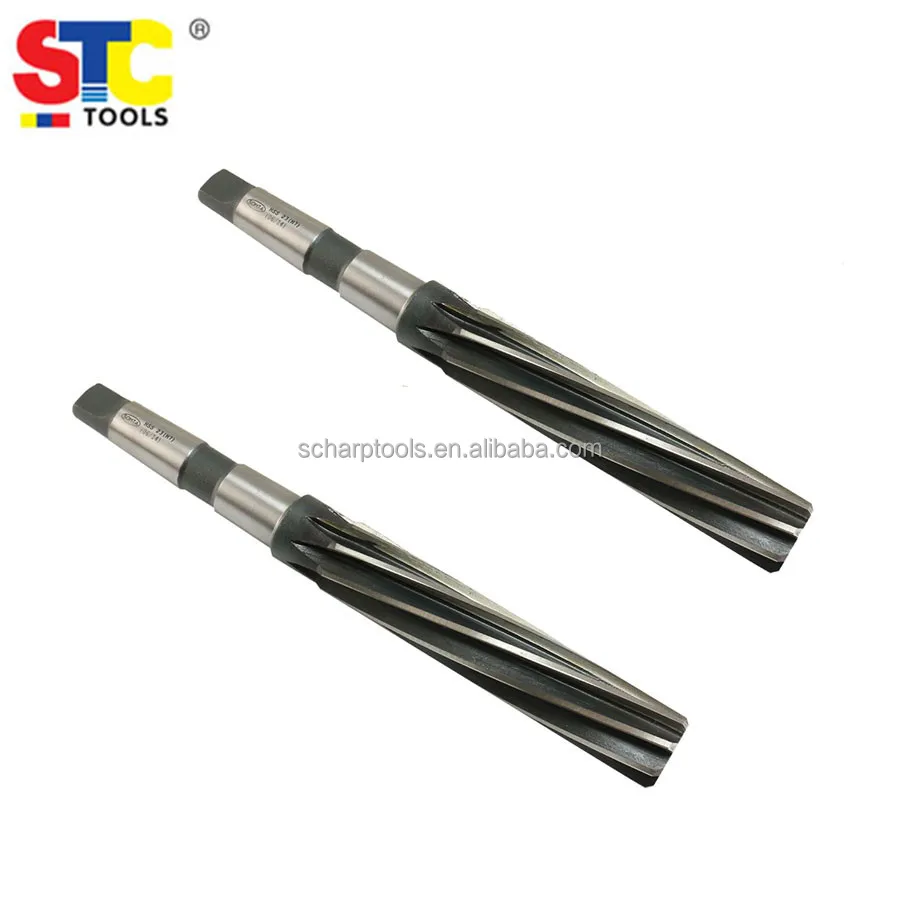

HSS Morse Taper Shank Machine Reamer
- Category: >>>
- Supplier: Zhenjiang Scharp Machinery Tools Co. Ltd.
Share on (1265656087):
Product Overview
Description
HSS Morse Taper Shank Machine Reamer
- High speed steel, HSSCobalt
- tolerance H7.
- DIN208
|
Size |
Flute |
Overall |
Shank |
|
(mm) |
Length |
Length |
Taper |
|
|
(mm) |
(mm) |
|
|
5 |
23 |
133 |
MT1 |
|
6 |
26 |
138 |
MT1 |
|
7 |
31 |
150 |
MT1 |
|
8 |
33 |
156 |
MT1 |
|
9 |
36 |
162 |
MT1 |
|
10 |
38 |
168 |
MT1 |
|
11 |
41 |
175 |
MT1 |
|
12 |
44 |
185 |
MT1 |
|
13 |
44 |
182 |
MT1 |
|
14 |
47 |
189 |
MT1 |
|
15 |
50 |
204 |
MT2 |
|
16 |
52 |
210 |
MT2 |
|
17 |
54 |
214 |
MT2 |
|
18 |
56 |
219 |
MT2 |
|
19 |
58 |
223 |
MT2 |
|
20 |
60 |
228 |
MT2 |
|
21 |
62 |
232 |
MT2 |
|
22 |
64 |
237 |
MT2 |
|
23 |
66 |
241 |
MT2 |
|
24 |
68 |
268 |
MT3 |
|
25 |
68 |
268 |
MT3 |
|
26 |
70 |
273 |
MT3 |
|
27 |
71 |
277 |
MT3 |
|
28 |
71 |
277 |
MT3 |
|
29 |
73 |
281 |
MT3 |
|
30 |
73 |
281 |
MT3 |
|
31 |
75 |
285 |
MT3 |
|
32 |
77 |
317 |
MT4 |
|
33 |
77 |
317 |
MT4 |
|
34 |
78 |
321 |
MT4 |
|
35 |
78 |
321 |
MT4 |
|
36 |
79 |
325 |
MT4 |
|
37 |
79 |
325 |
MT4 |
|
38 |
81 |
329 |
MT4 |
|
40 |
81 |
329 |
MT4 |
