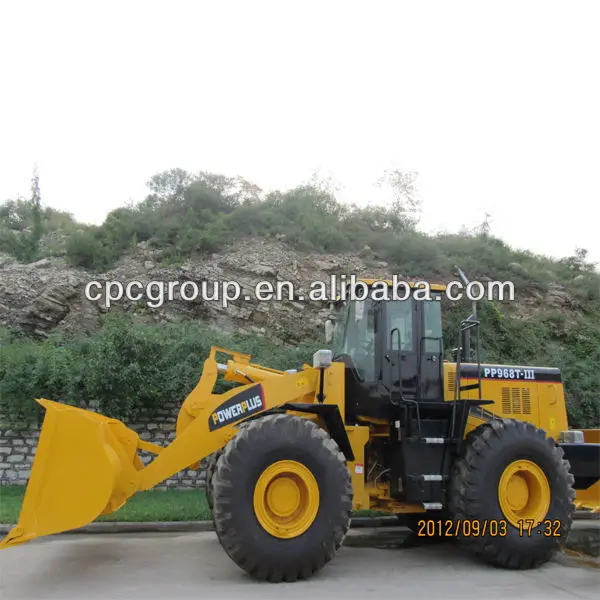

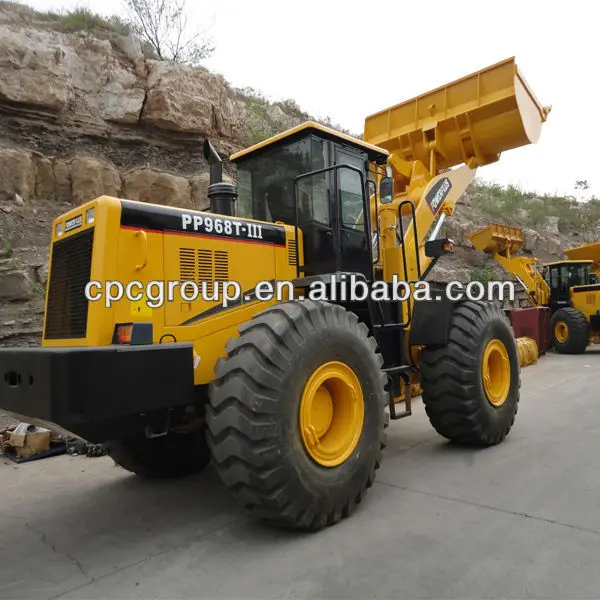

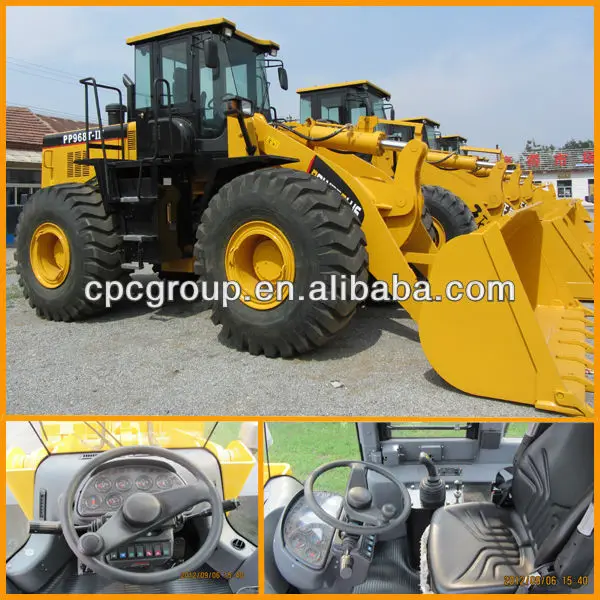

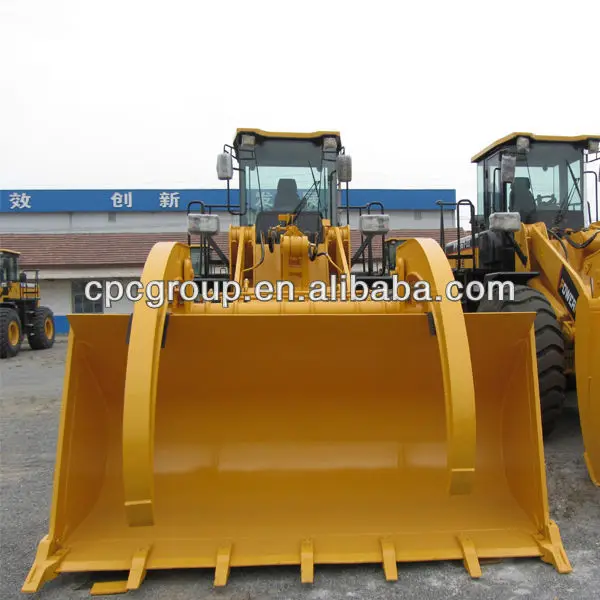

6 ton 968 Front end loader bucket capacity 3.5cbm

Performance

1

rated load

6000kg

2

overall weight

17900kg

3

rated bucket capacity

3.5m 3

4

maximum tractive force

152KN

5

maximum breakout force

≥ 170KN

6

maximum grade ability

30 °C

7

maximum dump height

3150mm

8

maximum dump reach

1250mm

9

overall dimension (L × W × H)

7920 × 3050 × 3400mm

10

minimum turning radius

6640mm

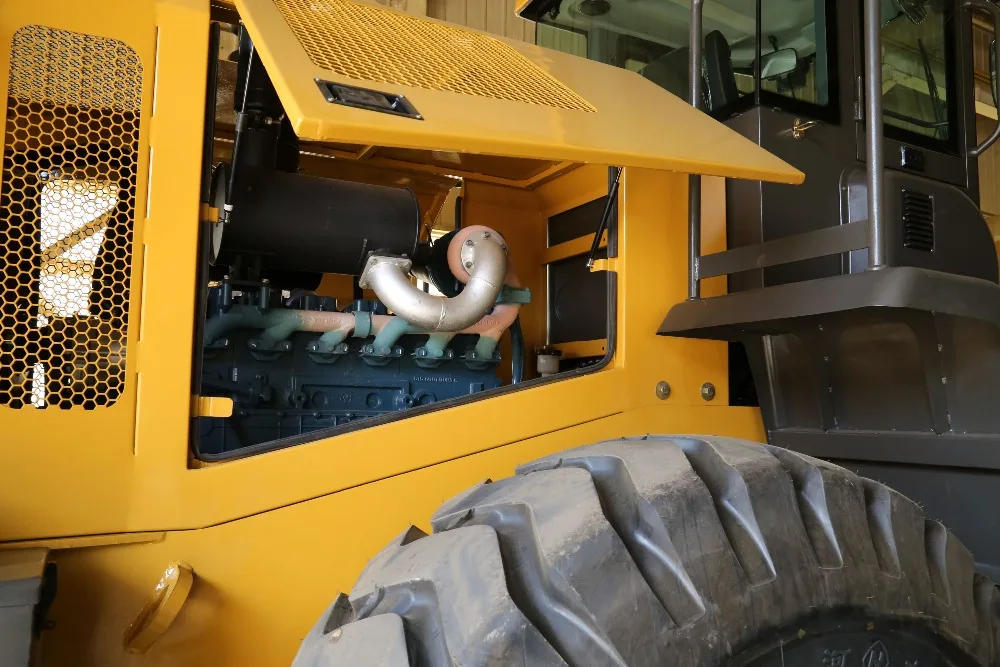

Engine

11

model

Weichai Steyr WD615

12

type

lnline water cooling dry cylinder injection

13

No. of cylinder-bore/stroke

6 - 126 × 130mm

14

rated power

175kw--2400r/min

15

maximum torque

860N.m

16

min fuel-consume ratio

≤ 215g/kw.h

Transmission system

17

torque converter

YJ375

18

gearbox mode ( WG180 )

Power shift normally engaged straight gear

19

gear shift

4 forward shift

8/15/23 /38

4reverse shift

8/15/23 /38

20

maximum speed

38km/h

Drive axles

21

main reducing spiral

bevel gear grade 1reduction

22

decelerating mode

planetary reduction,grade 1

23

wheel base (mm)

3200mm

24

wheel tread

2250mm

25

minimum ground clearance

450mm

Hydraulic system

26

system working pressure

18MPa

27

boom lifting time

5.95 ± 0.2s

28

total time

10.95 ± 0.5s

29

fuel tank capacity

300L

30

function of leveling automatically

yes

Brake system

31

service brake

air over hydraulic disc brake on 4 wheels

32

parking brake

manual parking brake

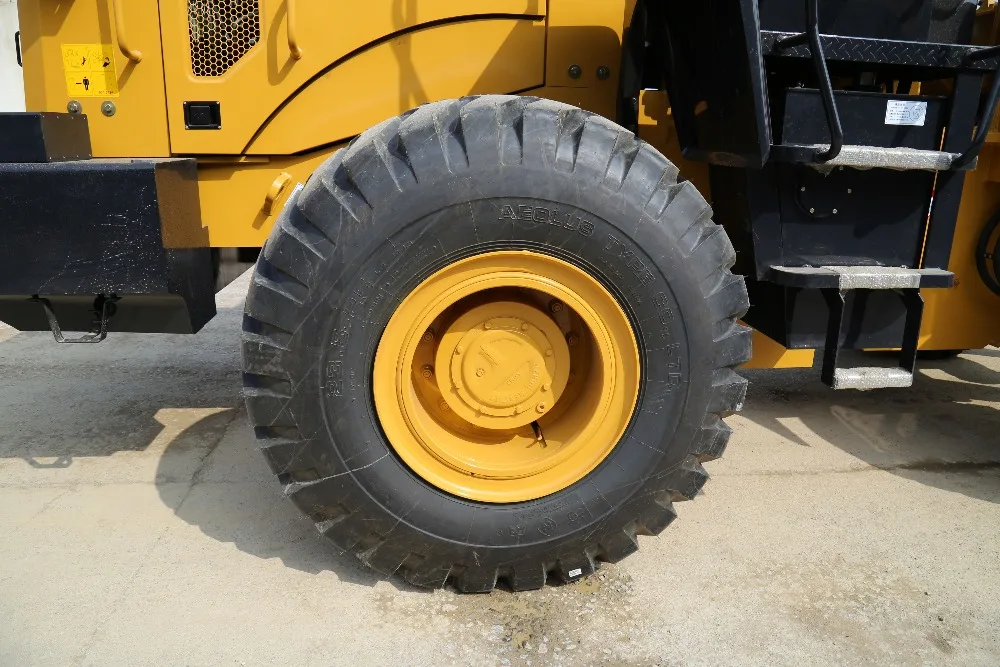

Tyre

33

type specification

26.5-25

34

front tyre pressure

0.4Mpa

35

rear tyre pressure

0.35Mpa
