function of table pc POS WAL 1000 Omni directional 3D Laser Barcode QR bar code Reader Scanner data collector USB

Product Overview

Description

WAL-1000 Omni-directional 1D Laser Barcode Scanner,Barcode Reader  ,QR code Scanner,Data Collector USB RS232 Keyboard



Product Specification



Features
High-performance, 20-line rastering omni-directional scan pattern, increased productivity for novice and expert users, resulting in shorter checkout lines, better customer service
High-performance optics,delivers superior data capture, even on high density bar codes
Extra loud beeper,confirms positive decode feedback in noisy environments
Multiple onboard interfaces,flexible host connectivity protects your hardware investment
Universal cables,allows for easy replacement and/or upgrades
Built-in shock absorption,protects scan module assembly increasing durability
Flash memory,facilitates updates and customization of product in the field
Reads GS1DataBar (formerly RSS) Symbologies,compatibility with new symbology leverages your hardware investment
Application and Solution
Widely used in ATM, kiosk, lottery machine, supermarket, library, garment, medical, banks and communications.
	Power	Voltage Requirement	5V±10%
		Current Consumption	180mA@ 5.0V
		Laser Class	CDRH Class II,; IEC 60825-1:Class 2
		EMC	E En55022 B,FCC Part 15 Class B ,VCCI,BSMI
	Performance Characteristics	Light Source	650 nm visible laser diode(VLD)
		Depth of Field	0-206mm(UPC/EAN 100%,PCS=90%)
		Scan line	20
		Scan Pattern	5directions of scan field
		Scan rate	1200scans per second (omnidirectional);
		Resolution	5mil, Min. PCS value: 90%
		Print Contrast	30%UPC/EAN 100%
		Indicators	Two-color LED (blue, red)
		Beeper Operation	Programmable tone & volume
		System Interfaces	Keyboard, RS-232, HID USB
	Physical	Dimensions	180x 140x 102  mm( H x D x W )
		Weight	385g
		Cable length	2m
	Durability	Temperature	0°- 40°C/32°F - 104°F (operation) ,20°- 60°C/-4°F -140°F(storage)
		Humidity	5 - 90% (no dewing allowed)
		Ambient light immunity	Up to 2500 Lux(fluorescence)
		Drop Test	1m / 3.3 ft drop onto concrete surface

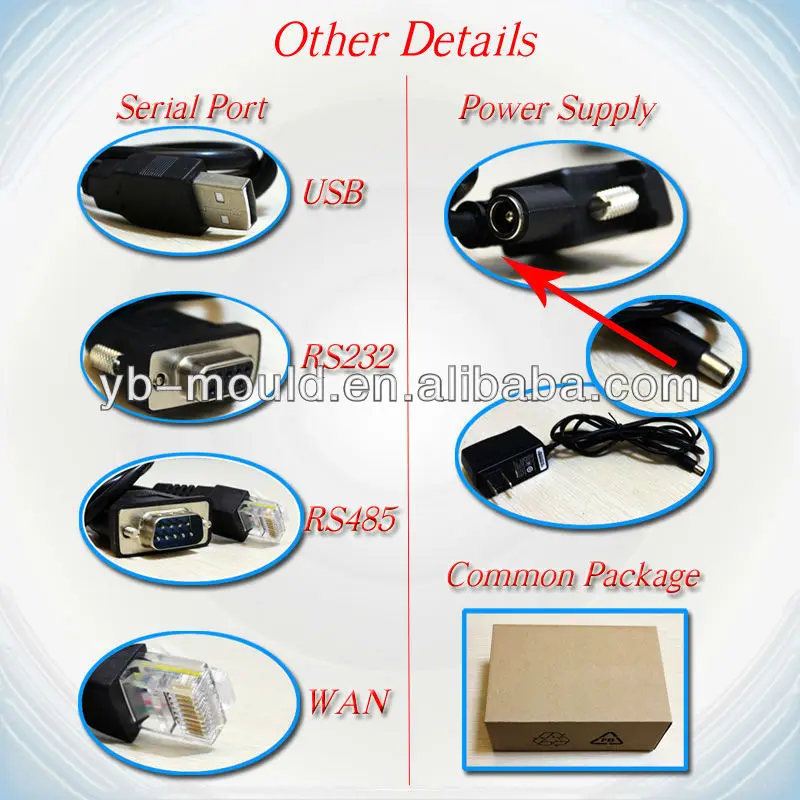

	Contain Accessories		Cable(USB,RS232,PS2), User Guide, DC Power Supply (RS232)
	Supported symbologies		UPC/EAN/JAN, UPC-A&UPC-E, EAN-8&EAN-13, JAN-8&JAN-13, ISBN/ISSN, Code 39(with full ASCII), Codabar(NW7), Code 128&EAN 128, Code 93, Interleaved 2 of 5(ITF), Addendum 2 of 5, IATA Code, China Postal Code, Code 32(Italian Pharmacode), MSI/Plessy,RSS 14, RSS Limited, RSS Expanded
	Depth of field

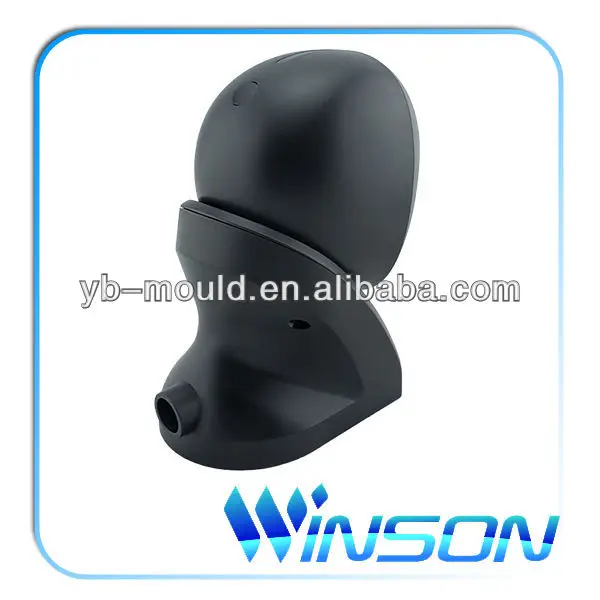

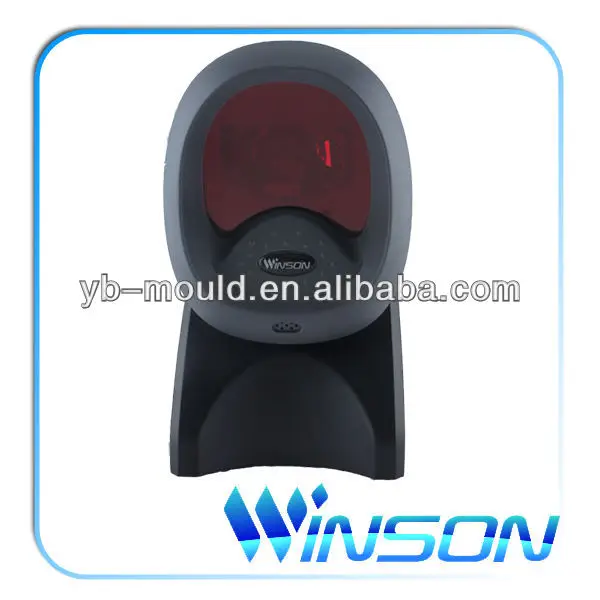

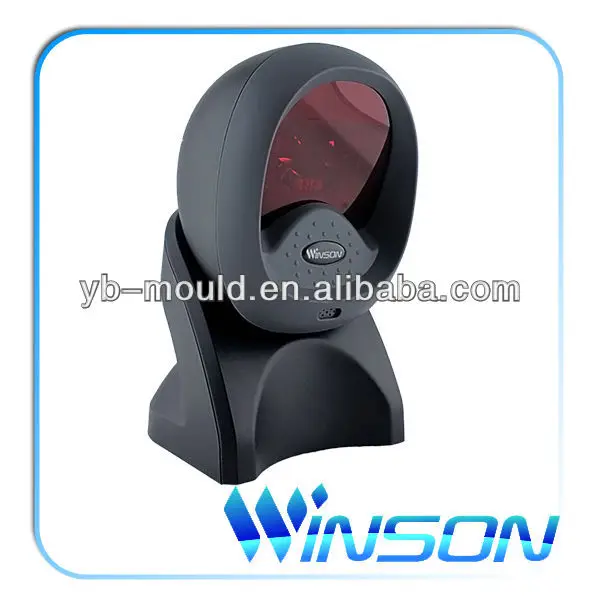

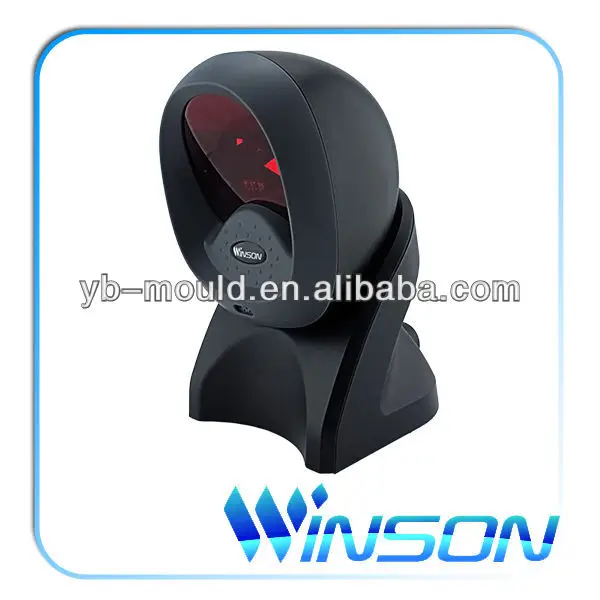

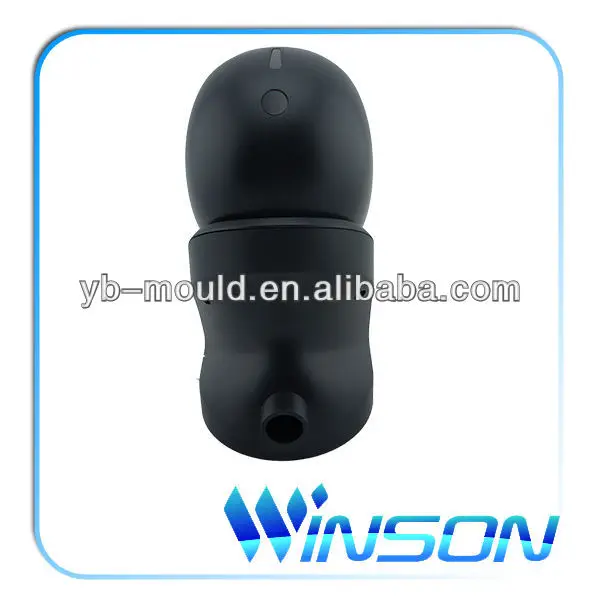

Product Display













Company Profile



      Guangzhou Winson Information Technology Co.,  Ltd. (Winson) is a prestigious high-tech company specializing in designing, developing and manufacturing barcode scan instruments including micro laser barcode scan engine,OEM scan module,embedded barcode scanner,fixed barcode scanner,high-speed industry laser barcode scanner,handheld barcode scanners, cordless barcode scanners, etc.



     Winson has set up a strong and stable R&D team, well-found services systems to deliver a wide variety of products.  Winson has always been a reliable business partner for customers from most of the provinces of China and most of the countries in Europe and South East Asia.



And our products of the data collector mainly include:

• 1D Laser Onmi-directional Laser QR Barcode Reader Scanner
• 1D Laser OEM Embedded QR Barcode Reader Scan Engine
• 1D Laser Fix-mounted Stationary QR Barcode Reader Scanner
• 1D Laser Handheld QR Barcode Reader Scanner
• 2D OEM Embedded QR Barcode Reader Scan Engine
• 2D Fix-mounted Stationary QR Barcode Reader Scanner
• 2D Handheld QR Barcode Reader Scanner



     With years of experience in barcode scan technology industry area, Winson has achieved important success by enormous effort.  Winson has been qualified as "Software Company of Guangzhou", "Innovative and High-Tech Company of Guangzhou", and "National Innovative and High-Tech Company of China" .  Winson is accredited as “Outstanding National brand of Barcode Company” members by Chinese automotive ID authority.  Winson has successfully passed and well implemented the ISO9001:2000. The product lines are certified by CE, FCC ,RoHS and IEC etc.Of course if you need the barcode scanner solutions ,you shouldn`t miss us!
