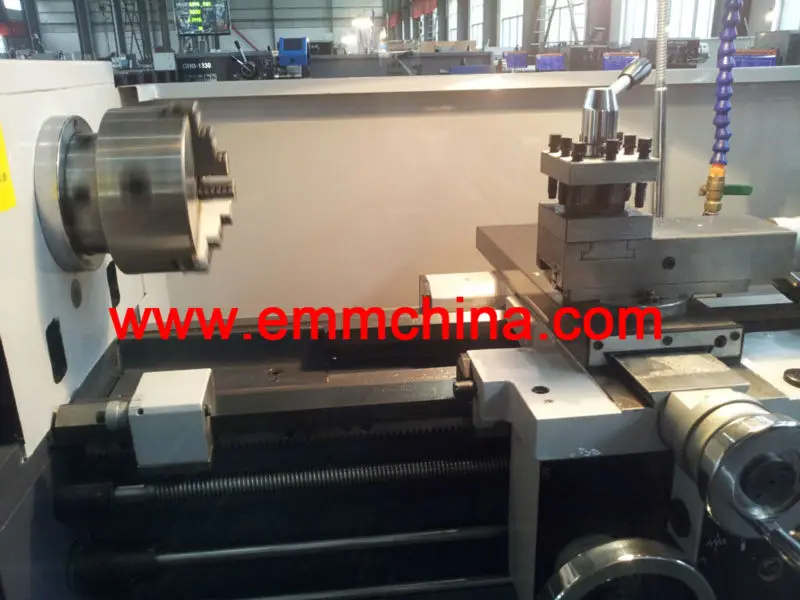

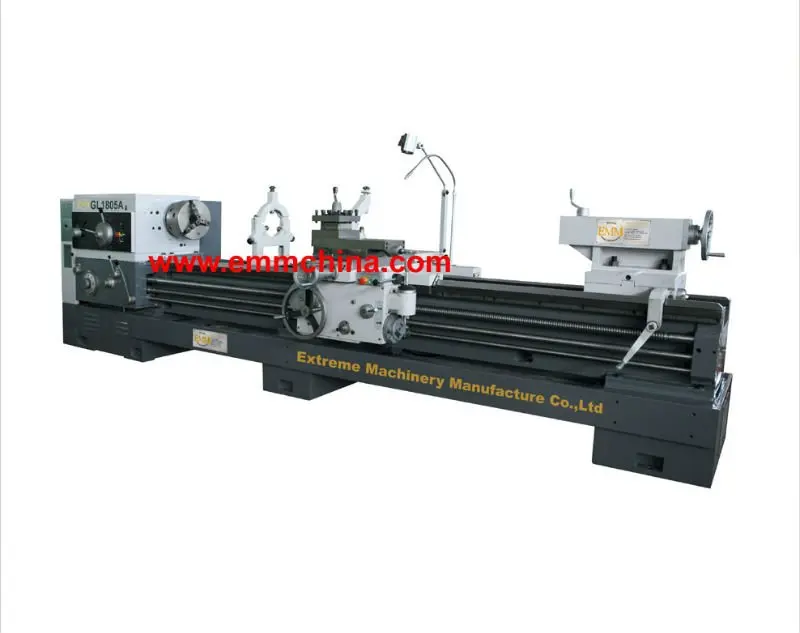

GL1806AG mini lathe mechanic bench /cutting for metal

Name: GL1806AG mini lathe mechanic bench /cutting for metal
SKU: 1268271349
Availability: InStock

Price:

Quantity:

GL1806AG mini lathe mechanic bench /cutting for metal Feature

1-Guide way surfaces and gears in headstock are supersonic frequency hardened for long service life and lower noise.

2-The spindle system is high in rigidity and accuracy.

3-Rapid feed system is available on apron.

4-Chuck in headstock makes the lathes start smoothly and brake quickly.

5-Gear grooves are available on bed to prevent tailstock from retreating.

Main specification

ITEM		UNIT	GL1806AG
Max. Swing diameter	Over bed	mm	φ800
	Over carriage	mm	φ520
	Over gap	mm	φ1000
Width of bed		mm	560
Effective length of gap		mm	310
Max. length of work piece (two centers)		mm	4000
Max. turned length		mm	3650
Max. weight of work piece between centers		kg	2000
Spindle	Spindle nose		D11
	Spindle bore		φ105
	Taper hole		Metric φ120 1:20
	Number of speeds		18
	Spindle speed scope	r/min	7.5-1000
Pitch of longitudinal ball screw/diameter		mm	12/φ55
Number of cross feeds			64
Range of longitudinal feeds(1:1)		r/min	0.1-1.52
Range of longitudinal feeds(1:16)		r/min	1.6-24.3
Number of Cross feeds			64
Range of cross feeds			half of longitudinal feeds
Rapid traverse	Longitudinal	mm/min	4000
Rapid traverse	Cross	mm/min	2000
Thread cutting& range/No.	Metric pitch threads		1-240mm/50
	Whit-worth threads		14-1 TPI/26
	Module threads		0.5-120mm/53
	D.P. threads		28-1DP/24
Vertical distance from spindle center to installing basis		mm	33
Size of tool shank		mm	32*32
Max. travel of cross slide		mm	440
Swing angle of tool post			90
Max. travel of top slide		mm	200
Tailstock sleeve	Taper of bore		M.T.NO. 6
	Max. traverse	mm	230
	External diameter	mm	φ100
Power of main motor		kw	11
Rapid feed motor power		kw	1.1
Coolant pump power		w	90
3m overall dimensions(LWH)		mm	627513931537
Net weight(3m)		kg	6000
