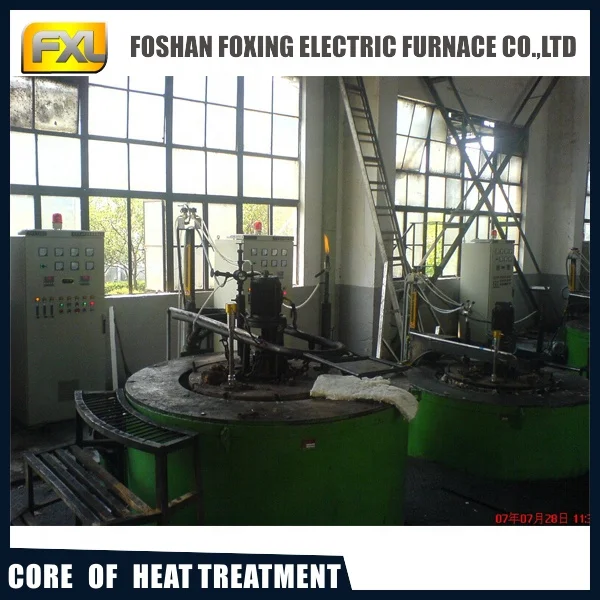

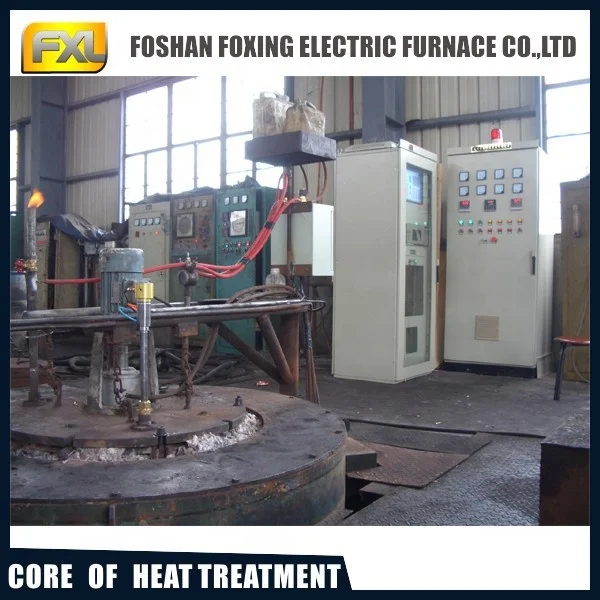

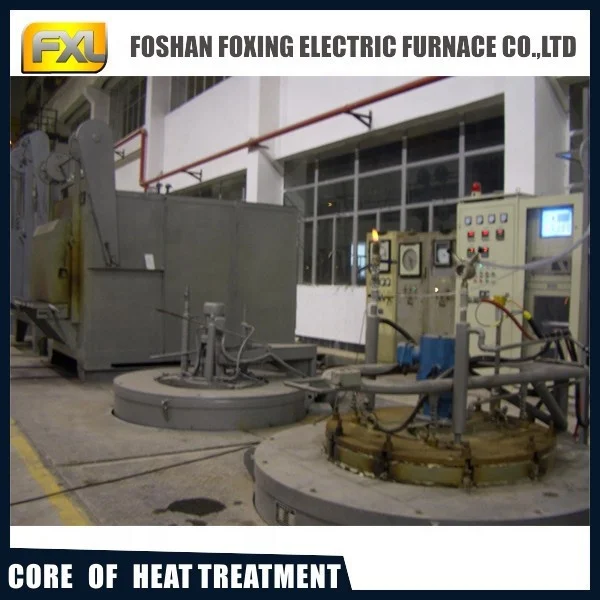

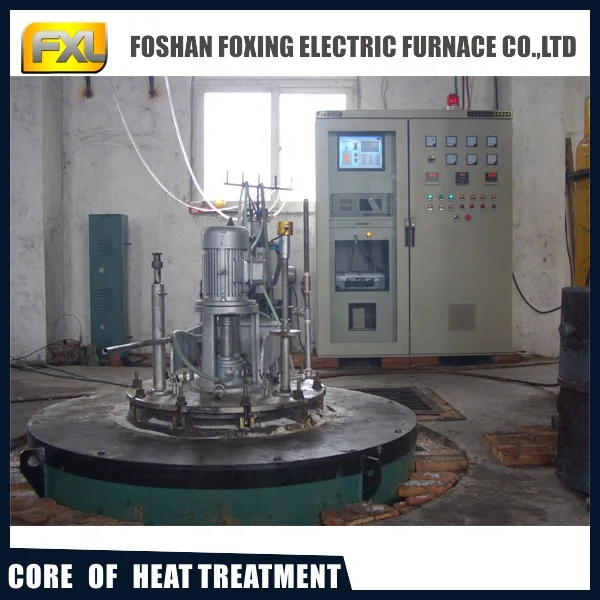

China suppliers aluminum extrusion dies nitriding furnace for extrusion dies

Product Overview

Description

China suppliers aluminum extrusion dies nitriding furnace for extrusion dies

1.Application:

This type furnace is a cycle operation furnace.It is suitable for gas nitriding and gas soft nitriding.(nitrocarburizing)

2.Main technical parameters

(1)rated power:30kw

(2)Voltage:380V/3phase

(3)Area of heating:2areas

(4)Rated temperature:850℃

(5)The size of furnace Chamber :450×1240mm

(6)The effective size of the Muffle tank: 450x 700mm

(7)Type of temperature control:Controlled by digital display instrument solid state relay.

(8)furnace temperature uniformity:±5℃

(9)The temperature of the furnace surface:≤50℃

(10)temperature display: the Muffle tank have temperature shown

model	(KW) Rated power	(℃)rated temperature	(V)rated voltage	phase	(mm) furnace pipe size((diameter×depth)	(mm) Usage depth of chamber
FXL-30-6	30	650	380	3	Φ450×1240	700
FXL-45-6	45	650	380	3	Φ650×1540	1000
FXL-60-6	60	650	380	3	Φ800×1540	1000
FXL-75-6	75	650	380	3	Φ1000×1540	1000
FXL-90-6	90	650	380	3	Φ1200×1740	1200
