L1324A semi automatic turning lathe /lathe machine for cutting metal
- Category: >>>
- Supplier: Extreme Machinery Manufacture Co. Ltd. (Jingjiang)
Share on (1268324784):
Product Overview
Description

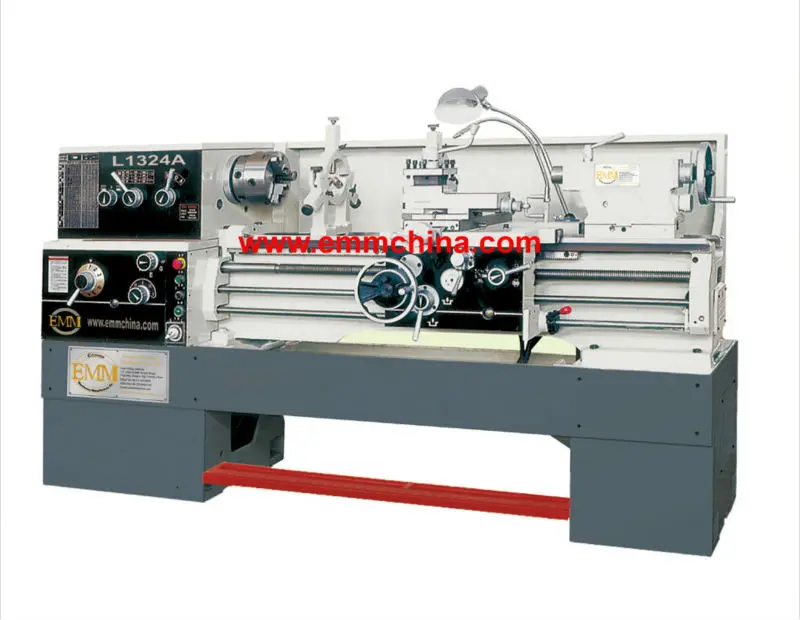

L1324A semi-automatic turning lathe /lathe machine for cutting metal
Feature
1-Hardened and grinded bed way and gears in headstock are with long life and low noise.
2-Spindle system is of high rigidity and precision.
3-The machine have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
4-An overload safety device is provided on the apron.
5-Has a pedal or an electromagnetic braking device.
Main specification
Model Item | L1324A | ||
Max. swing diameter | Over bed | mm | Ø350 |
Over carriage | mm | Ø185 | |
Max. length of workpiece | mm | 1000 | |
Spindle | Spindle bore | mm | Ø40orØ52 |
Taper of bore | M.T.No.5 or M.T.No.6 | ||
Number of speeds | 12 | ||
Range of speeds | r.p.m | 40-1800 | |
Thread cutting | Metric Range/No. | 0.5~20mm/24 | |
Whitworth Range/No. | 72~1-5/8t.p.i/61 | ||
D.P. Range/No. | 96~3-1/4D.p/45 | ||
Module Range/No. | 0.25~10M.P/20 | ||
Range of feeds | Longitudinal | mm | 0.04-2.46(0.0015"-0.0913") |
Cross | mm | 0.03-1.23(0.0006"-0.0365") | |
Tailstock sleeve | External diameter | mm | Ø60 |
Taper of bore | mm | M.T.No.4 | |
Max. traverse | mm | 120 | |
Max. travel of compound rest | mm | 100 | |
Max. cross slide travel | mm | 210 | |
Max. size of tool shank(W×H) | mm | 20×20 | |
Power of main motor(double speeds) | kw | 3/4 | |
Overall dimensions(L×W×H) | mm | 2360×1000×1200 | |
Net weight | kg | 1760 | |
