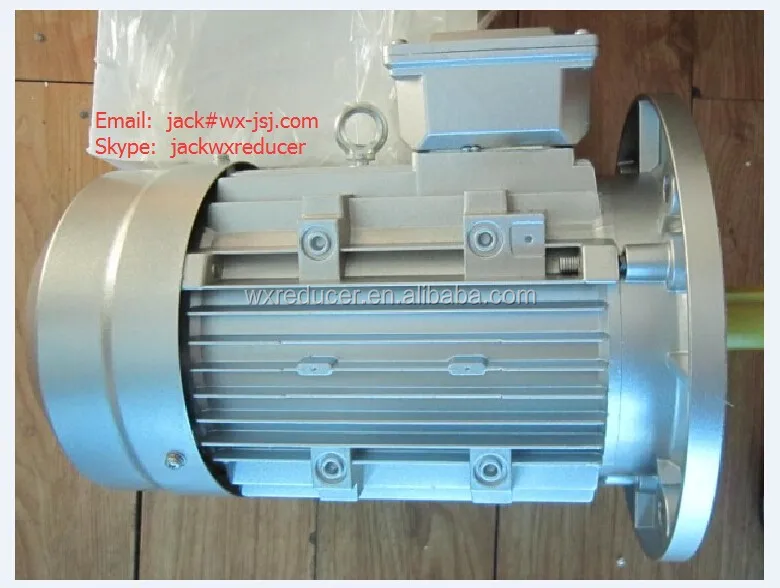

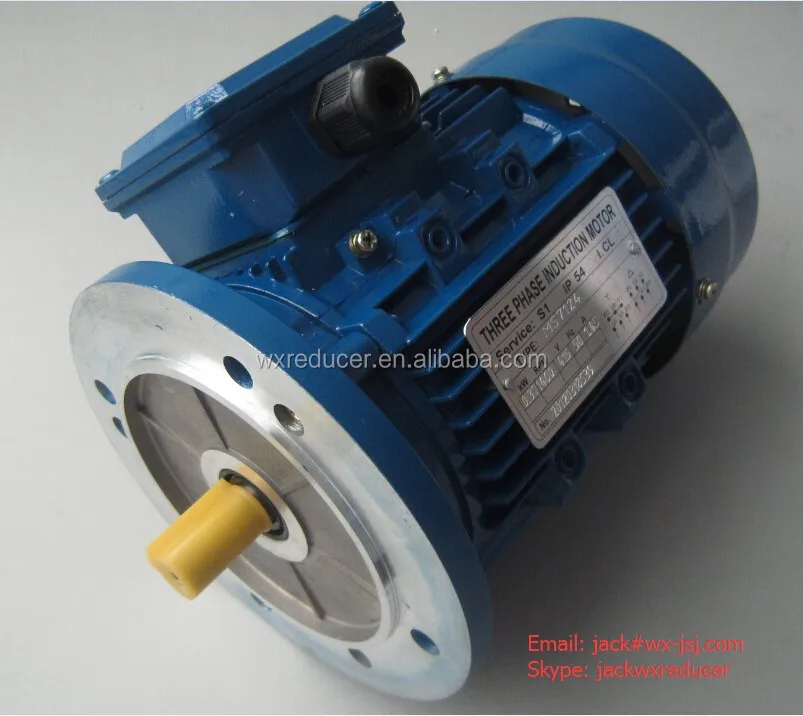

single phase/ three phase asynchronous motor / engines / 220V /380V

Product Overview

Description





We manufacture worm gearbox (RV), we can also supply very good motors, the motors are always the three phase motor and single phase motor, so, if you need motors, pls send requirement to me.







Kindly, if you need Gearbox, pls send the Model, Ratio and Quantity of the Gearbox to me, then, I will give you the best offer.

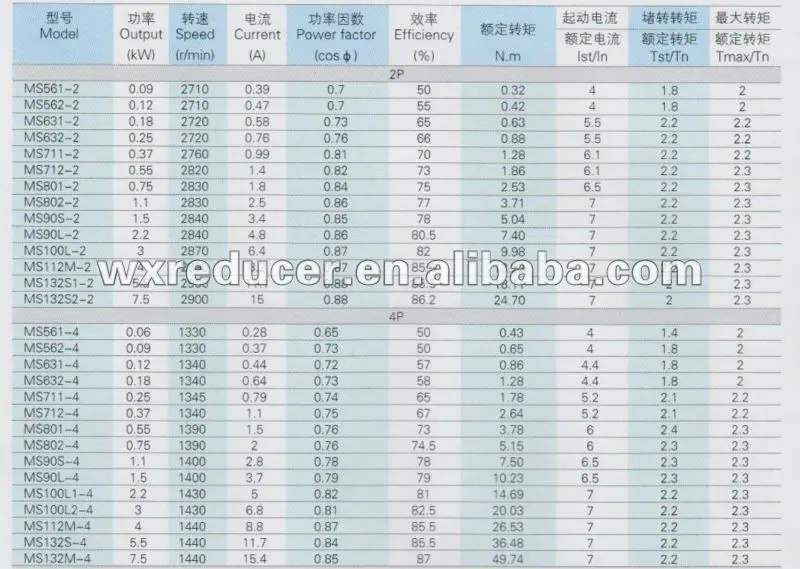

MS three phase motor, as following:

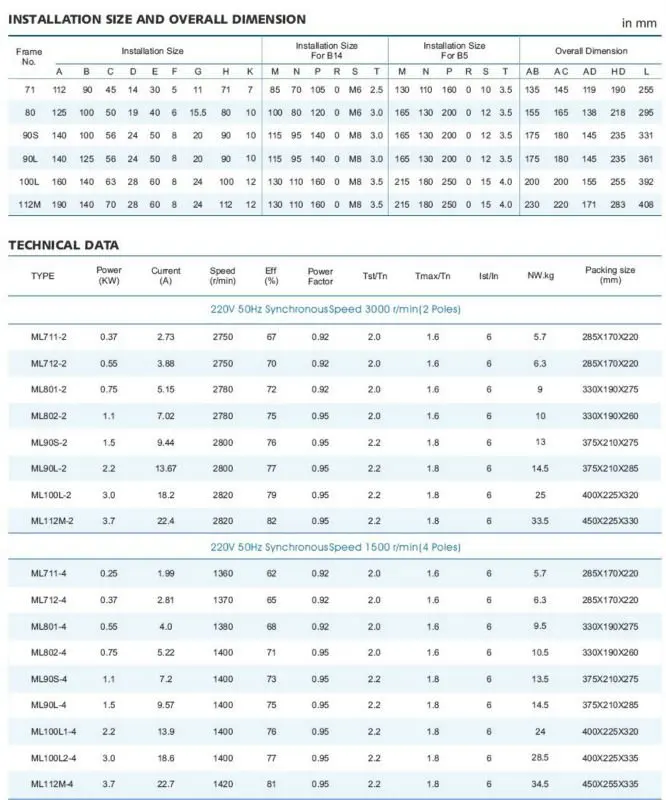

ML single phase motor, as following:

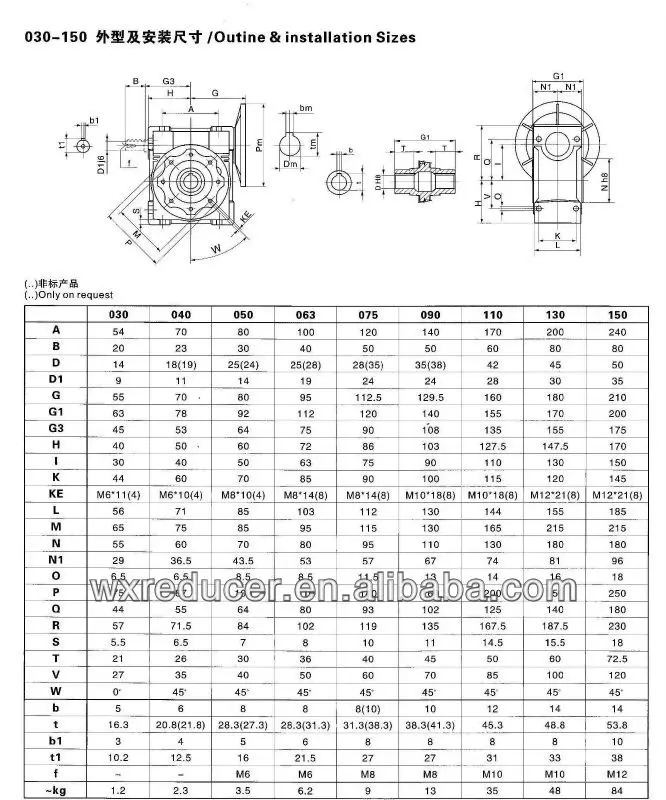

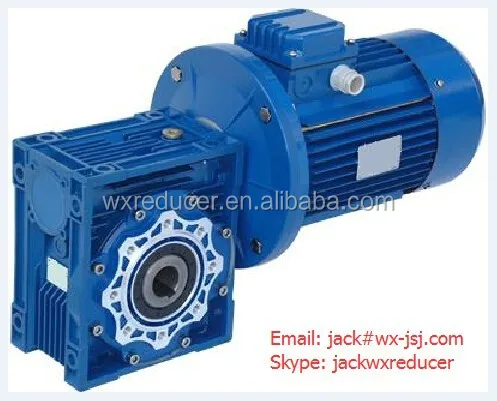

The details of RV Gearbox are as follows:

RV series worm gearbox:
1) High quality aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting and linking, high efficiency
5) Power: 0.06-7.5kW
6) Output torque: 1.8-1596N.m
7) Input speed: 1250-1500rpm;  Transmission rate: 5-100
8) Inner packing: carton; Outer packing: Plywood case
9) Model number: RV 030, 040, 050, 063, 075, 090, 110, 130

Material for RV gearbox:
Worm wheel: inner is nodular cast iron, outside is #9-4 bronze;
Worm shaft: 20 Chromium (Cr) steel (Carburizing);
Housing: aluminum with oven painting for RV030-090, cast iron for RV110-130;
Frame Color: silver or blue;

Gurantee year: One year.
