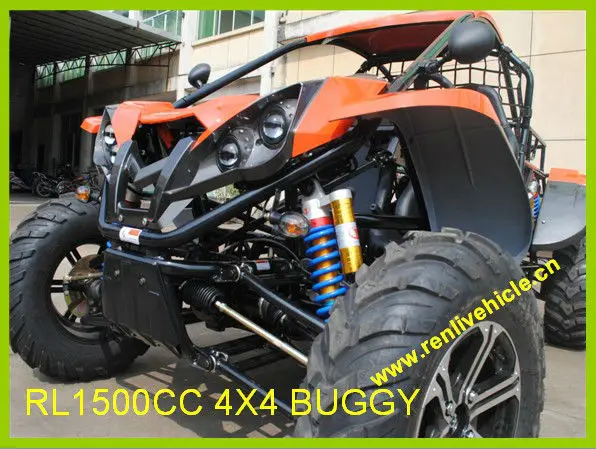

Regina buggy Chery go karting 1500cc

Product Overview

Description

Chery Engine 1500cc 4x4 Amazing dune buggy

                          Detailed  Specification







                                     DIMENSIONS



Overall Length--------------------------------------------------------------------------------------------------3140mm



Overall Width -------------------------------------------------------------------------------------------------- 1850mm



Overall Height ------------------------------------------------------------------------------------------------- 1580mm



Wheelbase --------------------------------------------------------------------------------------------------------2450mm



Front Track ------------------------------------------------------------------------------------------------------ 1375mm



Rear Track --------------------------------------------------------------------------------------------------------1570mm



Ground Clearance ------------------------------------------------------------------------------------------------310mm







                                               ENGINE



Type -------------------------------------------------------------------------------4 Cylinder,4-Strokes,water cooled



Bore x Stroke ---------------------------------------------------------------------------------------------77.4×79.52mm



Displacement ------------------------------------------------------------------------------------------------------1497mL



Compression ratio ------------------------------------------------------------------------------------------------10.5:1



Carburetor --------------------------------------------------------------------------------------- Electric Fuel Injection(EFI)



Max Power ------------------------------------------------------------------------------------------------80KW/6000rpm



Maximum Torque ------------------------------------------------------------------------------------140/3000Nm/r/min



Fule consumption----------------------------------------------------------------------------------------------6.2L/100km



Starting ----------------------------------------------------------------------------------------------------------- Electric



Ignition -------------------------------------------------------------------------------------------- Electric Fuel Injection



Lubrication -------------------------------------------------------------------------------------------- Force & Splash



Transmission ------------------------------------------------------------------------ Manual clutch, 5 shift/Reverse



Fuel type ------------------------------------------------------------------------------------------------ RQ93 (unleaded)



Engine oil ----------------------------------------------------------------------------------------------------- SAE-10W/30



Gear oil ----------------------------------------------------------------------------------------------------- GL-4 75W/90











                                             CAPACITIES



Maximum load -----------------------------------------------------------------------------------------------------250kg



Fuel tank --------------------------------------------------------------------------------------------------------------- 30L



Engine oil ---------------------------------------------------------------------------------------------------------------3.8L



Gear oil ------------------------------------------------------------------------------------------------------------------2.3L



Starting ----------------------------------------------------------------------------------------------------------------≤15s



Climbing -------------------------------------------------------------------------------------------------------------- ≥25°



Battery ------------------------------------------------------------------------------------------------------------ 12V36Ah



Head Light -------------------------------------------------------------------------------------------------- 12V 35W/ 5W



Redirector Light -------------------------------------------------------------------------------------------------- 12V 5W



Tail Light -----------------------------------------------------------------------------------------------------12V 21W/ 5W



Horn---------------------------------------------------------------------------------------------------------------------12V3A



Fuse ------------------------------------------------------------------------------------------------------------------------30A







                                               SPECIFICATIONS



Brake Track ----------------------------------------------------------------------------------------------- < 7m @40 km/h



Top speed ------------------------------------------------------------------ 115km/h (or limited as customers require)







                                                 CHASSIS



Front, Rear brake ----------------------------------------------------------------- Hydraulic disc, right foot control



Front tire -------------------------------------------------------------------------------------------------------- 205/70 R15



Rear tire --------------------------------------------------------------------------------------------------------- 205/70 R15



Front Suspension --------------------------------------------------------------------------- Independent Dual A-Arm



Rear Suspension ---------------------------------------------------------------------------- Independent Suspension



Final Drive --------------------------------------------------------------------------------------------------- shaft driven







                                        TIRE PRESSURE



Front ----------------------------------------------------------------------------------------------- 280kpa2.5kg/41psi



Rear ------------------------------------------------------------------------------------------------ 280kpa2.5kg/ 41psi







                                                   WEIGHT



Net Weight ----------------------------------------------------------------------------------------------------------------689kg



G.W -------------------------------------------------------------------------------------------------------------------------780kg



Container quantity---------------------------------------------------------------------------20GP:4Units. 40HQ:12Units



Carton dimiensions---------------------------------------------------------------------------2930 mm×1770mm×850mm







1.Renli 4x4 dune buggies/sand go kart must adapt all terrains such as mountain,shallow lake,grassland ,snowfield,mine ,marsh ,sand ,beach,lawn etc!
2.Most selectable colors :free ( lucky red, bright orange, beautiful black, shiny yellow, apple green, skyey blue, pure white, shining silver, lovely pink), extra money (forest camouflage, army green, follow one's inclinations combination)!
3.nice design,reasonable price,excellent quality,reliable engine,better service,your money paid must be worthy!
4.Excellent durable engine –Chery/QQ&CFMOTO/ChunFeng!less money spent,more profits got,own automobiles' enjoyable right now!
5.Relieve pressure, get close to nature ,enjoy beauty life!great way for fun!
6.Can most conventional autos used for hunting and climbing?We renlians made it! All buggies performance will beyond your imagination,push the envelope!just do it!
7.Maximum customized designs can be accepted!that cool & fantastic and eyecatching originalities all changed by you!
8.Renli is growing with your support!all OEM service and rebrand are okay!
9.strongest steel bars fixed inside package & durable carton covered outside to protect your buggies better!
10.Any comments are highly welcomed! Any interested heartbeat?Hurry up!call me!contact us! anytime!anywhere,anyone!!(Mr.Michael /Ms.Aries/Mr.Stone/Ms;Shu.etc)



Renli 1500cc amazing Auto power,Crazy Monster Chery 1.5L Engine,80KW,109HP,4x4,4WD,EFI,extraordinary speed—140-150km/h,93#Gasoline/Petrol/gas fueled,wonderful appearance,perfect design,innovative ideas,fantastic performance,top quality,reasonable price,better after service!driving our karts,enjoying your life!

2013 Latest model RL 1500CC 4X4 successfully created by Renli Vehicle!This excellent kart own fashional design,high performance,top quality, revolutionary change,an utility and multipurpose kart/buggy once tried,never forget!hi,my dear guys,hurry up!try and enjoy the great fun/racing/hunting/hiking/dune 1500cc kart/buggy!

A off road kart can match the Toyota autos at the speed of 150km/h!our dune buggy/go kart can jump from 2 meters high slope without effort!renli quality speak highly of our customers all along.we can follow clients to change sth,design,color,bumper,winch,cargo box```

we most attention to quality,wonderful /excellent appearance ,best quality and competitive price, high performance/price ratio!
